Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

45 part groups · 16 illustrations

Illustrations

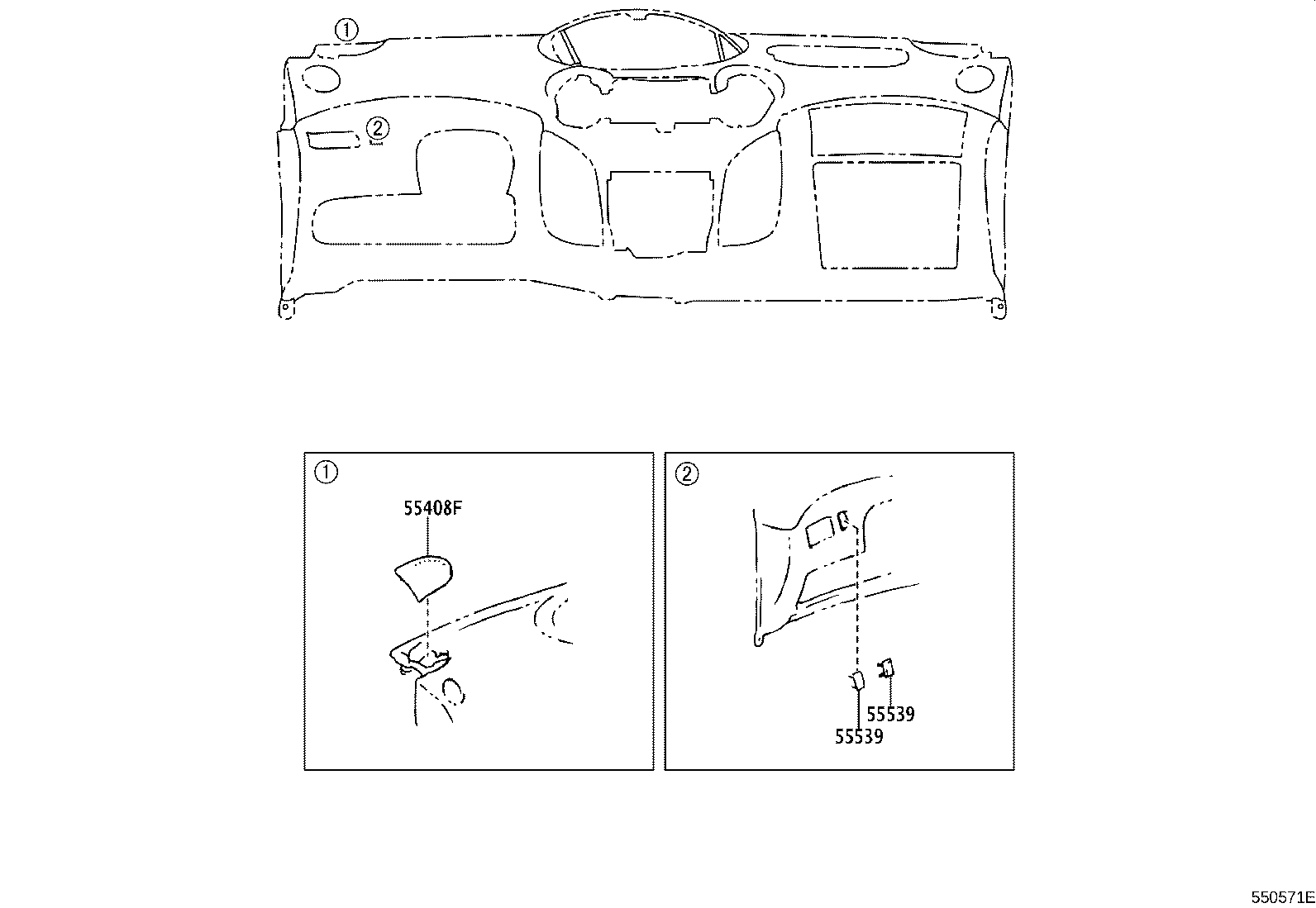

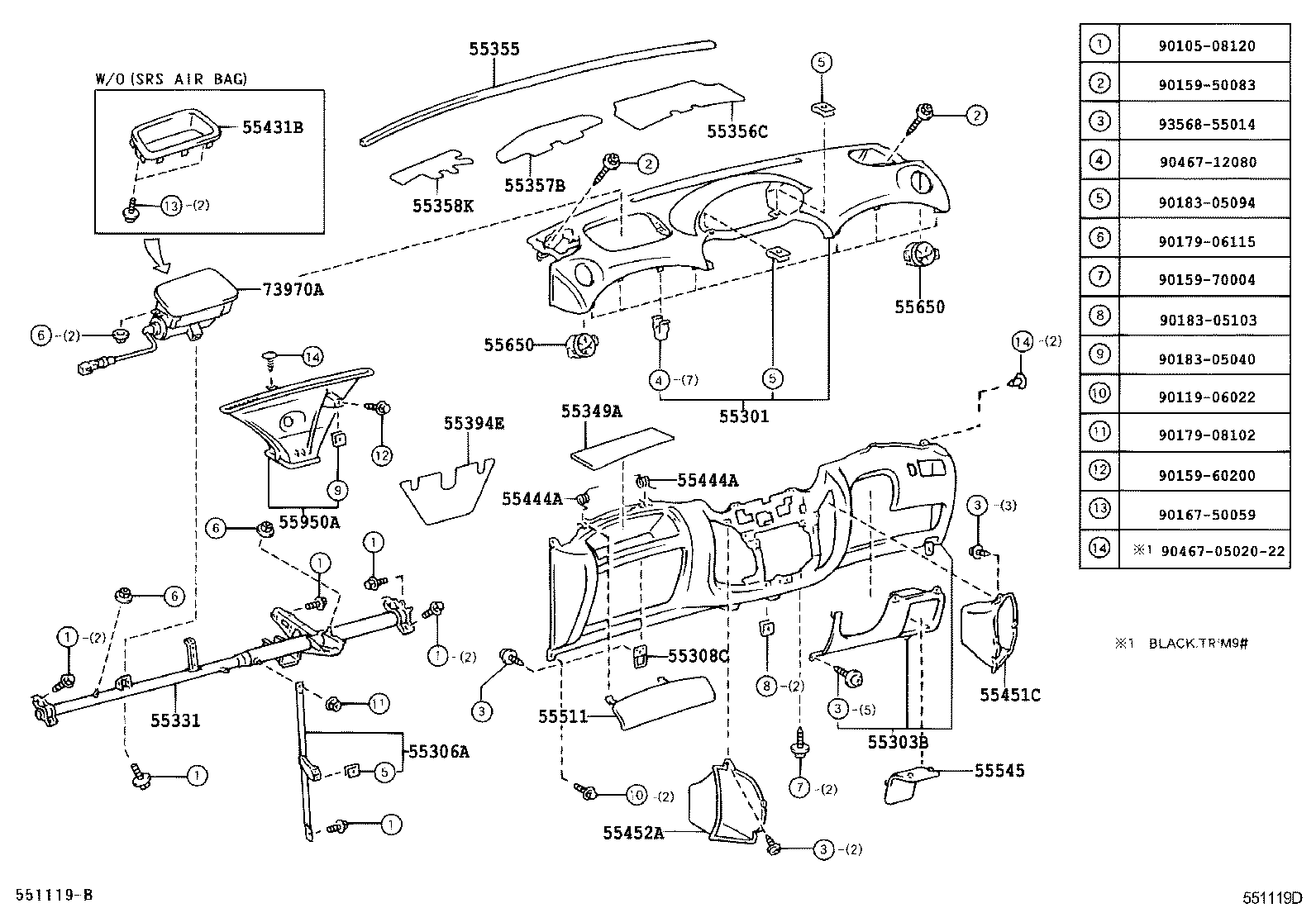

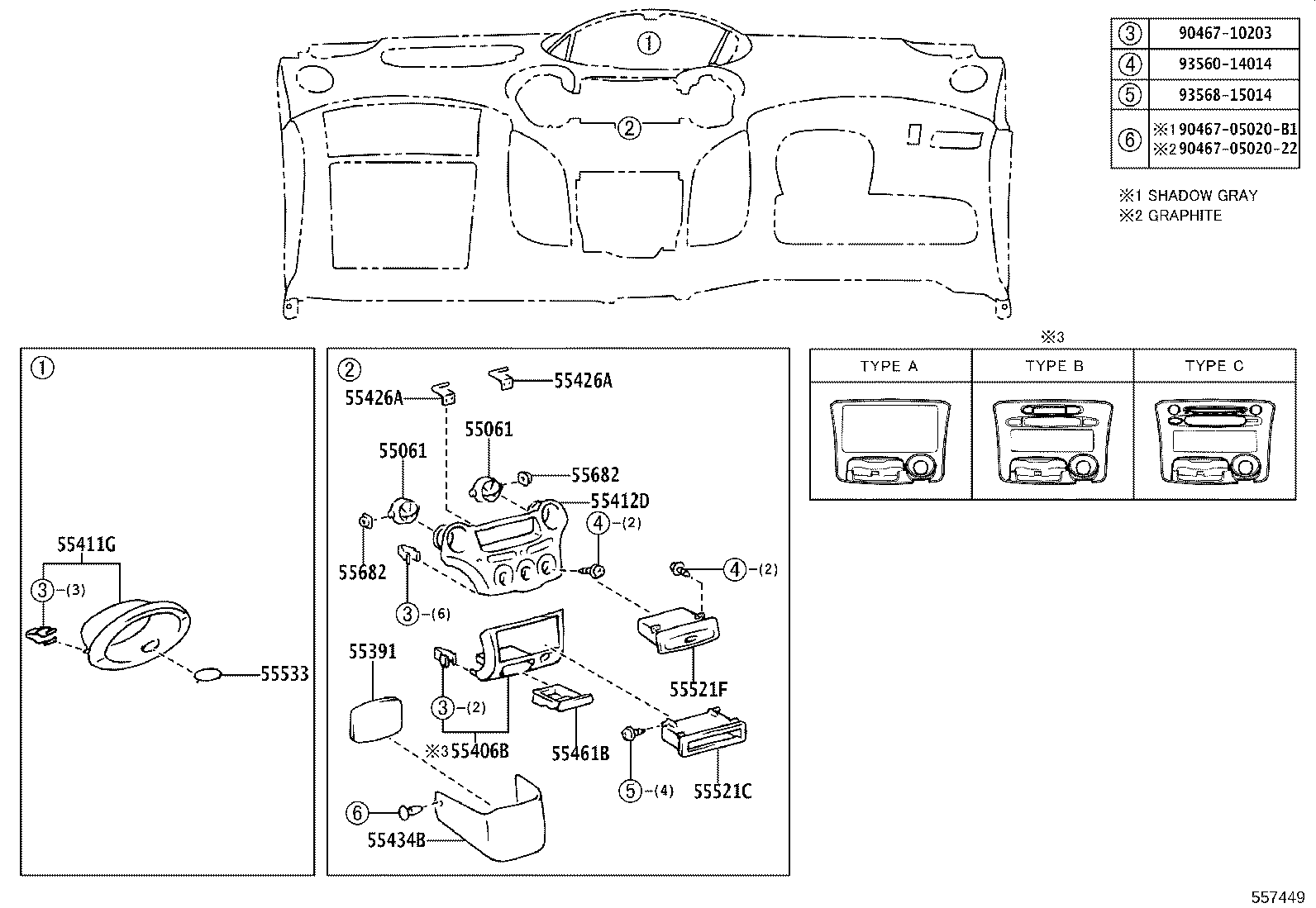

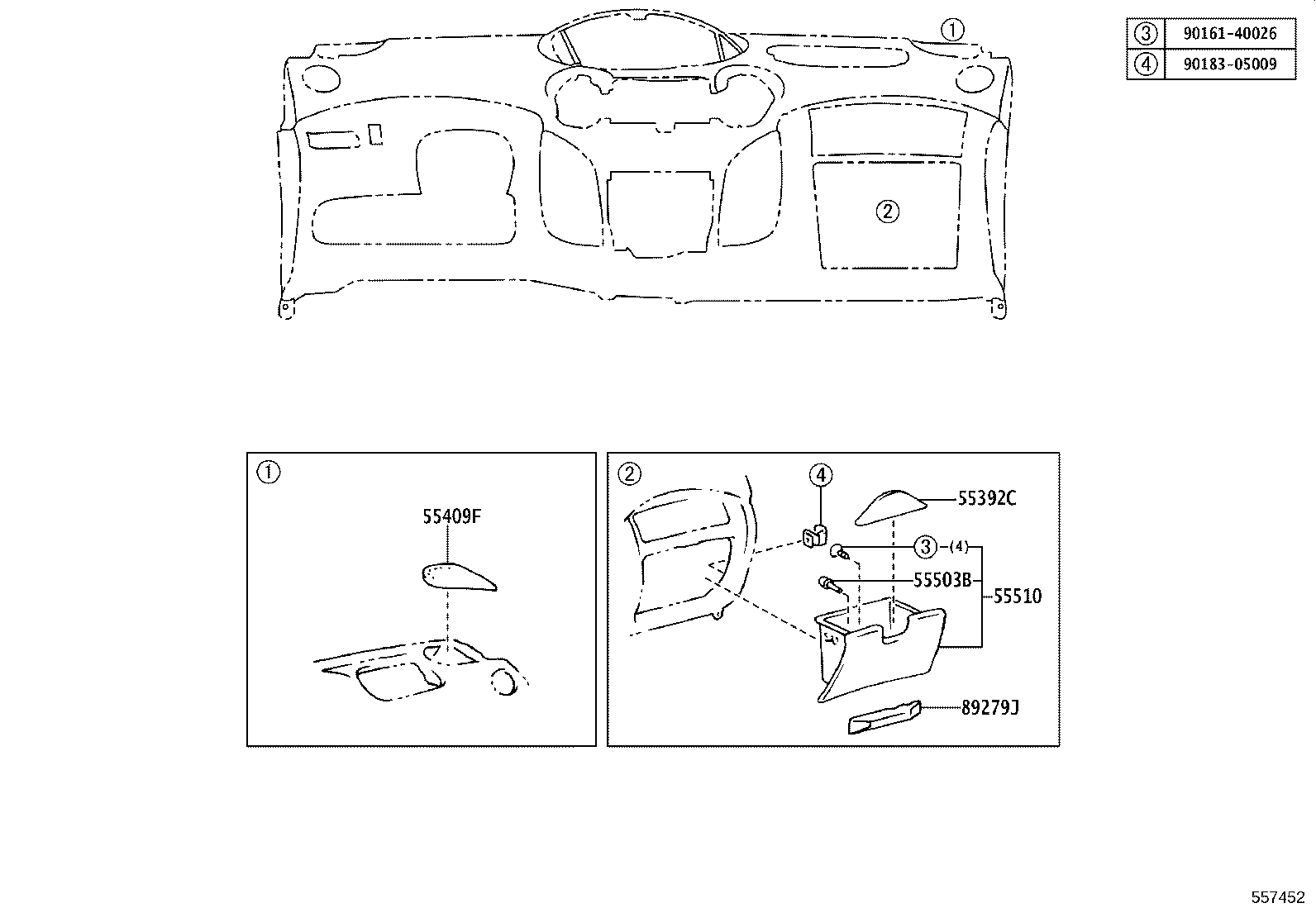

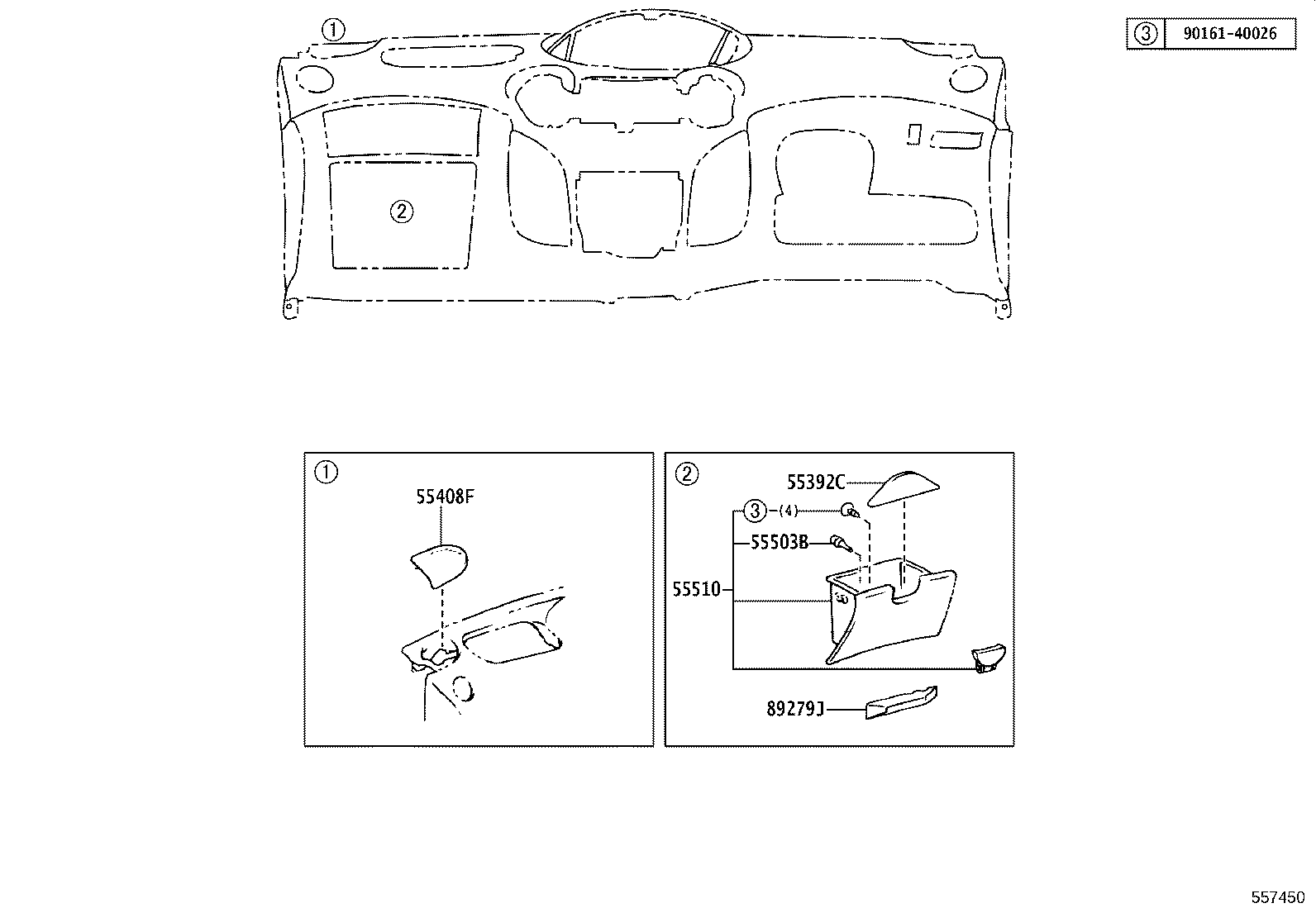

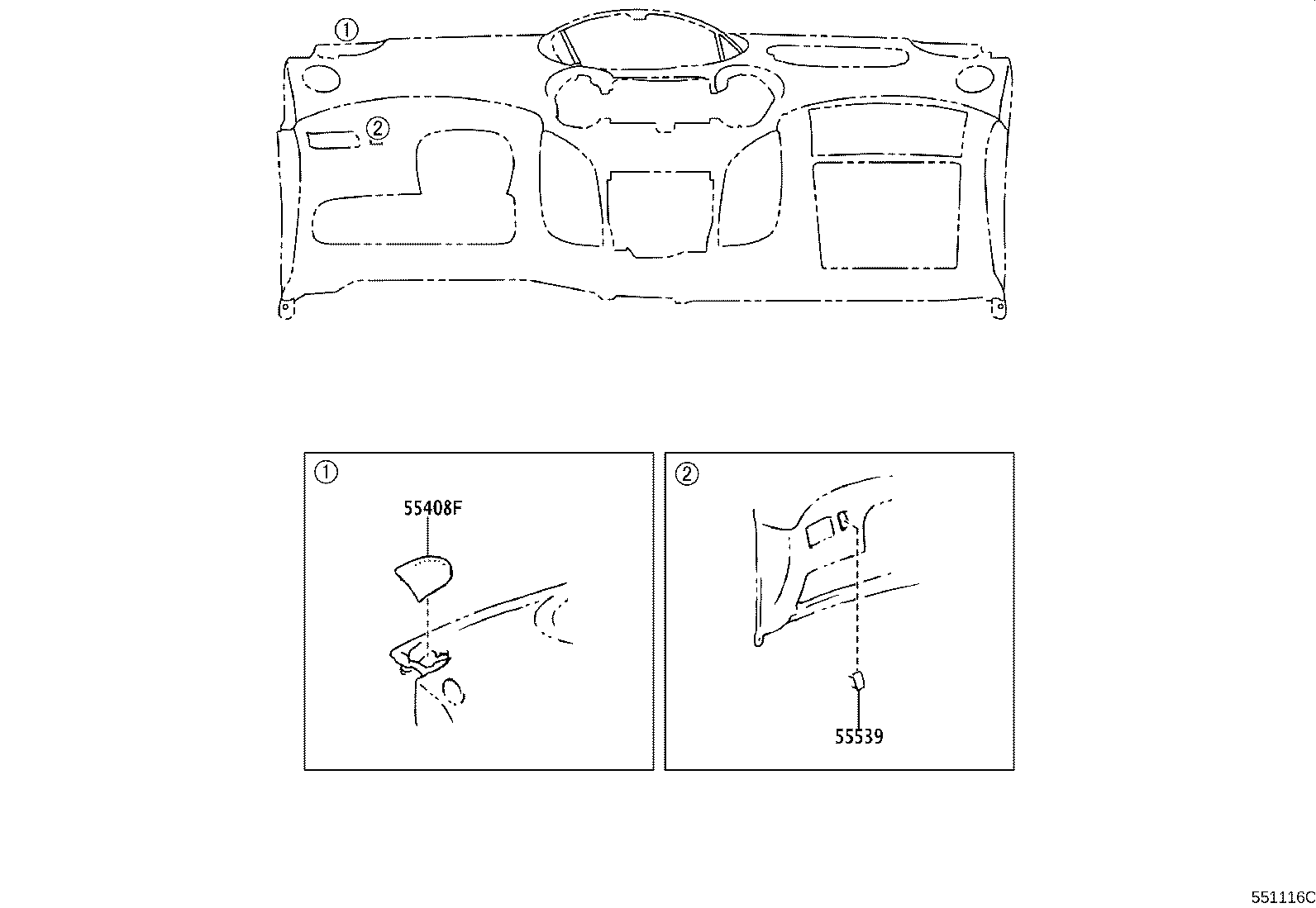

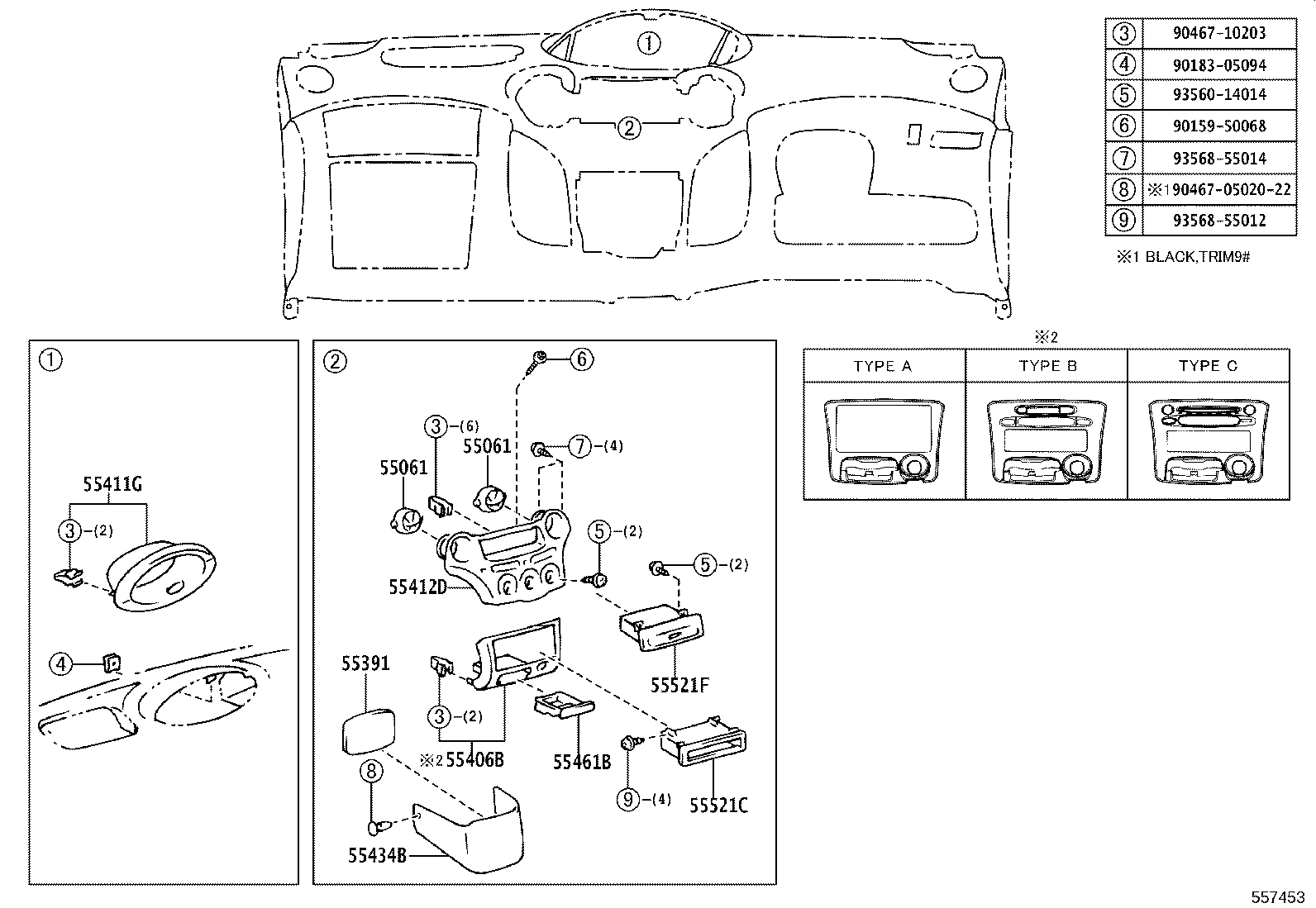

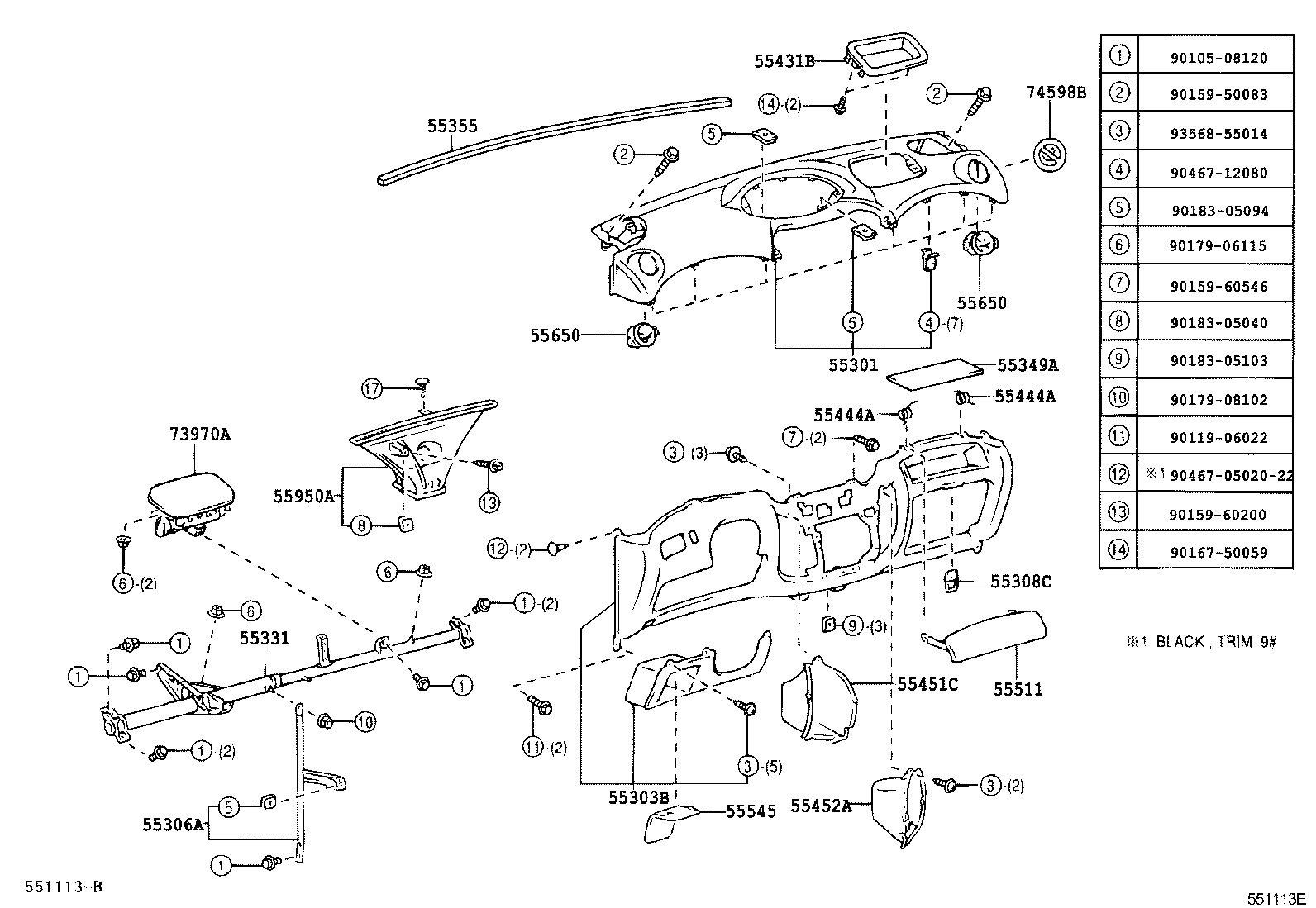

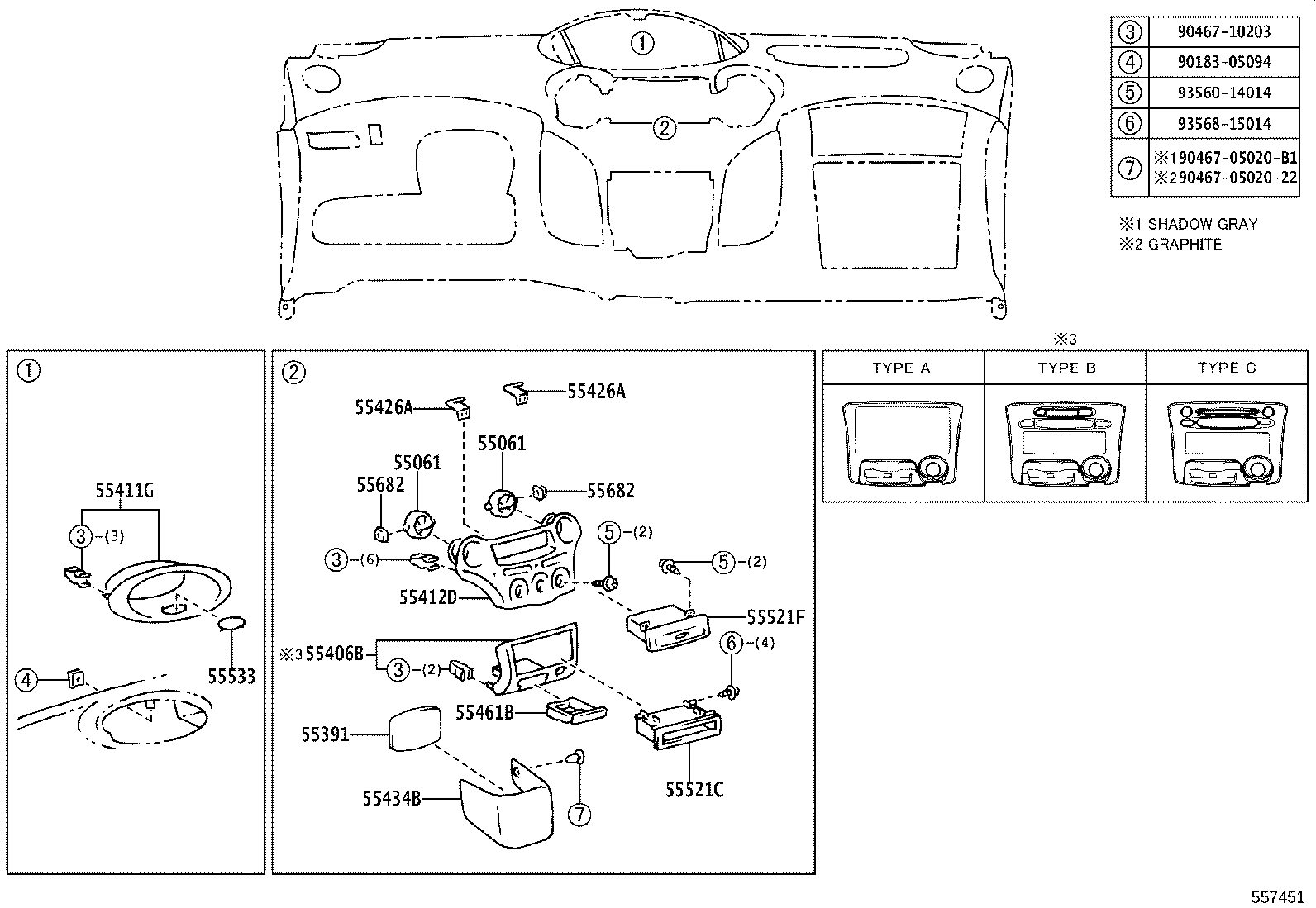

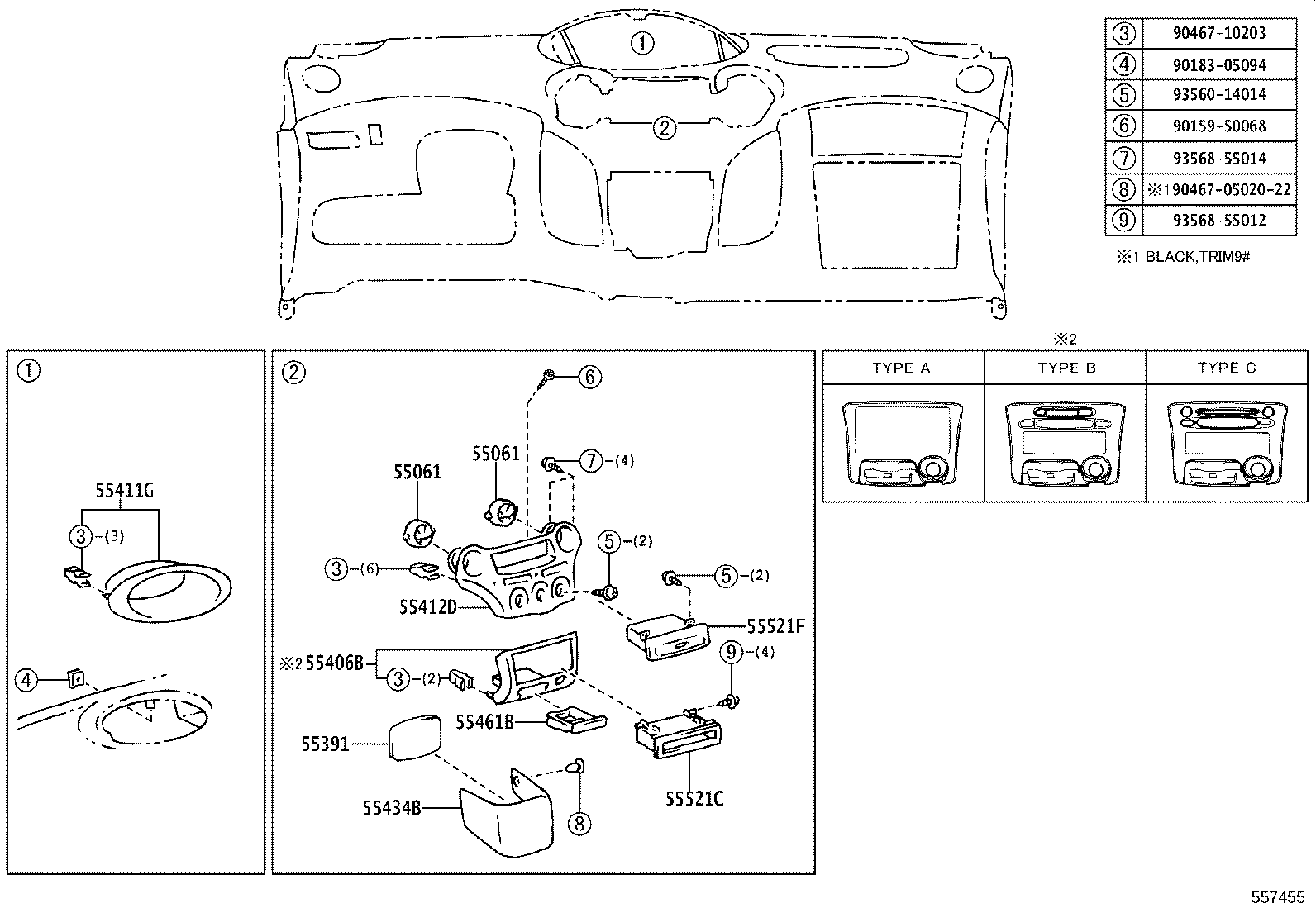

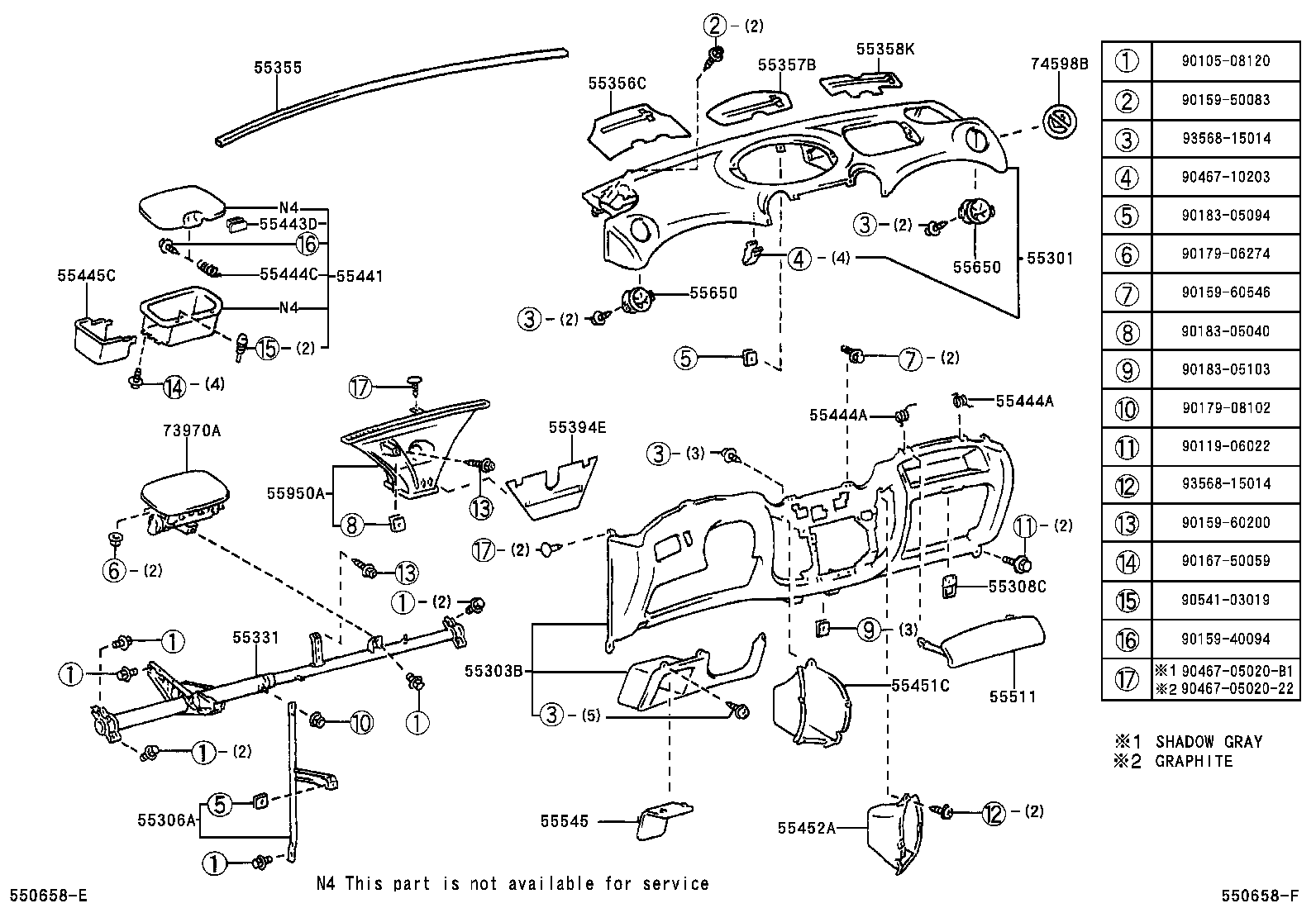

Figure 550624G 550624G 1999-01 → 2002-12 Figure 550574F 550574F 1999-01 → 2002-12 Figure 557449 557449 1999-01 → 2002-12 Figure 557450 557450 1999-01 → 2002-12 Figure 550658F 550658F 1999-01 → 2002-12 Figure 550571E 550571E 1999-01 → 2002-12 Figure 557451 557451 1999-01 → 2002-12 Figure 557452 557452 1999-01 → 2002-12 Figure 551119D 551119D 2002-12 → — Figure 551115C 551115C 2002-12 → — Figure 557453 557453 2002-12 → — Figure 557454 557454 2002-12 → — Figure 551113E 551113E 2002-12 → — Figure 551116C 551116C 2002-12 → — Figure 557455 557455 2002-12 → — Figure 557456 557456 2002-12 → —

Part groups

PNCDescription
50540 DO0R Assy, Airbag Passenger
55061 Register Sub-assy, Instrument Panel, NO.1
55301 Panel Sub-assy, Instrument
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55308C Bracket Sub-assy, Instrument Panel, Center
55331 Reinforcement, Instrument Panel
55349A Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55357B Cushion, Instrument Panel, NO.3
55358K Cushion, Instrument Panel, NO.4
55391 Cushion, Instrument Panel, Lower NO.1
55392C Cushion, Instrument Panel, Lower NO.2
55394E Cushion, Instrument Panel, Lower NO.4
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55426A Bracket, Cluster Finish Panel, NO.1
55431B Panel, Instrument Panel Finish, Upper
55434B Panel, Instrument Panel Finish, Lower Center
55441 Box, Instrument Panel
55443D Knob, Instrument Panel Box Door
55444A Spring, Instrument Panel Box
55444C Spring, Instrument Panel Box
55445C Plate, Instrument Panel Box
55451C Box, Instrument Panel, NO.1
55452A Box, Instrument Panel, NO.2
55461B Box, Instrument Panel, Center
55503B Cushion(FOR GLOVE COMPARTMENT)
55510 Door Assy, Glove Compartment
55511 Door, Glove Compartment
55521C Cover, Stereo Opening
55521F Cover, Stereo Opening, NO.2
55533 Cover, Auto Clock Hole
55539 Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55650 Register Assy, Instrument Panel, NO.1
55682 Spring, Instrument Panel Register Support
55950A Nozzle Assy, Defroster
73970A Airbag Assy, Instrument Panel Passenger
74598B Label, Passenger Airbag Caution
89279J Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
