Toyota Yaris (JPP)
1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe
Discontinued model
Data version 2006-05

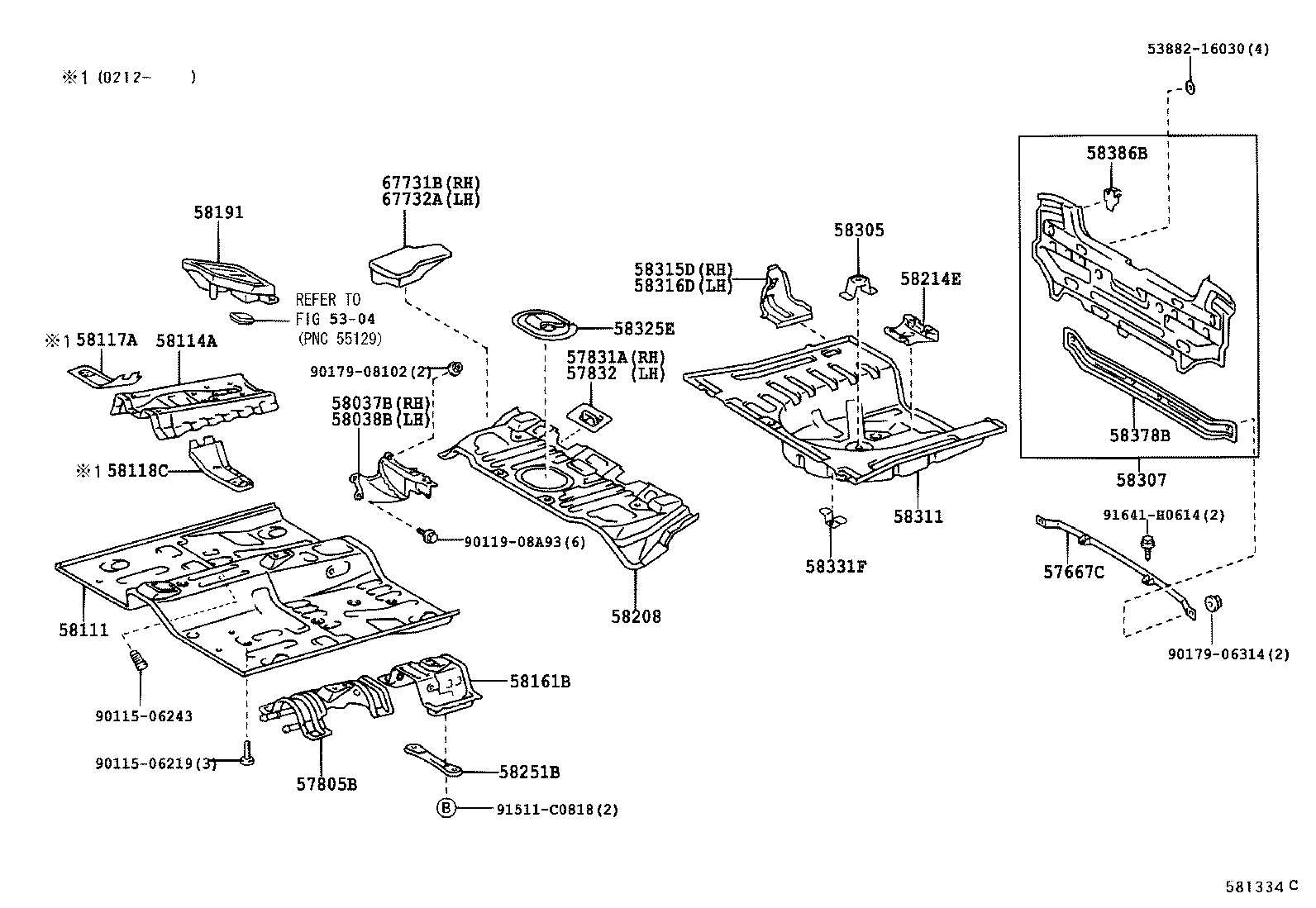

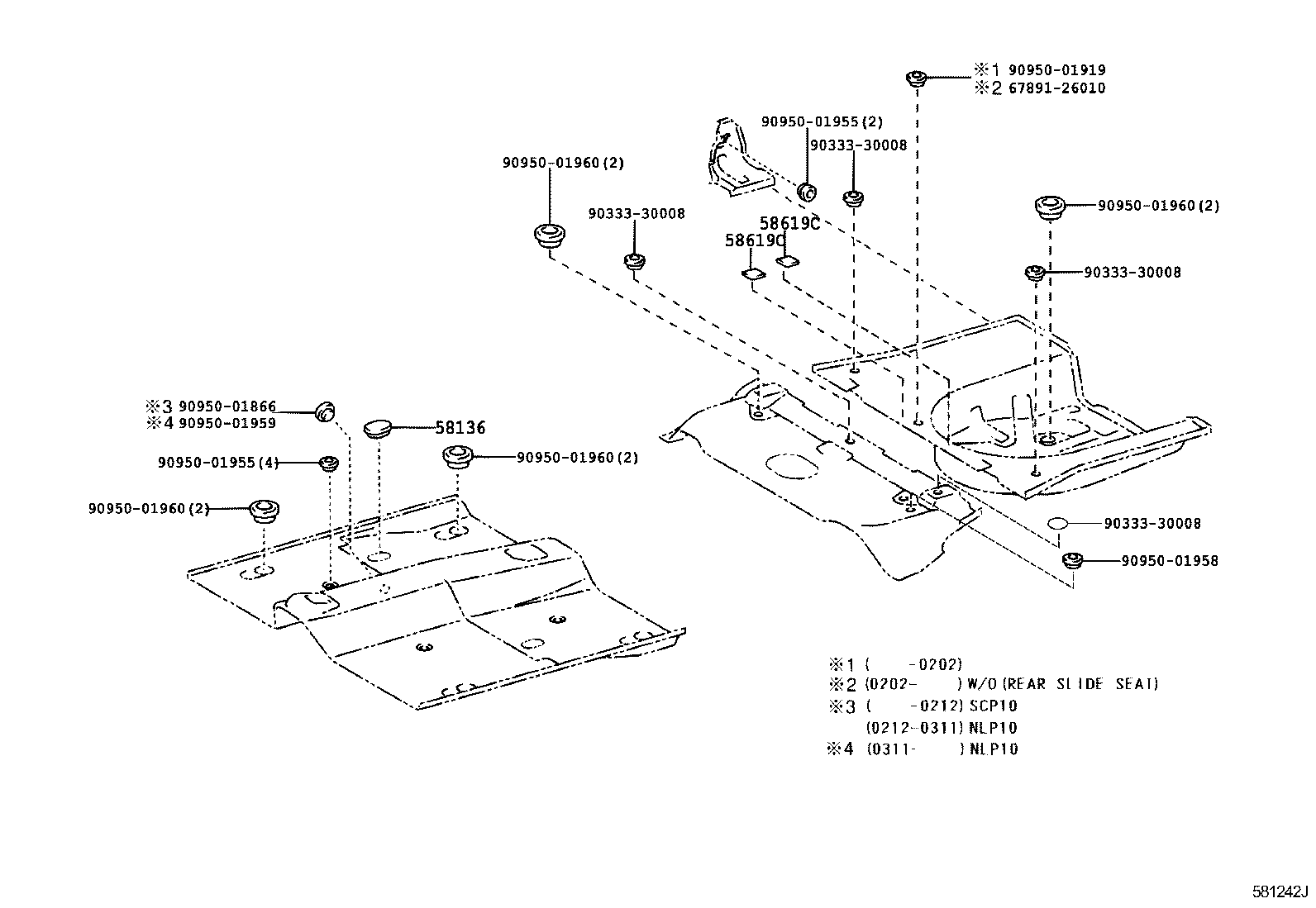

Floor Pan & Lower Back Panel
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 57667C | Brace, Body Lower Back Panel |
| 57805B | Reinforcement Sub-assy, Belt Anchor, RH |
| 57831A | Reinforcement, Rear NO.1 Seat Leg, Front NO.1 |
| 57832 | Reinforcement, Rear NO.1 Seat Leg, Front NO.2 |
| 58037B | Reinforce, Center Pillar TO Floor, RH |
| 58038B | Reinforce, Center Pillar TO Floor, LH |
| 58111 | Pan, Front Floor |
| 58114A | Reinforcement, Front Floor Panel |
| 58117A | Reinforcement, Front Floor Side, RH |
| 58118C | Reinforcement, Front Floor Side, LH |
| 58136 | Cover, Front Floor Hole |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58179C | Bracket, Clamp Floor |
| 58191 | Footrest, Front Floor |
| 58208 | Pan, Center Floor |
| 58214E | Bracket, Jack Support |
| 58251B | Brace, Floor Panel, Front |
| 58273C | Reinforcement, Belt Anchor TO Center Floor |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58315D | Extension, Rear Floor Pan, RH |
| 58316D | Extension, Rear Floor Pan, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58331F | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58378B | Reinforcement, Body Lower Back Panel |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58619C | Sheet, Center Floor Silencer Sub |
| 67731B | Spacer, Side Trim, NO.1 |
| 67732A | Spacer, Side Trim, NO.2 |
| 71316 | Bracket, Rear Seat Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
