Toyota Yaris (JPP)
1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe
Discontinued model
Data version 2006-05

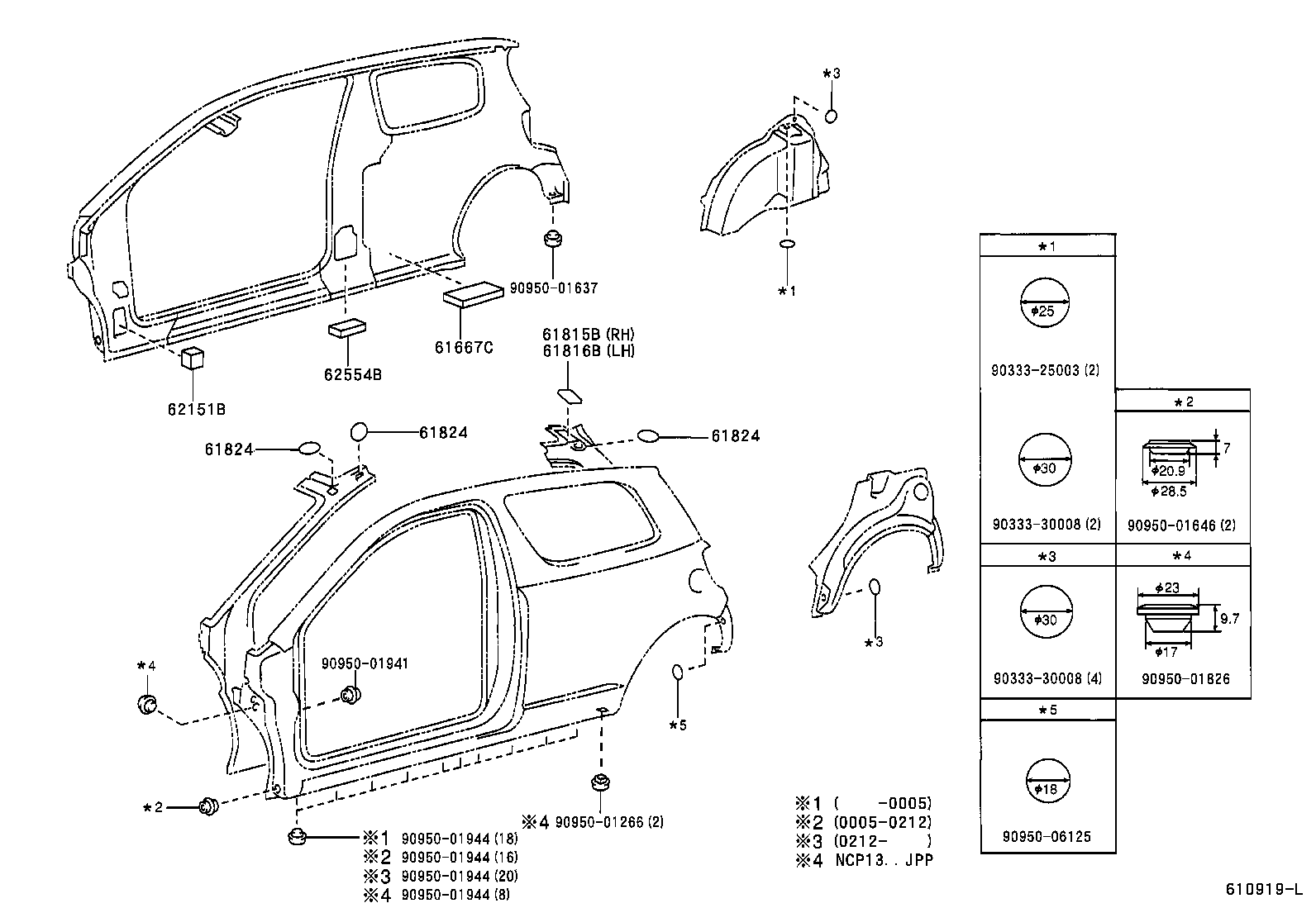

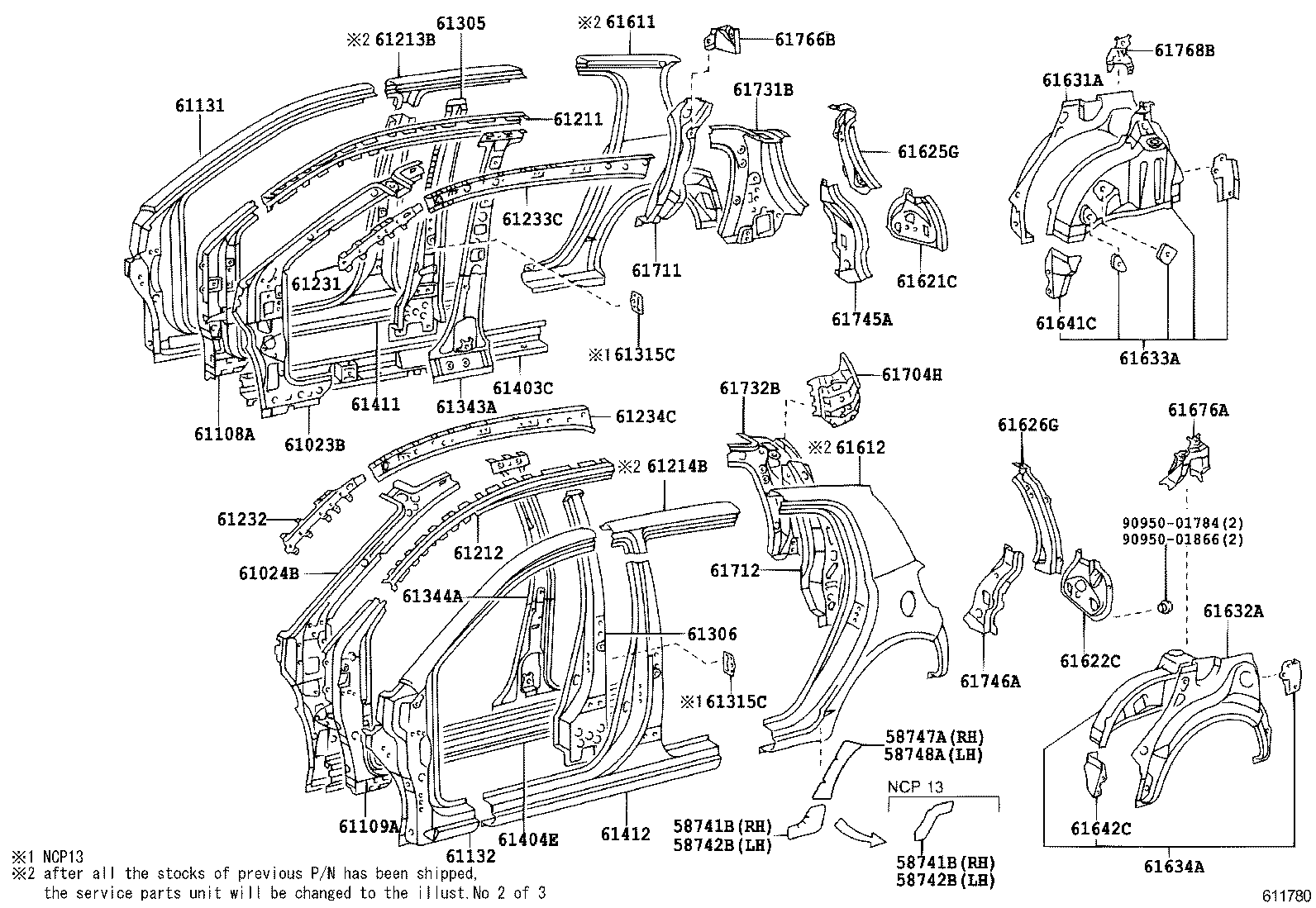

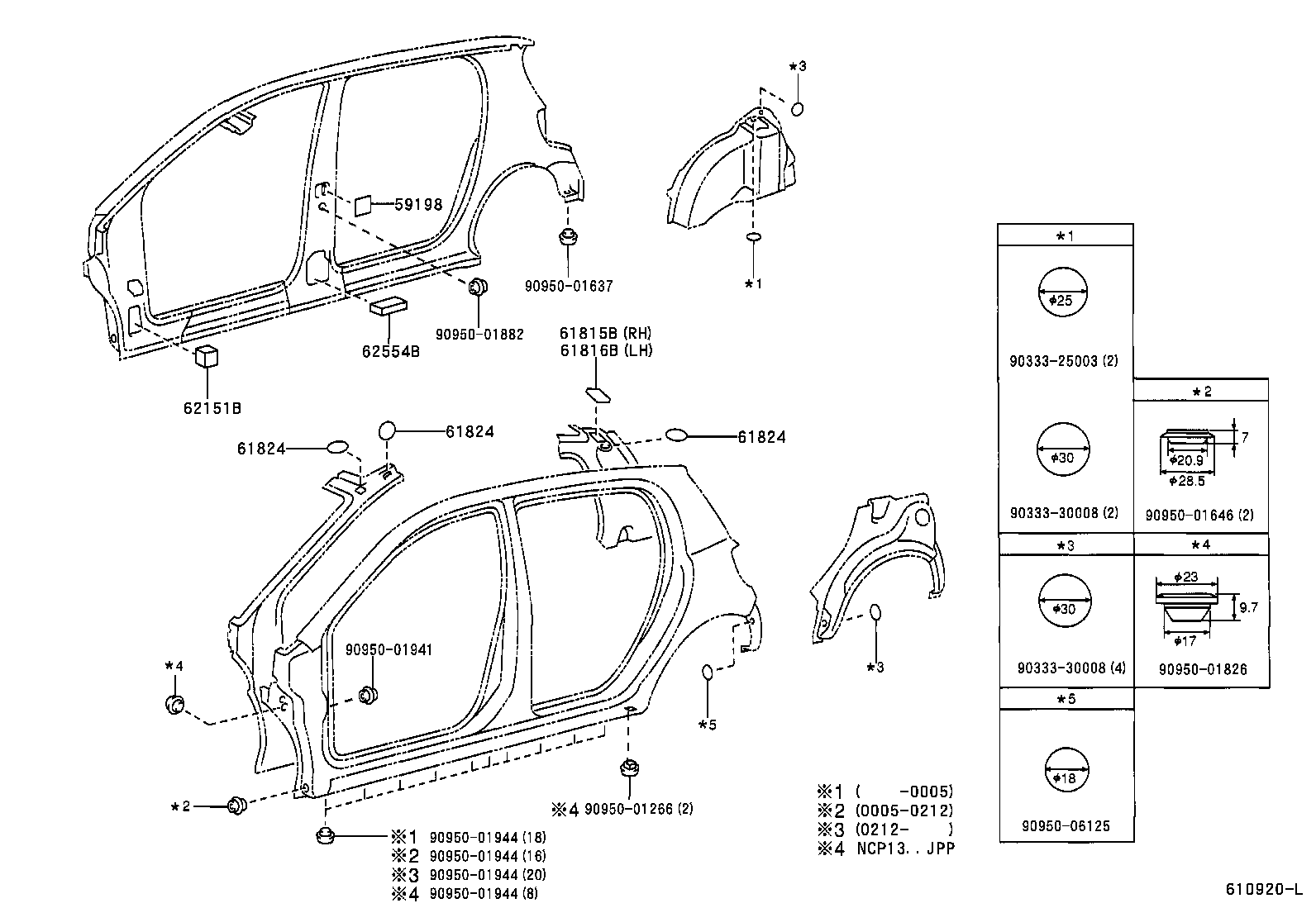

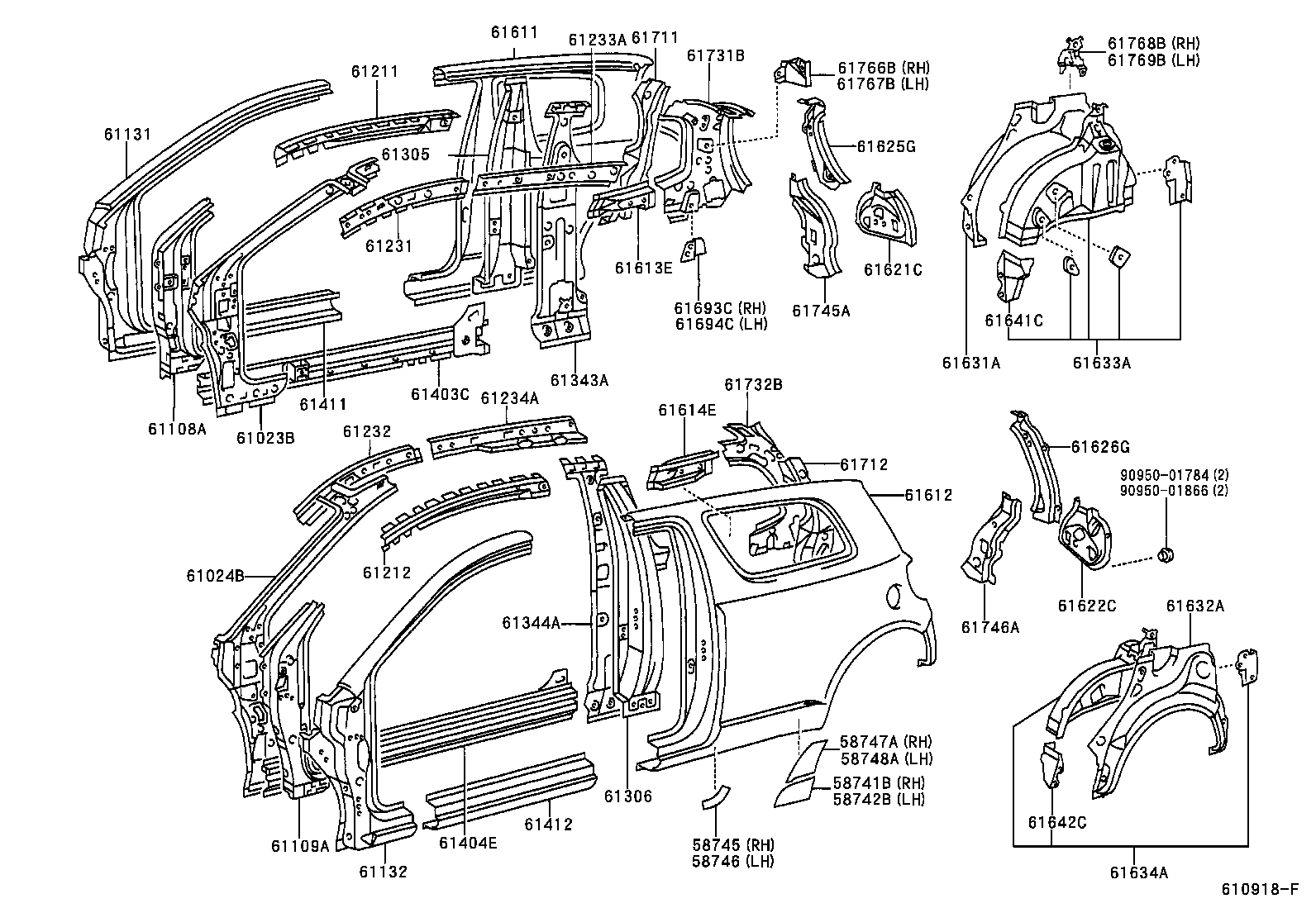

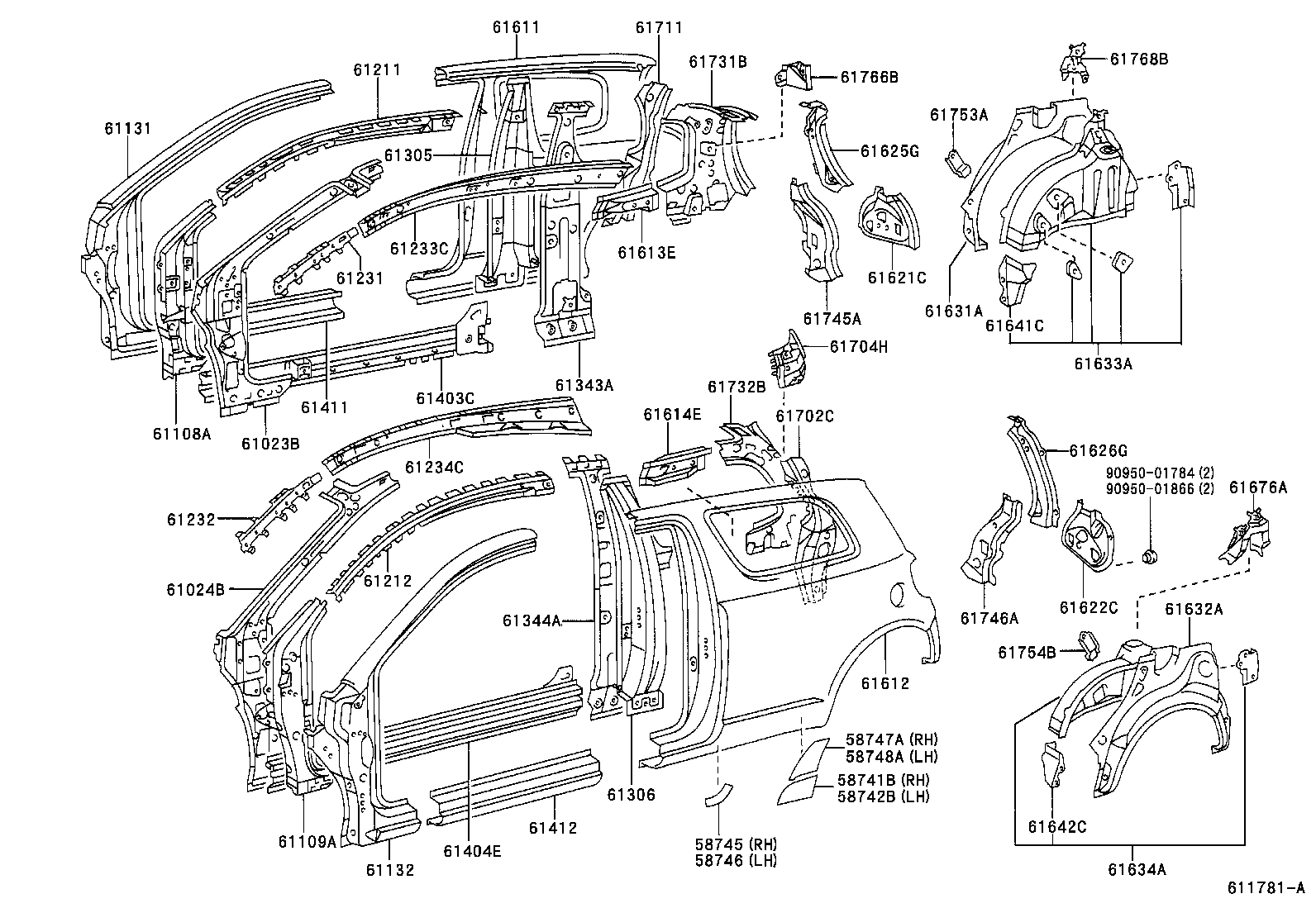

Side Member
69 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 58741B | Protector, Quarter Panel, RH |
| 58742B | Protector, Quarter Panel, LH |
| 58745 | Protector, Quarter Panel, Front RH |
| 58746 | Protector, Quarter Panel, Front LH |
| 58747A | Protector, Quarter Panel, Rear RH |
| 58748A | Protector, Quarter Panel, Rear LH |
| 59198 | Seal, Noise Shutter |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61213B | Rail, Roof Side, Outer NO.2 RH |
| 61214B | Rail, Roof Side, Outer NO.2 LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61233A | Rail, Roof Side, Inner NO.2 RH |
| 61233C | Holder, Seat Belt Cover, RH |
| 61234A | Rail, Roof Side, Inner NO.2 LH |
| 61234C | Holder, Seat Belt Cover, LH |
| 61305 | Reinforce Sub-assy, Center Body Pillar, Lower RH |
| 61306 | Reinforce Sub-assy, Center Body Pillar, Lower LH |
| 61315C | Retainer, Door Lock Striker, RH |
| 61343A | Pillar, Center Body, Inner RH |
| 61344A | Pillar, Center Body, Inner LH |
| 61403C | Reinforce Sub-assy, Rocker, Outer RH |
| 61404E | Reinforce Sub-assy, Rocker, Outer LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61613E | Panel, Quarter, Inner RH |
| 61614E | Panel, Quarter, Inner LH |
| 61621C | Trough, Luggage Compartment Opening, RH |
| 61622C | Trough, Luggage Compartment Opening, LH |
| 61625G | Extension, Quarter Panel, Rear RH |
| 61626G | Extension, Quarter Panel, Rear LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61641C | Gusset, Quarter Wheel House, Front RH |
| 61642C | Gusset, Quarter Wheel House, Front LH |
| 61667C | Seal, Qaurter Panel, NO.1 |
| 61676A | Reinforce, Seat Belt Anchor, NO.2 Upper LH |
| 61693C | Retainer, Rear Seatback Set, RH |
| 61694C | Retainer, Rear Seatback Set, LH |
| 61702C | Panel Sub-assy, Roof Side, Outer LH |
| 61704H | Panel Sub-assy, Quarter, Inner LH |
| 61711 | Panel, Roof Side, Outer RH |
| 61712 | Panel, Roof Side, Outer LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61745A | Reinforcement, Back Door Opening, Lower RH |
| 61746A | Reinforcement, Back Door Opening, Lower LH |
| 61753A | Retainer, Quarter Trim, Lower |
| 61754B | Retainer, Quarter Trim, Lower LH |
| 61766B | Reinforcement, Belt Anchor TO Roof Side, Inner RH |
| 61767B | Reinforcement, Belt Anchor TO Roof Side, Inner LH |
| 61768B | Reinforce, Belt Anchor TO Roof Side, Inner Rear RH |
| 61769B | Reinforce, Belt Anchor TO Roof Side, Inner Rear LH |
| 61815B | Cover, Roof Side, Inner Upper RH |
| 61816B | Cover, Roof Side, Inner Upper LH |
| 61824 | Plate, Noise Control, NO.1 |
| 62151B | Pad, Cowl Side Silencer |
| 62554B | Pad, Pillar, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
