Toyota Yaris (JPP)
1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe
Discontinued model
Data version 2006-05

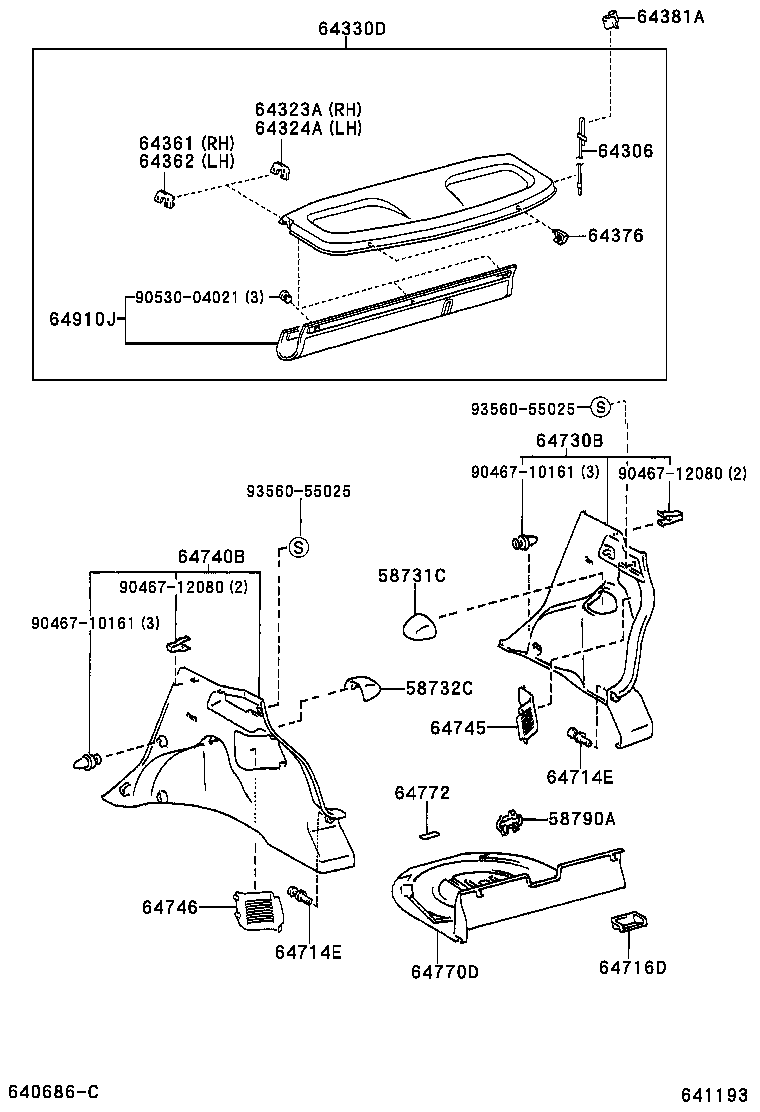

Deck Board & Deck Trim Cover
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58731C | Cap, Rear Absorber |
| 58732C | Cap, Rear Absorber |
| 58790A | Carrier Assy, Jack |
| 62627D | Cover, Side Trim, RH |
| 62628A | Cover, Side Trim, LH |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64323A | Clamp, Package Tray Trim, RH |
| 64324A | Clamp, Package Tray Trim, LH |
| 64330D | Panel Assy, Package Tray Trim |
| 64361 | Hinge, Package Tray Trim, RH |
| 64362 | Hinge, Package Tray Trim, LH |
| 64376 | Spacer, Package Tray Trim, NO.2 |
| 64381A | Hanger, Package Tray Trim |
| 64714E | Clip(FOR DECK TRIM SIDE COVER) |
| 64716D | Cover, Deck Trim, Rear |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740B | Board, Deck Trim Side, LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64770D | Cover Assy, Spare Wheel |
| 64772 | Pad, Spare Wheel Cover |
| 64910J | Cover Assy, Tonneau |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
