Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

26 part groups · 3 illustrations

Illustrations

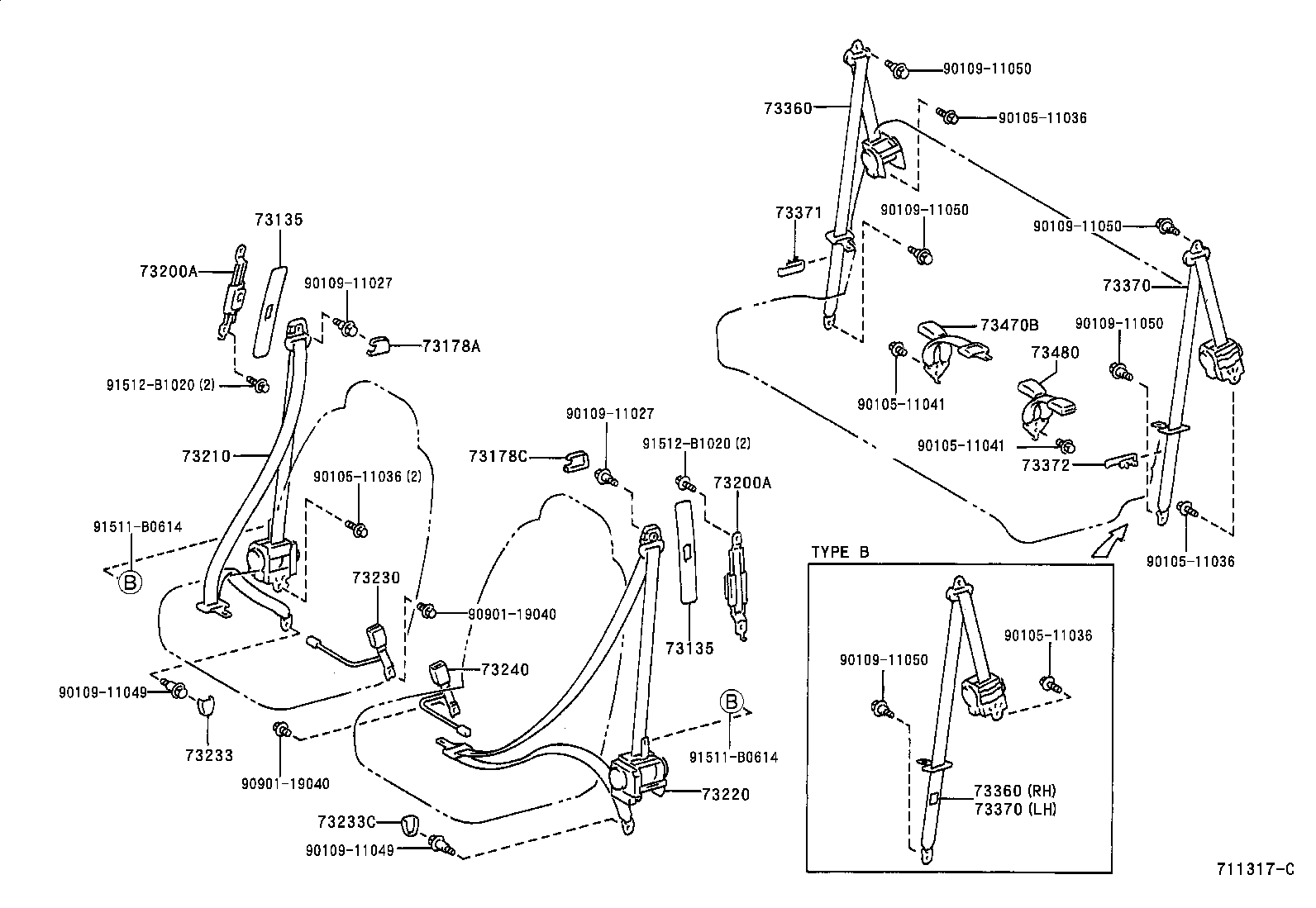

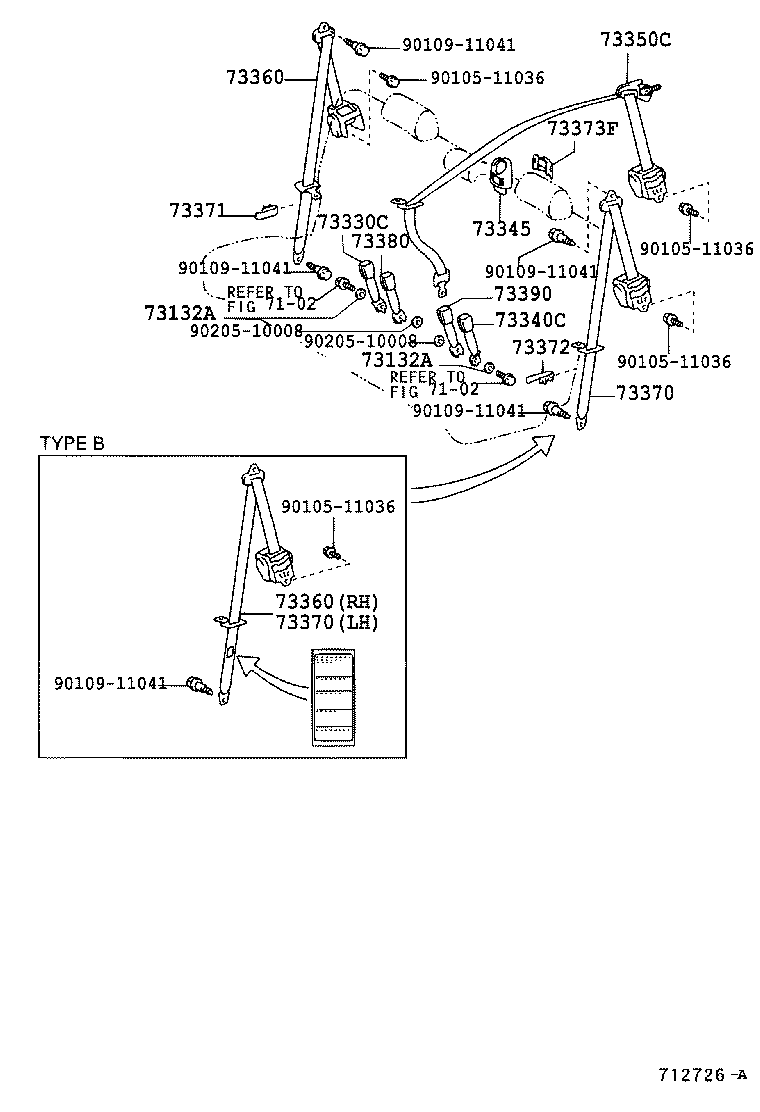

Figure 711310C 711310C 1999-01 → — Figure 711317C 711317C 1999-01 → — Figure 712726A 712726A 2002-12 → —

Part groups

PNCDescription
73132A Ring, Seat Belt Bracket
73135 Cover, Shoulder Belt Anchorage Plate
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73201C Bar Sub-assy, Front Seat Belt, Outer RH
73202B Bar Sub-assy, Front Seat Belt, Outer LH
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233C Cover, Lap Belt Outer Anchor, LH
73240 Belt Assy, Front Seat Inner, LH
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73345 Guide, Rear Seat Shoulder Belt, Center
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73373F Cover, Rear Seat Shoulder Belt Hole
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
