Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

22 part groups · 2 illustrations

Illustrations

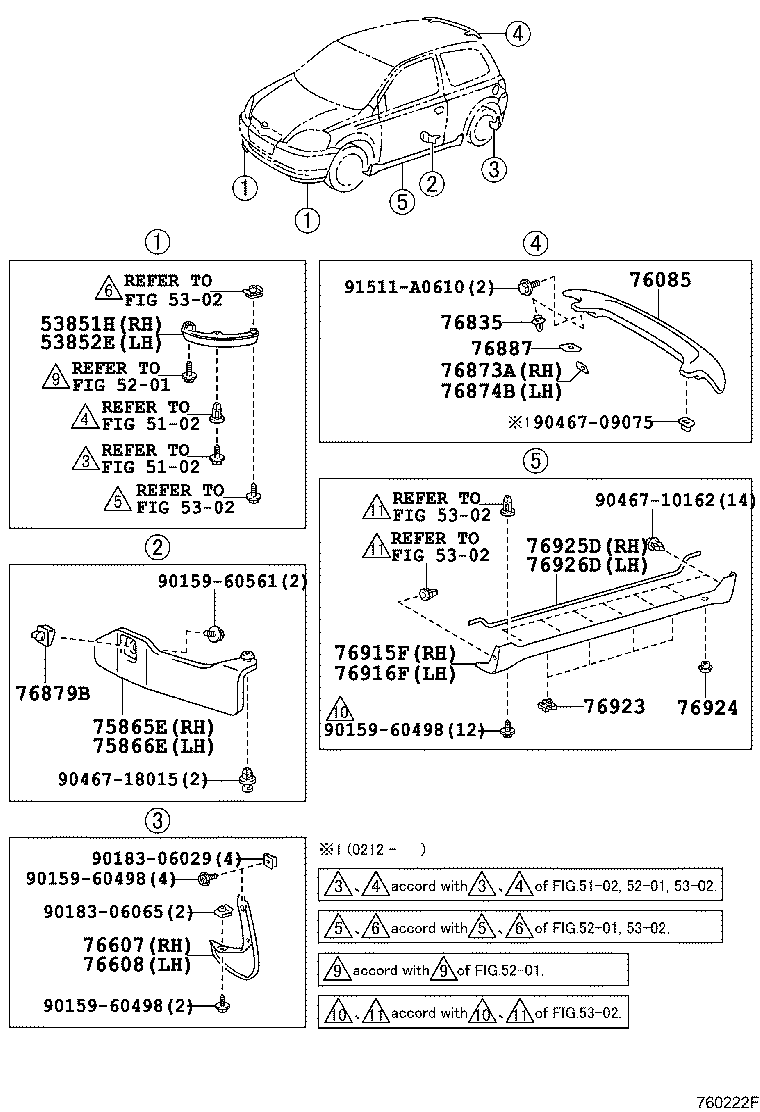

Figure 760158H 760158H 1999-01 → — Figure 760222F 760222F 2001-01 → —

Part groups

PNCDescription
53851H Pad, Front Spoiler, RH
53852E Pad, Front Spoiler, LH
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75865E Protector, Rocker Panel Moulding, RH
75866E Protector, Rocker Panel Moulding, LH
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76835 Retainer, Rear Spoiler Side, NO.1
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76879B Clip, Rear Spoiler, NO.2
76887 Seal, Rear Spoiler
76915F Mudguard, Side, FR RH
76916F Mudguard, Side, FR LH
76923 Retainer, Side Mudguard
76924 Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
