Toyota Yaris (JPP)
1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe
Discontinued model
Data version 2006-05
Fuel Tank & Tube
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

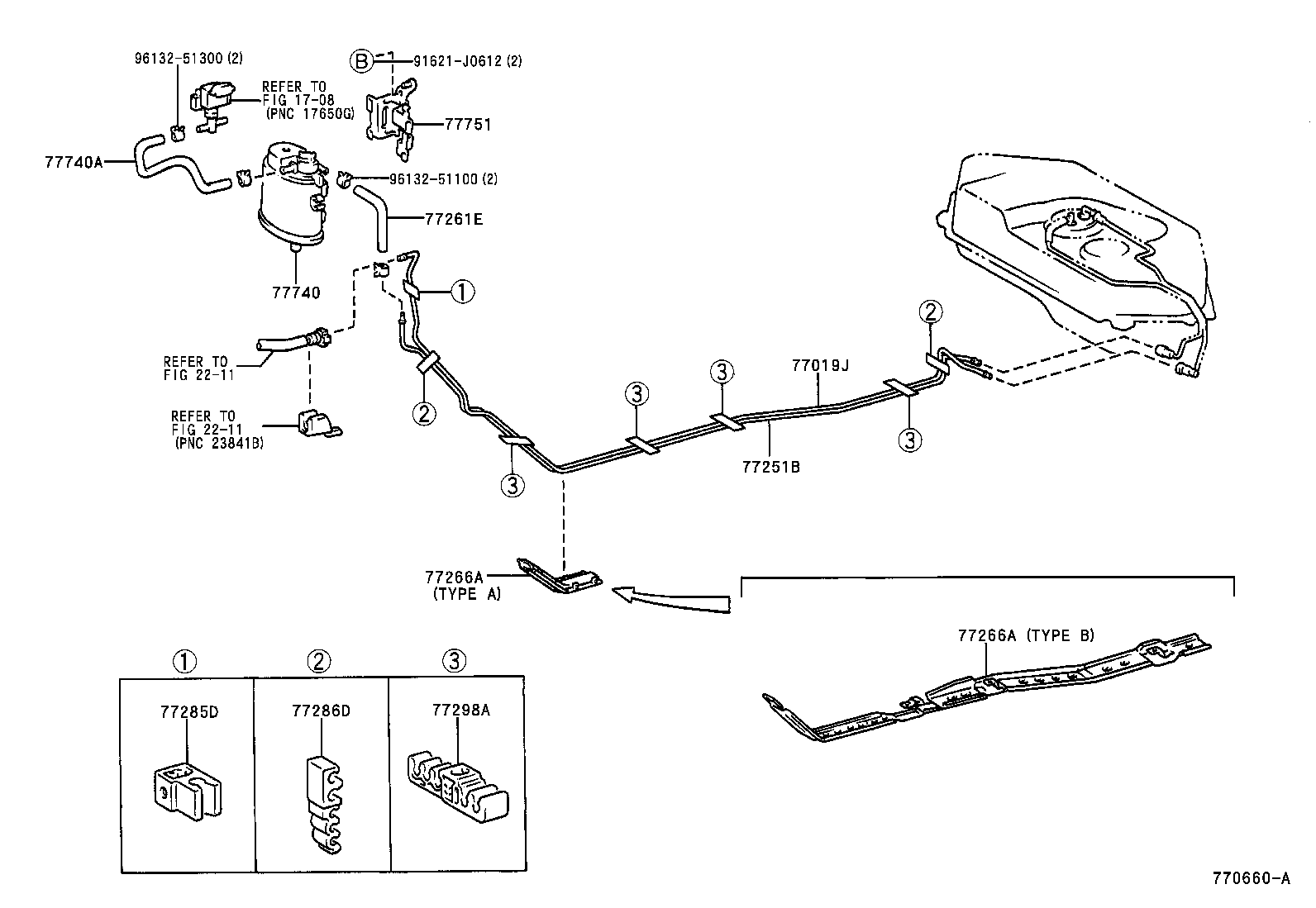

| 77019J | Tube Sub-assy, Fuel Tank TO Canister |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77024A | Plate Sub-assy, Fuel Suction |

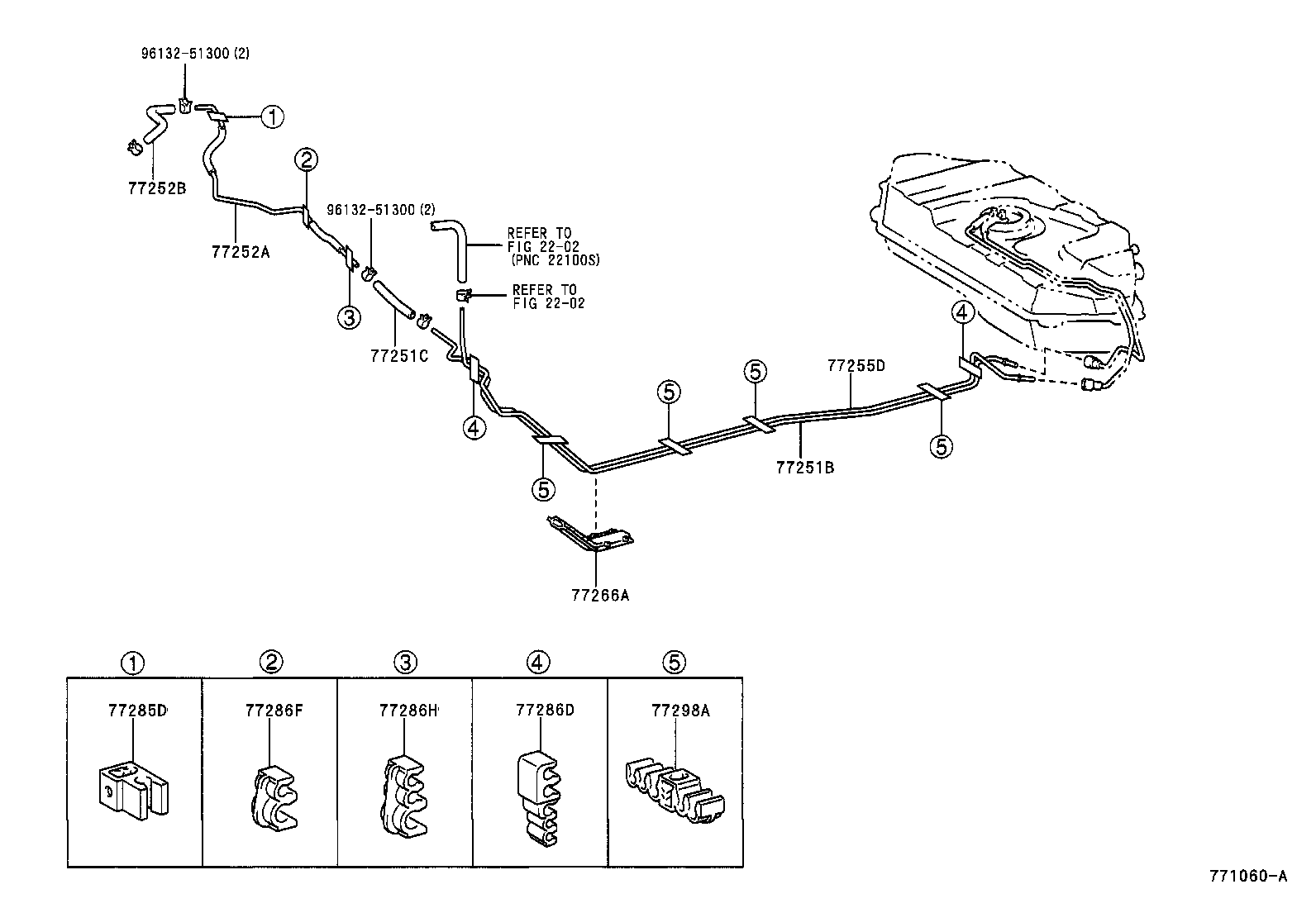

| 77025 | Tube Sub-assy, Fuel Main & Return, Rear |
| 77027 | Tube Sub-assy, Fuel Evaporation, NO.2 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |

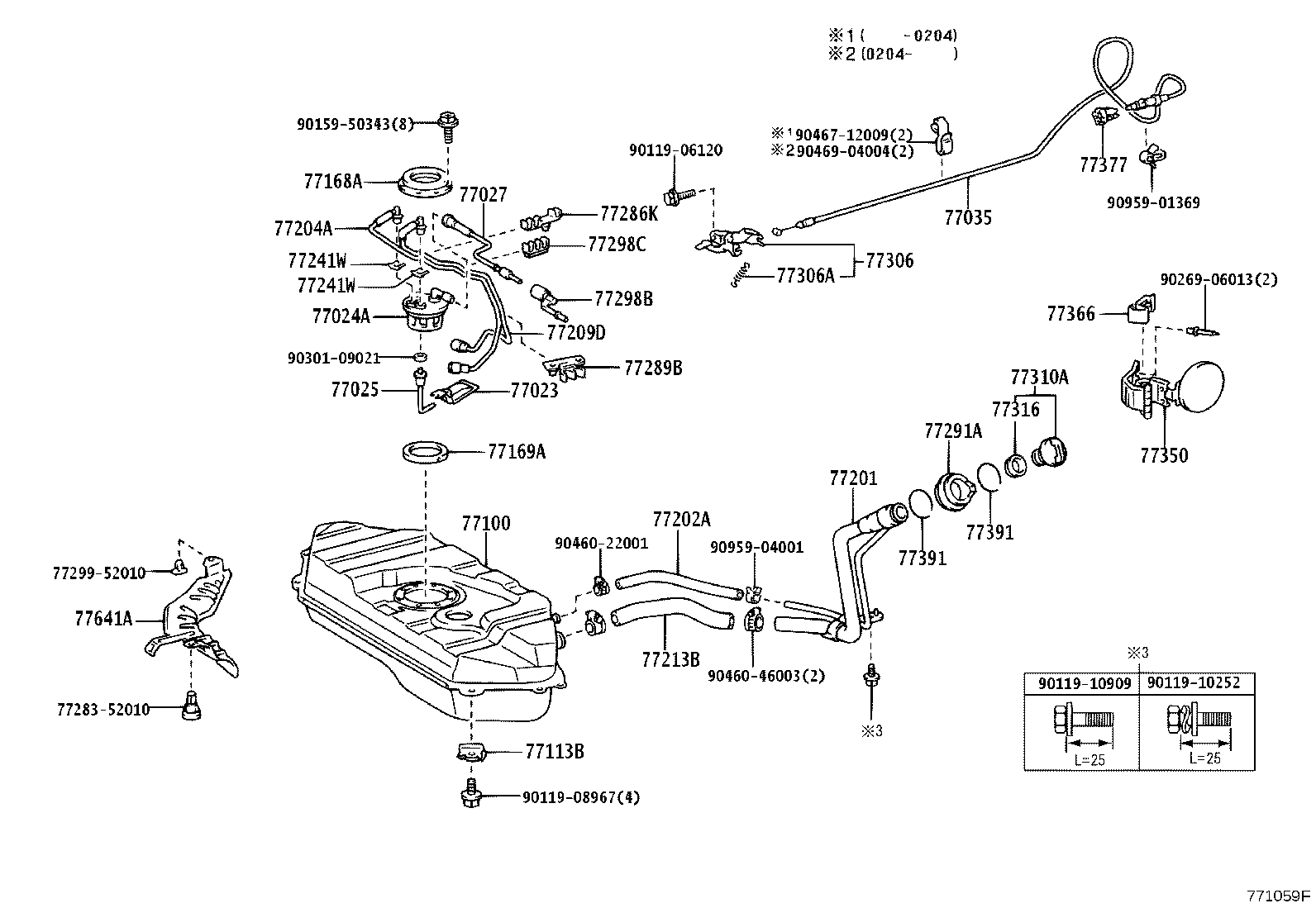

| 77100 | Tank Assy, Fuel |
| 77113B | Plate, Fuel Tank Side |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77204A | Tube, Fuel Tank Return |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77252A | Tube, Fuel Main, NO.2 |
| 77252B | Hose, Fuel, NO.1 (FOR FUEL MAIN NO.2 TUBE) |
| 77255D | Tube, Fuel Return |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77306A | Spring, Fuel Lid Open Lever |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77785 | Harness, Fuel Pump |
