Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 16 illustrations

Illustrations

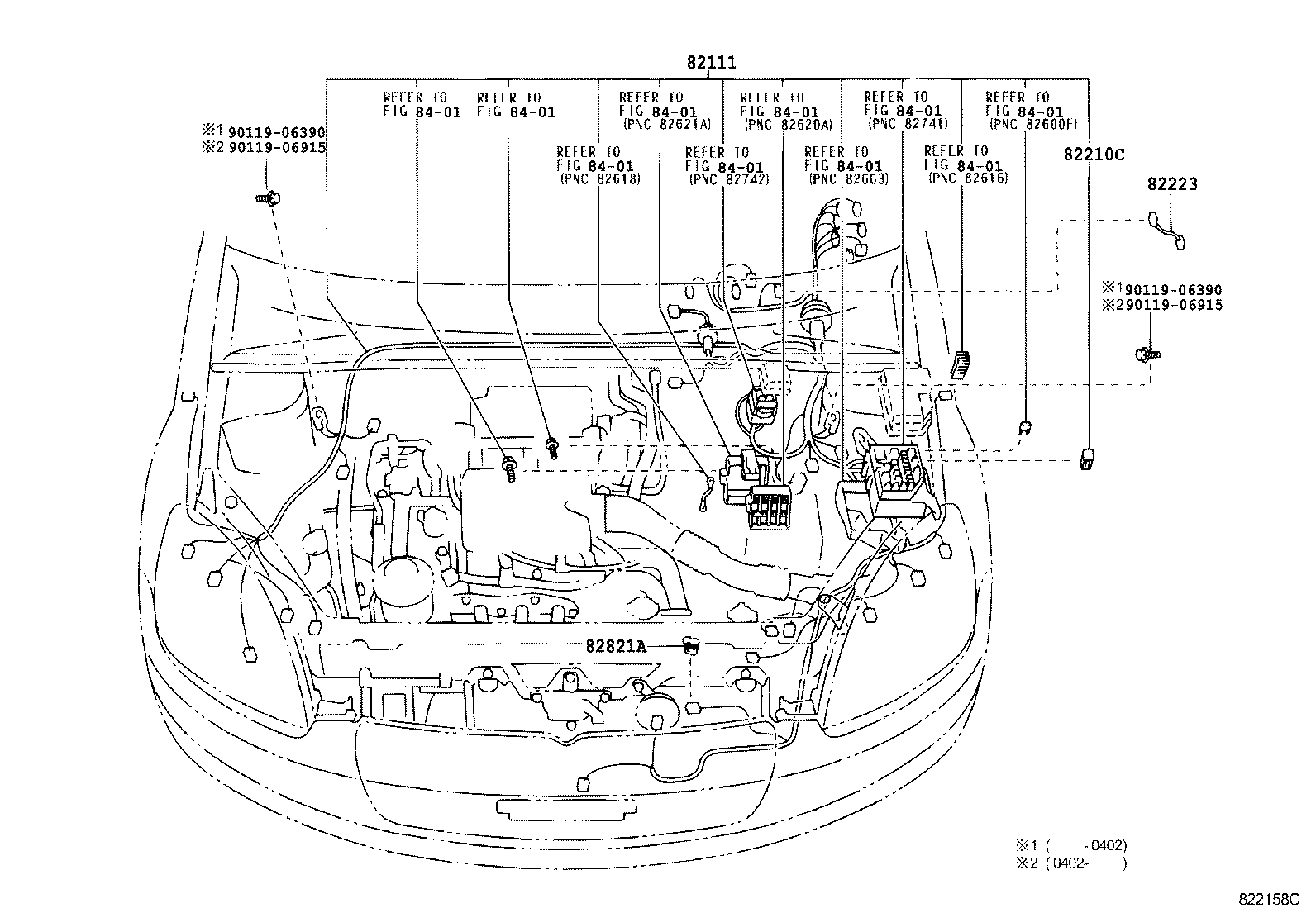

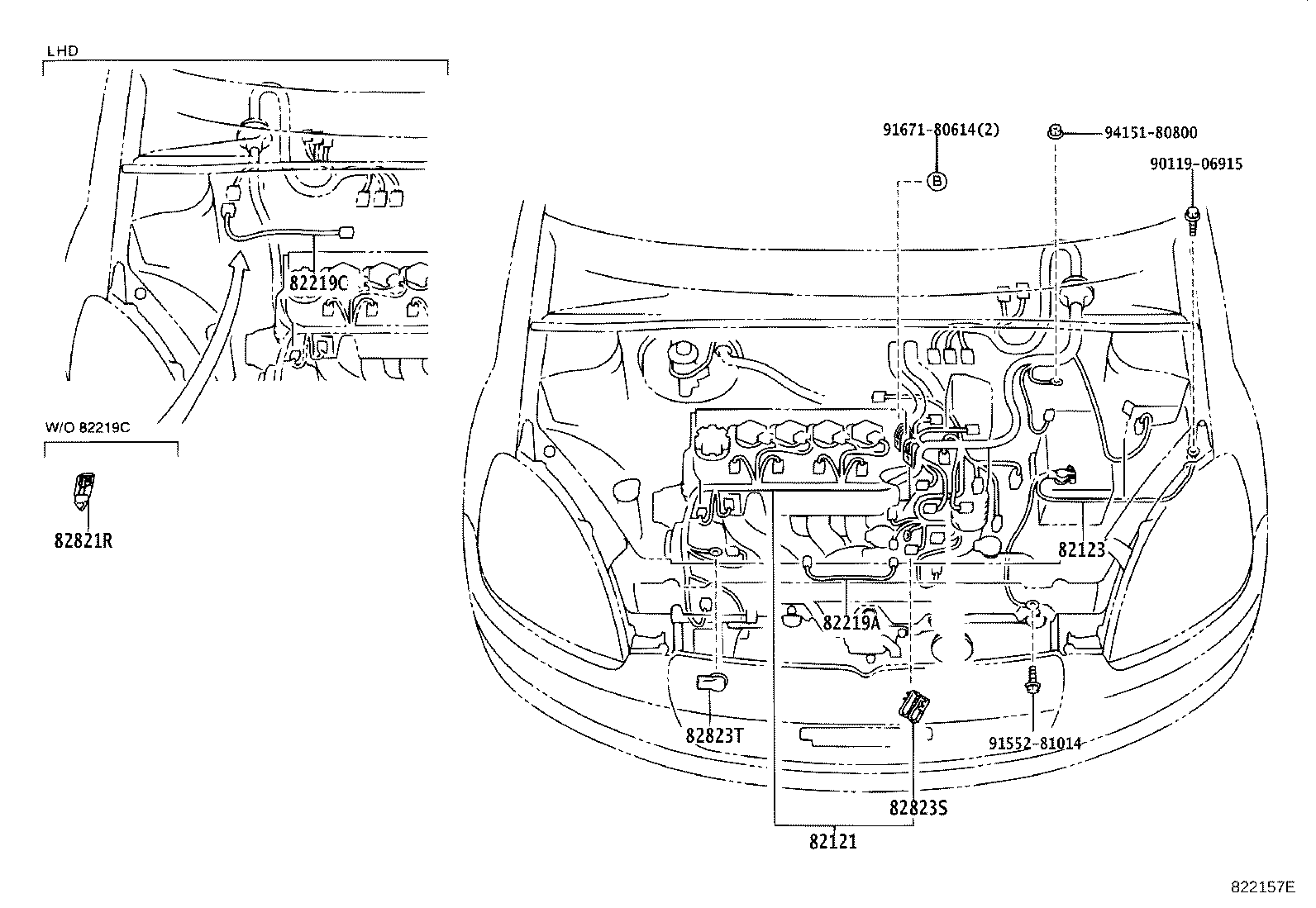

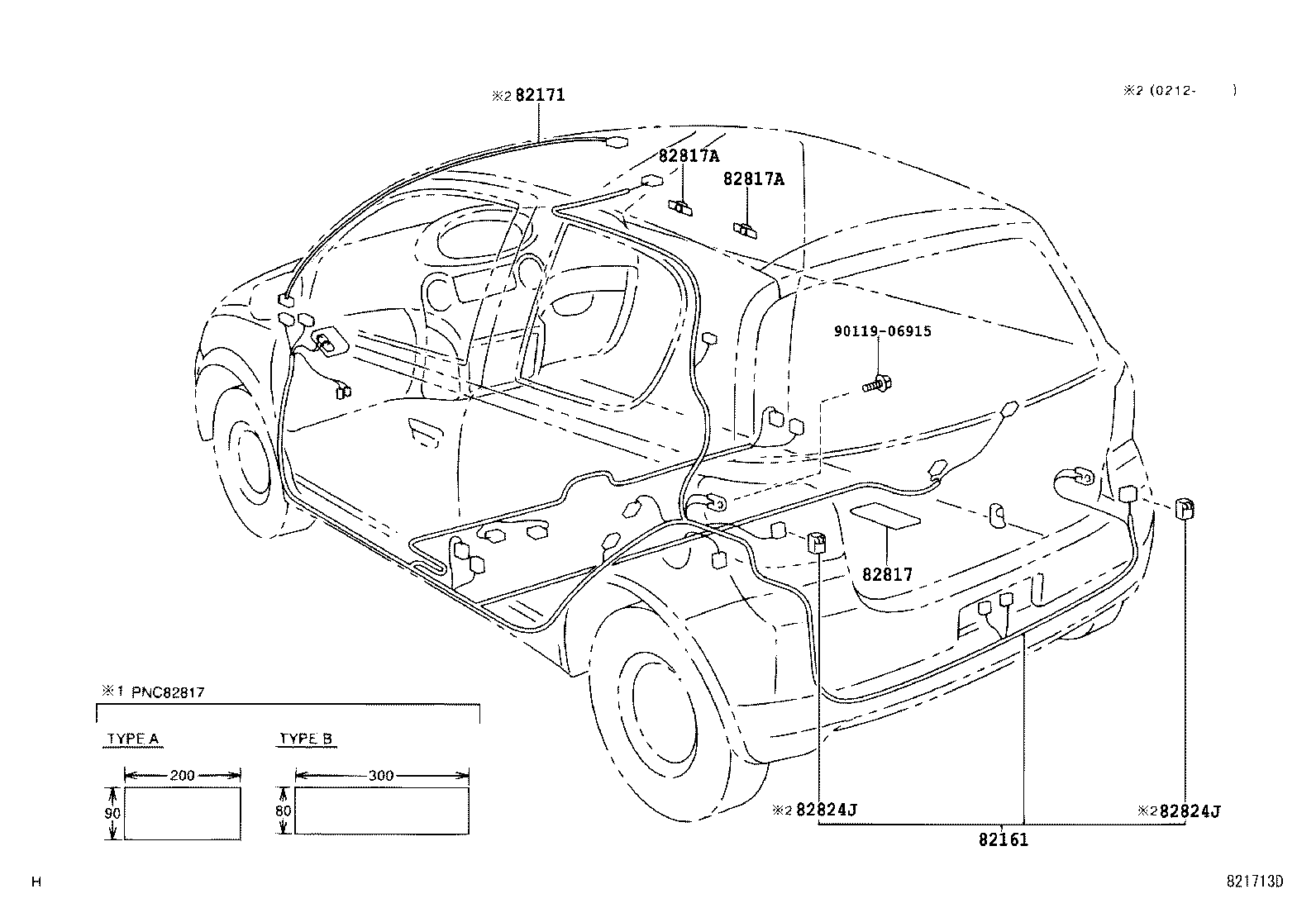

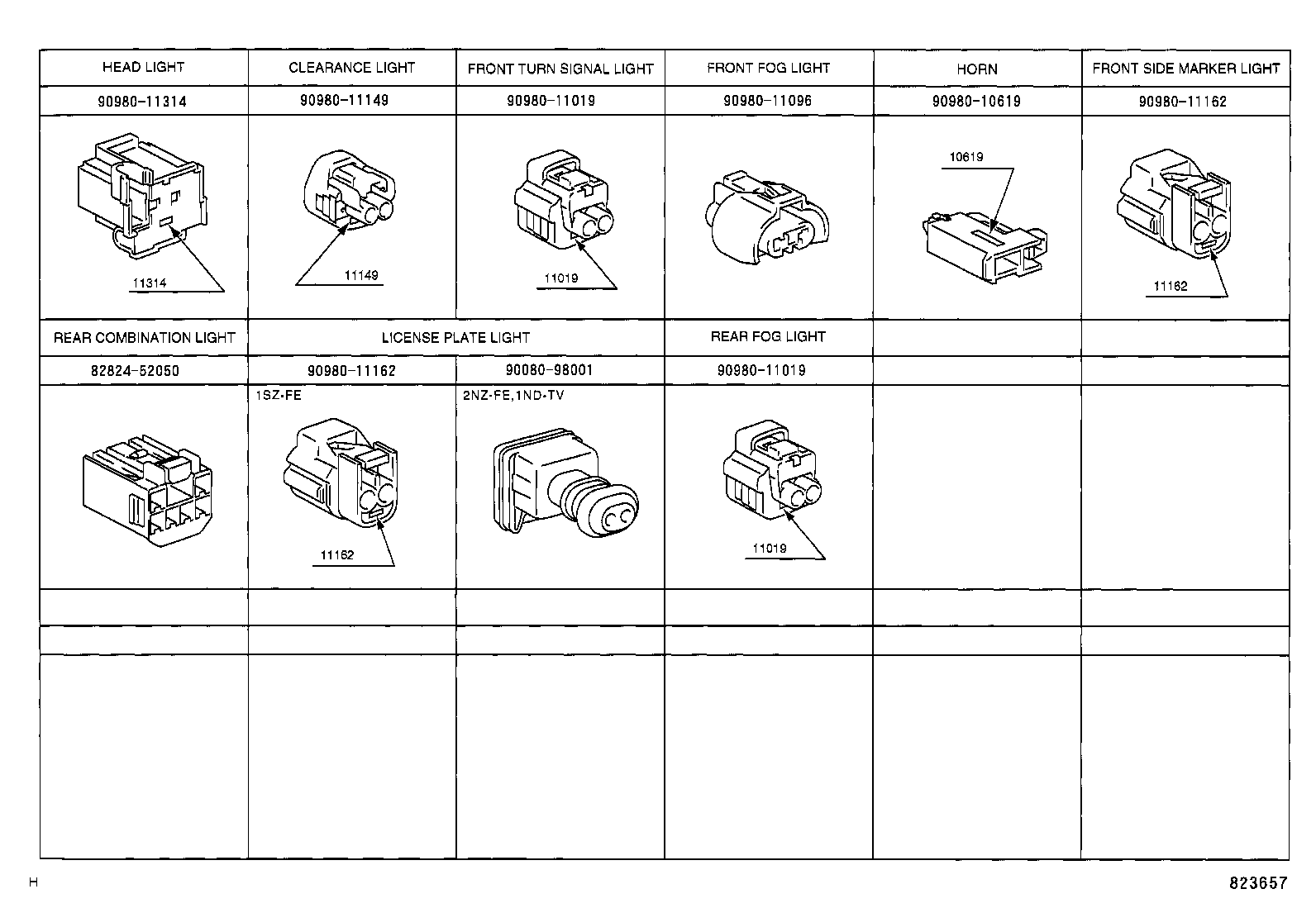

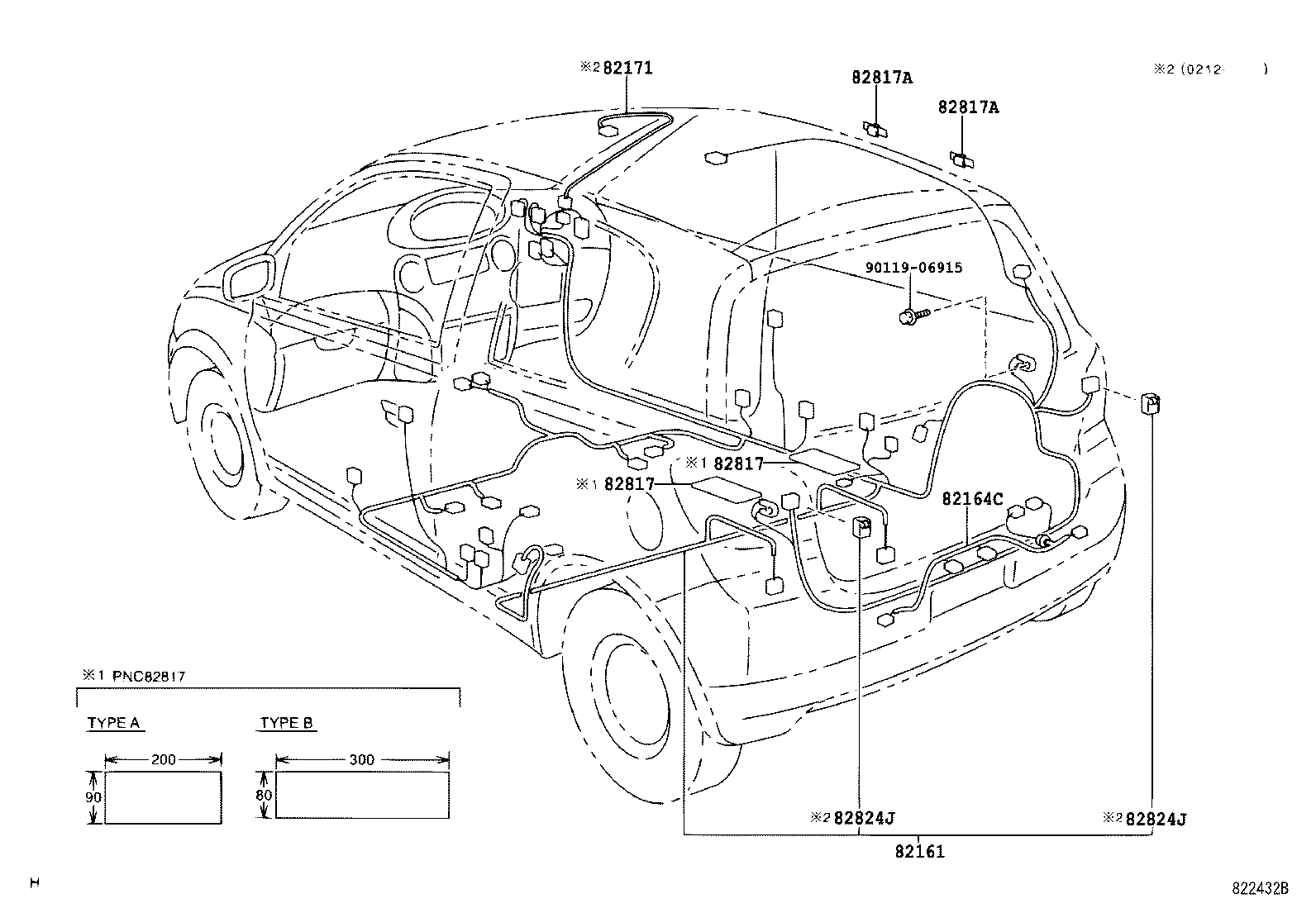

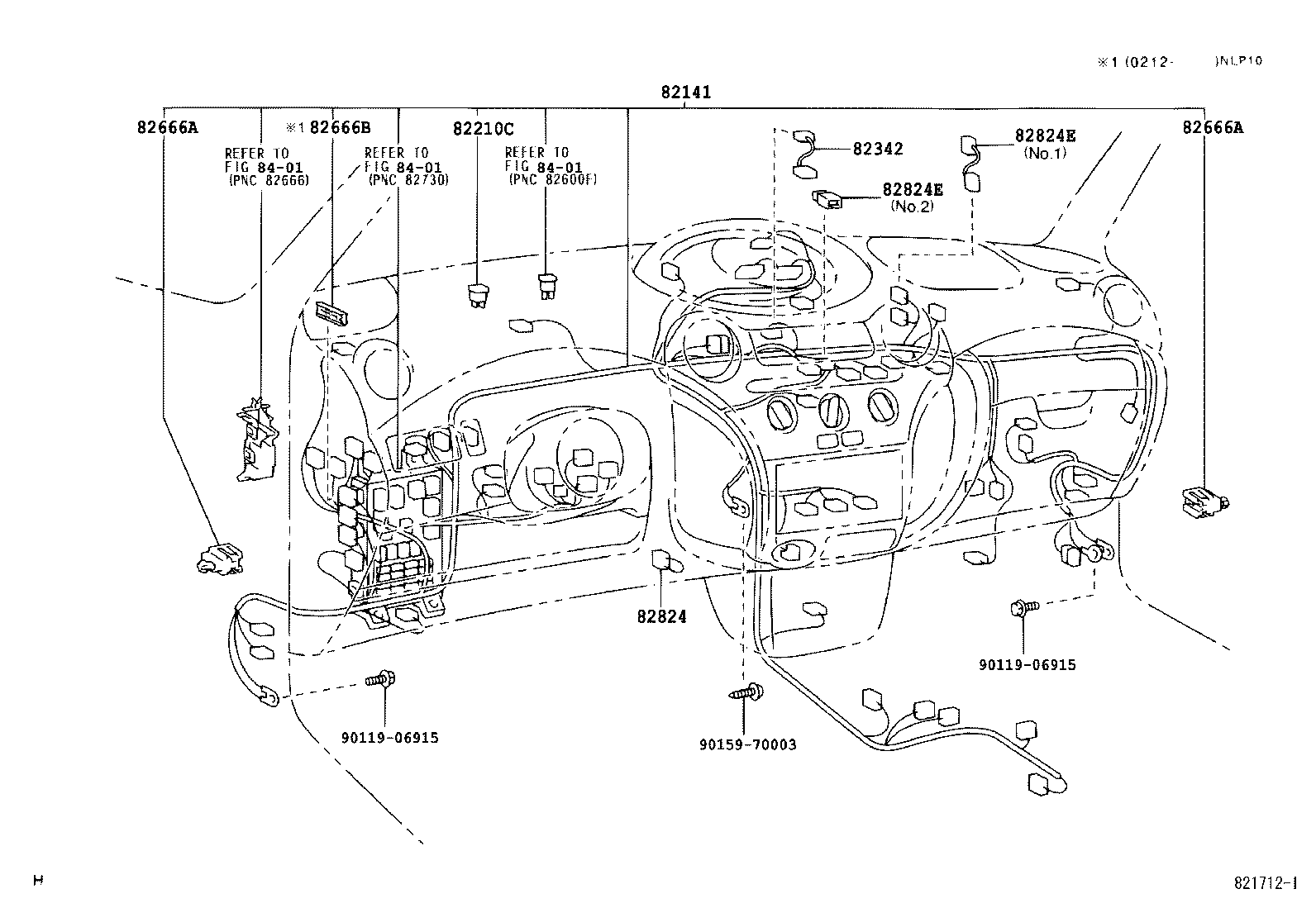

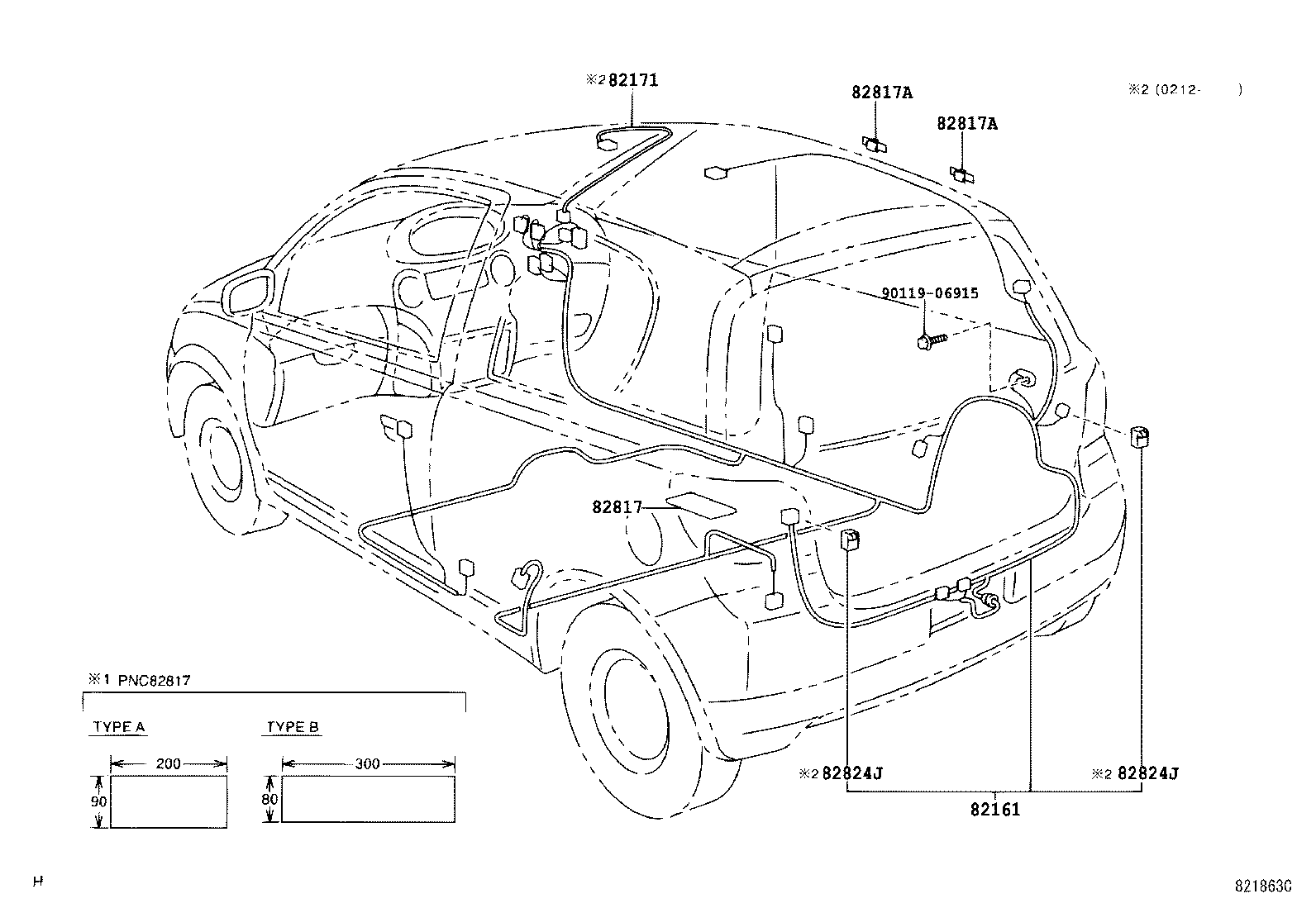

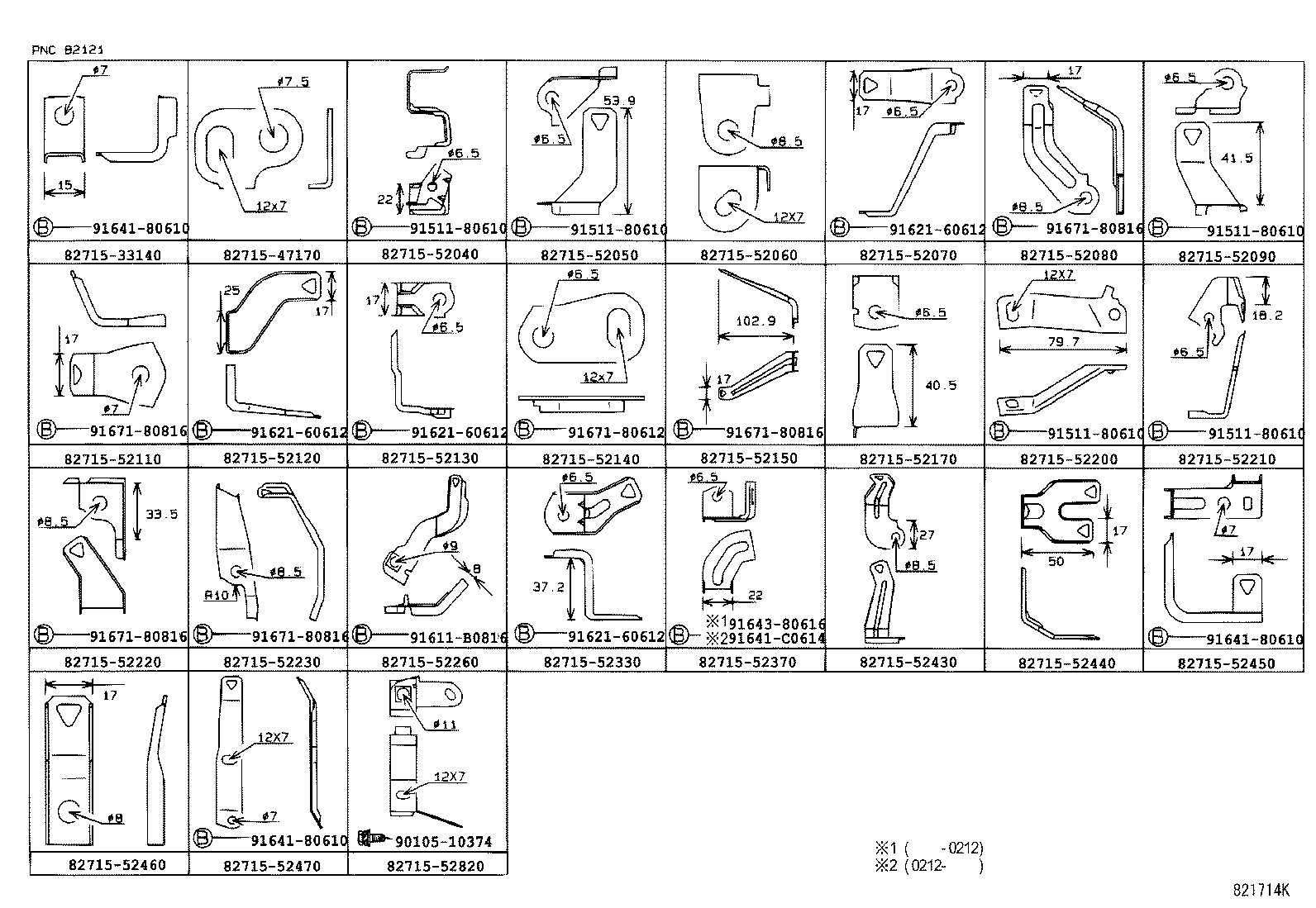

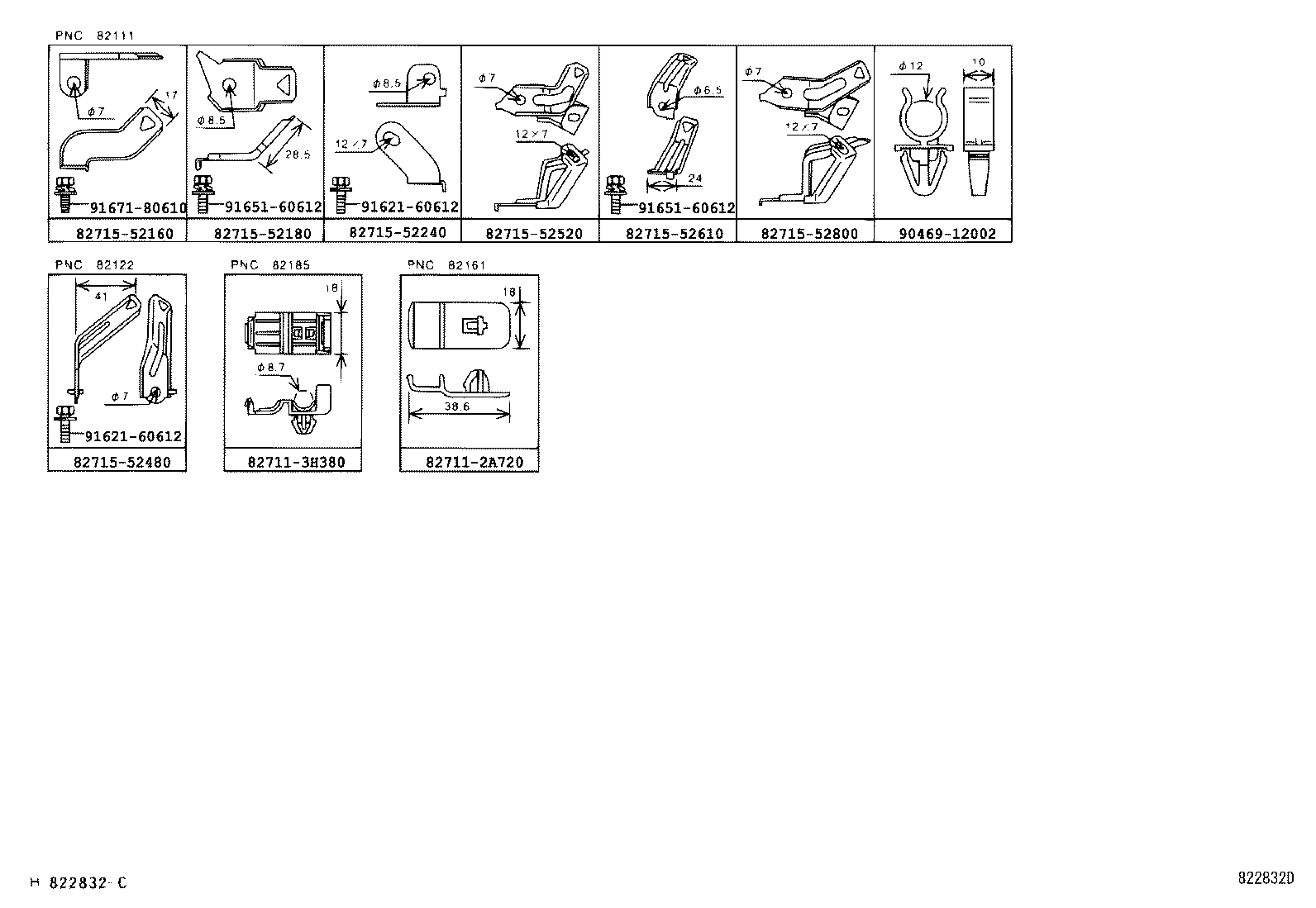

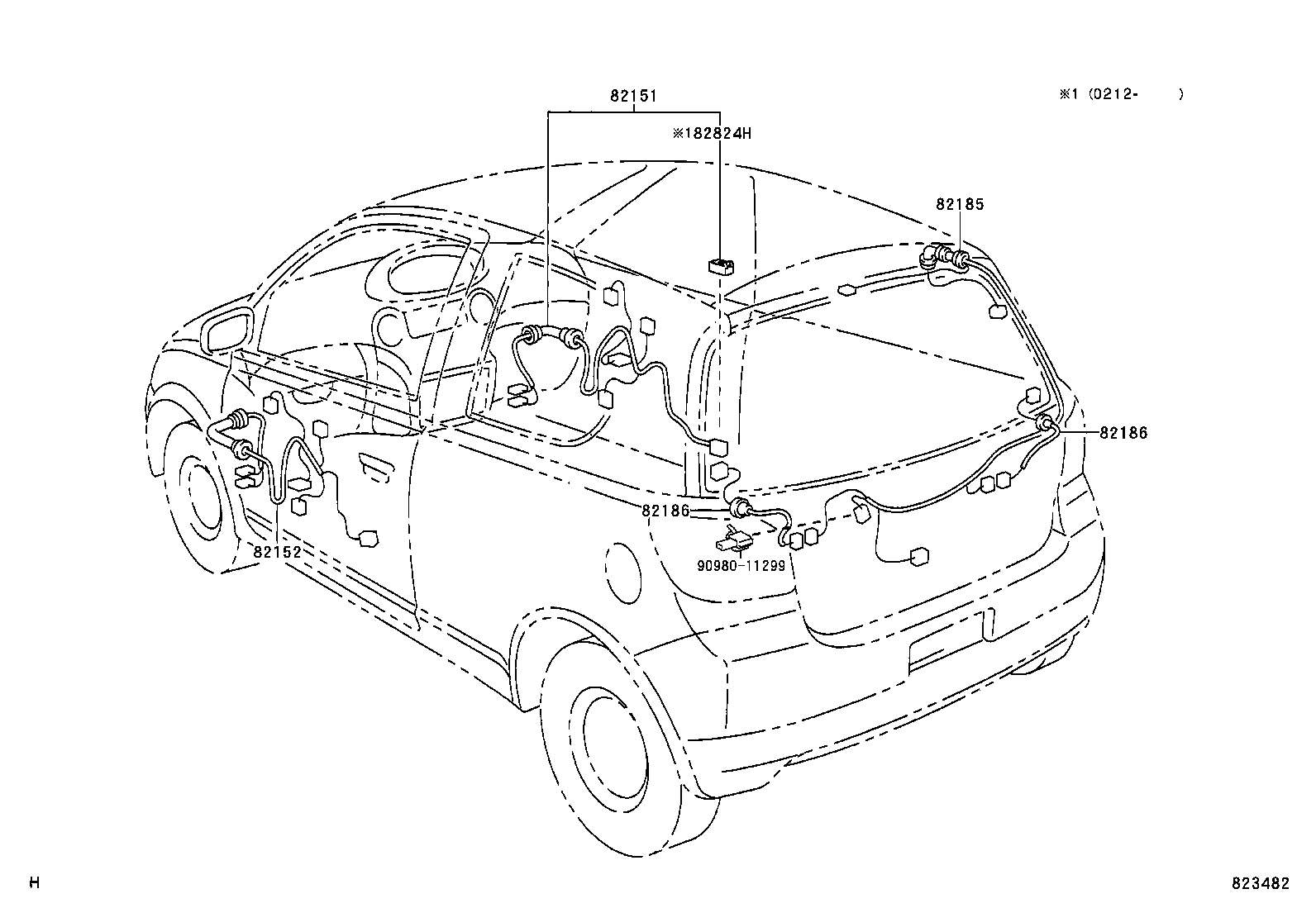

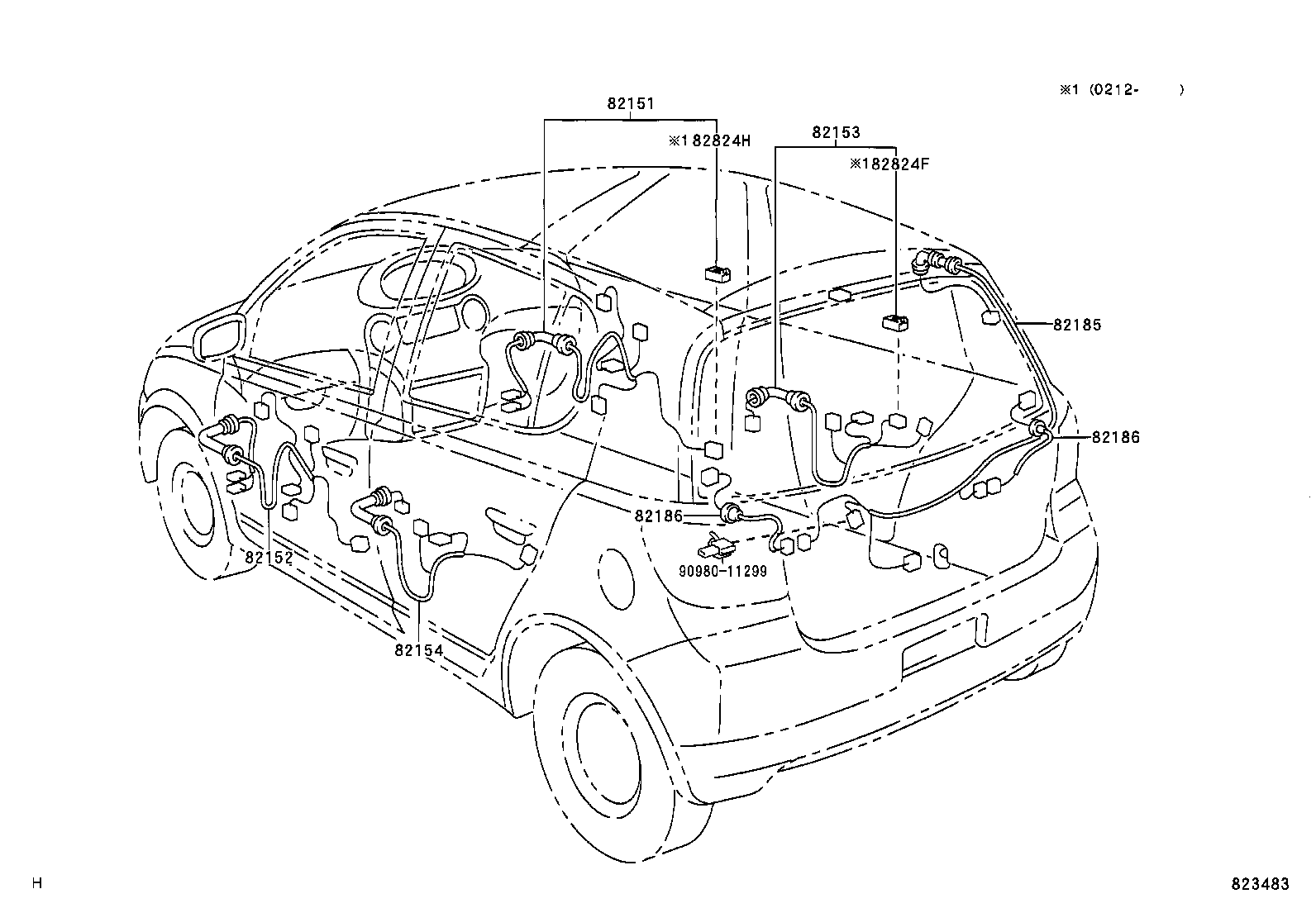

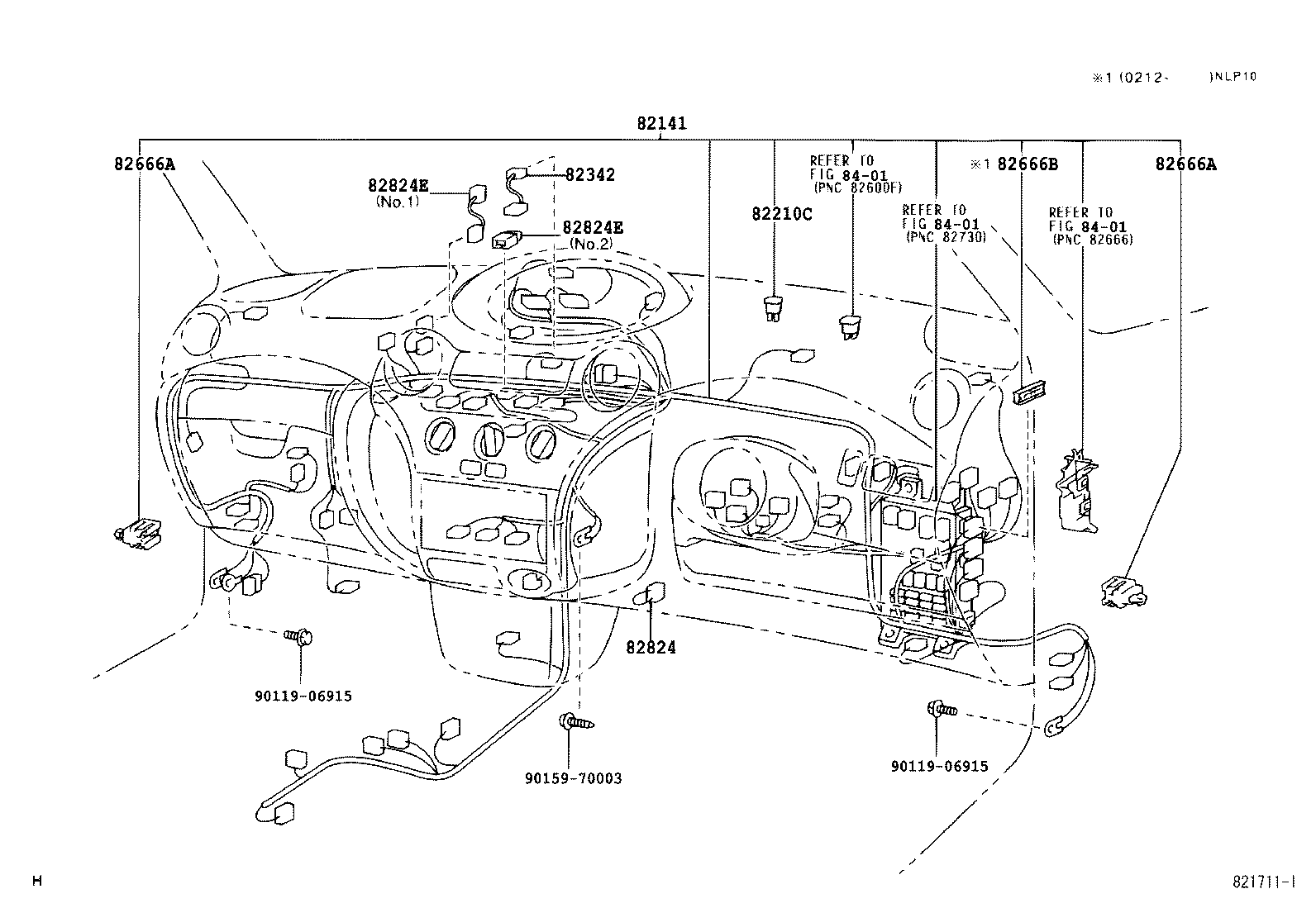

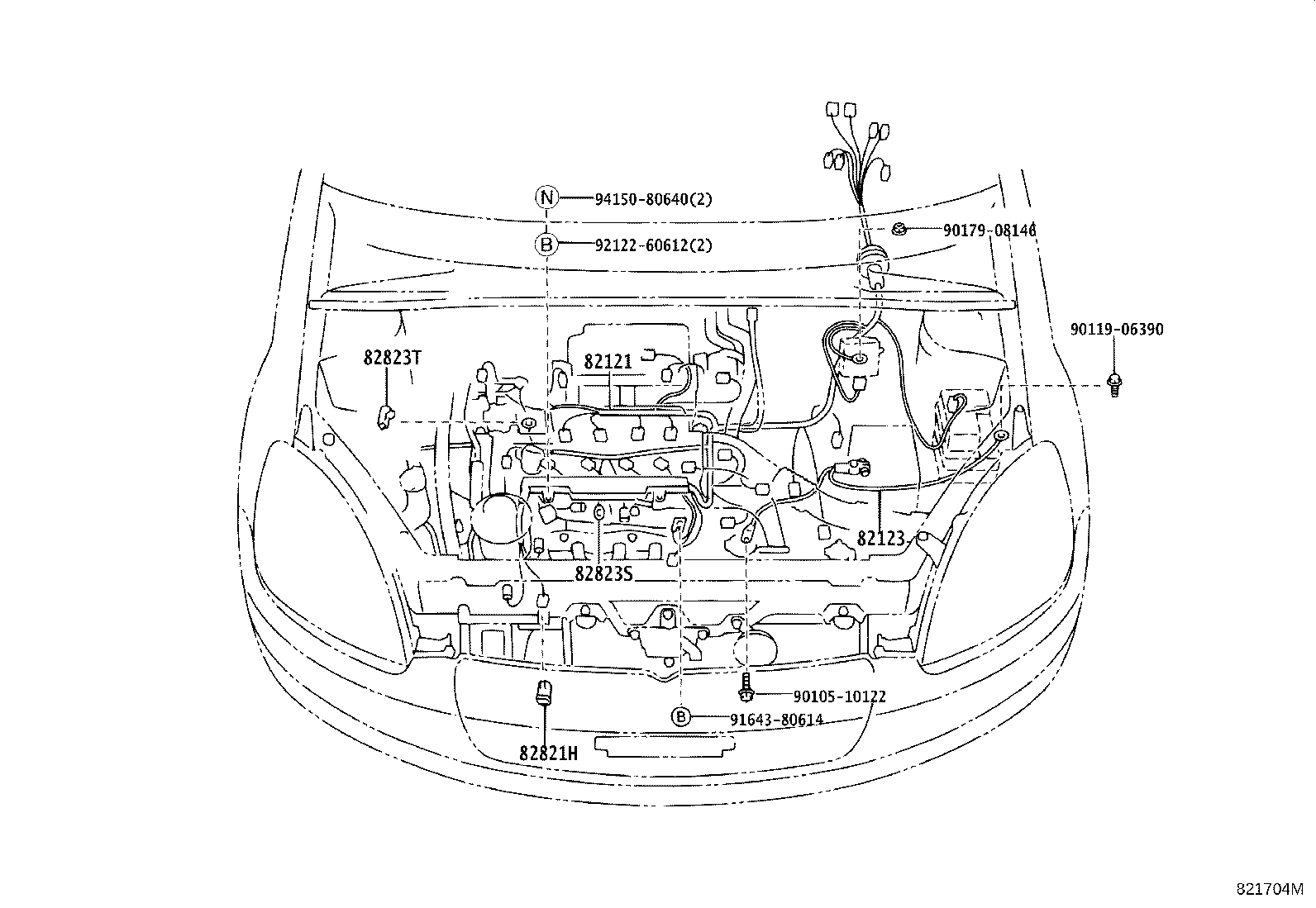

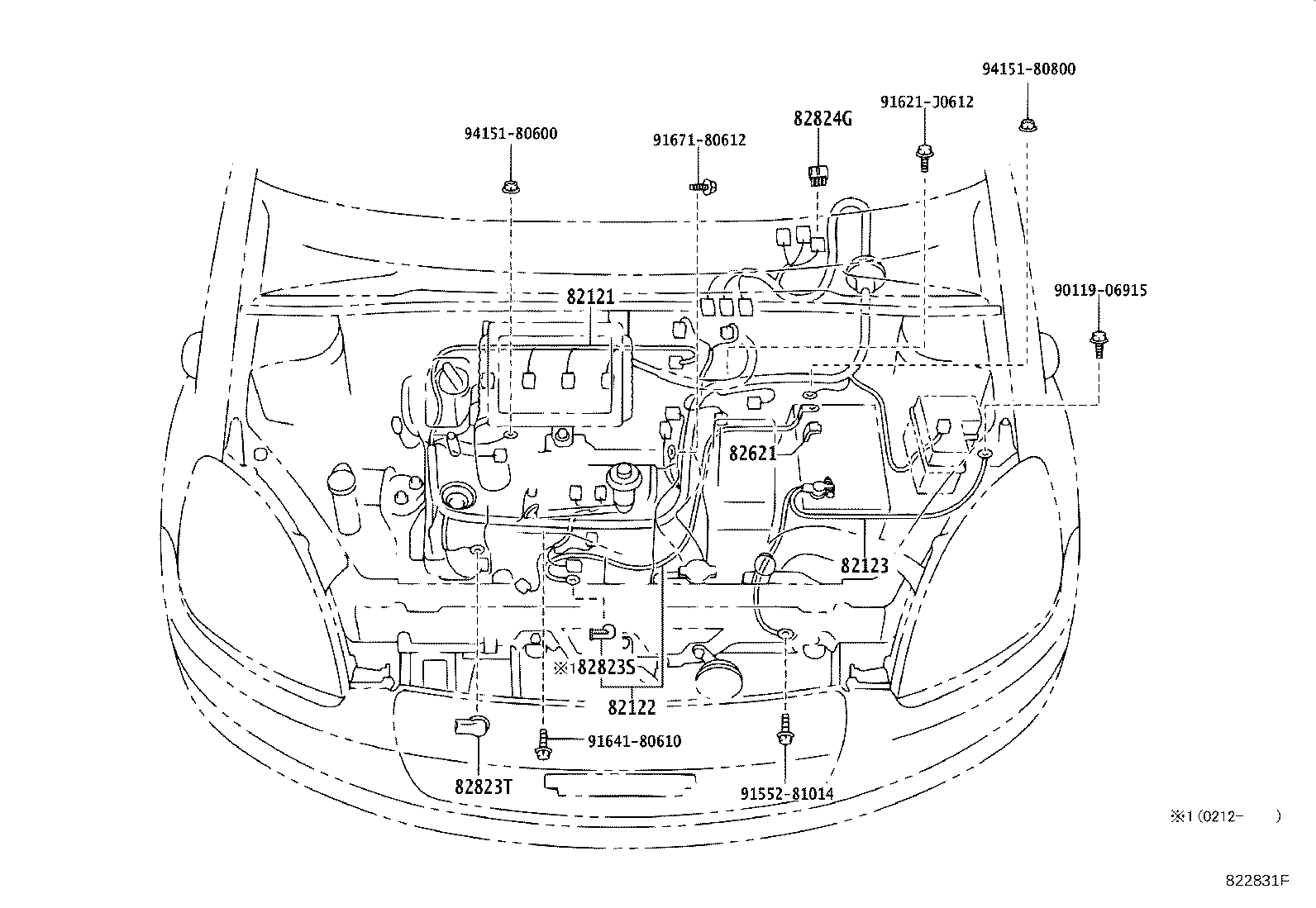

Figure 821710F 821710F 1999-01 → — Figure 822158C 822158C 1999-01 → — Figure 821704M 821704M 1999-01 → — Figure 822157E 822157E 1999-08 → — Figure 822831F 822831F 2001-09 → — Figure 821711I 821711I 1999-01 → — Figure 821712I 821712I 1999-01 → — Figure 823482 823482 1999-01 → — Figure 823483 823483 1999-01 → — Figure 821863C 821863C 1999-01 → — Figure 821713D 821713D 1999-01 → — Figure 822432B 822432B 2001-01 → — Figure 821714L 821714L 1999-01 → — Figure 823402B 823402B 1999-01 → — Figure 822832D 822832D 1999-01 → — Figure 823657 823657 2002-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82210C Fusible Link
82219A Wire, Sensor
82219C Wire, Sensor
82223 Wire, Switch
82342 Wire, Clock
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82821A Cover, Connector
82821H Cover, Connector
82821R Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
