Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

22 part groups · 9 illustrations

Illustrations

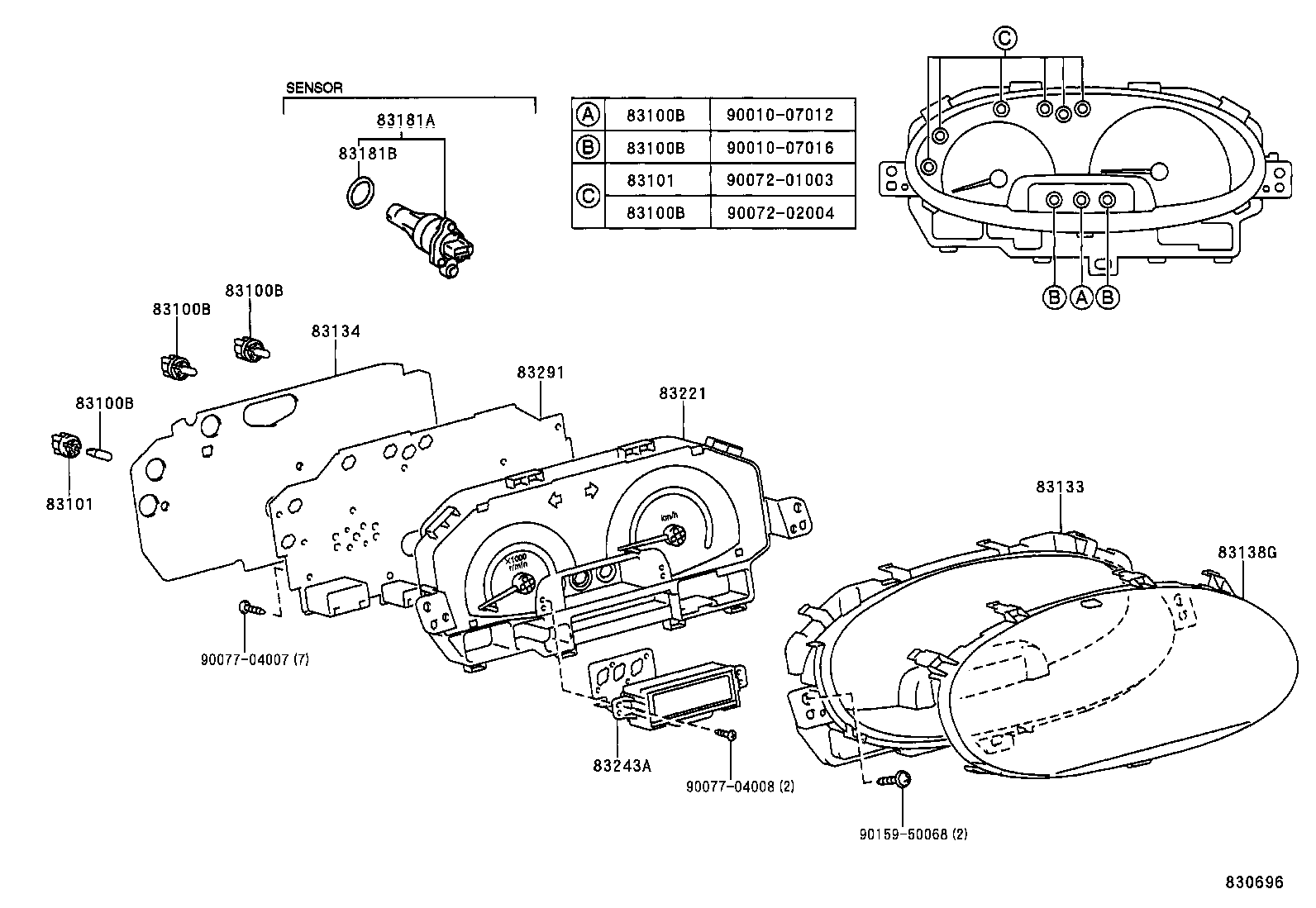

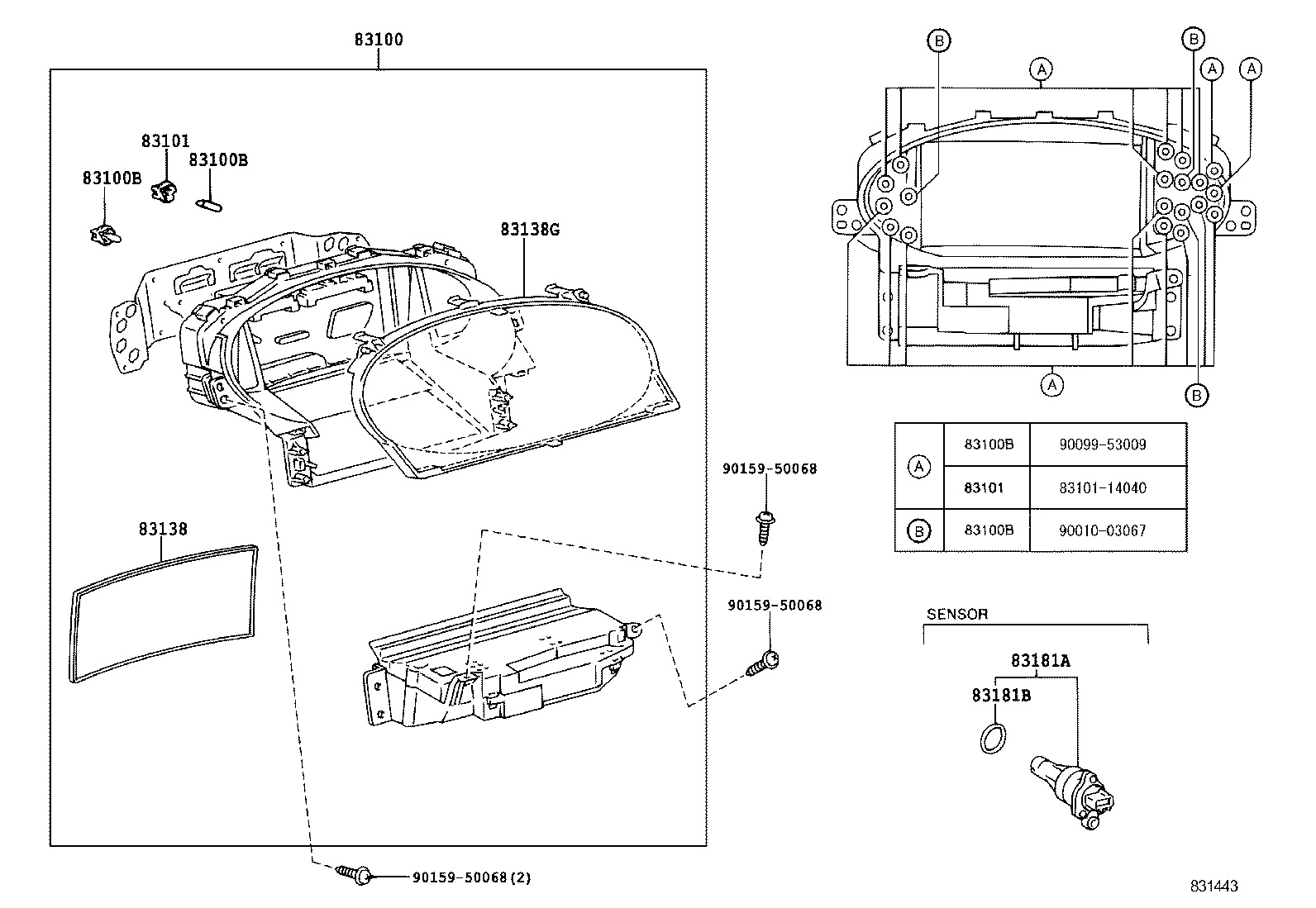

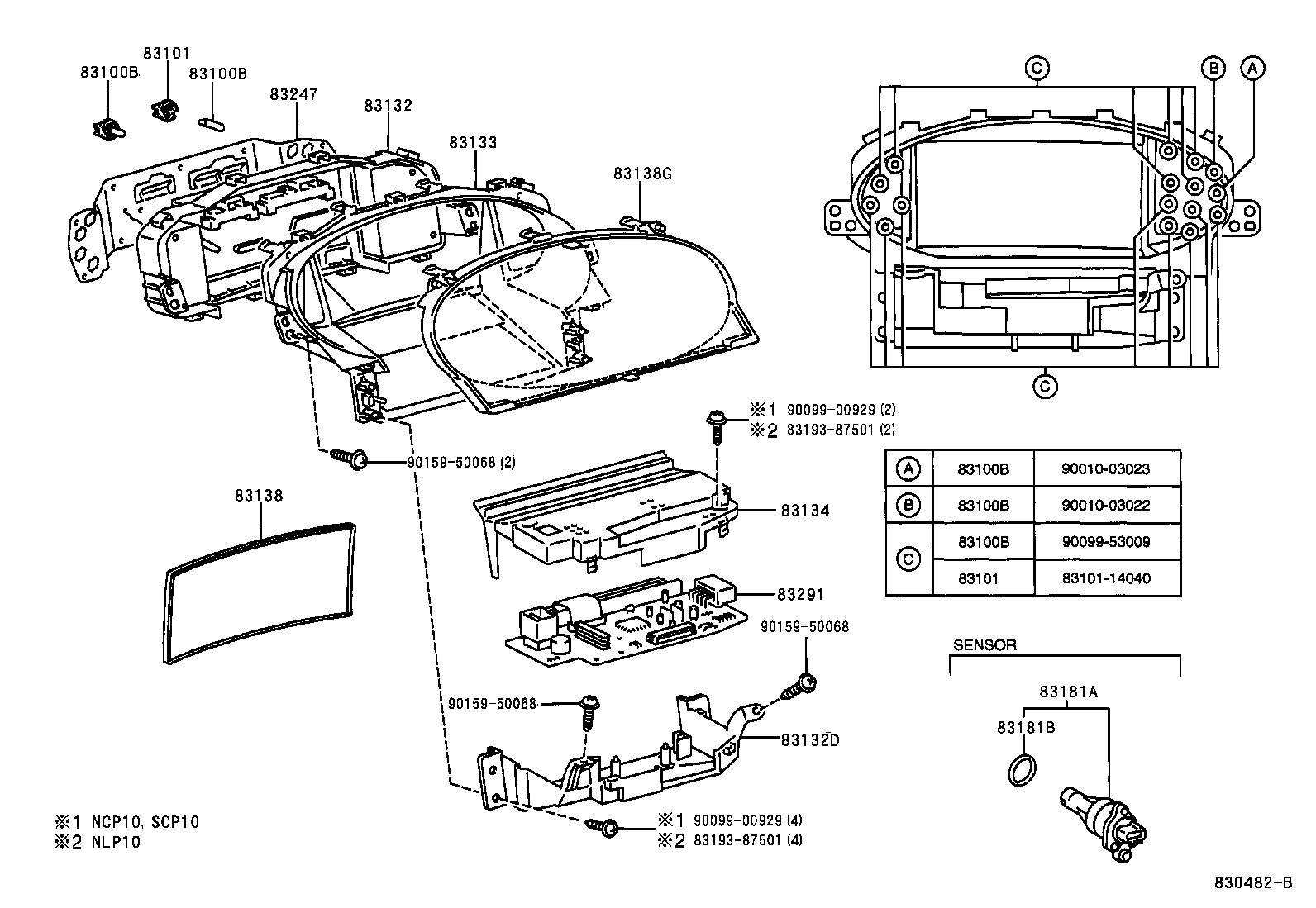

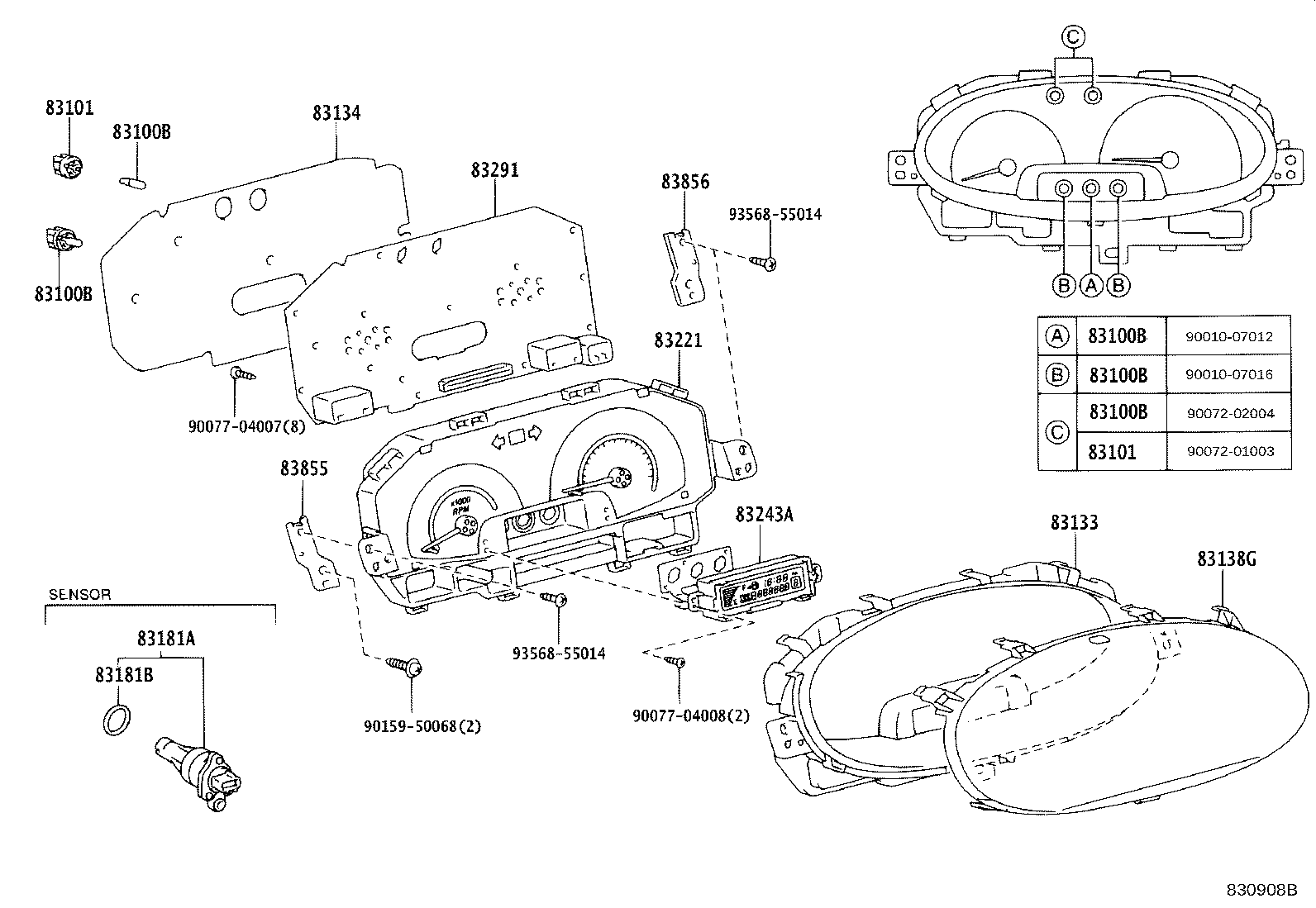

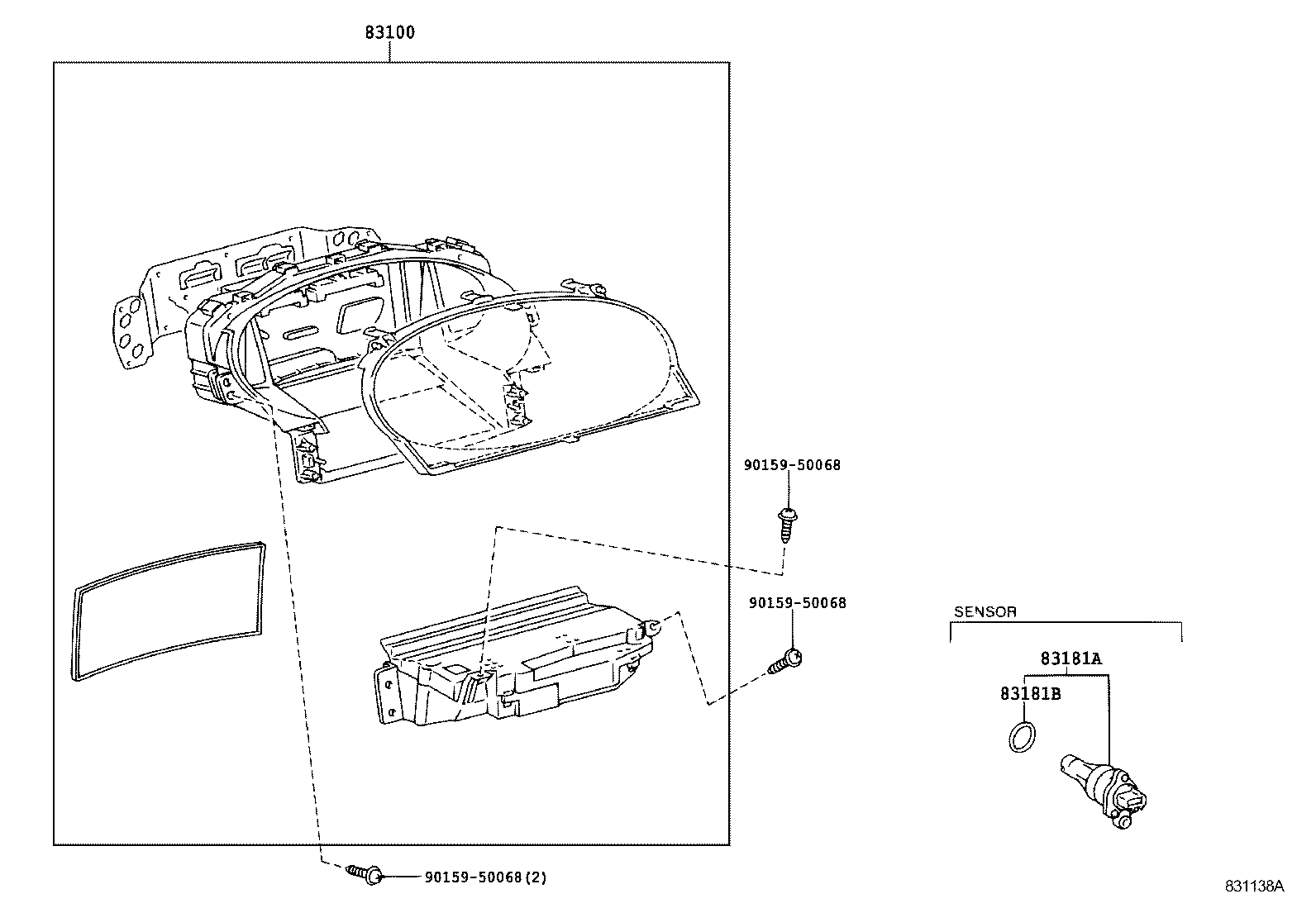

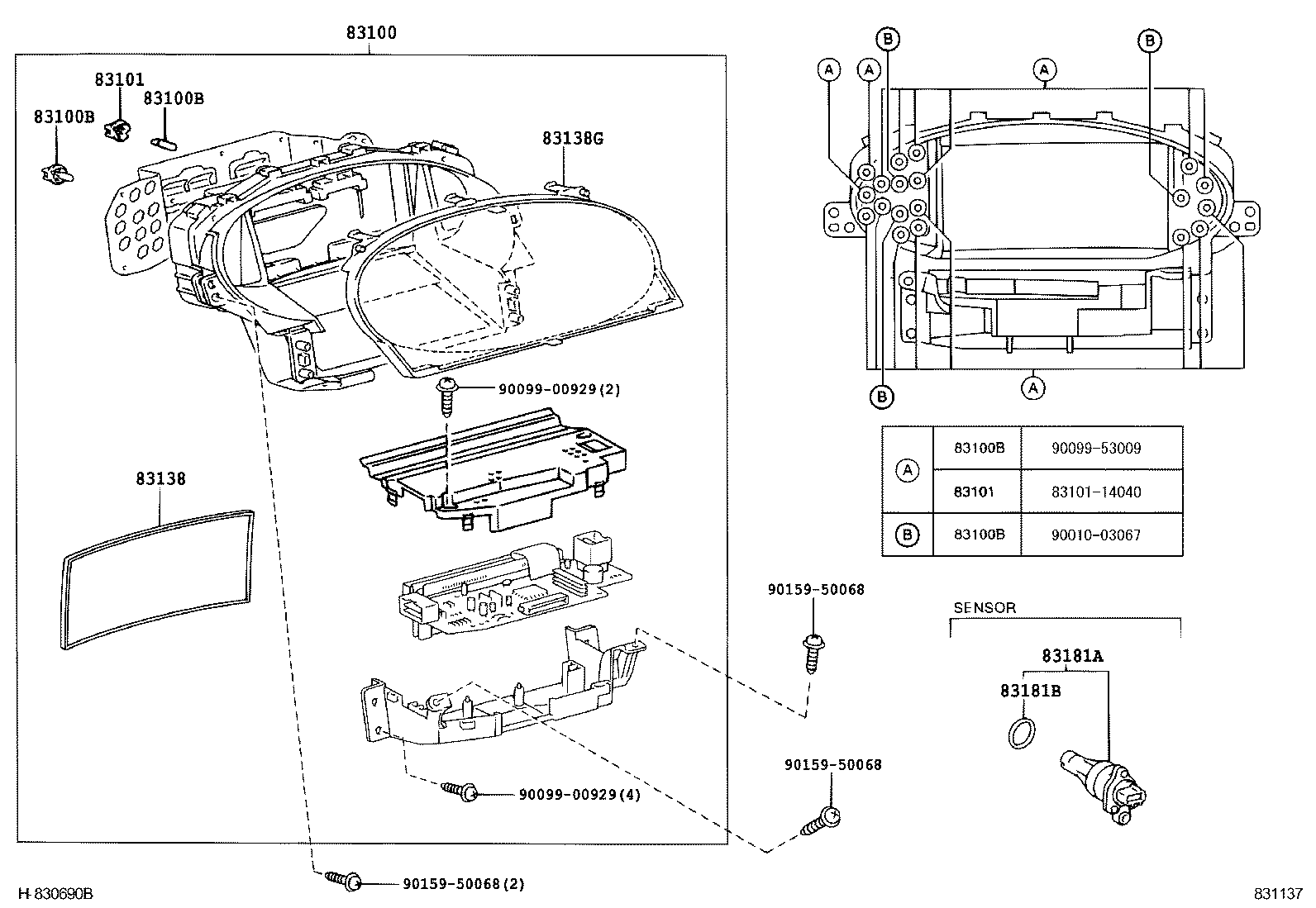

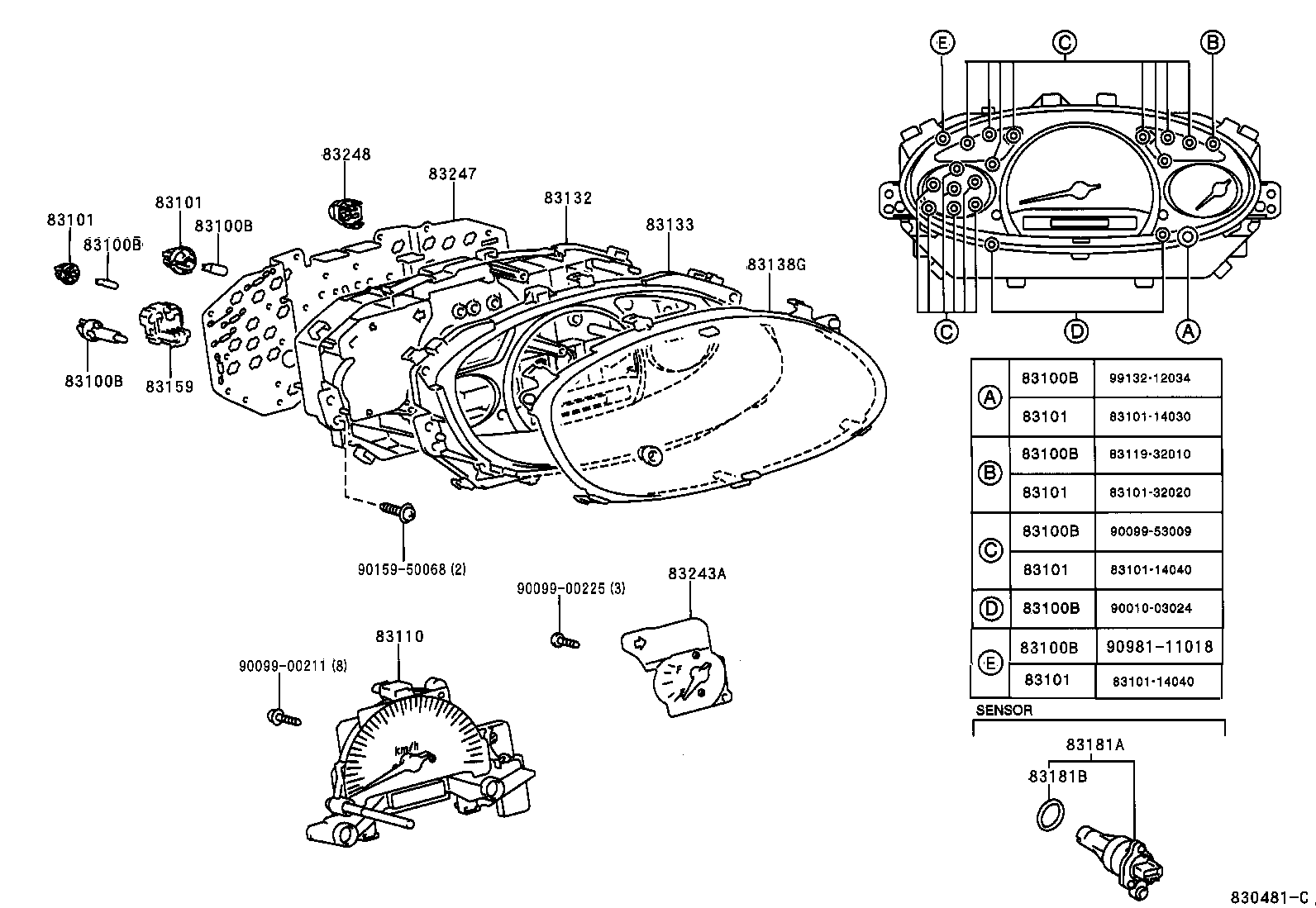

Figure 830480B 830480B 1999-01 → 2002-12 Figure 830482B 830482B 1999-01 → 2002-12 Figure 830696 830696 2001-01 → 2002-12 Figure 830481C 830481C 1999-01 → 2002-12 Figure 830908B 830908B 2002-12 → — Figure 831137 831137 2002-12 → 2005-08 Figure 831138A 831138A 2002-12 → 2003-12 Figure 831443 831443 2003-12 → 2005-08 Figure 830483A 830483A 1999-01 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83132D Case, Combination Meter, NO.2
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138 Glass, Speedometer
83138G Glass, Combination Meter
83159 Switch, Meter, NO.1
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83221 Meter, Speed
83243A Gauge Sub-assy, Fuel Receiver
83247 Plate, Meter Circuit
83248 Chime, Speed Warning
83291 Computer, Combination Meter
83855 Bracket, Combination Meter, NO.1
83856 Bracket, Combination Meter, NO.2
83910 Clock Assy
83911C Ornament, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
