Toyota Yaris (JPP)
1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe
Discontinued model
Data version 2006-05
Electronic Controled Diesel (ECD)

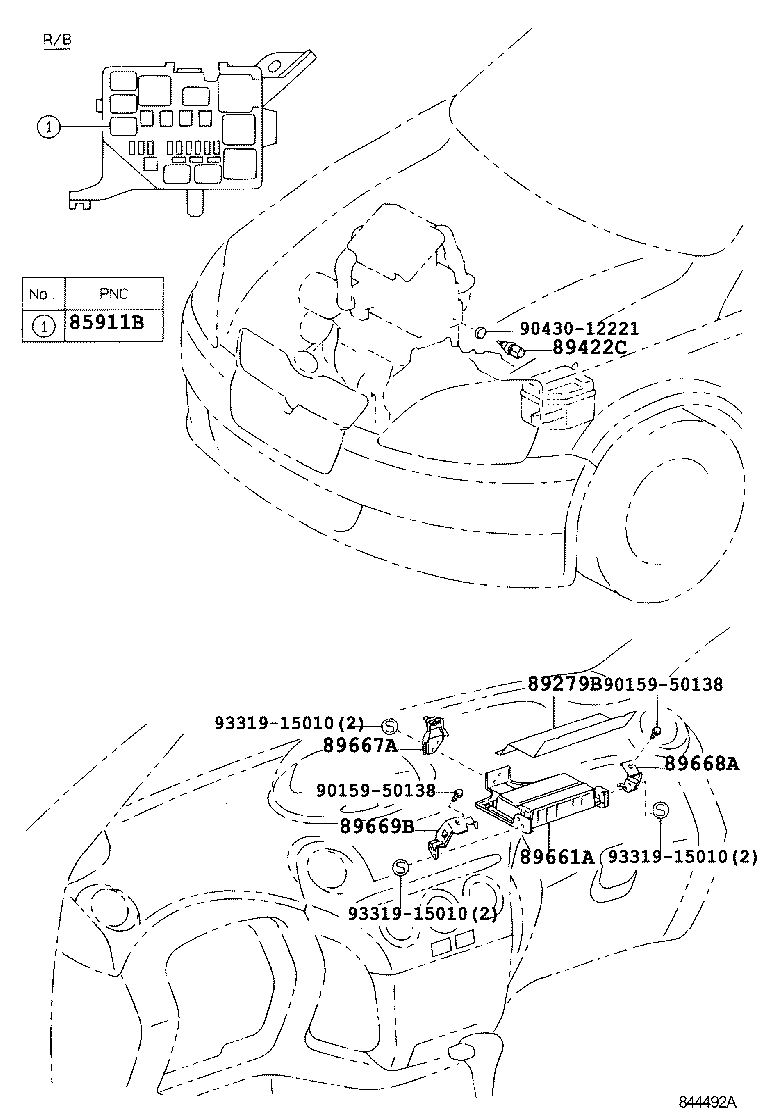

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85911B | Relay, Computer (FOR DIESEL TURBO) |
| 89279B | Cover, Diesel Engine Control Computor |
| 89422C | Sensor, Diesel Engine Water Temperature |
| 89661A | Computer, Engine Control |
| 89667A | Bracket, Engine Control Computer, NO.1 |
| 89668A | Bracket, Engine Control Computer, NO.2 |
| 89669B | Bracket, Engine Control Computer, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
