Toyota Yaris (JPP)
1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe
Discontinued model
Data version 2006-05
Wireless Door Lock

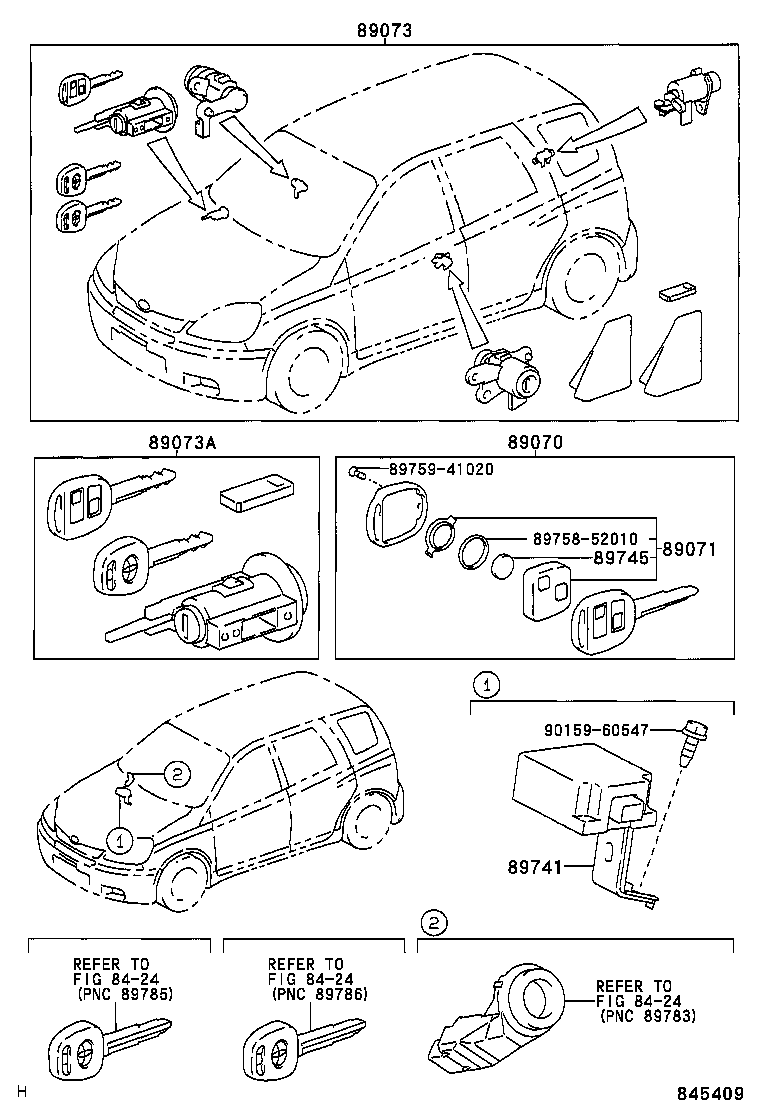

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89070 | Transmitter Assy, Door Control |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89073 | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89073A | Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY) |
| 89741 | Receiver, Door Control |
| 89745 | Battery, Transmitter |
| 89751 | Cover, Transmitter Housing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
