Factory parts data · Europe

Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 4 illustrations

Illustrations

Figure 842802F

842802F 1999-01 → 2002-12

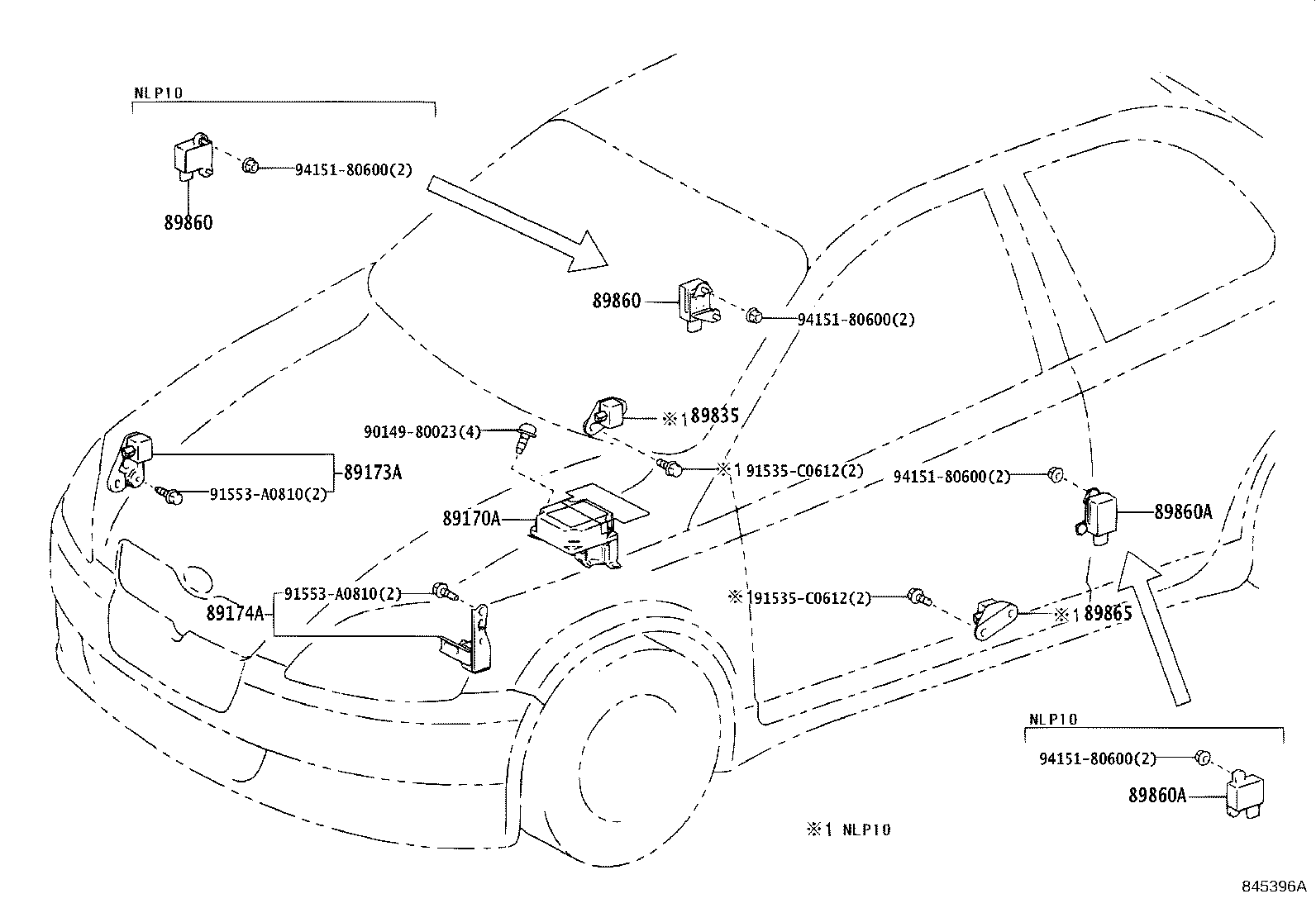

Figure 845396A

845396A 2002-12 → —

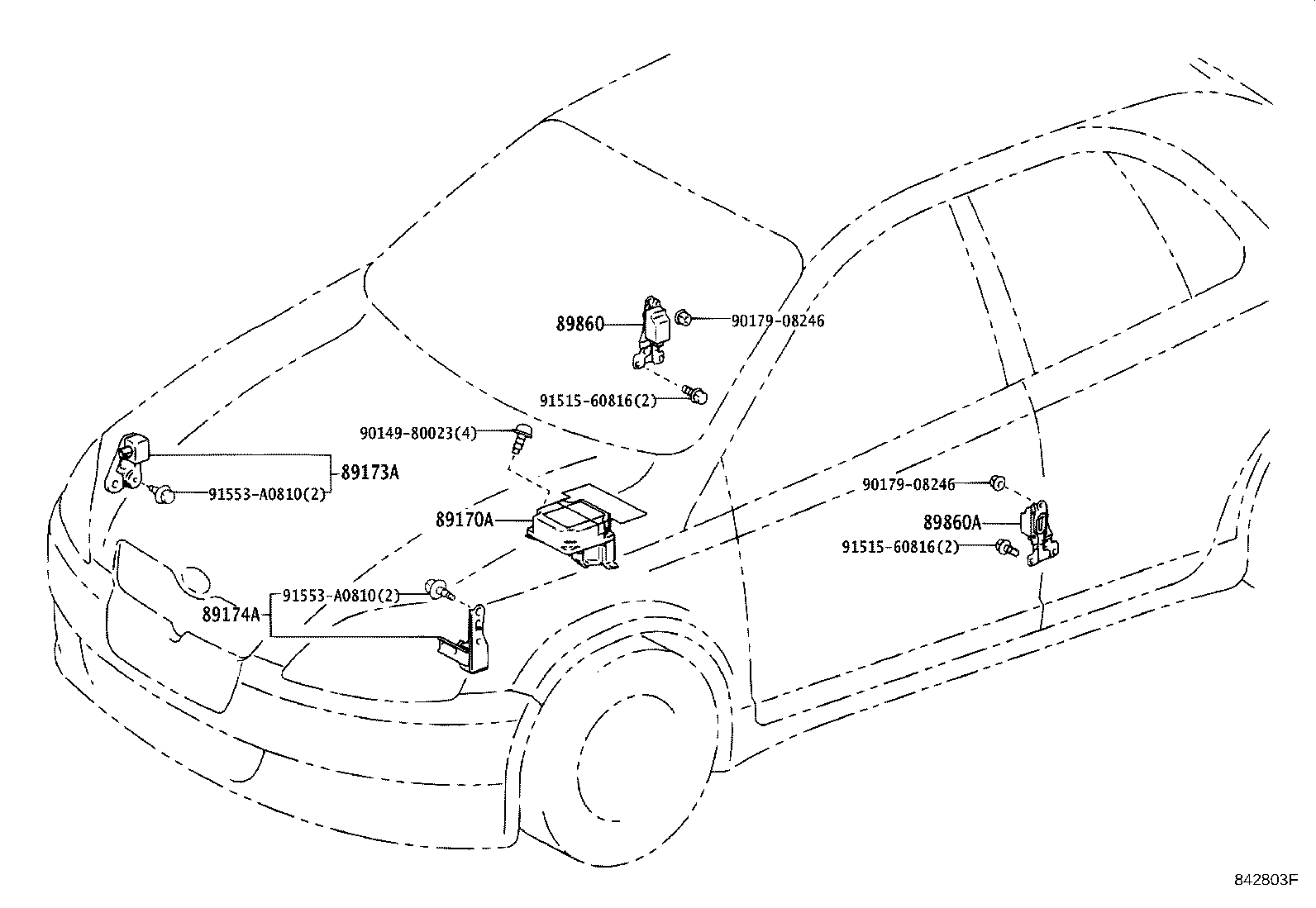

Figure 842803F

842803F 1999-01 → 2002-12

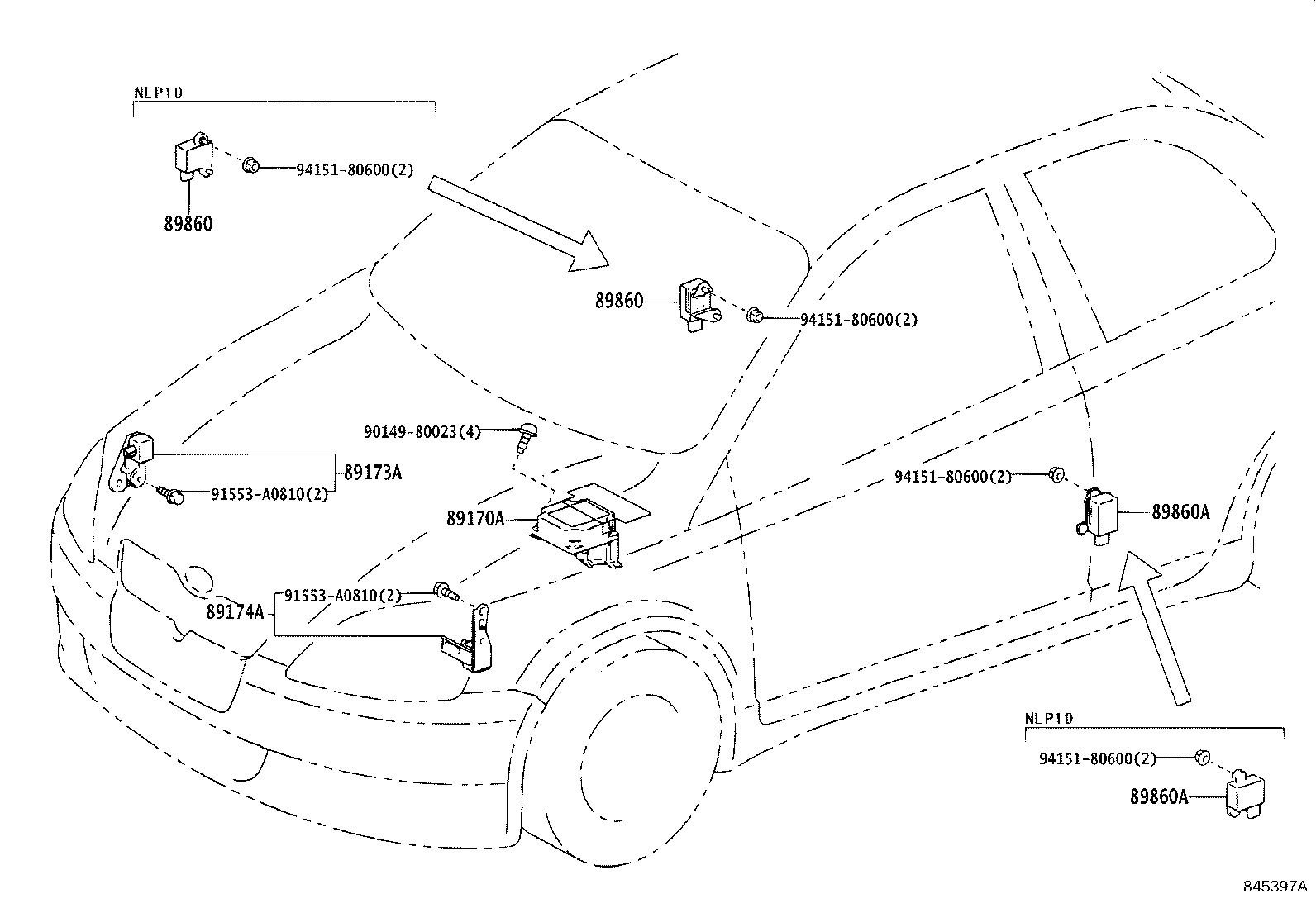

Figure 845397A

845397A 2002-12 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89835	Sensor, Door Side Airbag, LH
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH
89865	Sensor, Door Side Airbag, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
