Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

29 part groups · 9 illustrations

Illustrations

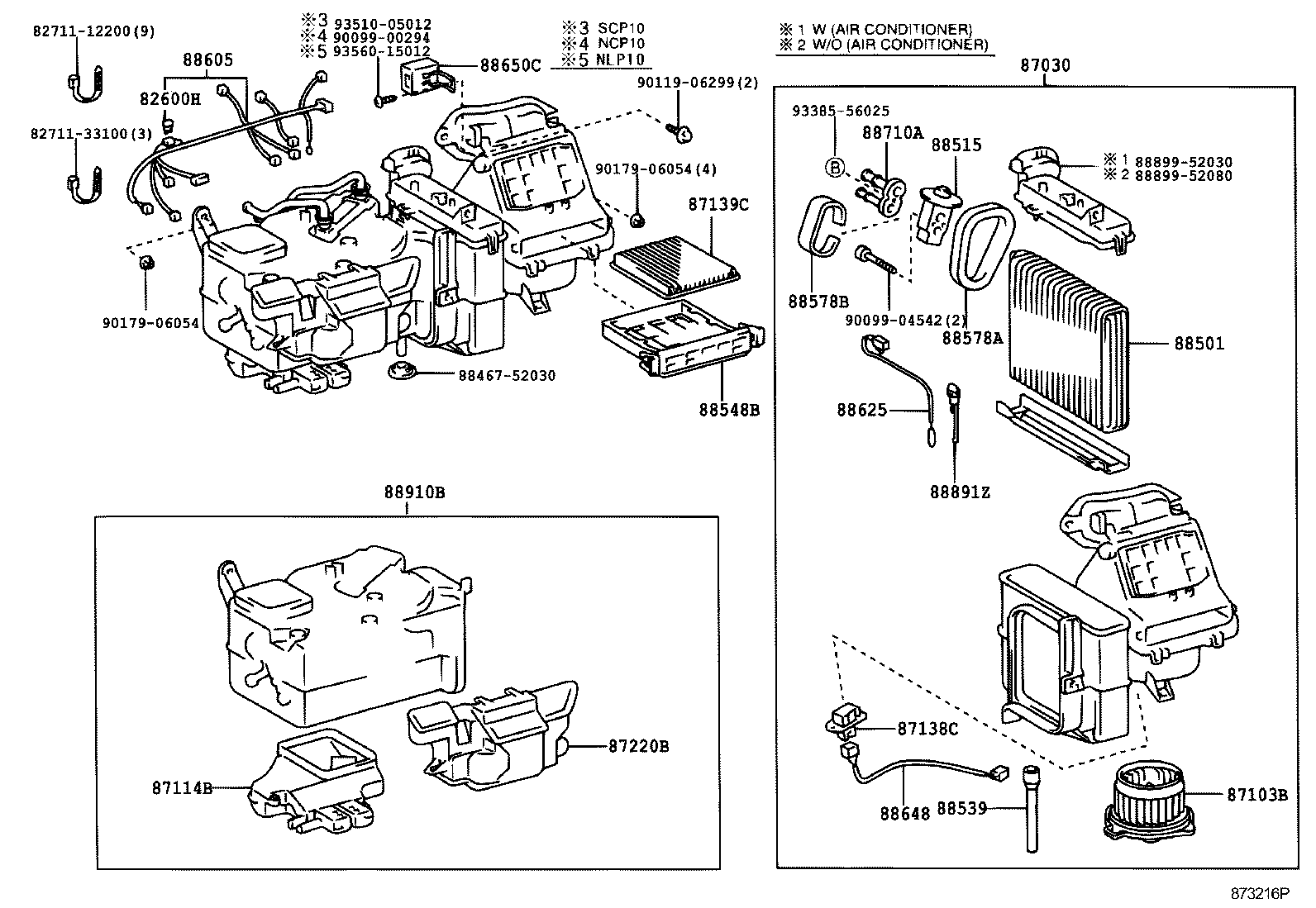

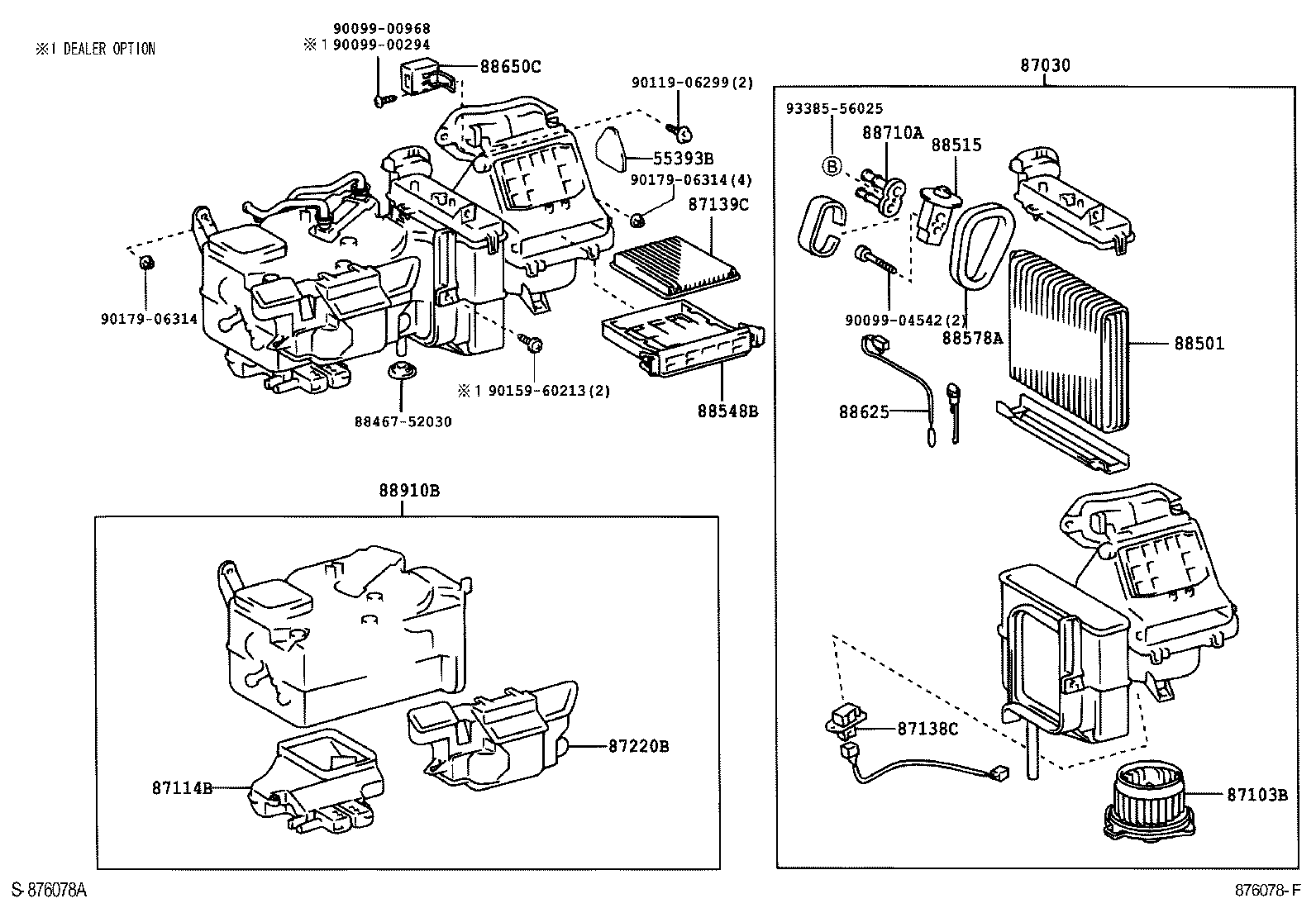

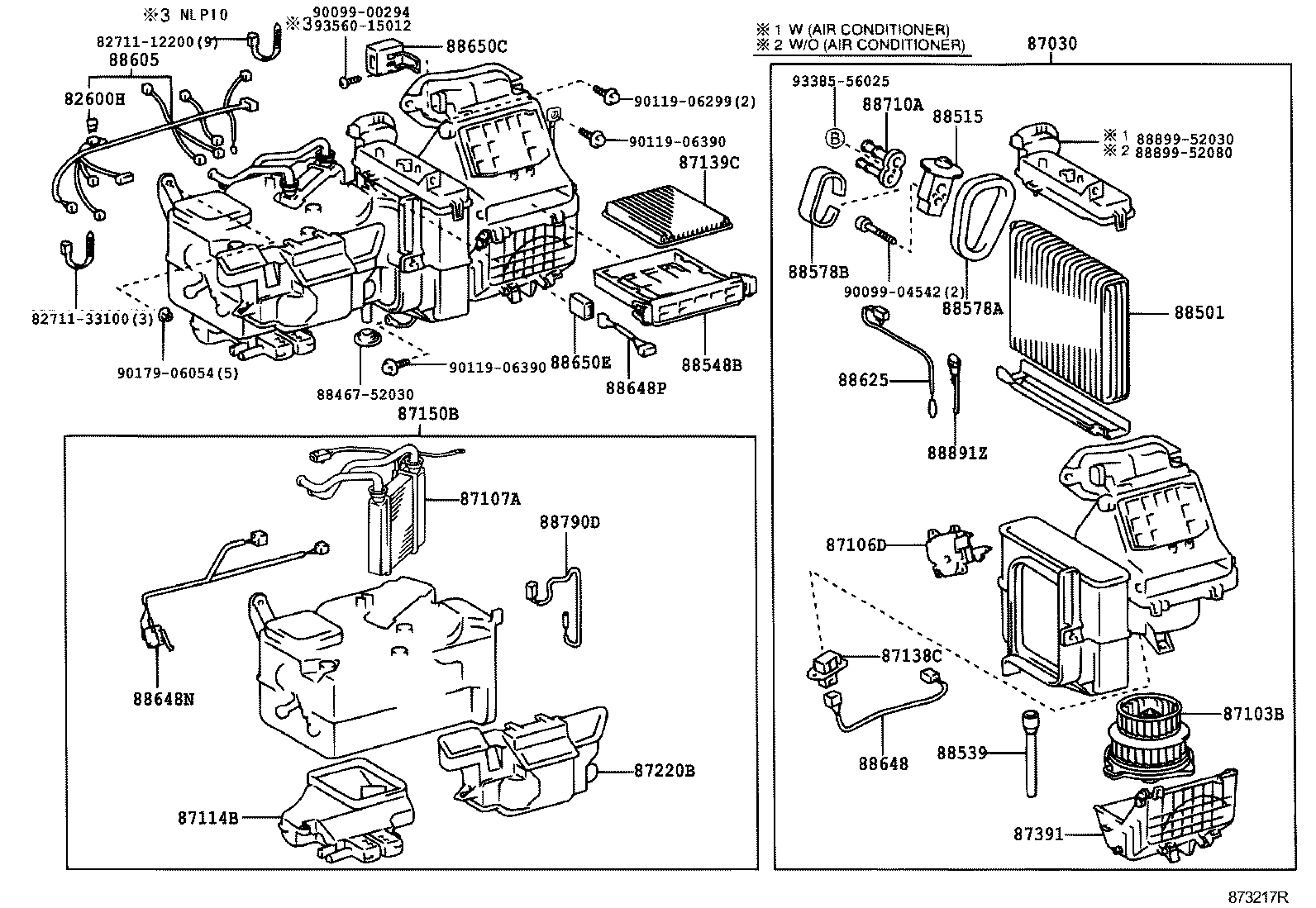

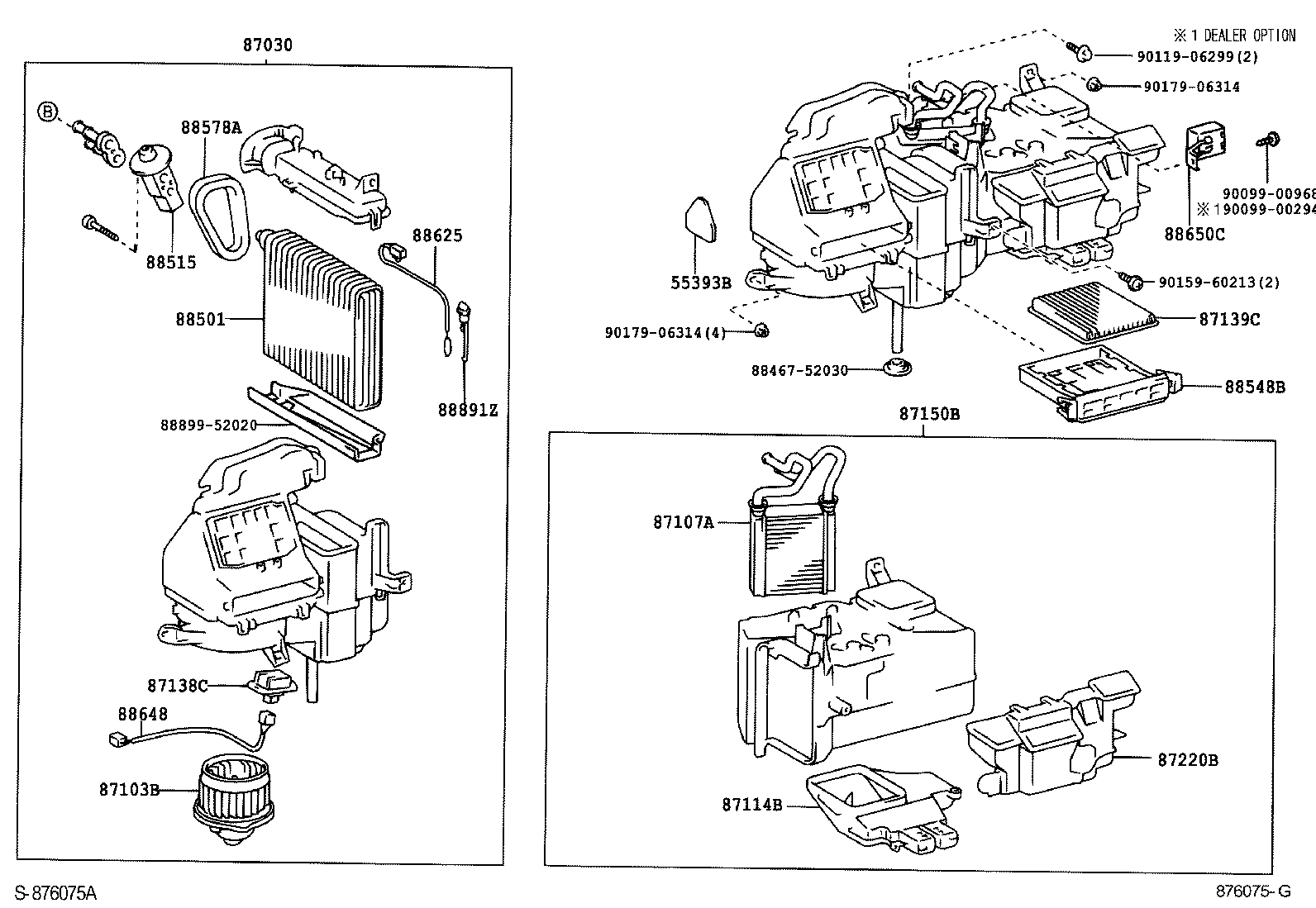

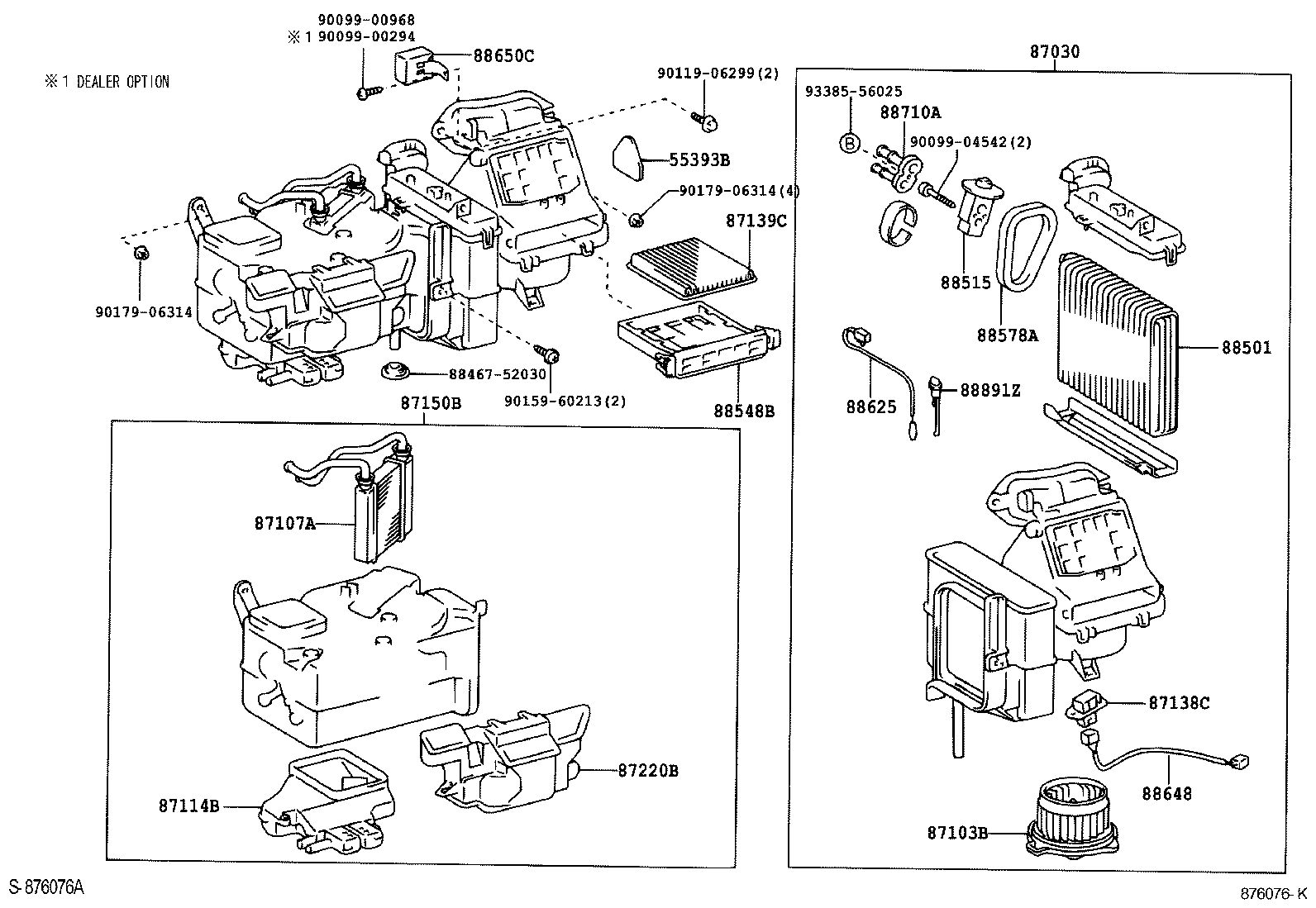

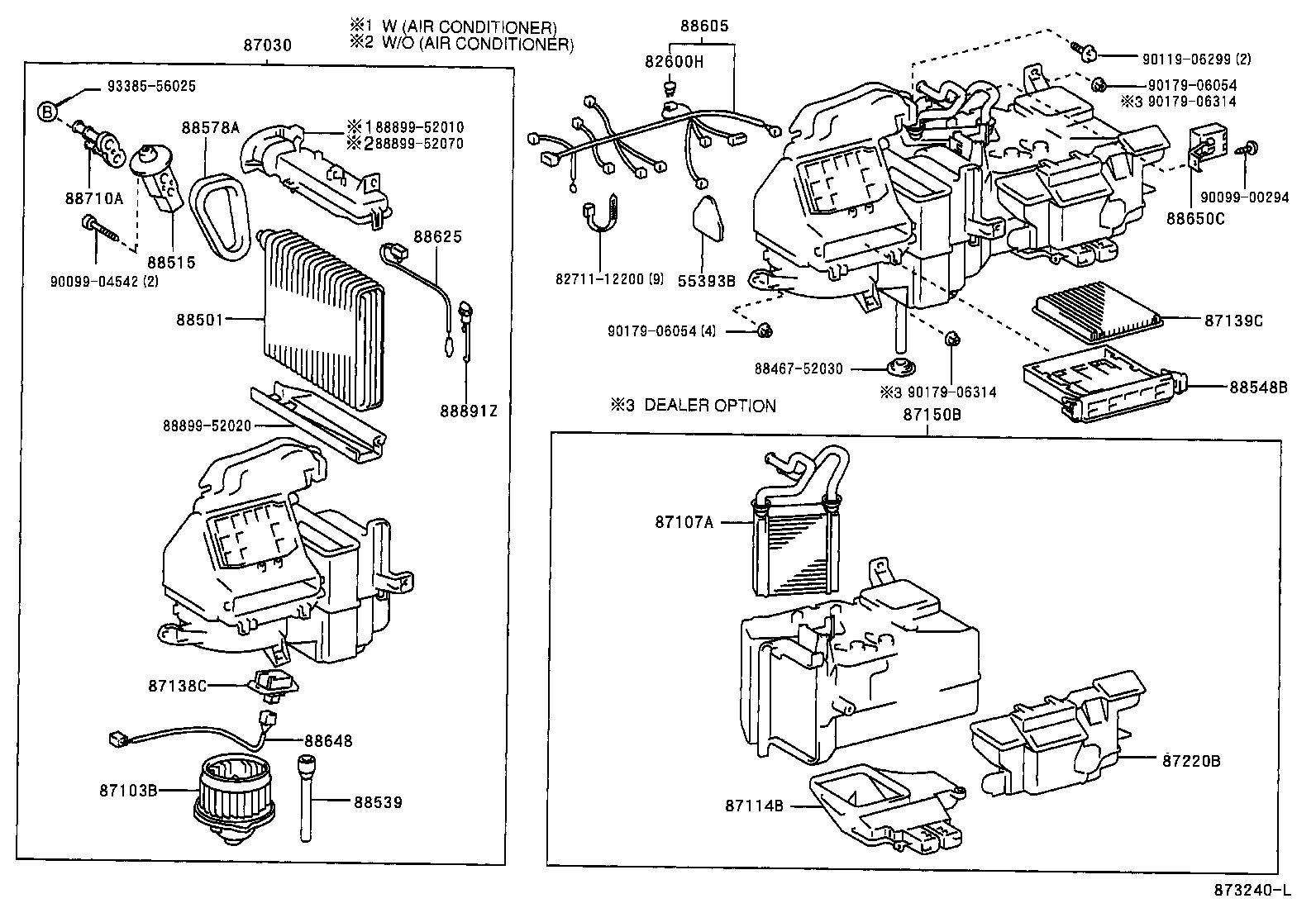

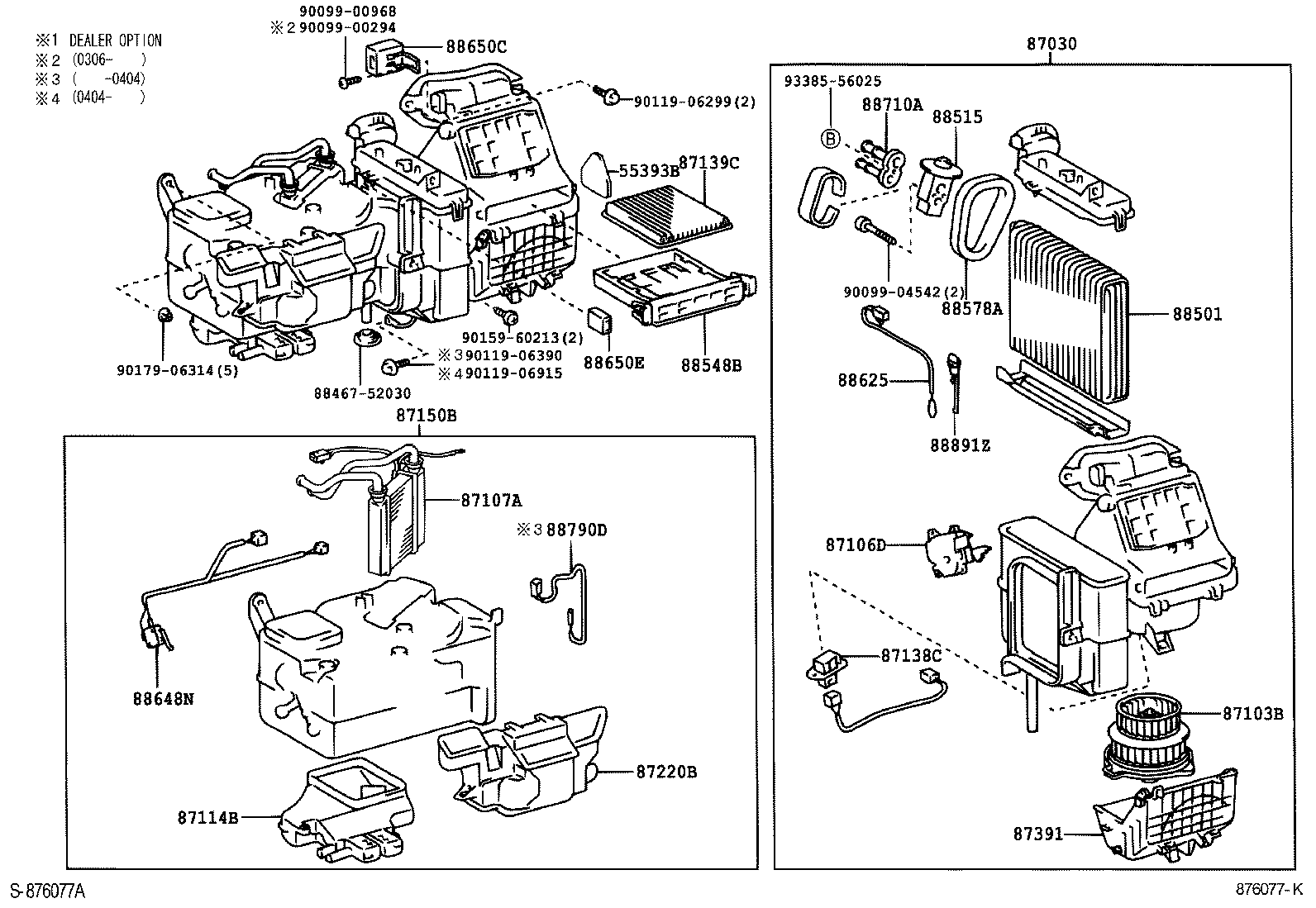

Figure 873215S 873215S 1999-01 → 2002-12 Figure 873217R 873217R 1999-01 → 2002-12 Figure 873216P 873216P 1999-01 → 2002-12 Figure 873240L 873240L 1999-01 → 2002-12 Figure 876076K 876076K 2002-12 → — Figure 876077K 876077K 2002-12 → — Figure 876078F 876078F 2002-12 → — Figure 876075G 876075G 2002-12 → — Figure 873225 873225 1999-01 → —

Part groups

PNCDescription
55393B Cushion, Air Conditioning Cooler Unit
82600H Fuse, Fuse Block
87030 Blower Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106D Servo Sub-assy, Damper, NO.1
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87138C Resistor, Blower
87139C Filter, Clean Air
87150B Radiator Assy, Heater
87220B Duct Assy, Air
87391 Cover, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88578A Packing, Cooler Stabilizer Amplifier
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88648 Wiring, Cooler, NO.1
88648N Wiring, Cooler, NO.2
88648P Wire,Air Conditioner,NO.1
88650C Amplifier Sub-assy, Airconditioner
88650E Amplifier Assy, Air Conditioner, NO.1
88710A Tube Assy, Air Conditioner
88790D Thermistor Assy
88891Z Bracket, Cooler Thermistor
88910B Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
