Heating & Air Conditioning - Water Piping

8 part groups · 3 illustrations

Illustrations

Figure 873226D

873226D 1999-01 → —

Figure 873648A

873648A 1999-08 → —

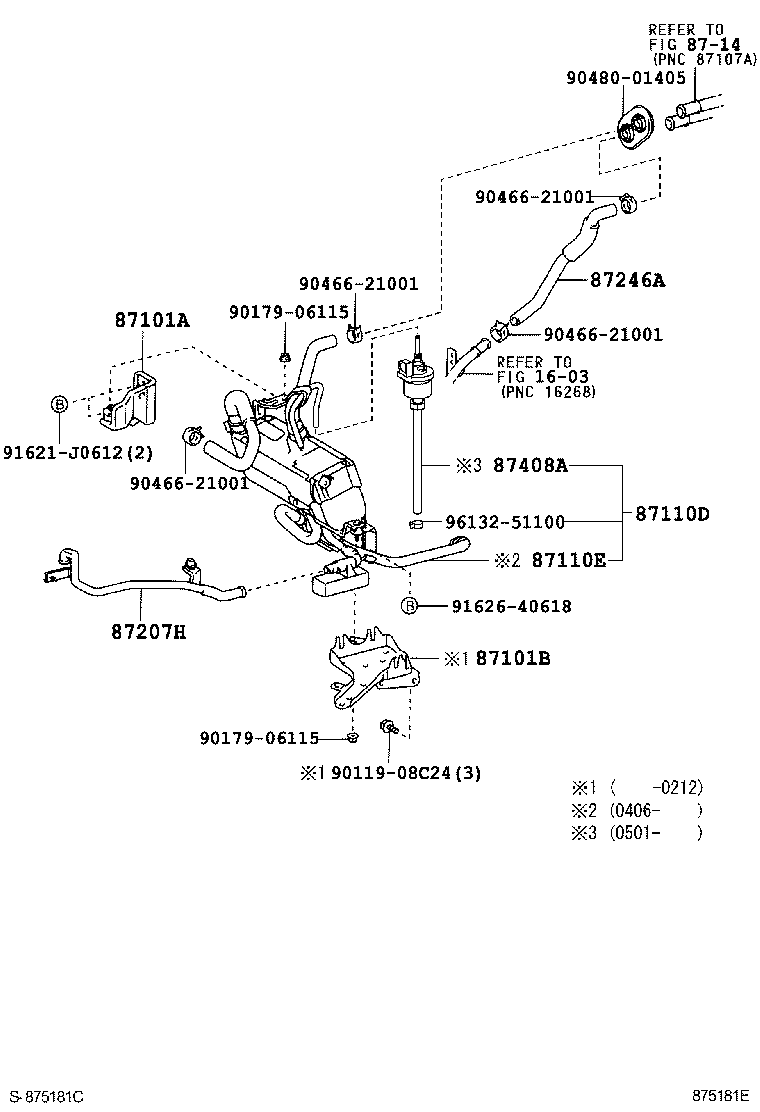

Figure 875181E

875181E 2001-09 → —

Part groups

PNC	Description
87101A	Bracket Sub-assy, Heater NO.1
87101B	Bracket Sub-assy, Heater NO.2
87110D	Heater Assy
87110E	Heater Assy
87207H	Pipe Sub-assy, Vacuum
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87408A	Pump Sub-assy, Fuel

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
