Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

23 part groups · 13 illustrations

Illustrations

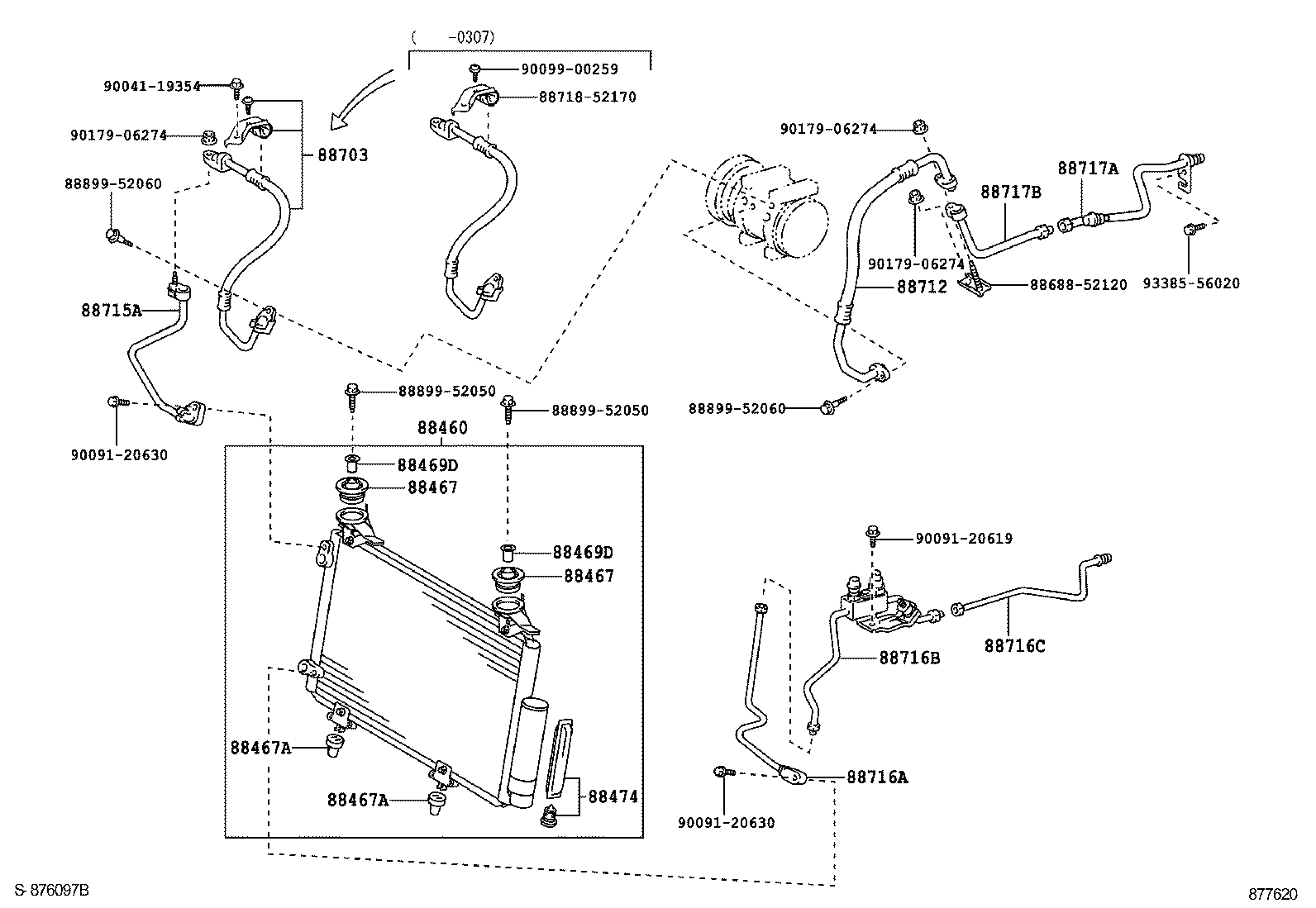

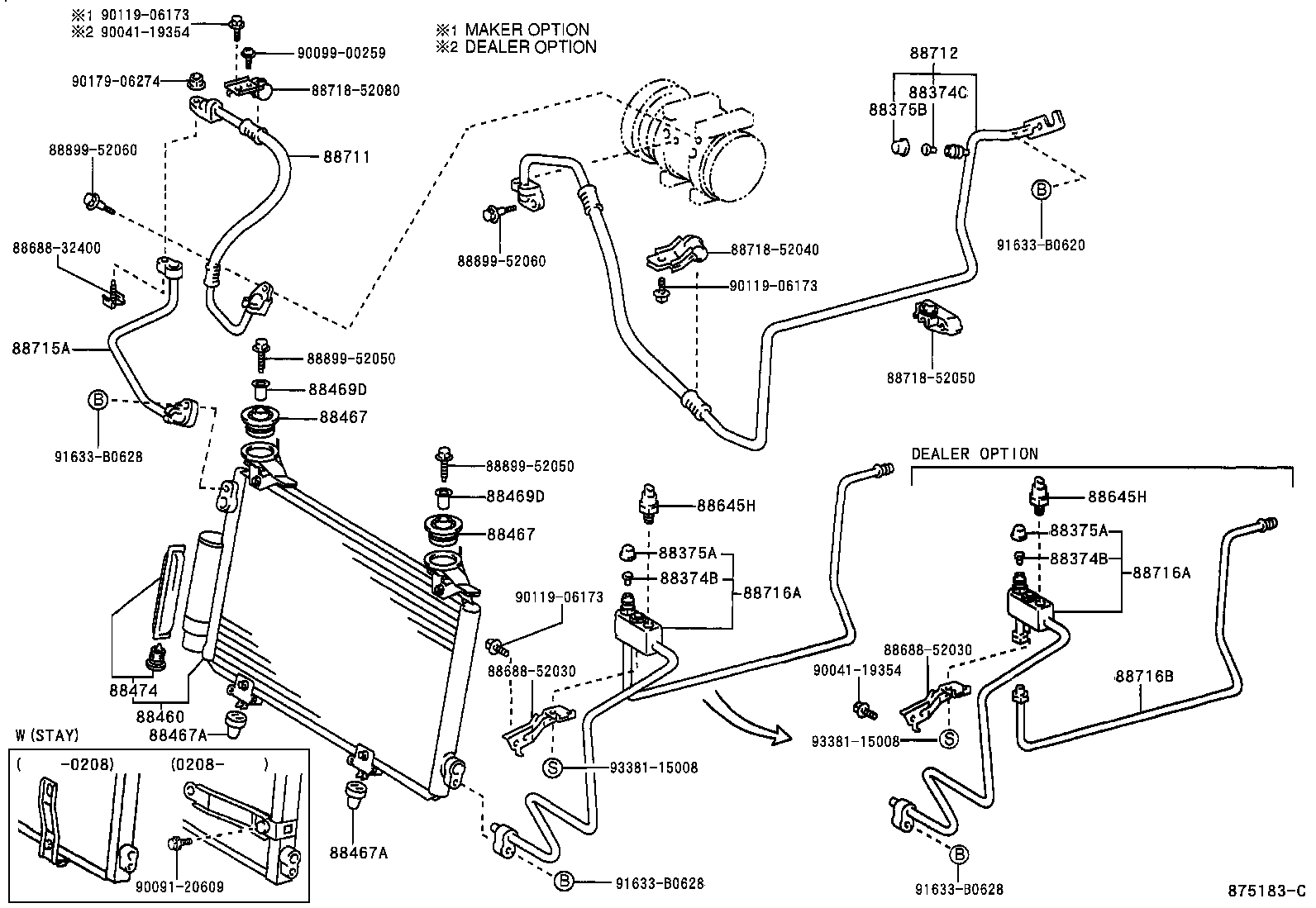

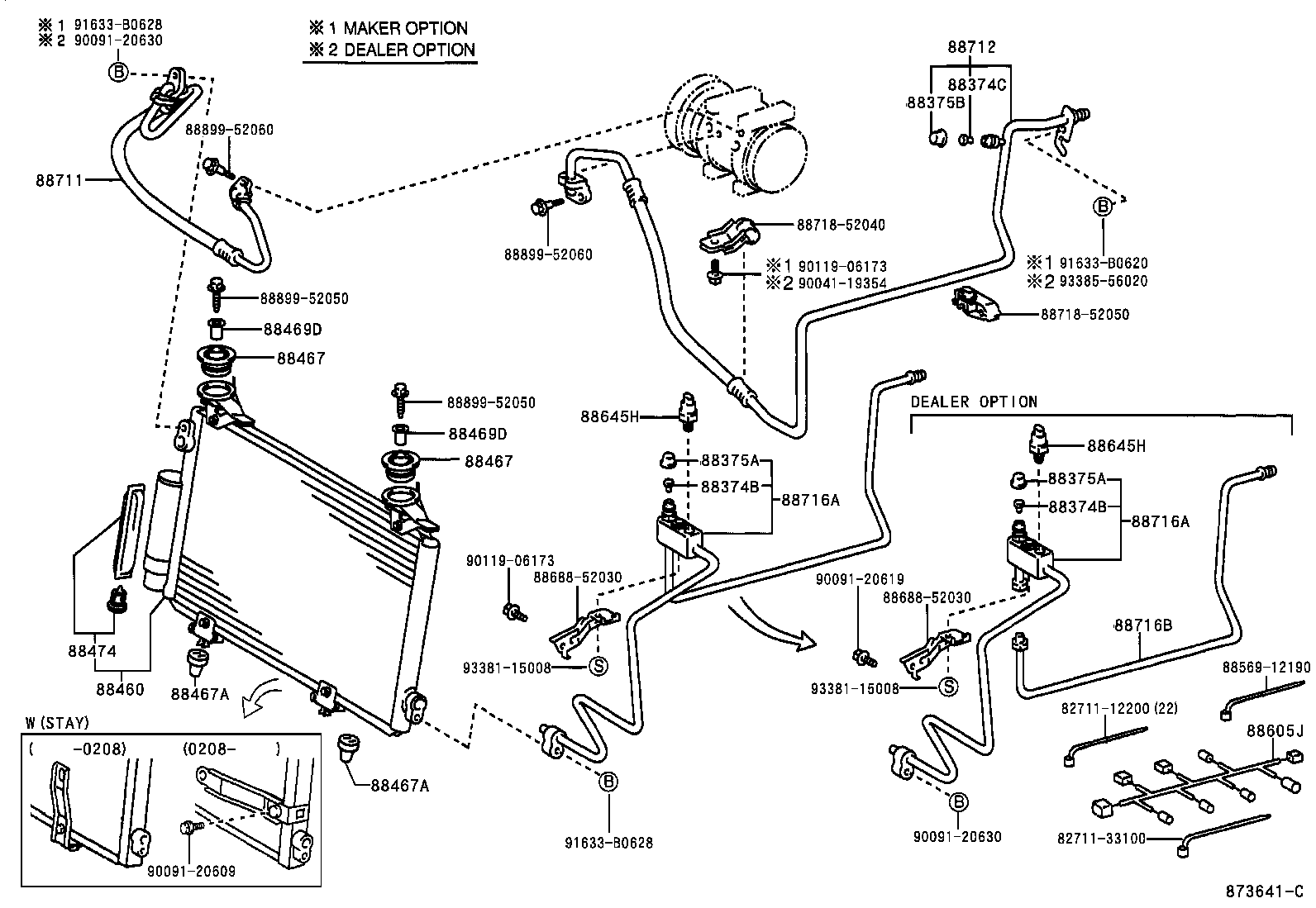

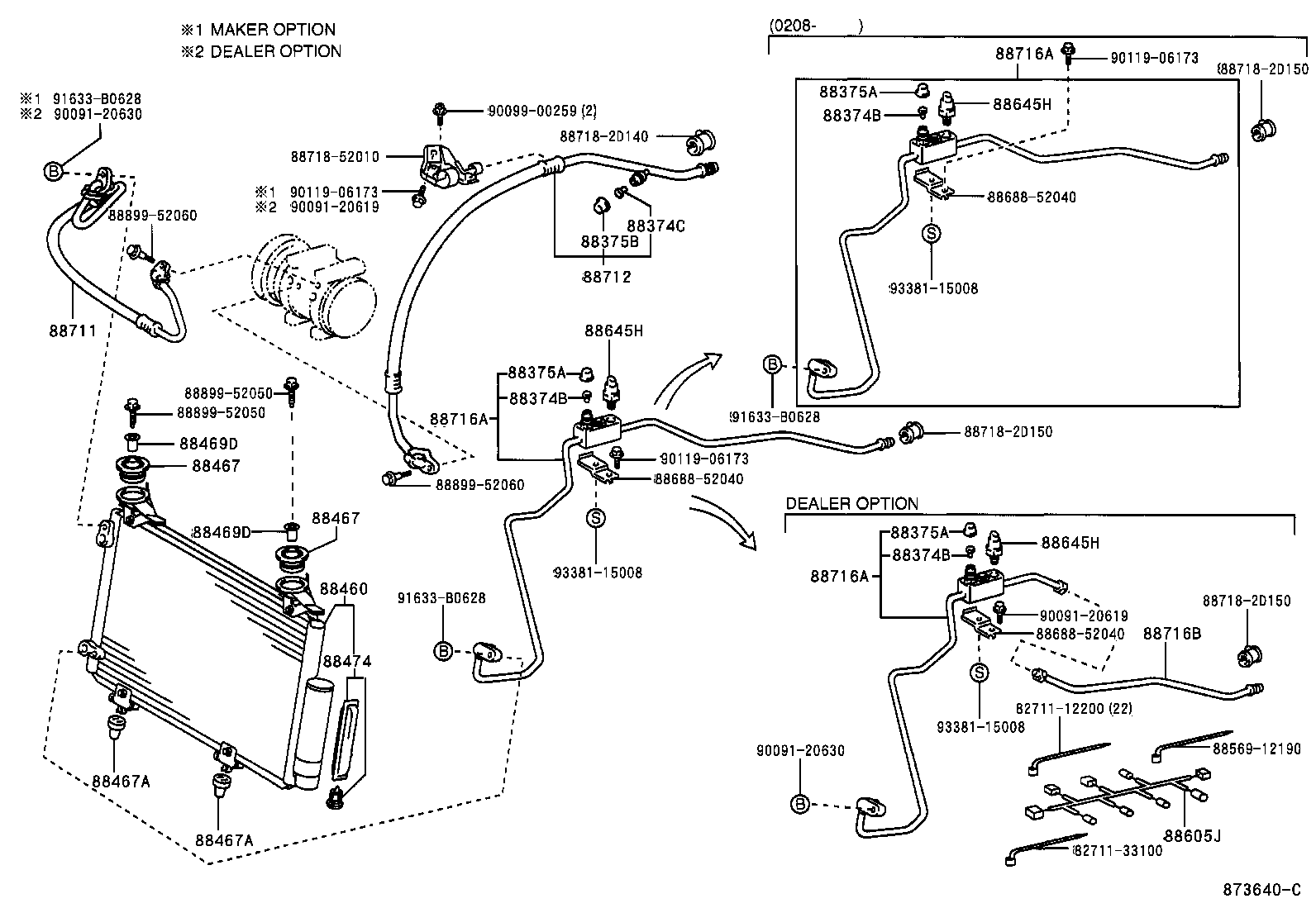

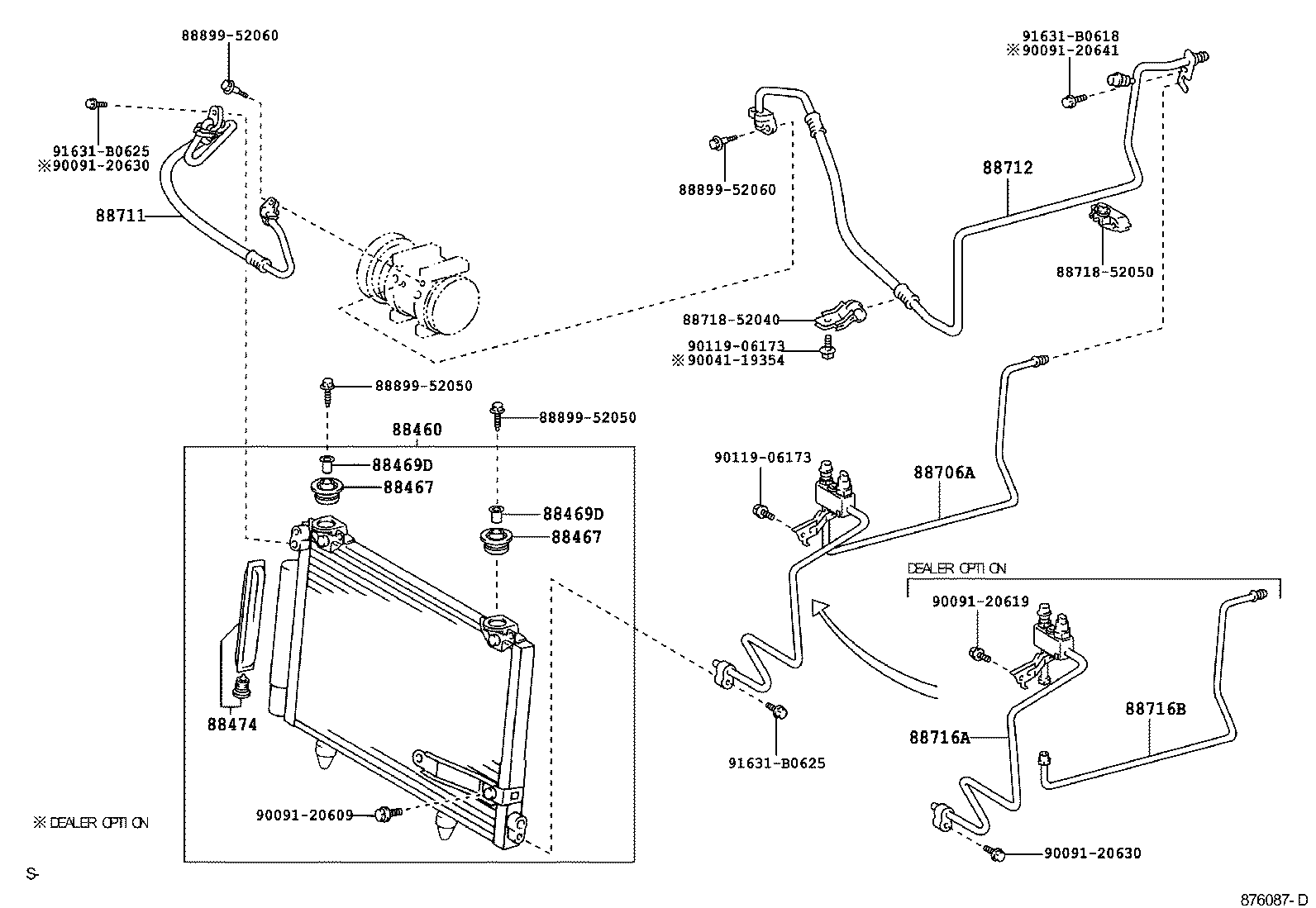

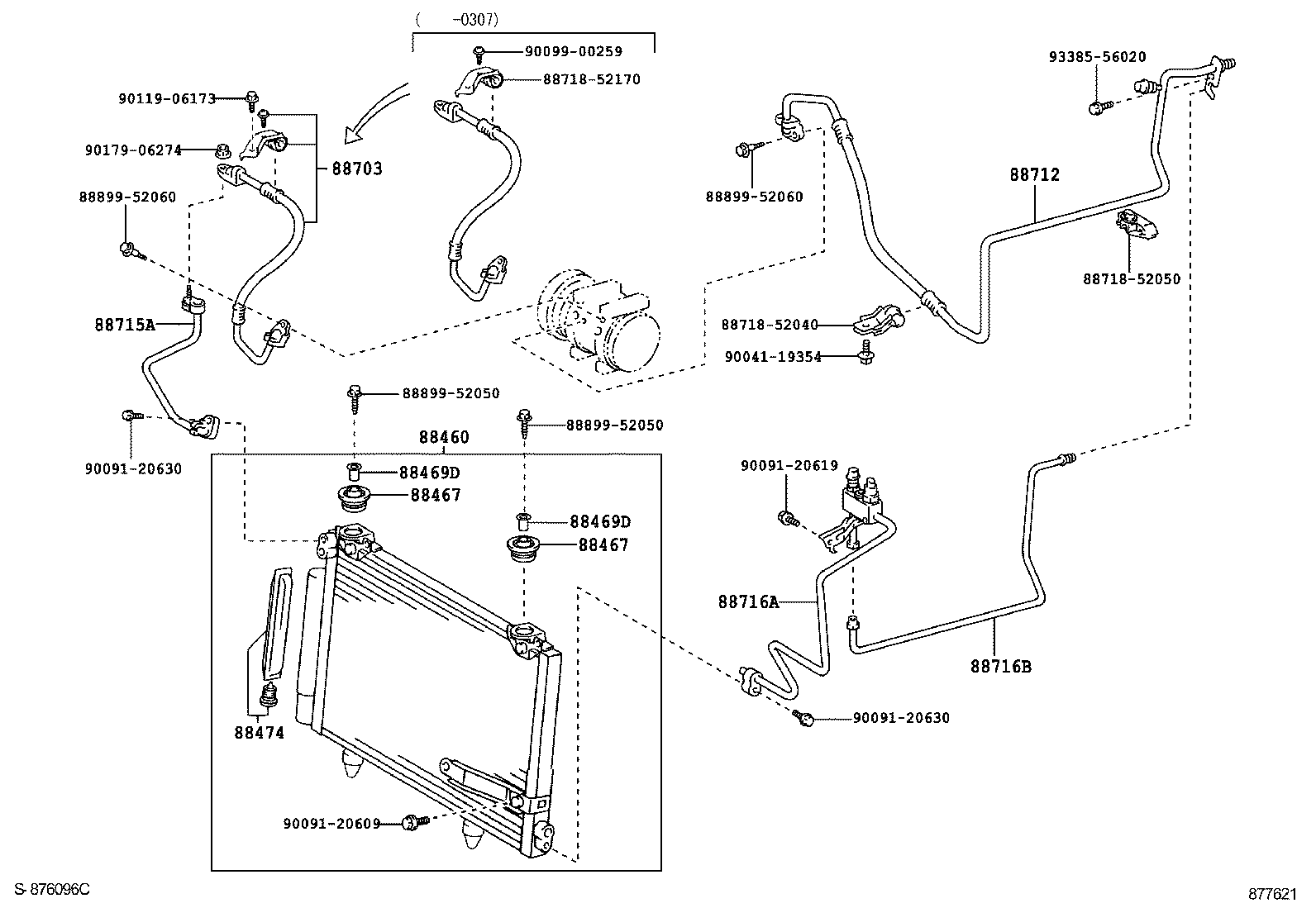

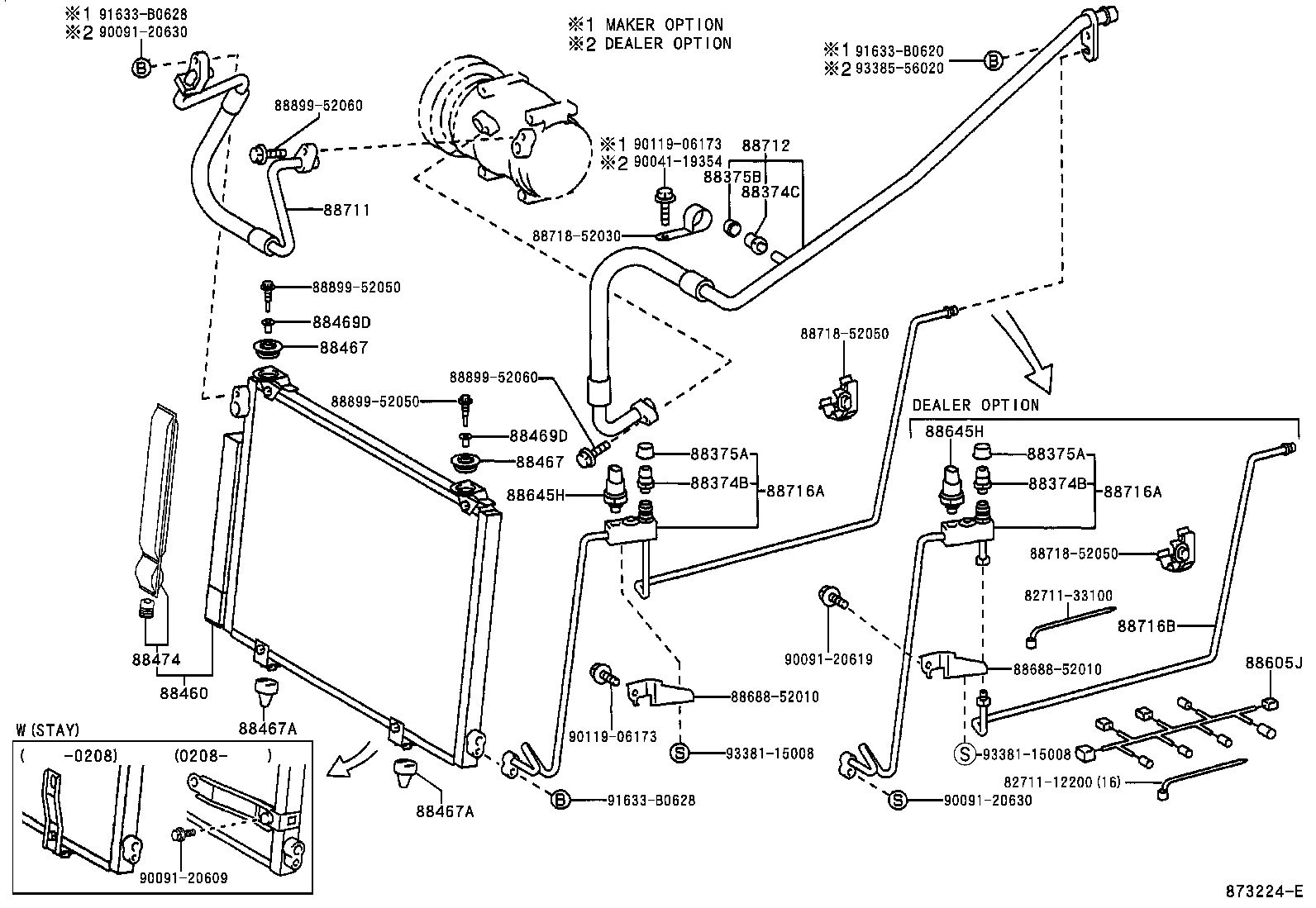

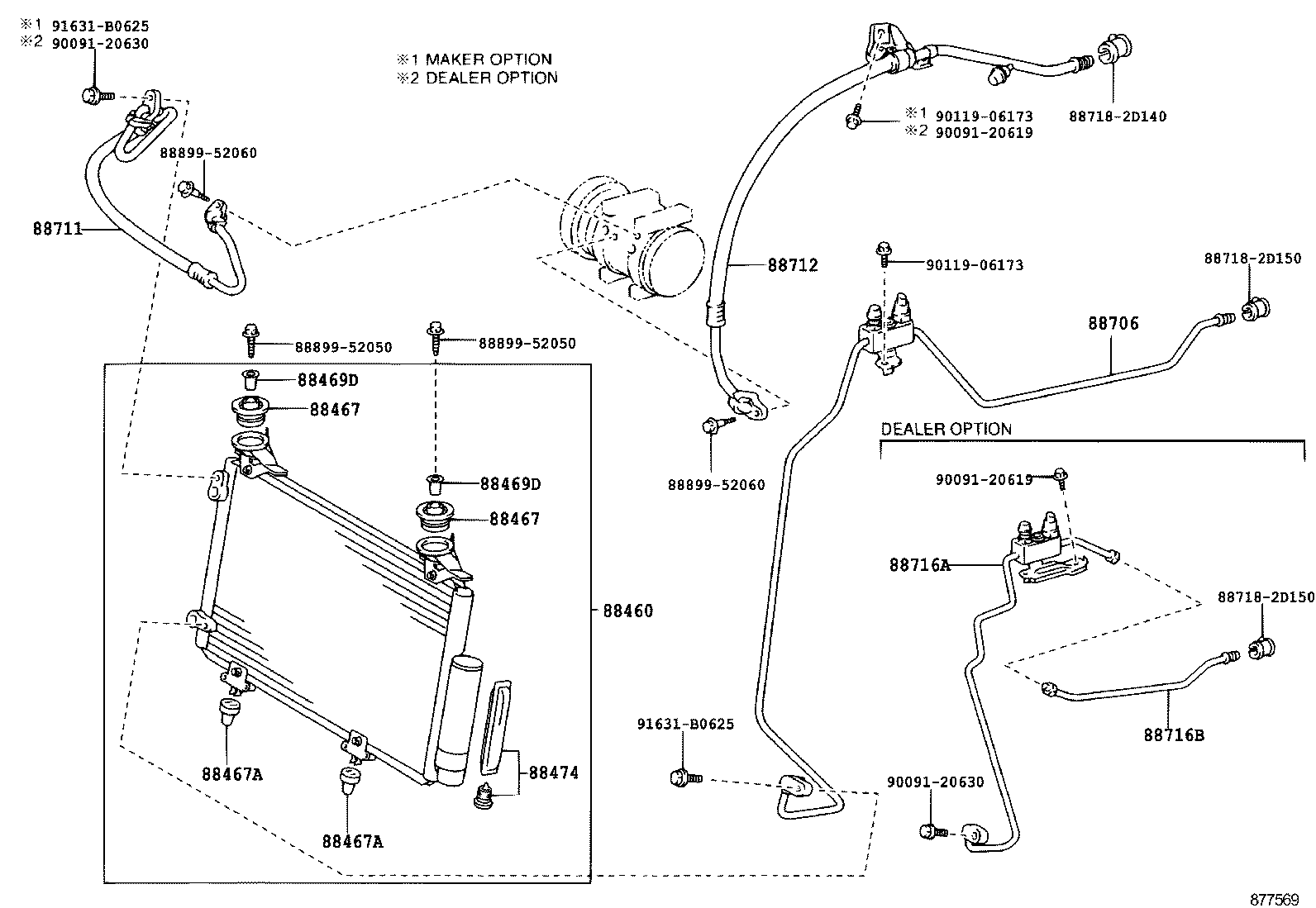

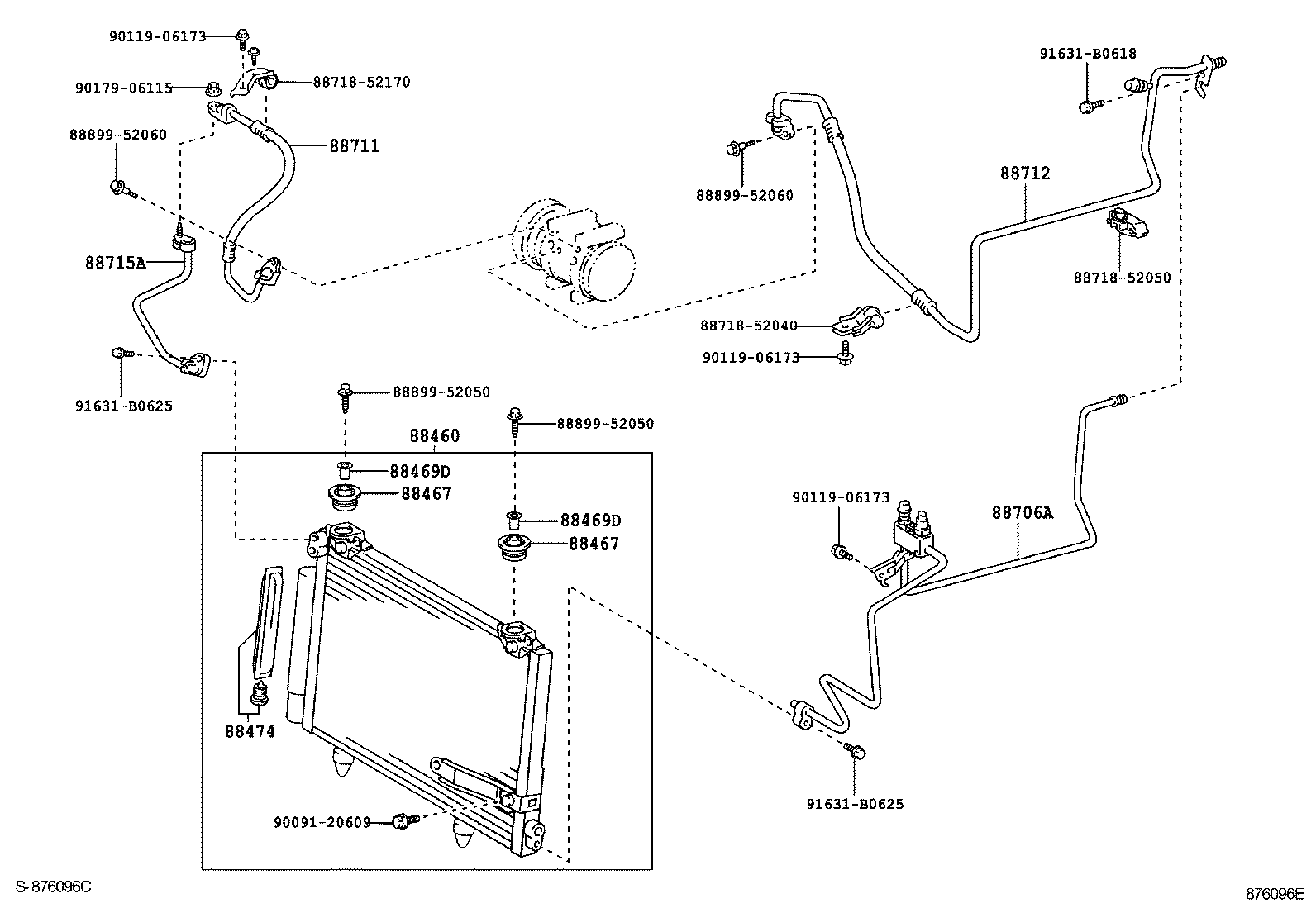

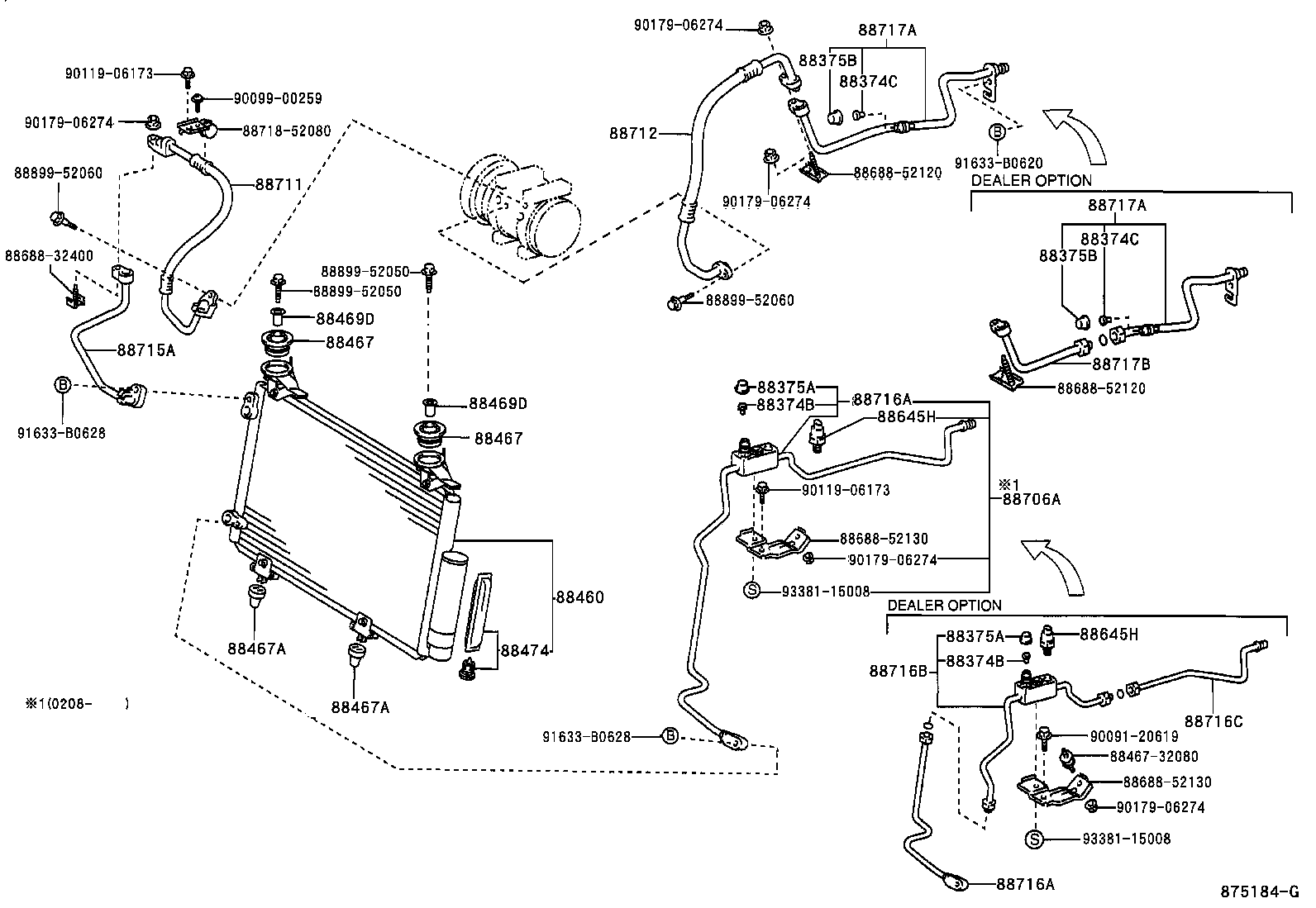

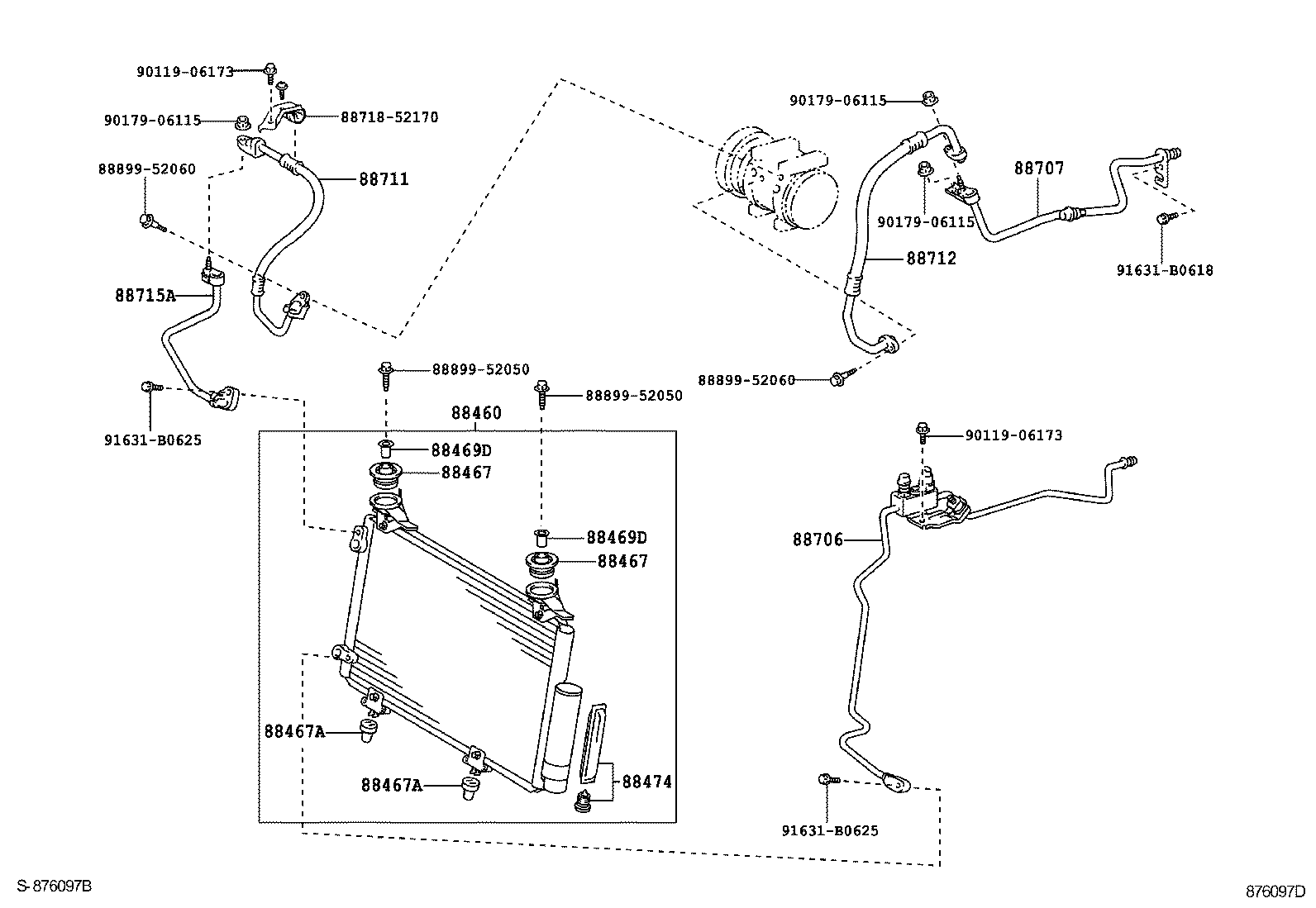

Figure 873242C 873242C 1999-01 → 2002-12 Figure 873224E 873224E 1999-01 → 2002-12 Figure 873640C 873640C 1999-08 → 2002-12 Figure 873641C 873641C 1999-08 → 2002-12 Figure 875184G 875184G 2001-10 → 2002-12 Figure 875183C 875183C 2001-10 → 2002-12 Figure 877569 877569 2002-12 → — Figure 876087D 876087D 2002-12 → — Figure 876097D 876097D 2002-12 → — Figure 877620 877620 2002-12 → — Figure 876096E 876096E 2002-12 → — Figure 877621 877621 2002-12 → — Figure 873225 873225 1999-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88706 Pipe Sub-assy, Liquid
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
