Toyota Yaris (JPP)
2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe
Supported model
Data version 2011-07

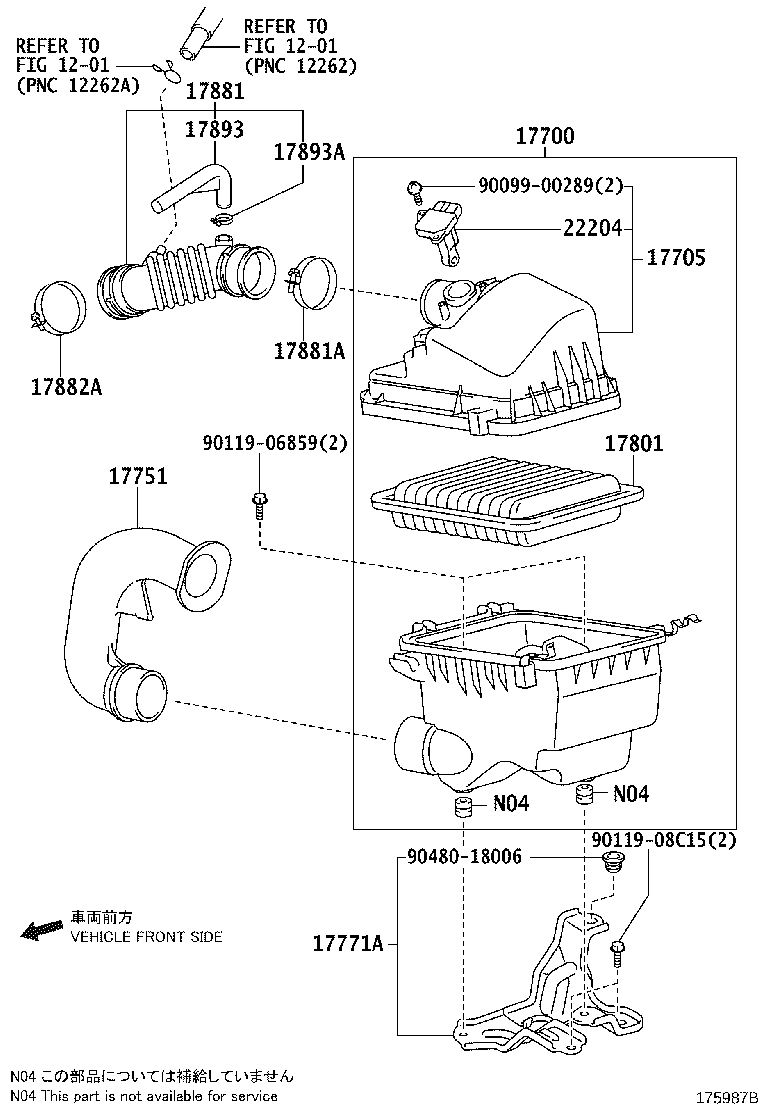

Air Cleaner
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17716 | Support,Air Cleaner Cap |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17771A | Bracket, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17893 | Resonator, Intake Air |
| 17893A | Clamp, Hose |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
