Clutch Pedal & Flexible Hose

24 part groups · 14 illustrations

Illustrations

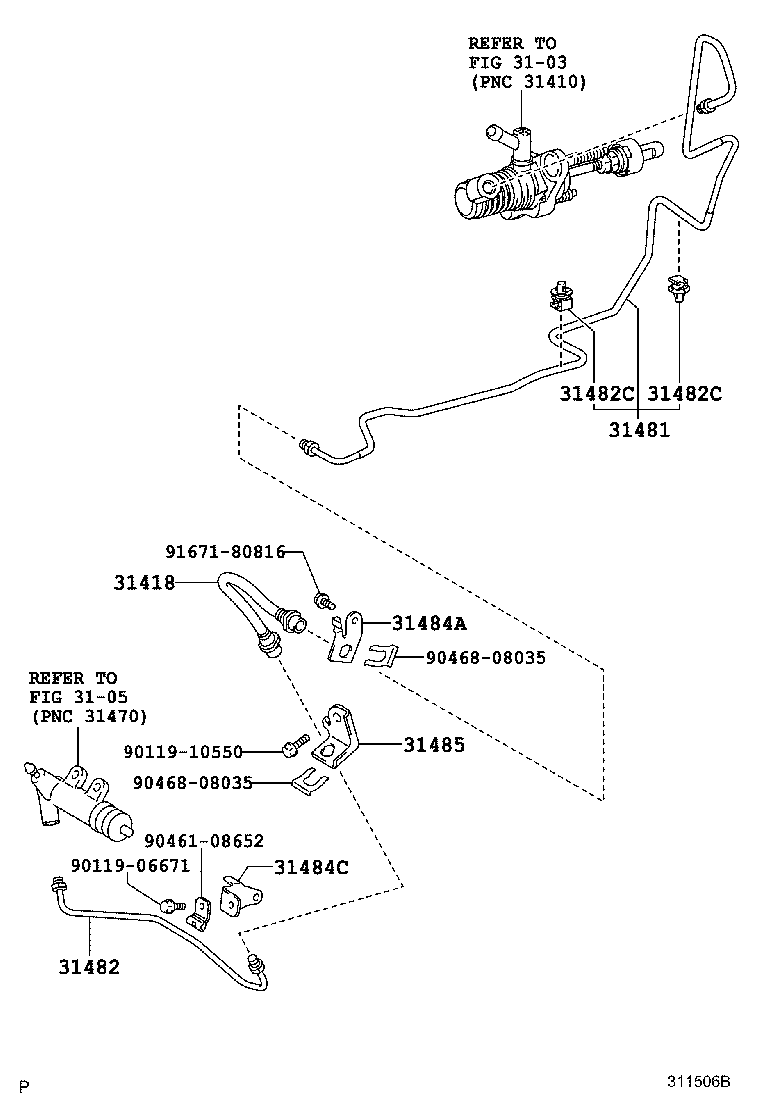

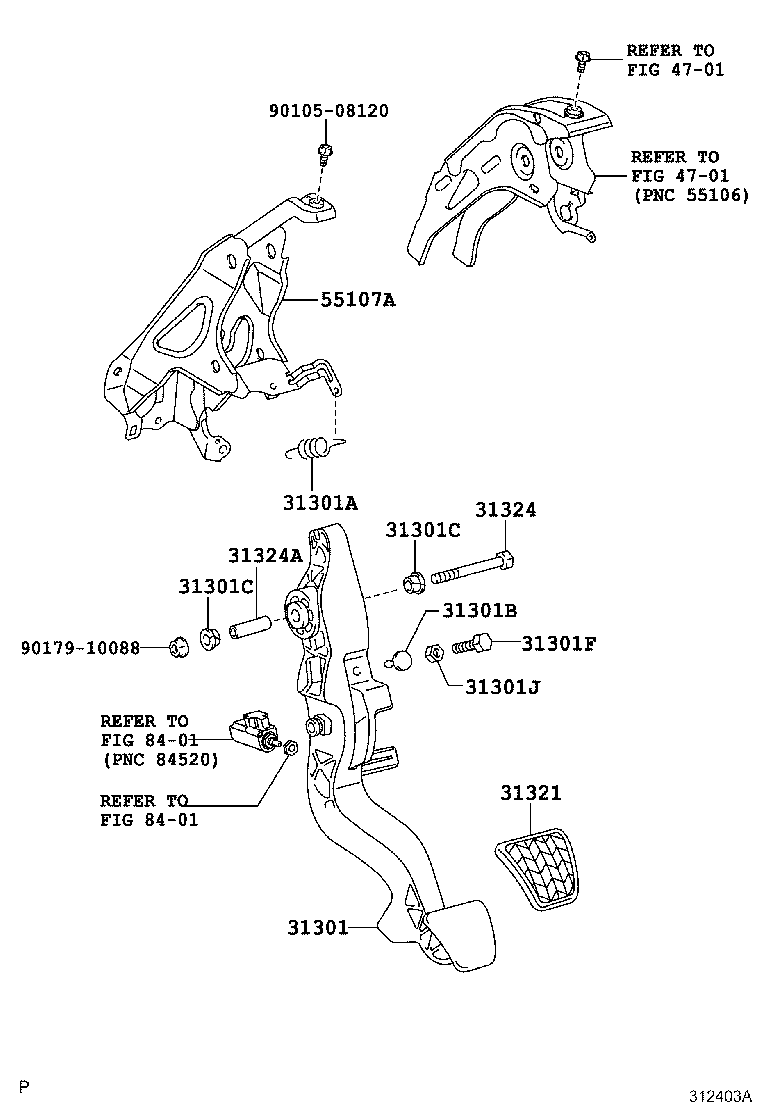

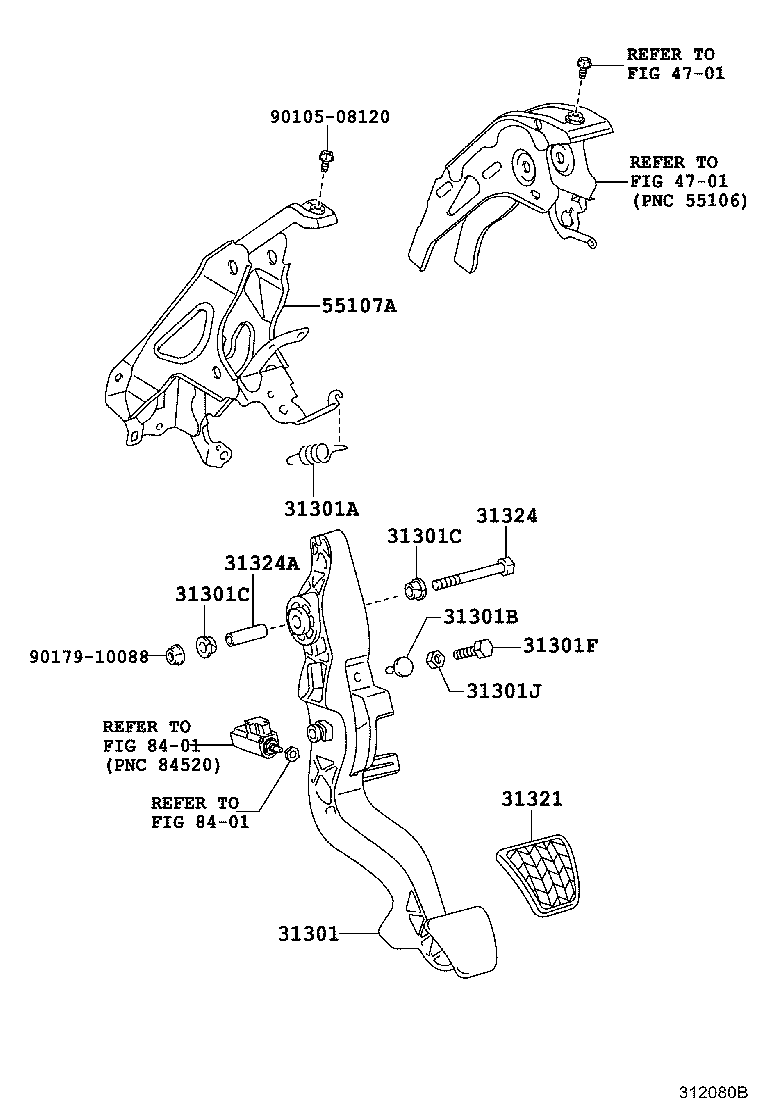

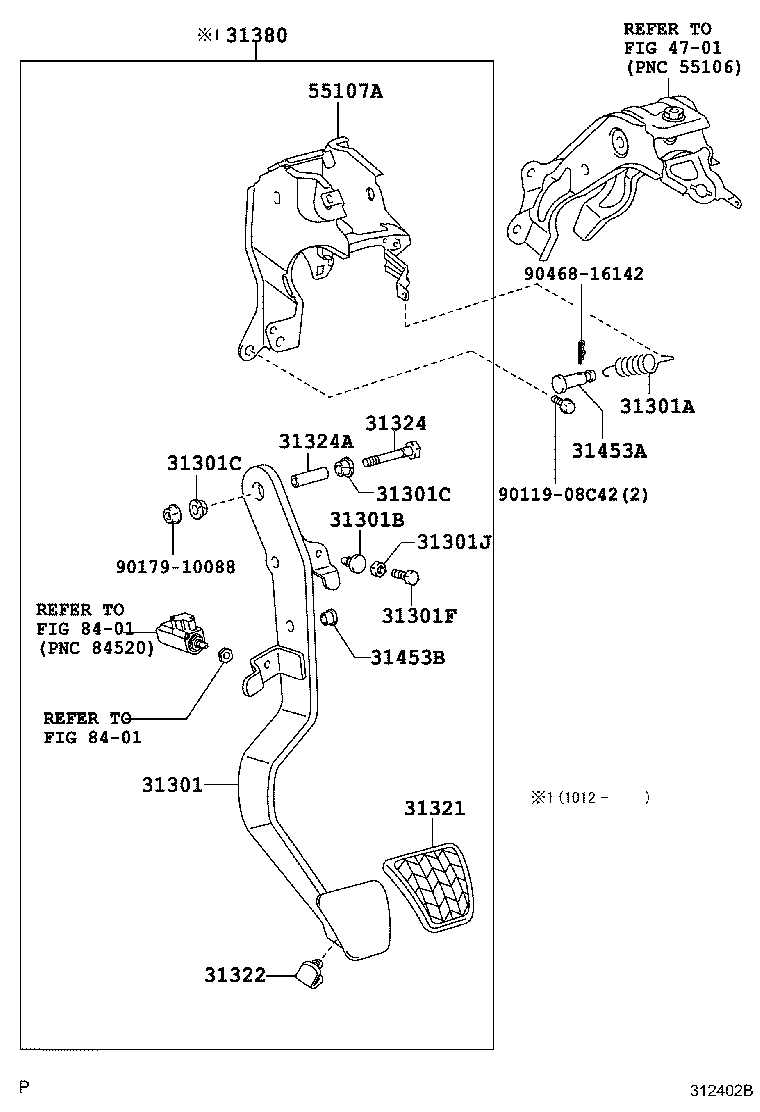

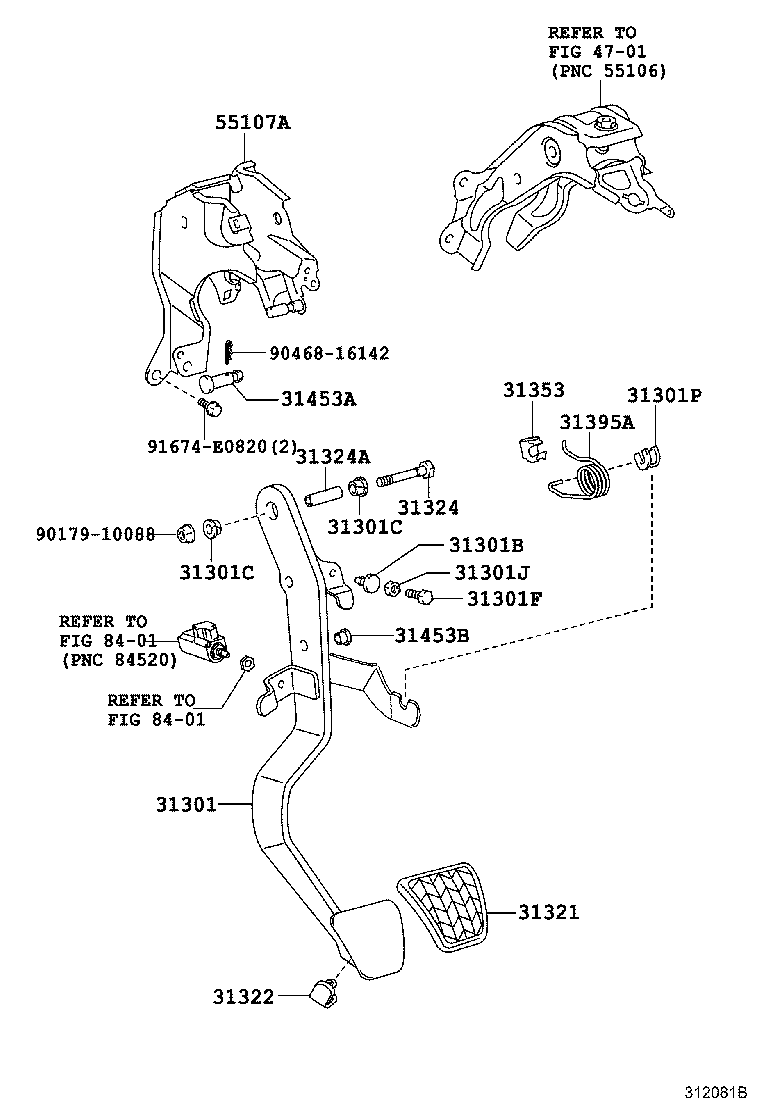

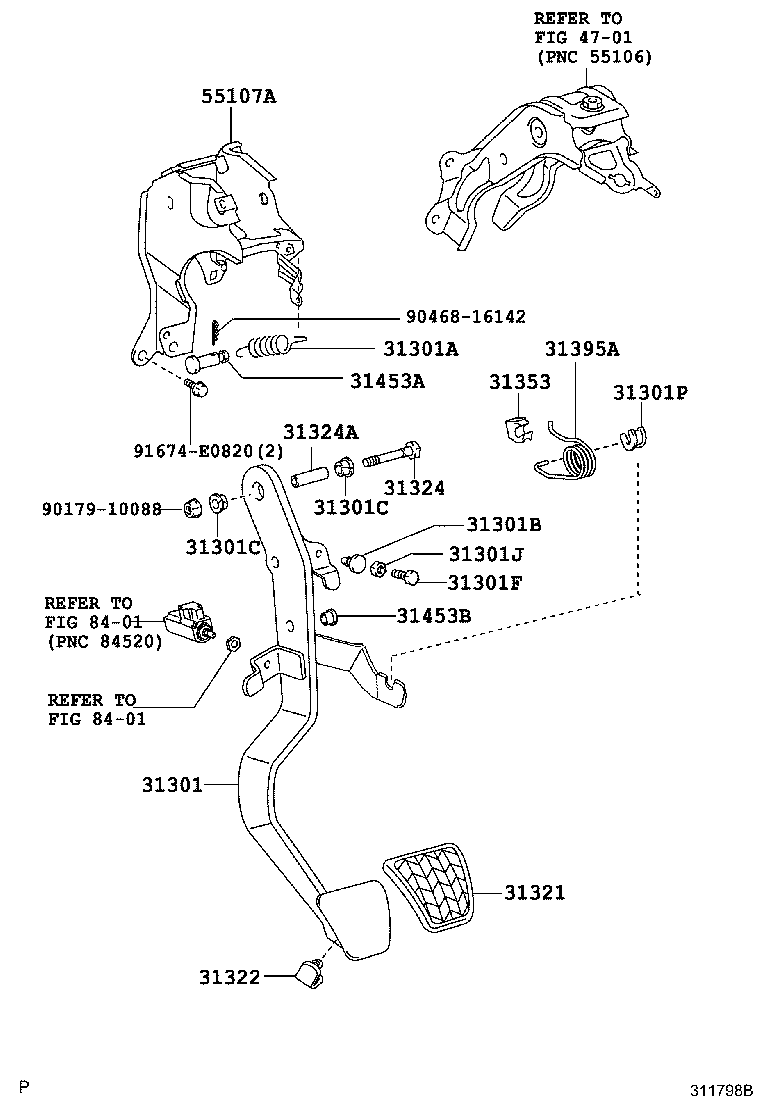

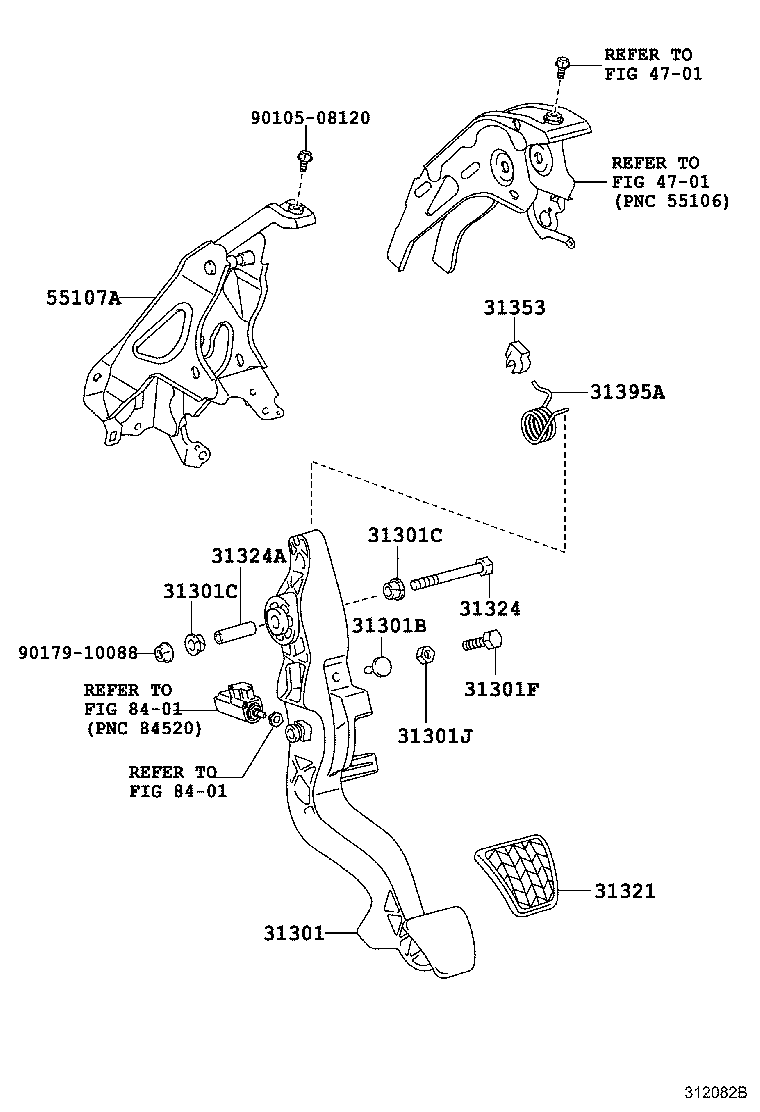

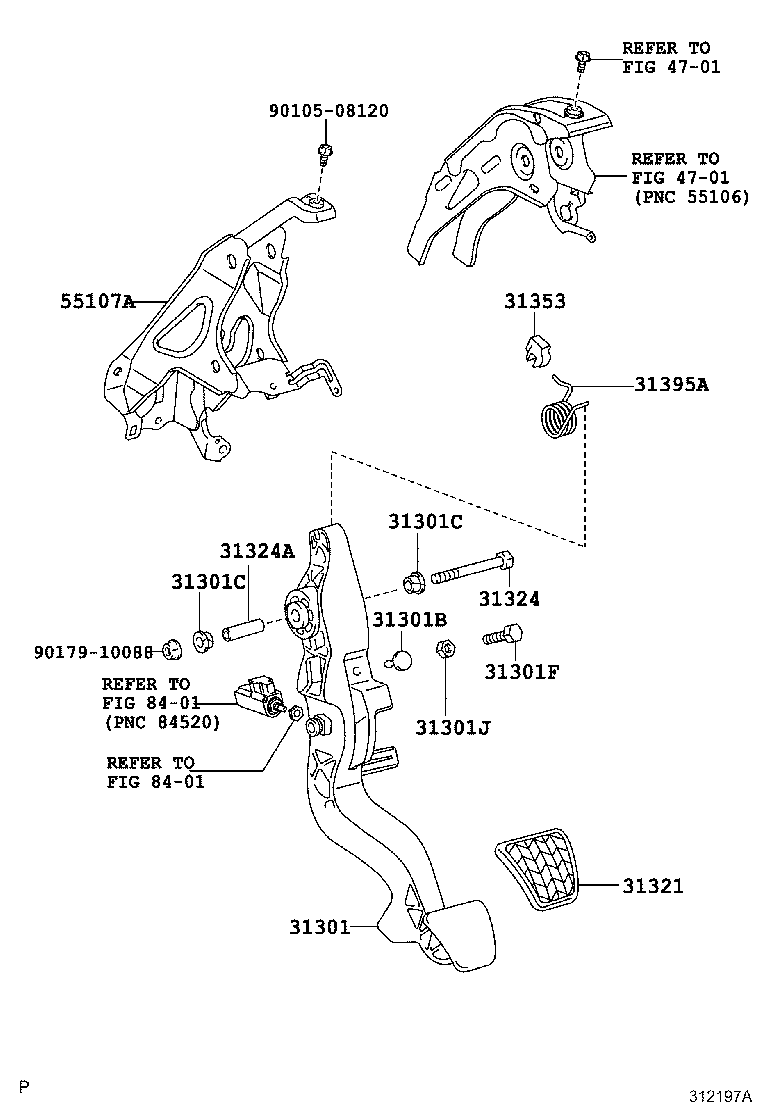

Figure 311456J 311456J 2005-08 → 2008-08 Figure 312402B 312402B 2008-08 → — Figure 311505A 311505A 2005-08 → — Figure 312403A 312403A 2005-08 → 2008-08 Figure 312080B 312080B 2008-08 → — Figure 311507A 311507A 2005-08 → — Figure 311798B 311798B 2006-11 → — Figure 311457B 311457B 2006-11 → — Figure 312197A 312197A 2006-11 → — Figure 311506B 311506B 2006-11 → — Figure 312081B 312081B 2008-09 → — Figure 312074A 312074A 2008-08 → — Figure 312082B 312082B 2008-09 → — Figure 312075A 312075A 2008-08 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31321 Pad, Clutch Pedal
31322 Stopper, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31380 Support Assy, Pedal
31395A Hook, Pedal Spring, NO.1
31418 Hose, Clutch
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482C Clamp(FOR CLUTCH TUBE)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
