Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 7 illustrations

Illustrations

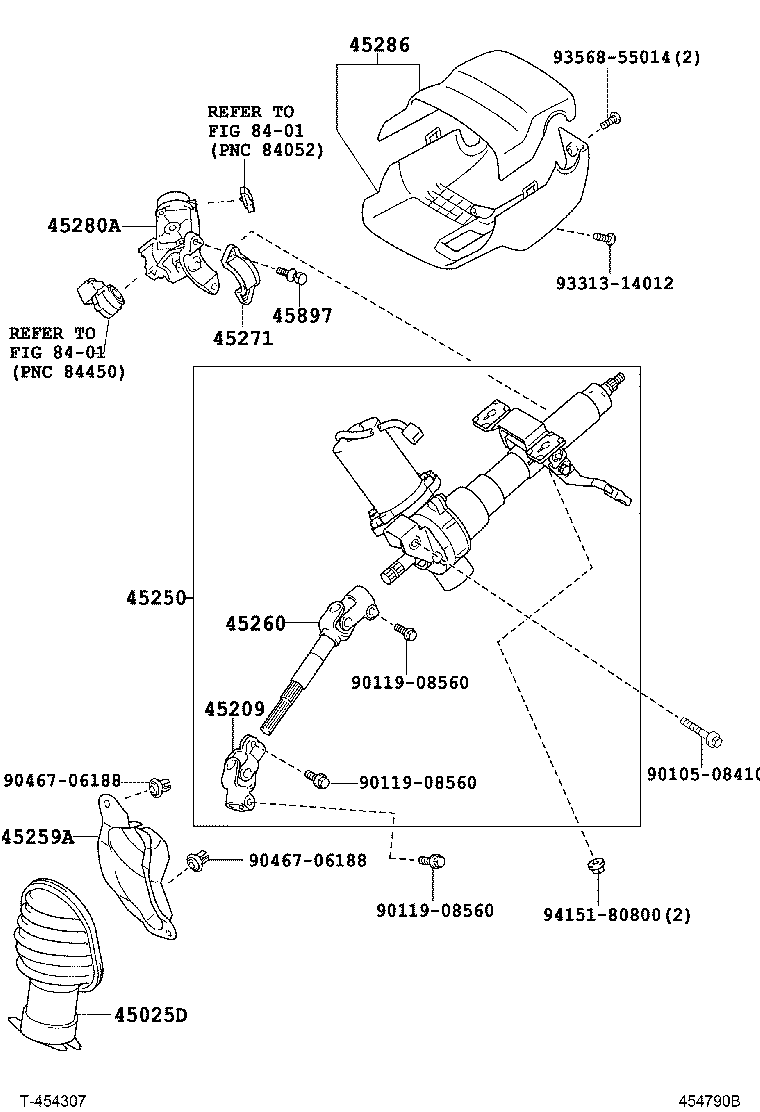

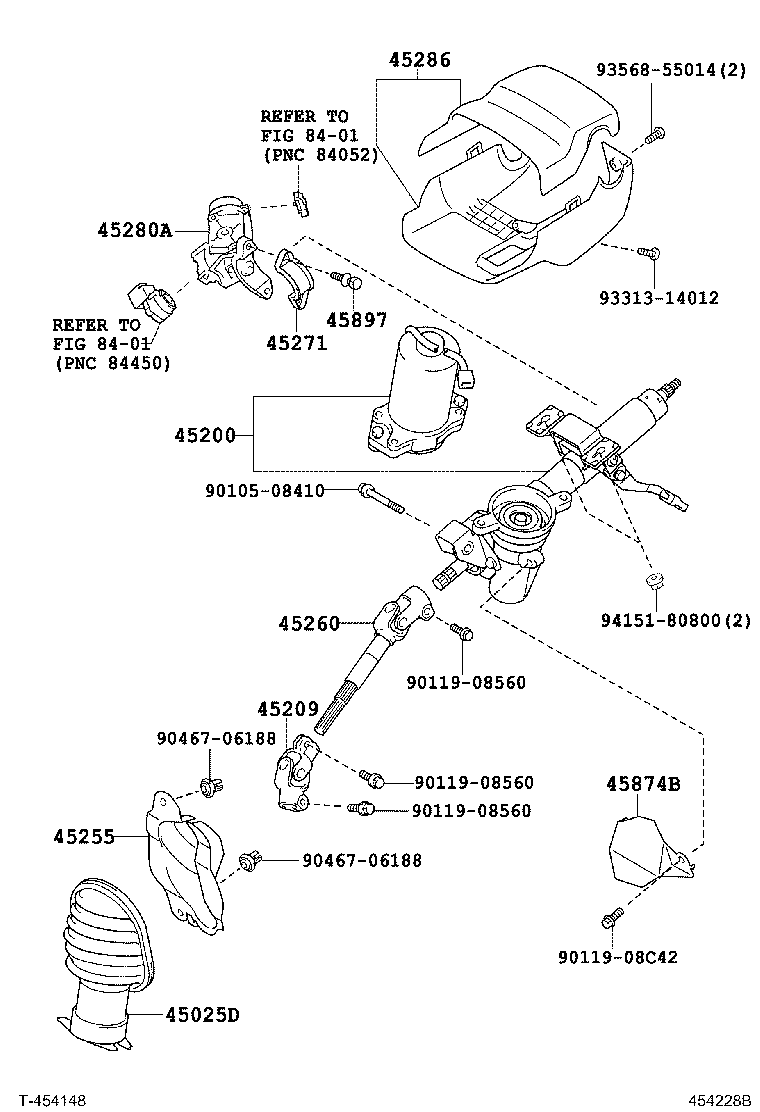

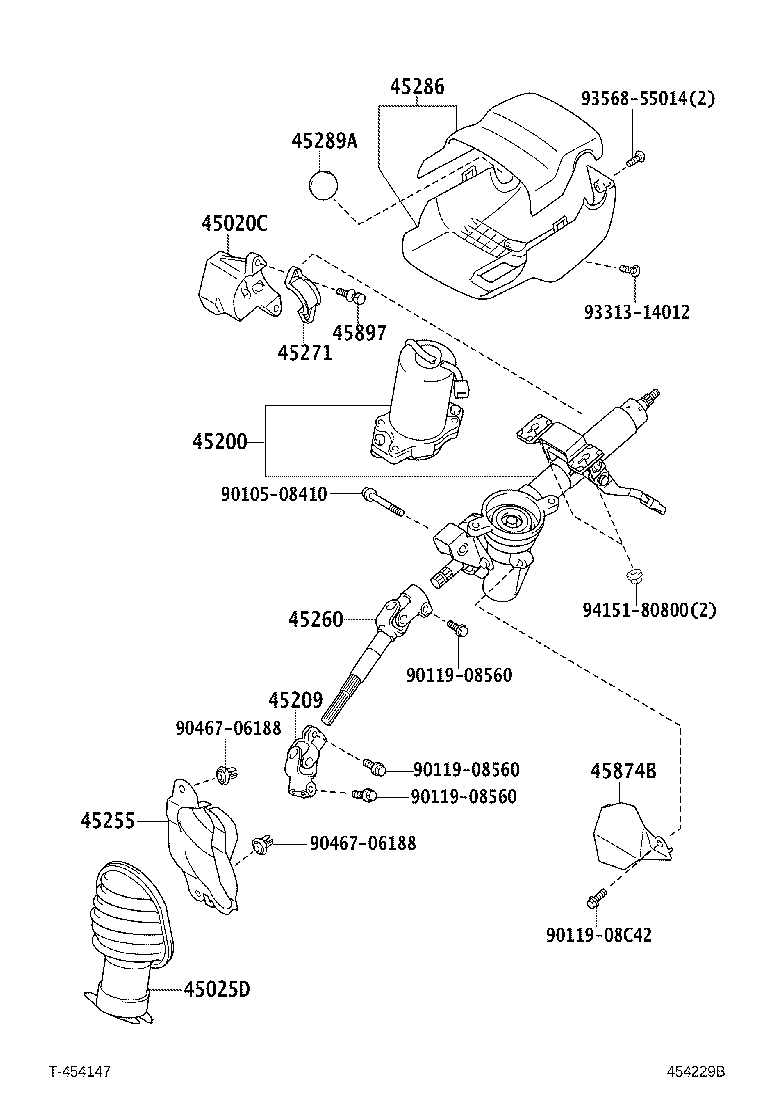

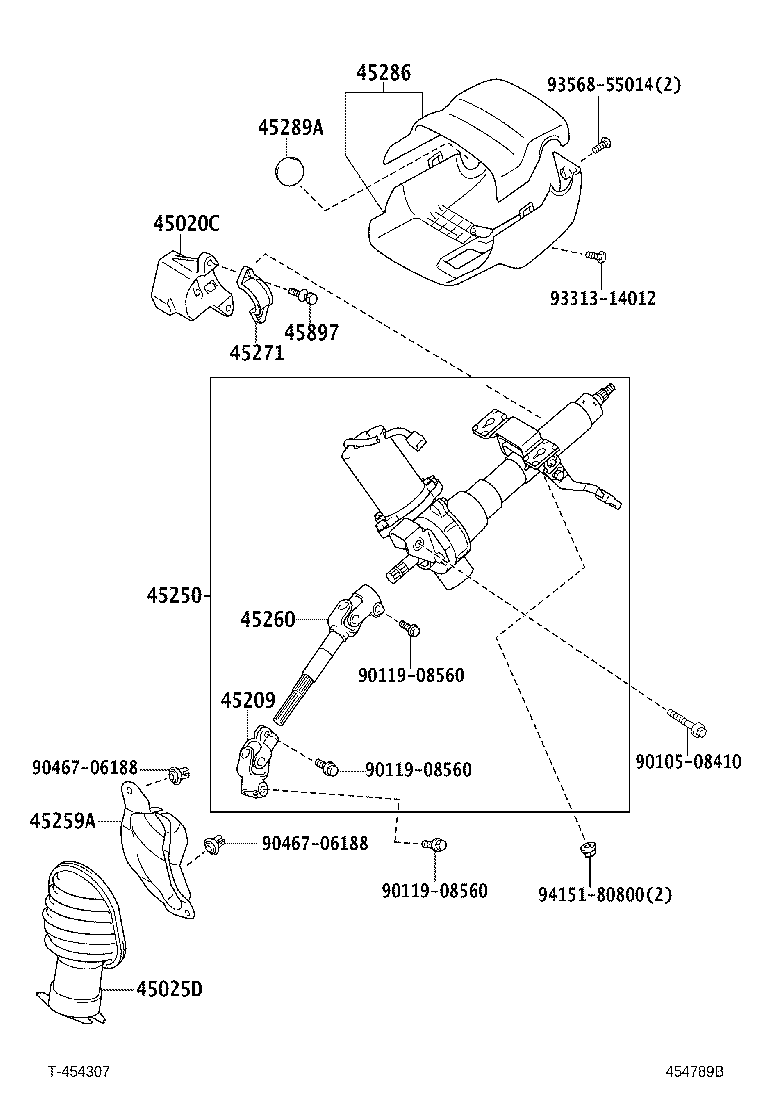

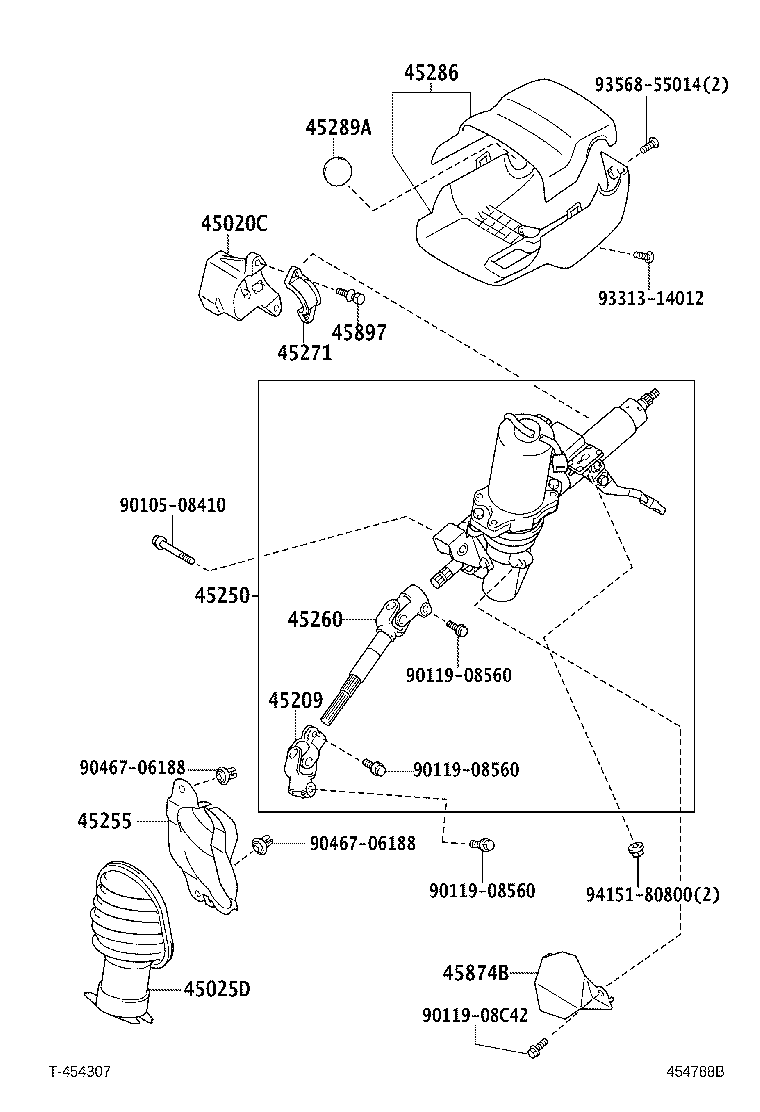

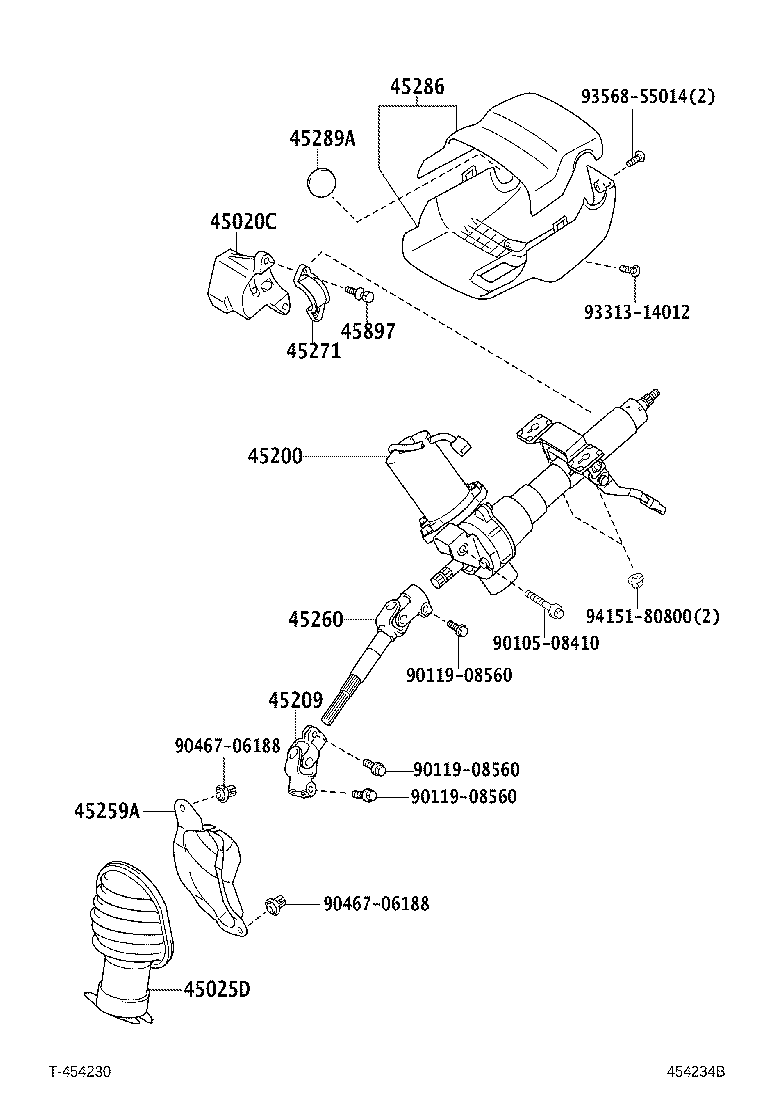

Figure 454233B 454233B 2005-08 → — Figure 454228B 454228B 2005-08 → — Figure 454790B 454790B 2006-11 → — Figure 454234B 454234B 2005-08 → — Figure 454229B 454229B 2005-08 → — Figure 454789B 454789B 2006-11 → — Figure 454788B 454788B 2006-11 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45200 Post Assy, Steering
45209 Yoke Sub-assy, Steering Sliding
45250 Column Assy, Steering
45255 Plate, Steering Column Hole Cover
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45289A Support, Steering Column Cover
45874B Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
