Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

16 part groups · 3 illustrations

Illustrations

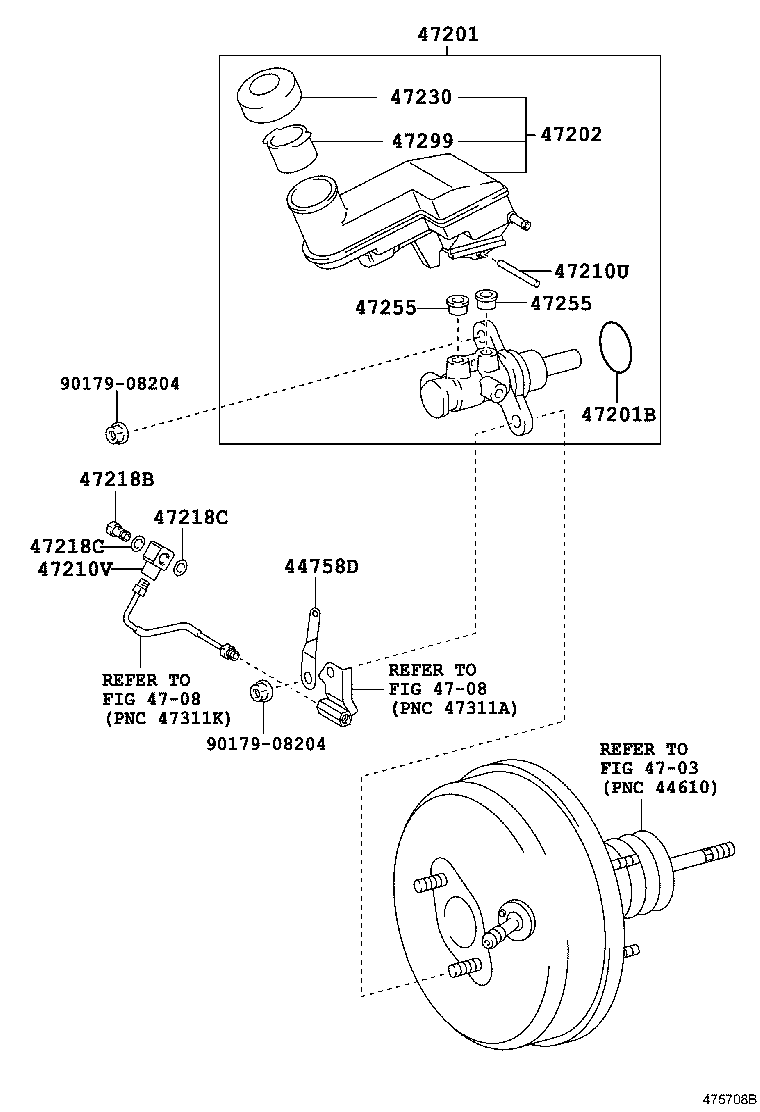

Figure 475706C 475706C 2005-08 → — Figure 474480F 474480F 2005-08 → — Figure 475708B 475708B 2006-11 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
44758D Bracket, Vacuum Check Valve
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47201C Ring Pin, Brake Master Cylinder
47202 Reservoir Sub-assy, Brake Master Cylinder
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47210V Union(FOR BRAKE MASTER CYLINDER)
47218B Bolt, Union(FOR MASTER CYLINDER FLUID OUTLET)
47218C Gasket(FOR MASTER CYLINDER FLUID OUTLET)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47287 Label, Brake Fluid Information
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
