Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

8 part groups · 4 illustrations

Illustrations

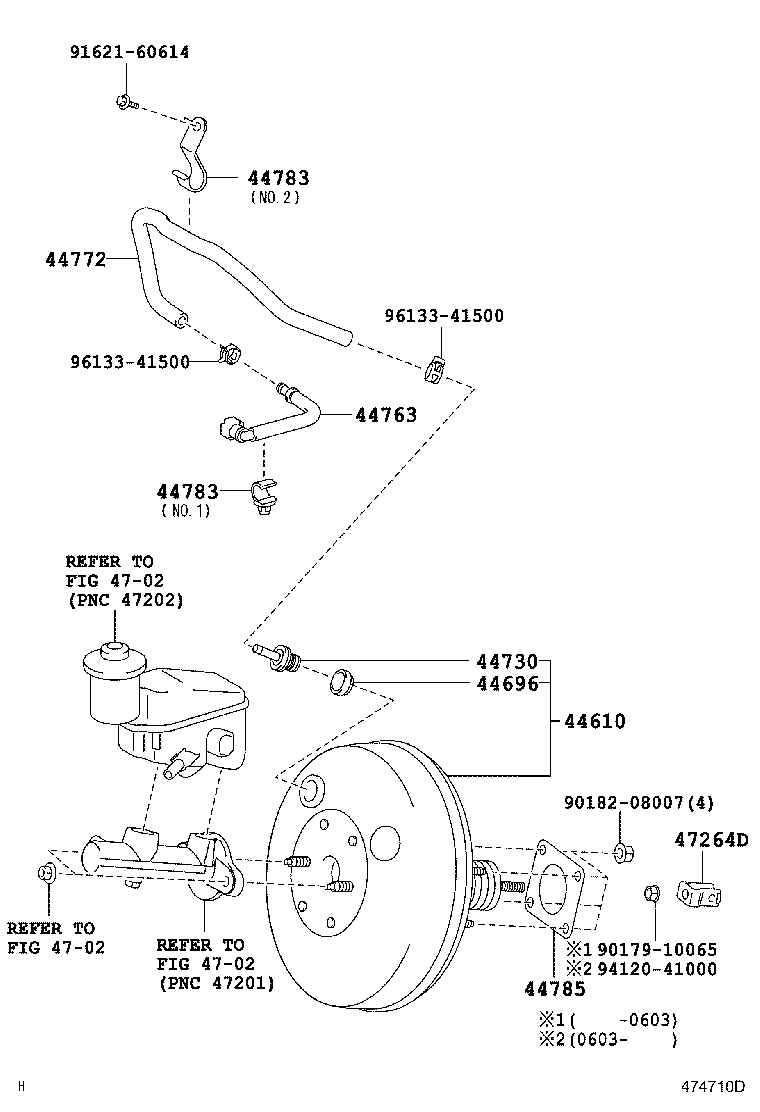

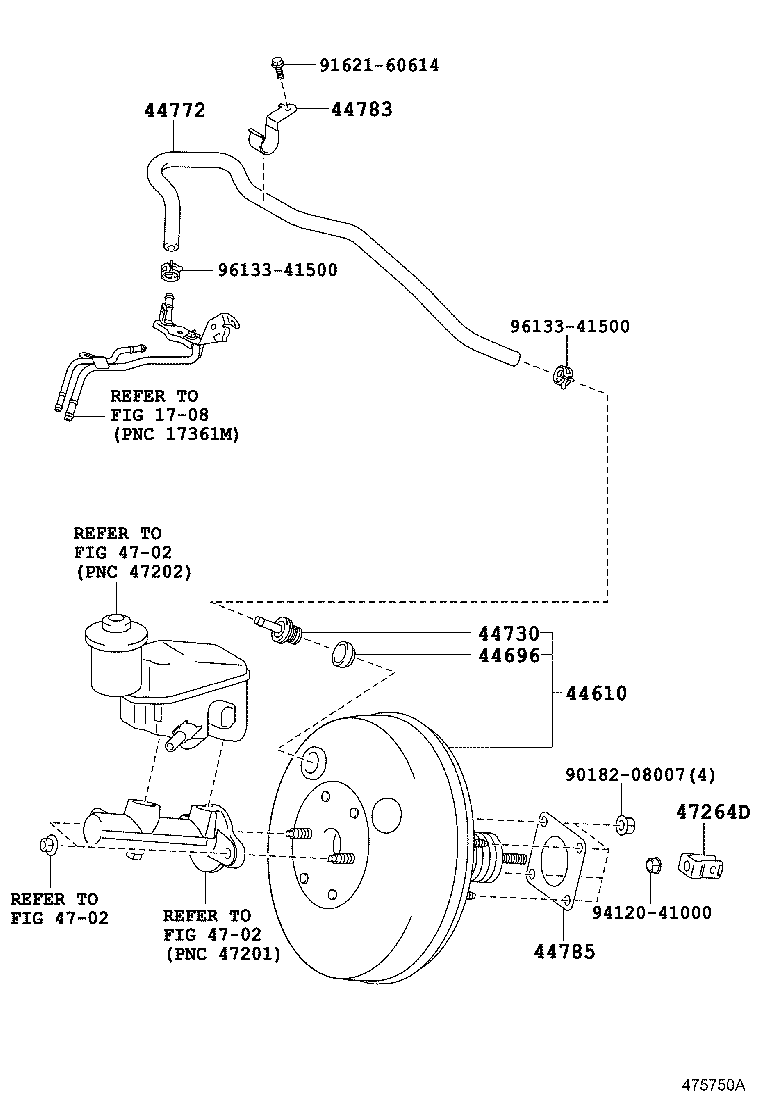

Figure 474709C 474709C 2005-08 → — Figure 475749A 475749A 2006-11 → — Figure 474710D 474710D 2005-08 → — Figure 475750A 475750A 2006-11 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763 Tube, Booster Vacuum
44772 Hose, Check Valve TO Connector Tube
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
