Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

6 part groups · 3 illustrations

Illustrations

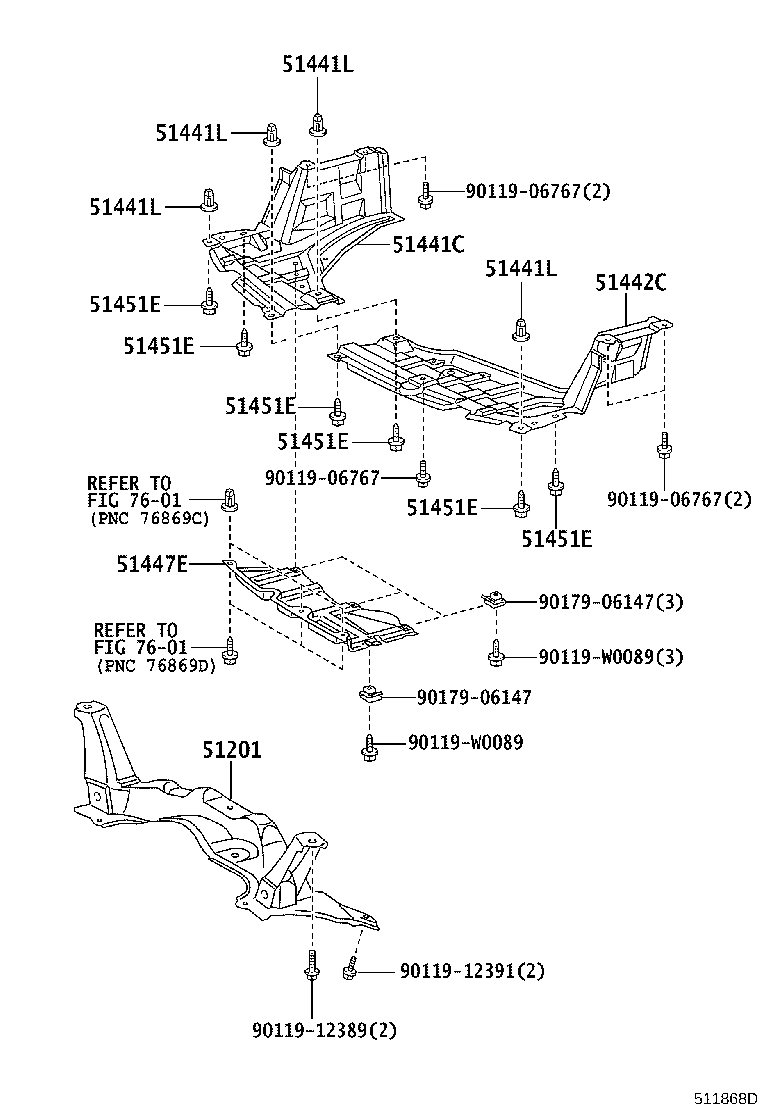

Figure 511866C 511866C 2005-08 → 2008-08 Figure 511866C 511866C 2005-08 → — Figure 511868D 511868D 2008-08 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441C Cover, Engine Under, RH
51441L Grommet, NO.2(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51447E Reinforcement, Engine Under Cover
51451E Screw, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
