Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 2 illustrations

Illustrations

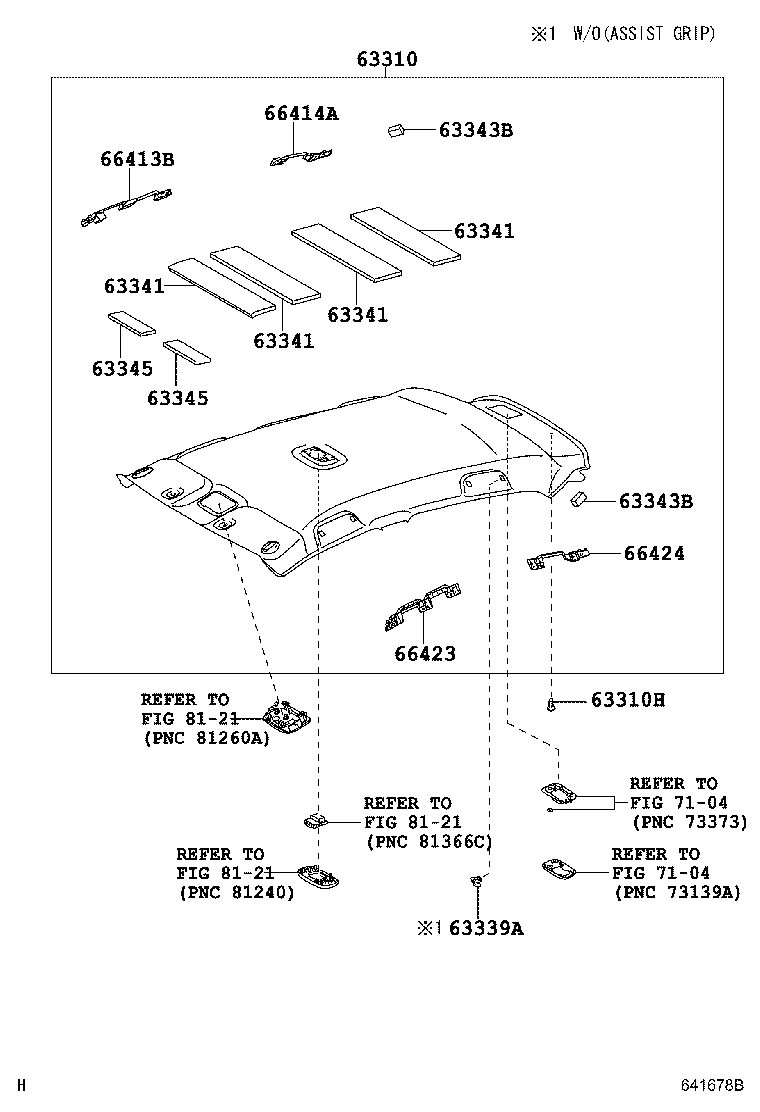

Figure 641677B 641677B 2005-08 → — Figure 641678B 641678B 2005-08 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63343B Pad, Roof Silencer, Rear
63345 Pad, Roof Silencer, NO.5
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
