Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

48 part groups · 35 illustrations

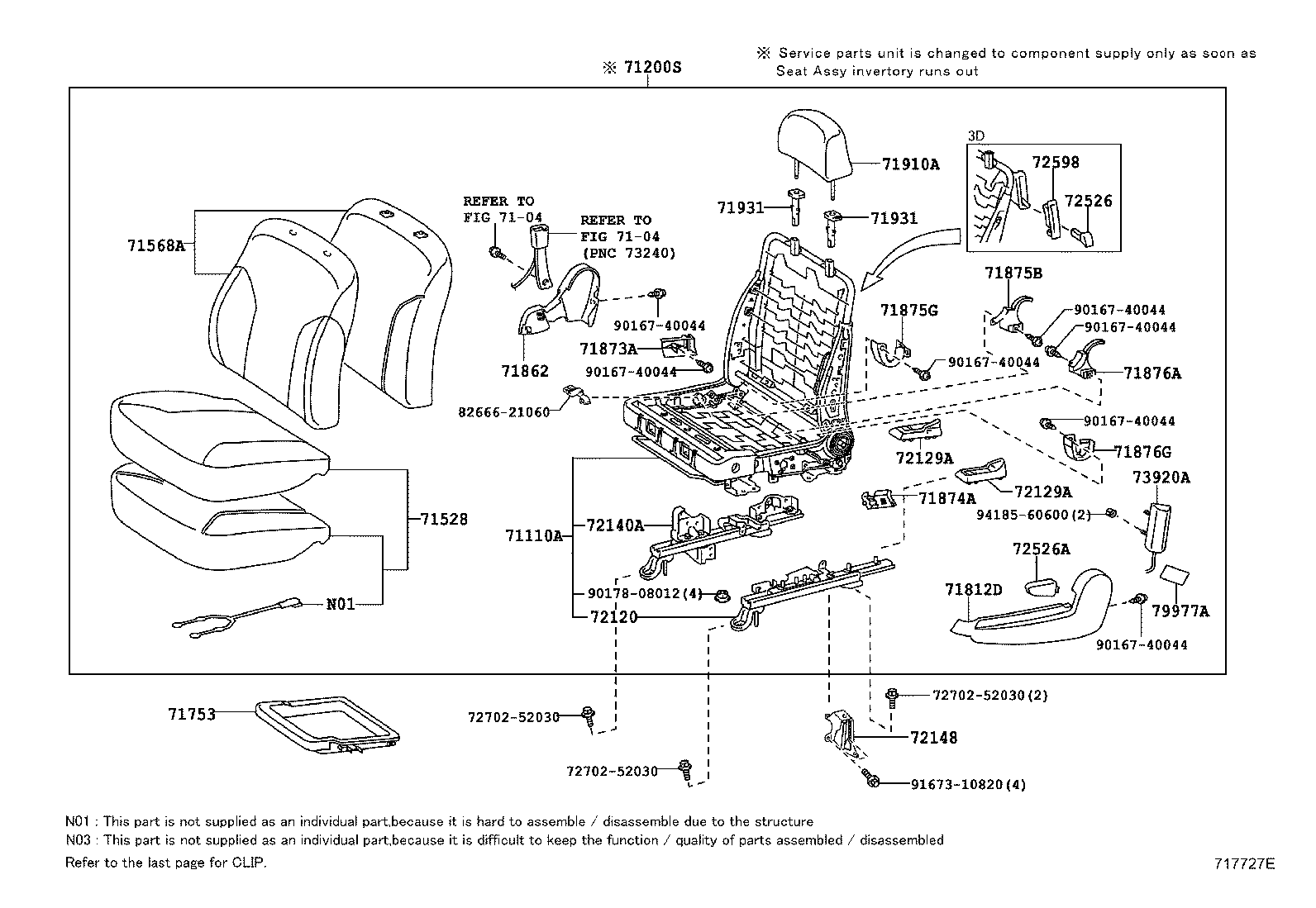

Illustrations

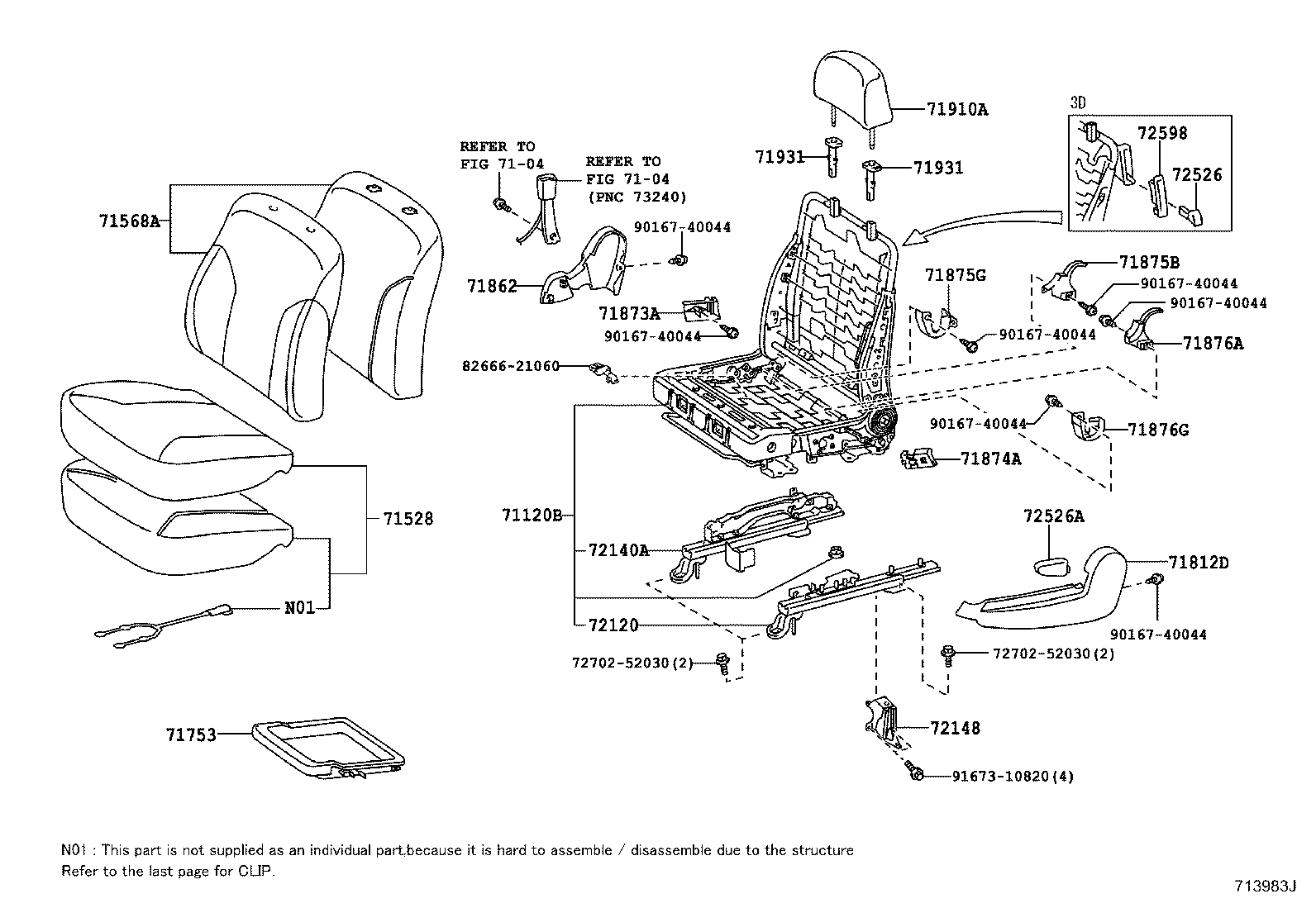

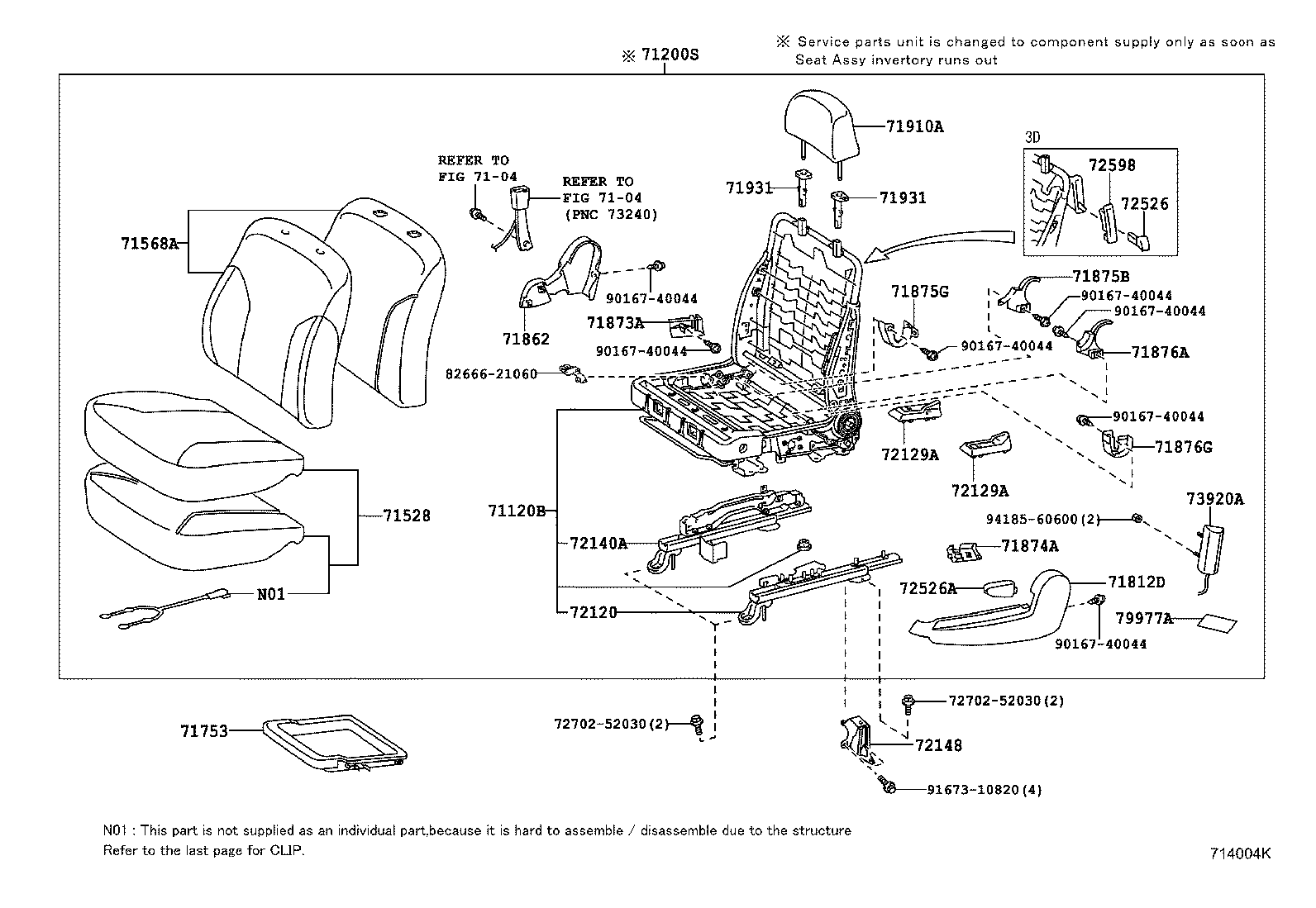

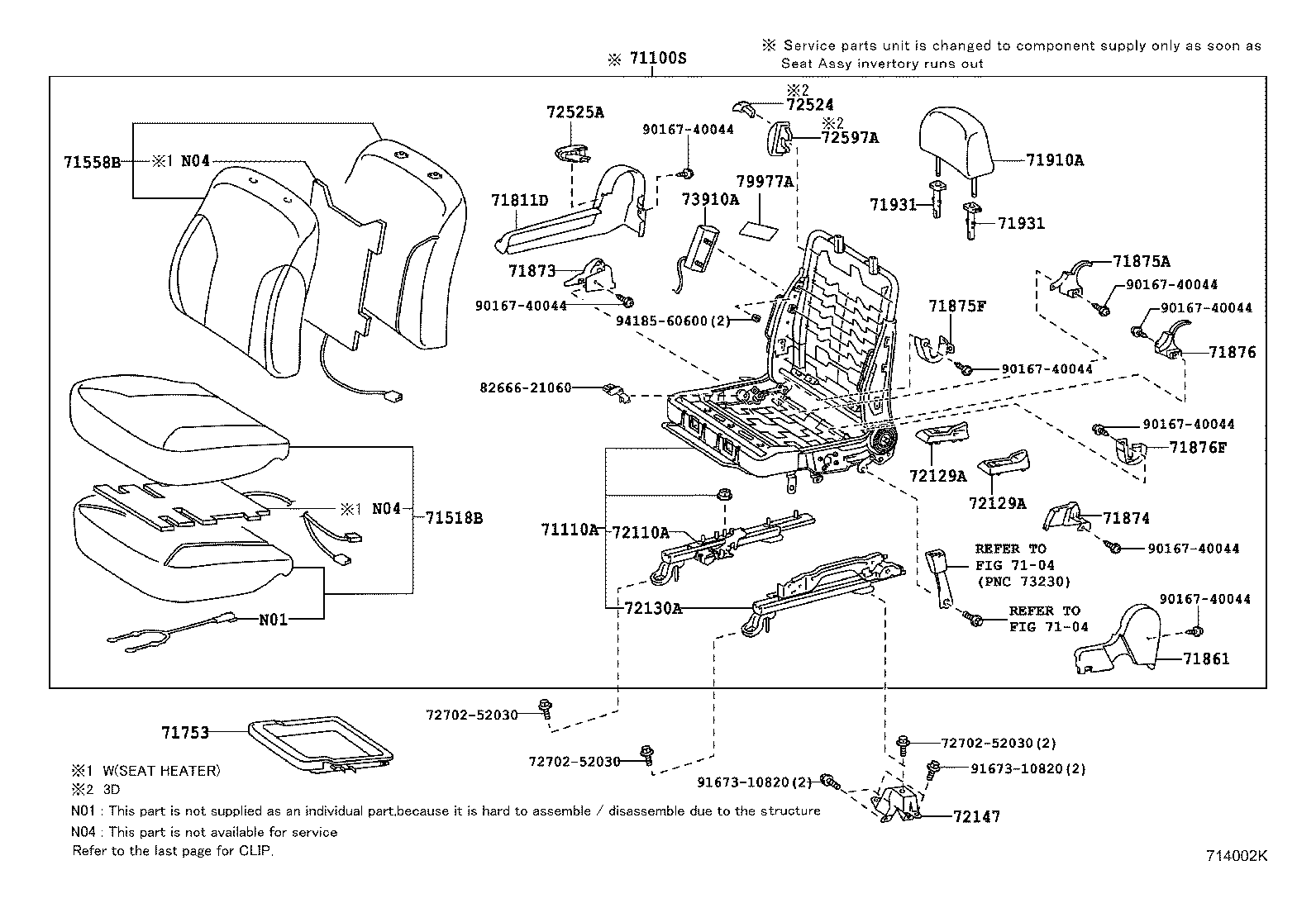

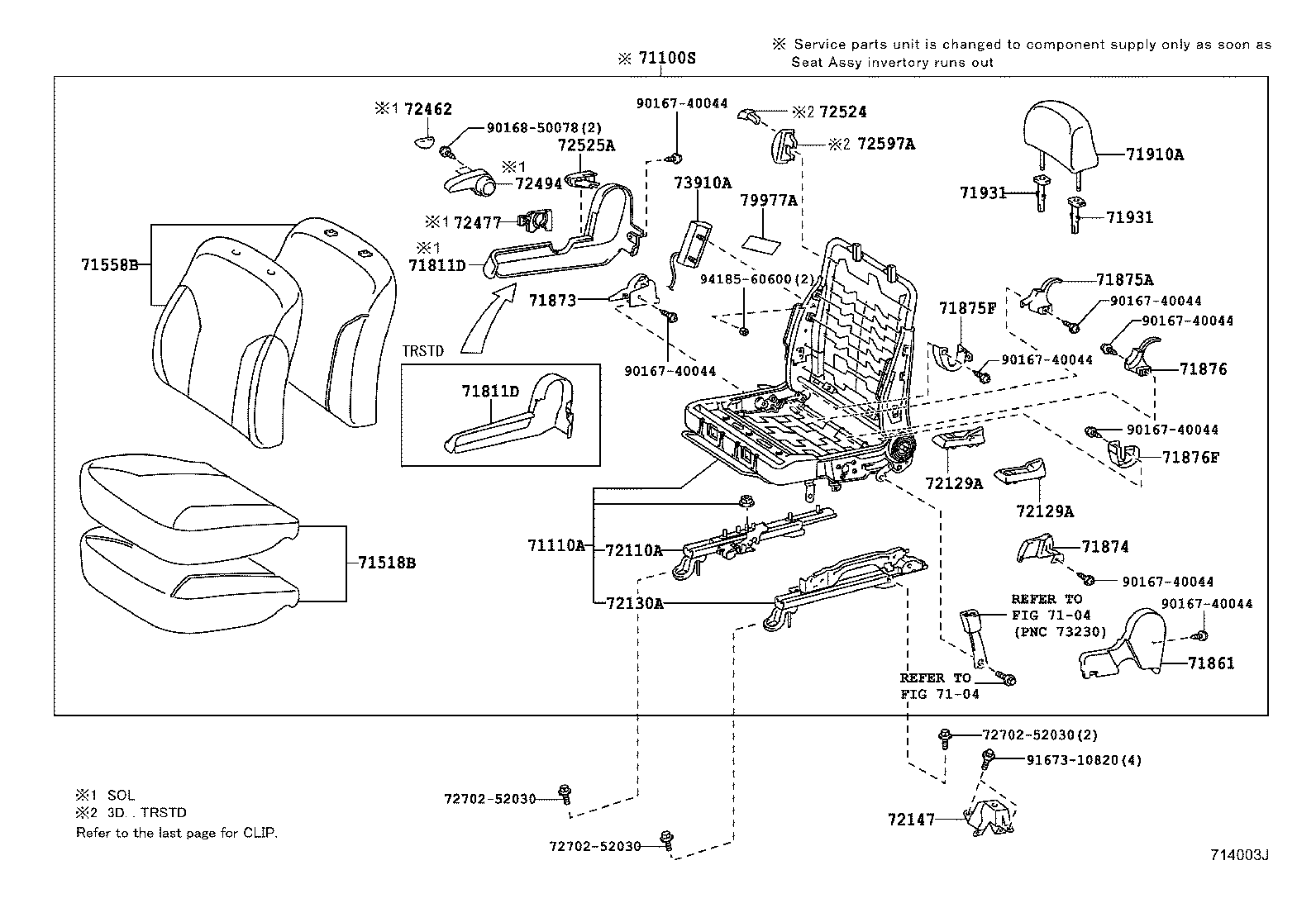

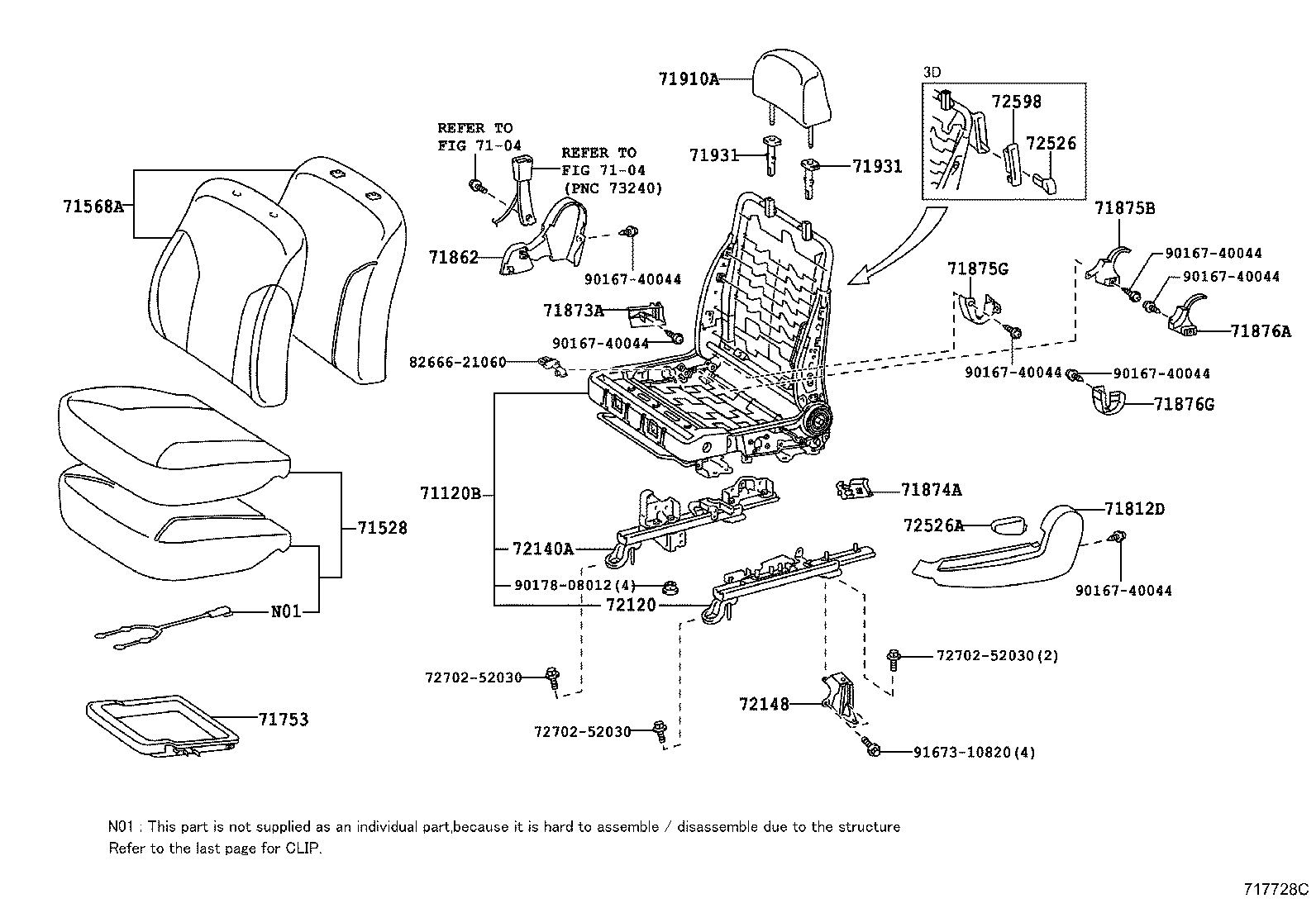

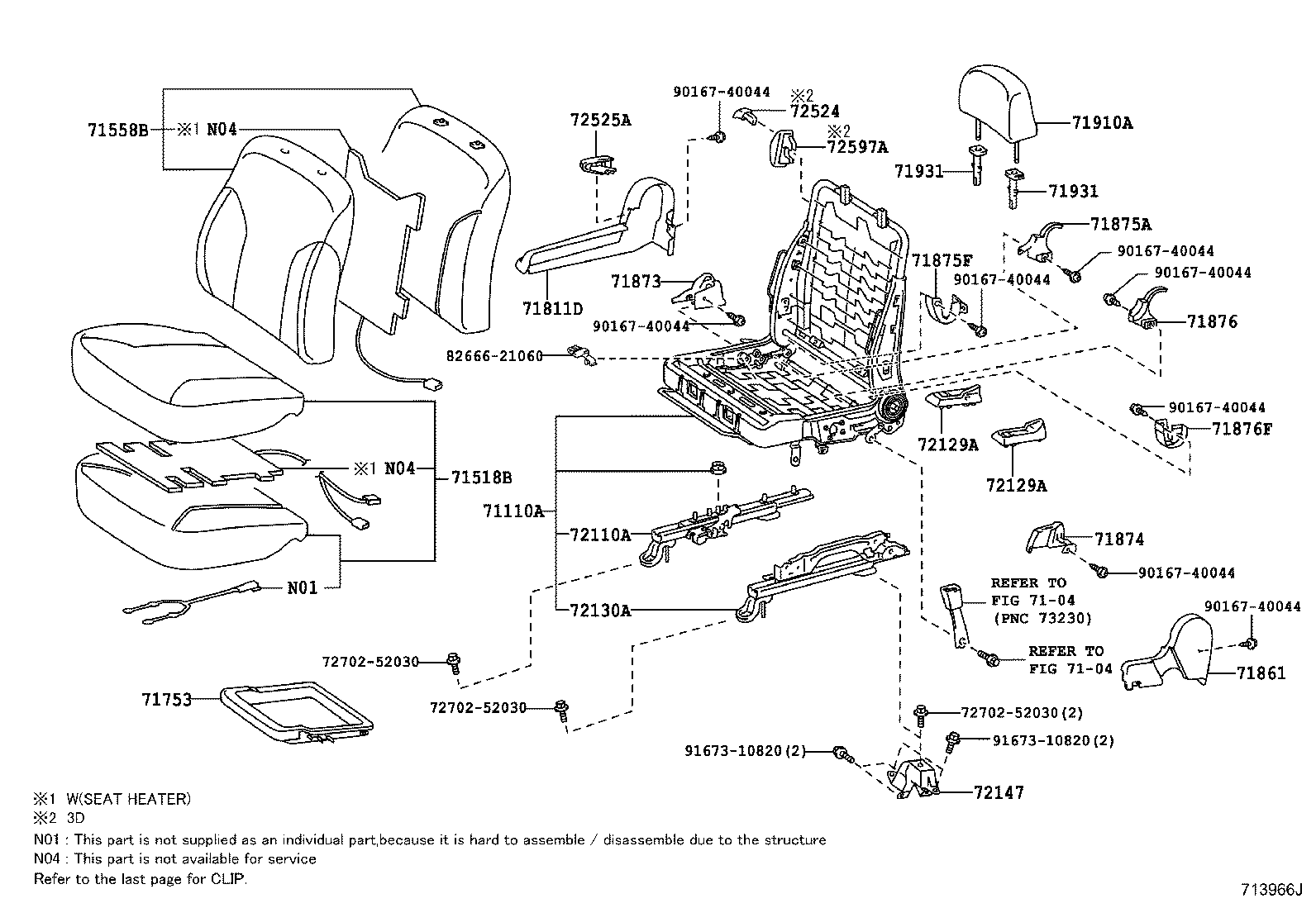

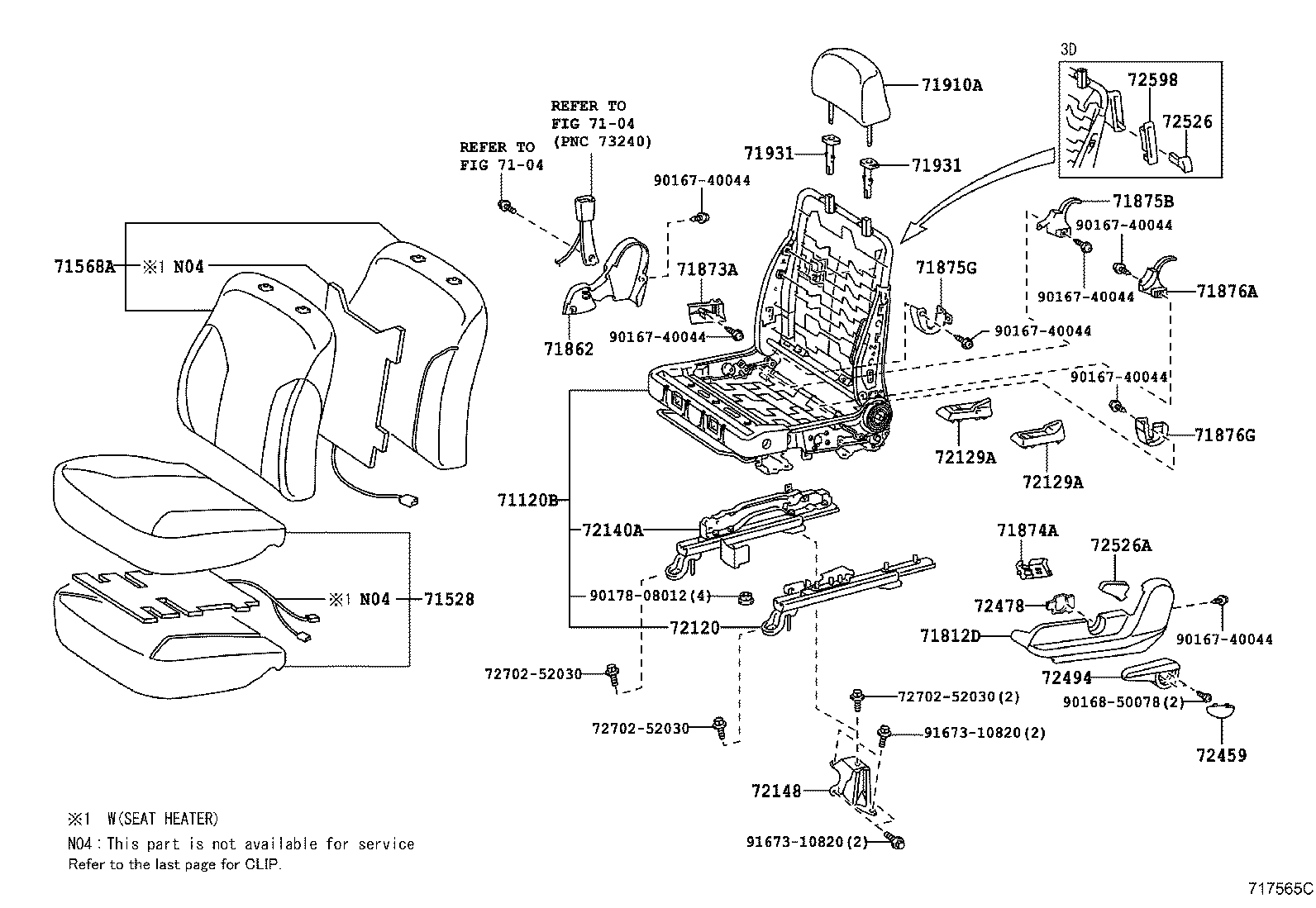

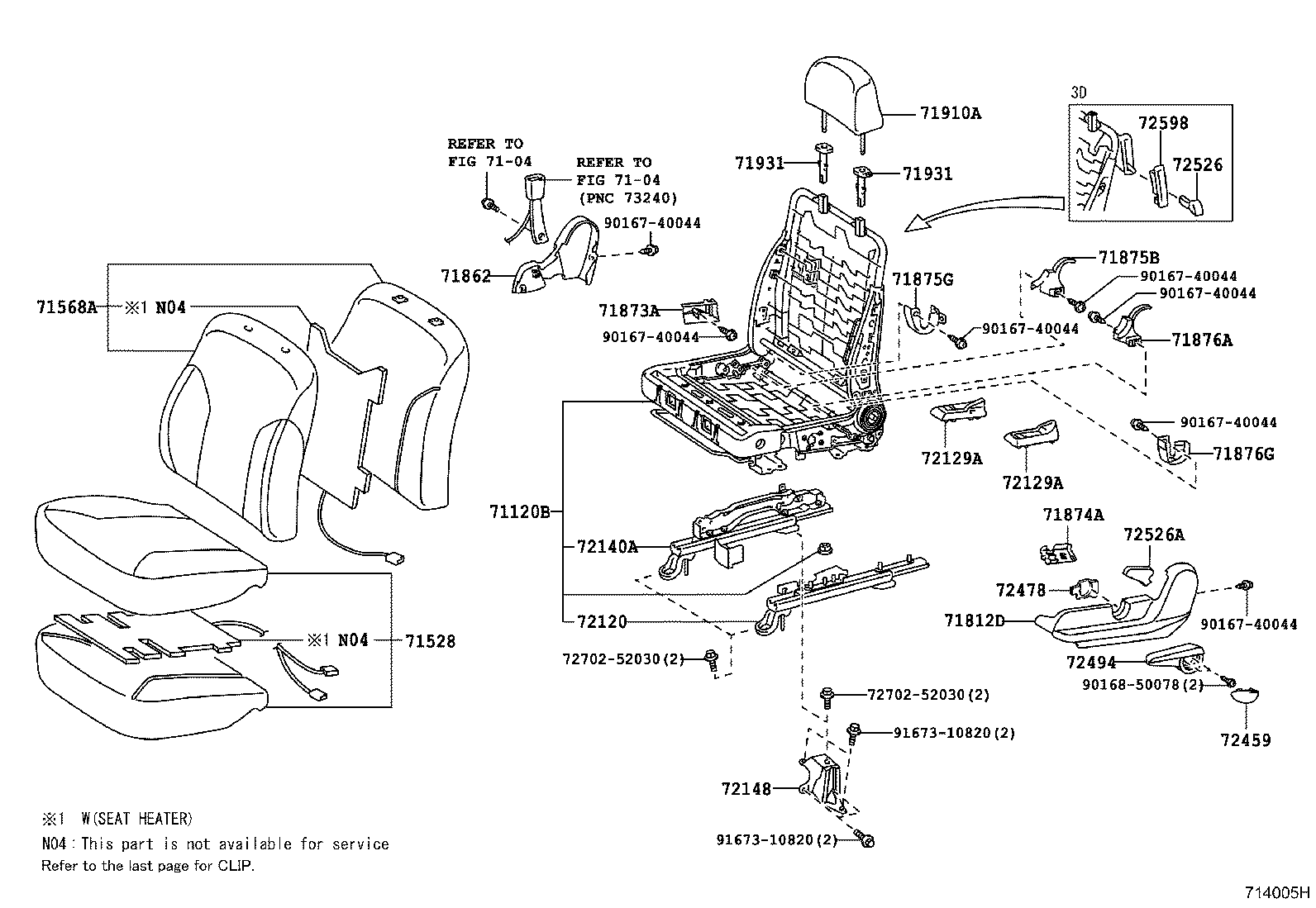

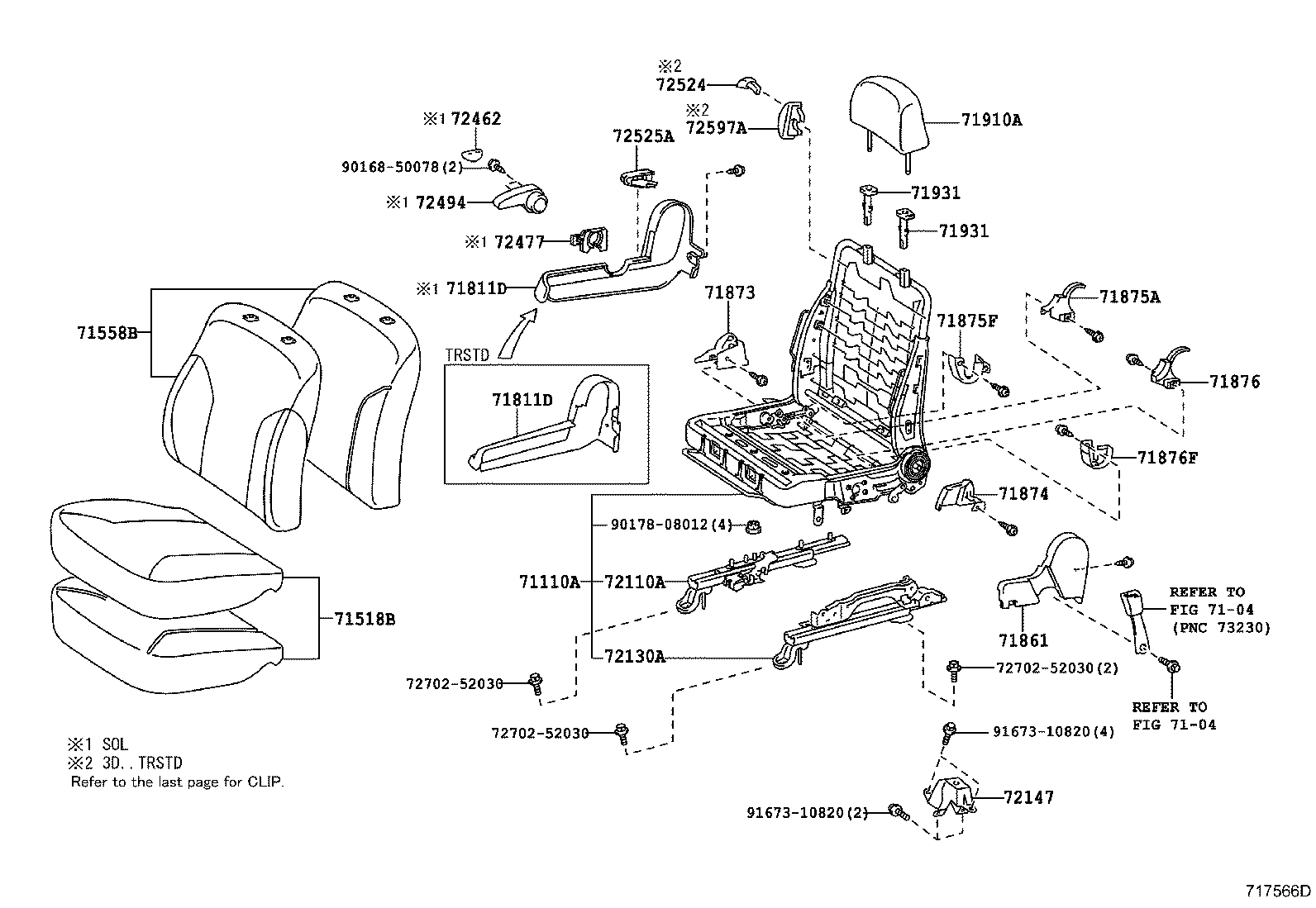

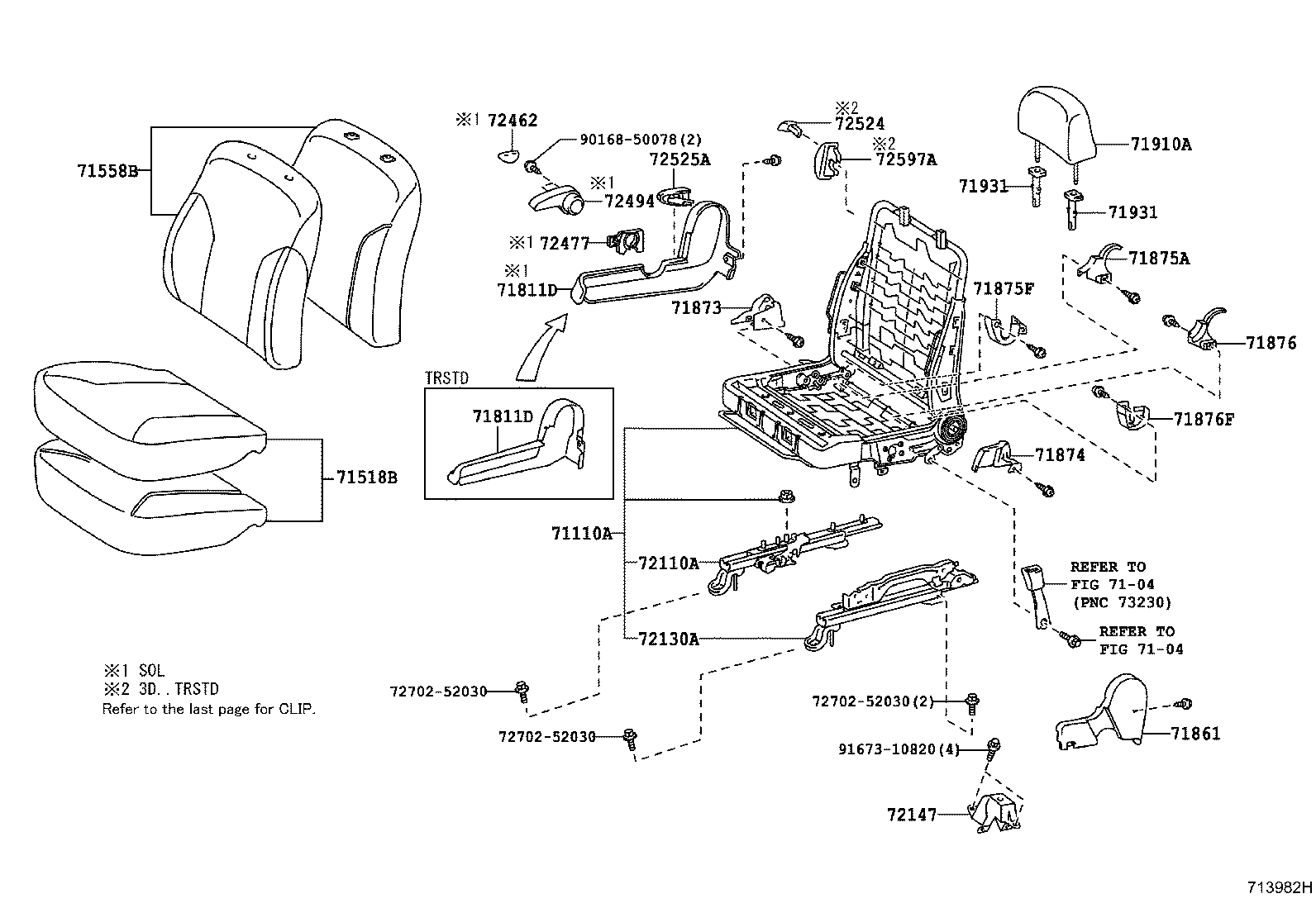

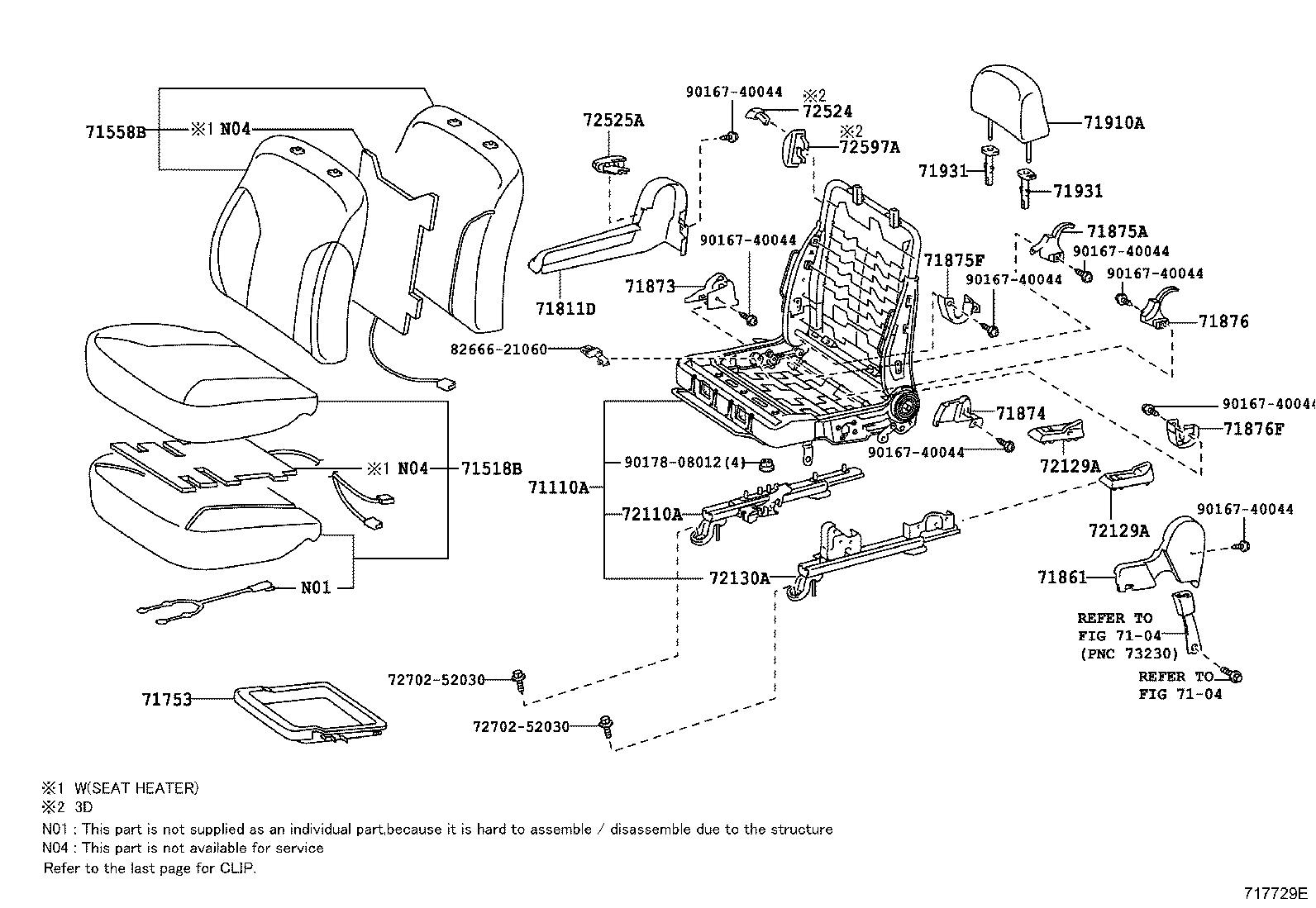

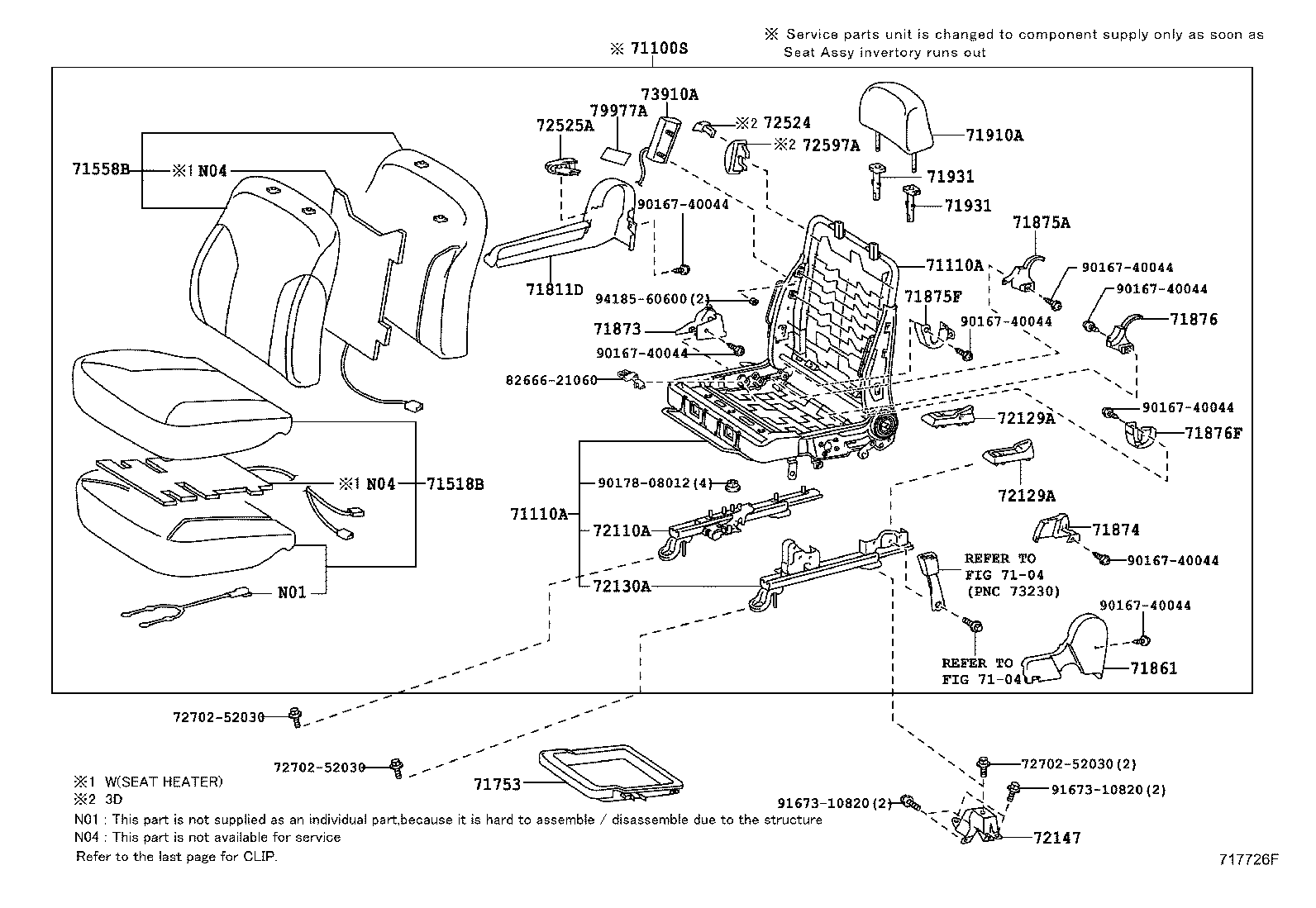

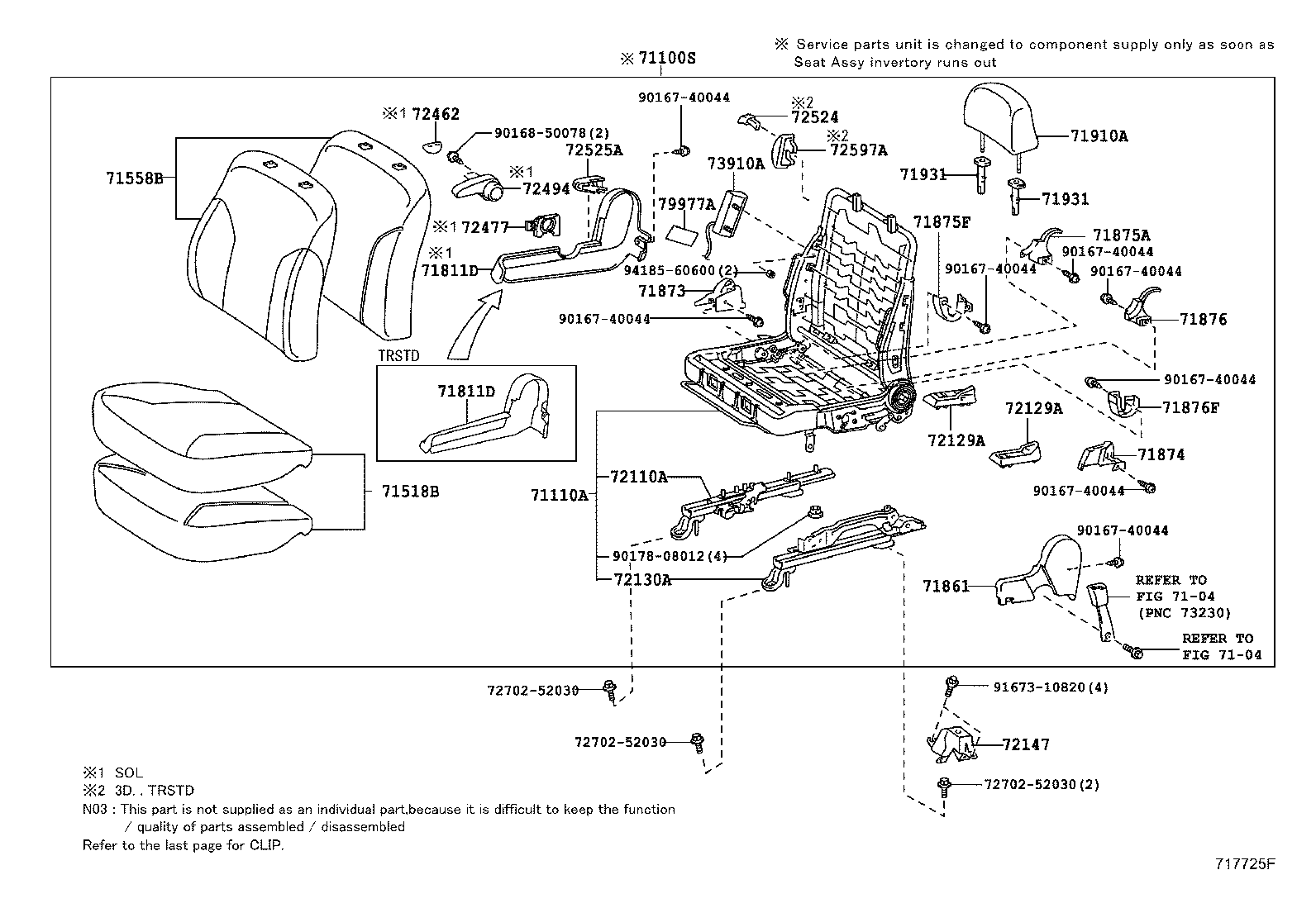

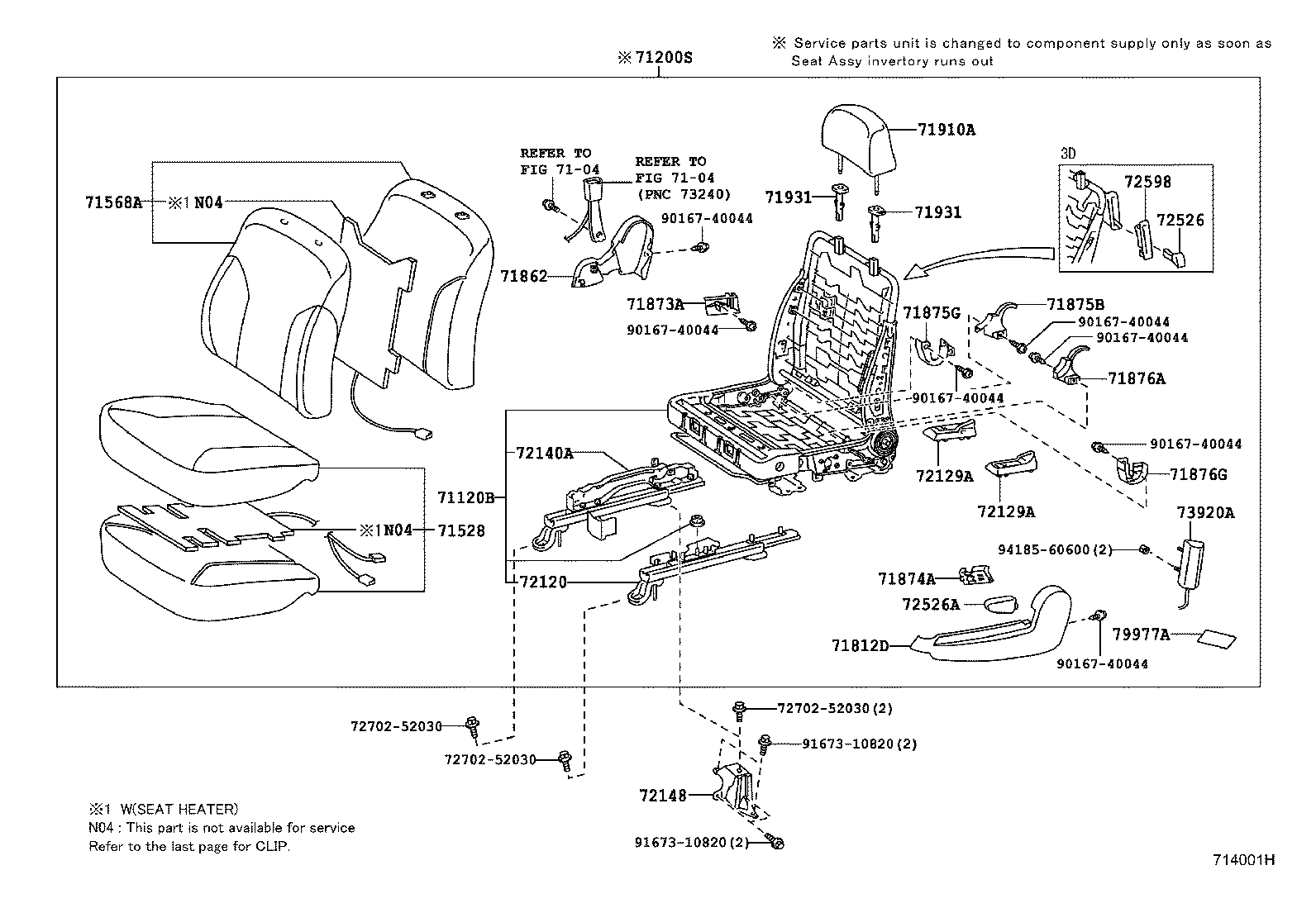

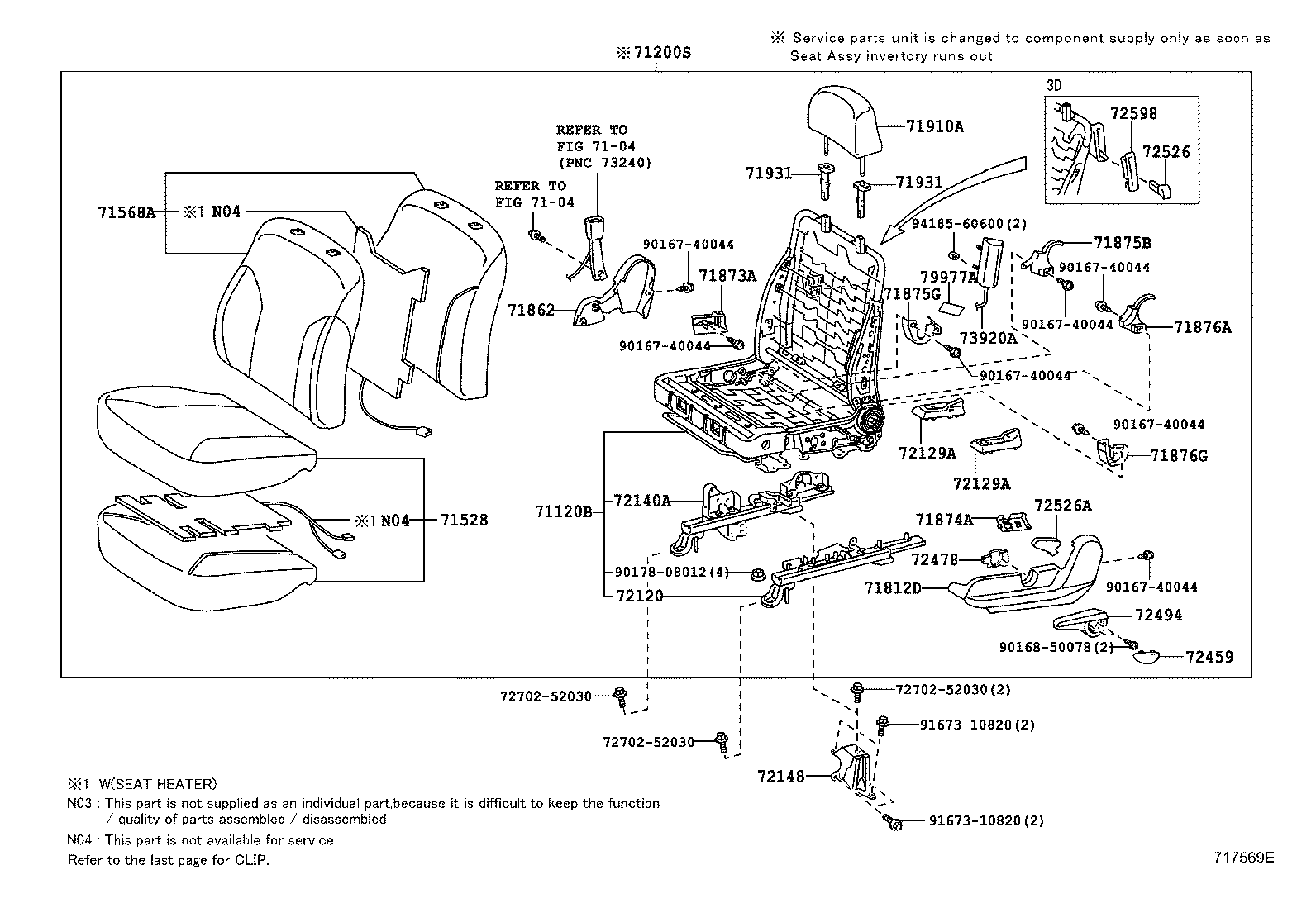

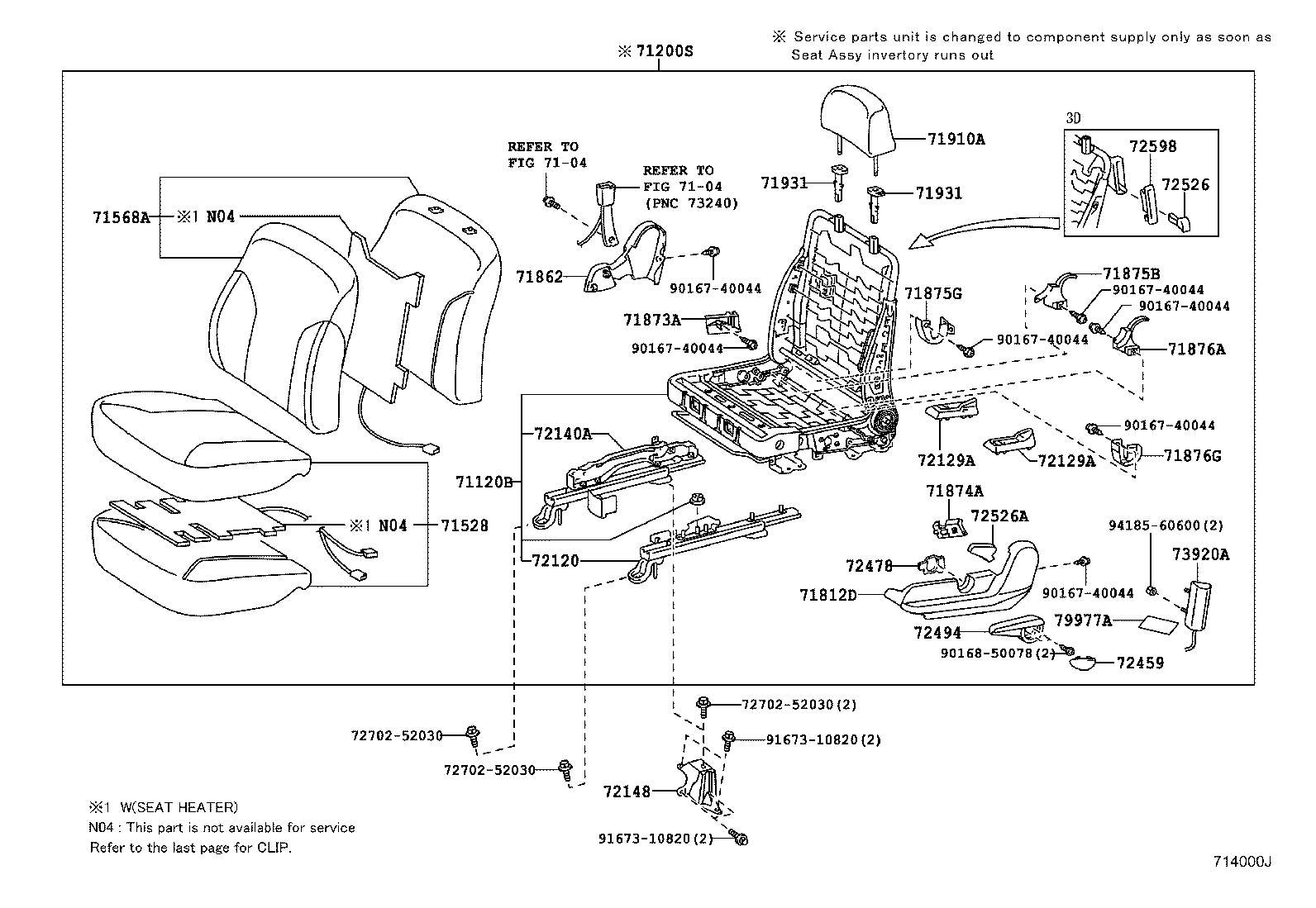

Figure 713967G 713967G 2005-08 → 2008-08 Figure 714001H 714001H 2005-08 → 2008-08 Figure 714005H 714005H 2005-08 → 2008-08 Figure 714005H 714005H 2006-11 → 2008-09 Figure 714000J 714000J 2005-08 → 2008-08 Figure 714000J 714000J 2006-11 → 2008-09 Figure 713982H 713982H 2005-08 → 2008-08 Figure 713982H 713982H 2006-11 → 2008-09 Figure 714003J 714003J 2005-08 → 2008-08 Figure 714003J 714003J 2006-11 → 2008-09 Figure 717565C 717565C 2008-08 → — Figure 717565C 717565C 2008-09 → — Figure 717569E 717569E 2008-08 → — Figure 717569E 717569E 2008-09 → — Figure 717566D 717566D 2008-08 → — Figure 717566D 717566D 2008-09 → — Figure 717725F 717725F 2008-08 → — Figure 717725F 717725F 2008-09 → — Figure 713966J 713966J 2005-08 → 2008-08 Figure 713966J 713966J 2006-11 → 2008-09 Figure 714002K 714002K 2005-08 → 2008-08 Figure 714002K 714002K 2006-11 → 2008-09 Figure 713983J 713983J 2005-08 → 2008-08 Figure 713983J 713983J 2006-11 → 2008-09 Figure 714004K 714004K 2005-08 → 2008-08 Figure 714004K 714004K 2006-11 → 2008-09 Figure 717729E 717729E 2008-08 → — Figure 717729E 717729E 2008-09 → — Figure 717726F 717726F 2008-08 → — Figure 717726F 717726F 2008-09 → — Figure 717728C 717728C 2008-08 → — Figure 717728C 717728C 2008-09 → — Figure 717727E 717727E 2008-08 → — Figure 717727E 717727E 2008-09 → — Figure 718166A 718166A 2005-08 → —

Part groups

PNCDescription
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71558B Pad, Front Seatback W/Cover, RH
71568A Pad, Front Seatback W/Cover, LH
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72129A Protector, Seat Track Lower Rail, NO.2
72130A Track Assy, Front Seat, Inner RH
72140A Track Assy, Front Seat,Inner LH
72147 Bracket, Front Inner Seat Track, Lower Rear RH
72148 Bracket, Front Inner Seat Track, Lower Rear LH
72459 Cap, Vertical Seat Adjuster Knob
72462 Cover, Vertical Adjuster RH
72477 Spacer, Vertical Adjuster
72478 Bush, Vertical Adjuster
72494 Handle, Vertical Adjusting, RH
72524 Handle, Reclining Adjuster Release
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72597A Bezel, Reclining Remote Control Lever, RH
72598 Bezel, Reclining Remote Control Lever, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79977A Felt, Seatback
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
