Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

14 part groups · 2 illustrations

Illustrations

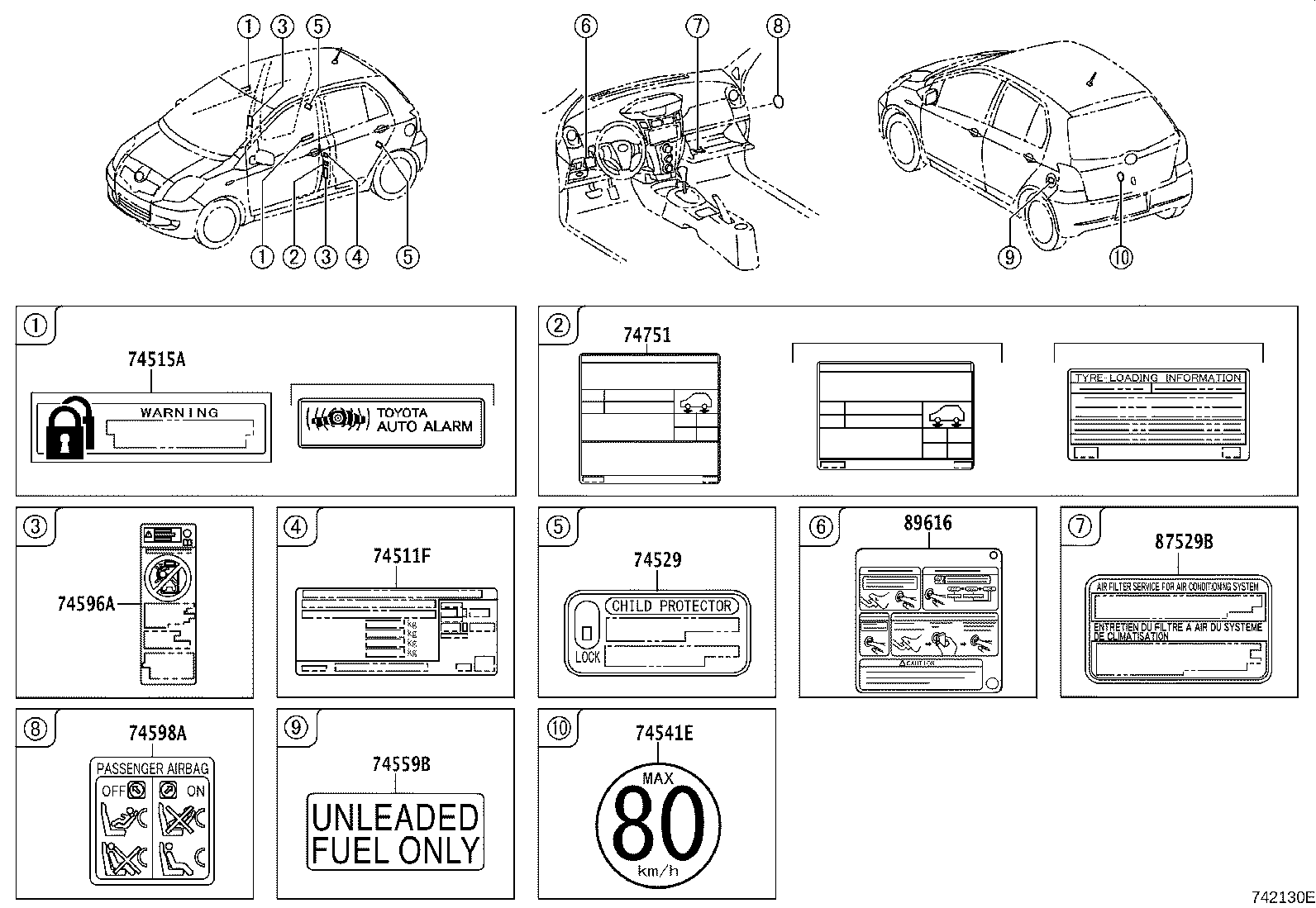

Figure 745416 745416 2005-08 → — Figure 742130E 742130E 2005-08 → —

Part groups

PNCDescription
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723J Label, Cooler Service Caution, NO.2
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
