Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

20 part groups · 4 illustrations

Illustrations

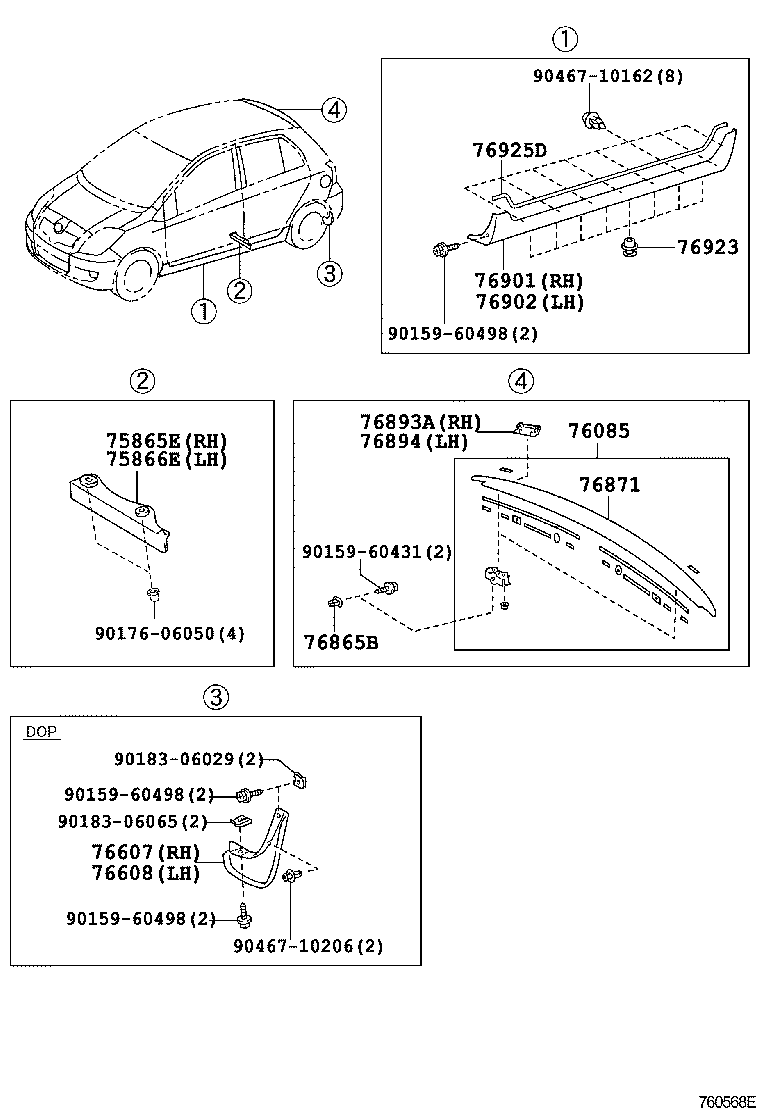

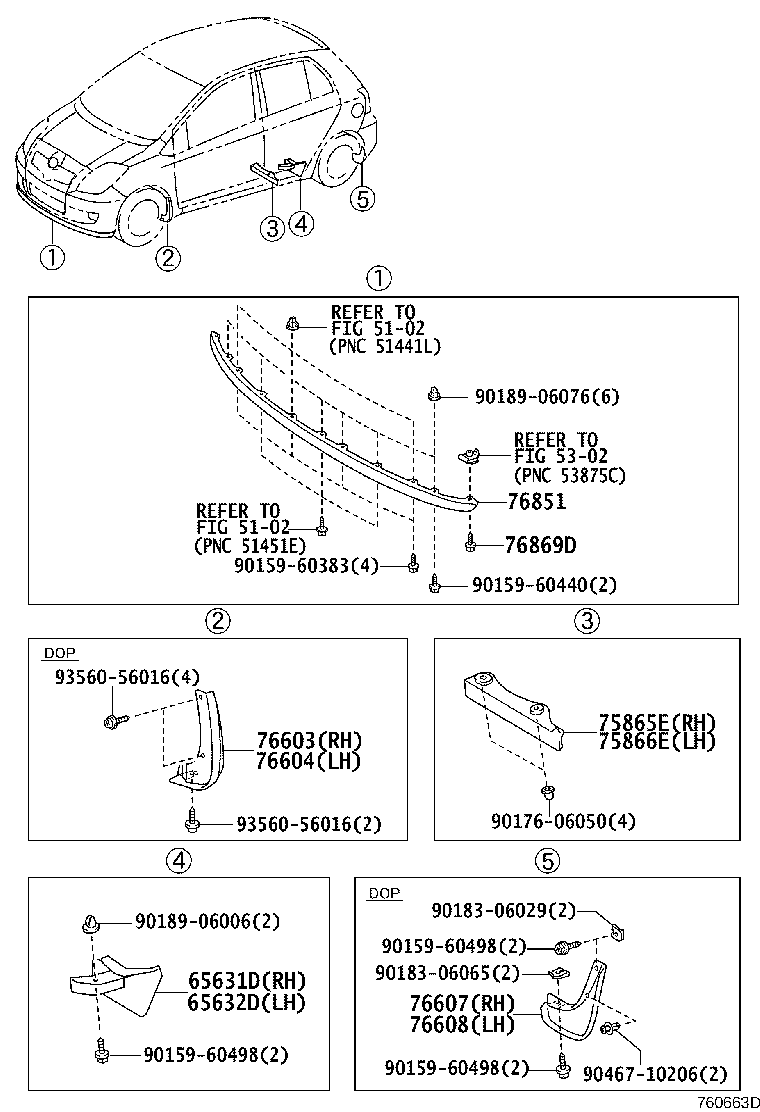

Figure 760492I 760492I 2005-08 → 2008-08 Figure 760492I 760492I 2005-08 → — Figure 760663D 760663D 2008-08 → — Figure 760568E 760568E 2006-11 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75865E Protector, Rocker Panel Moulding, RH
75866E Protector, Rocker Panel Moulding, LH
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851 Cover, Front Spoiler
76852A Cover, Front Spoiler, LH
76865B Retainer, Rear Spoiler
76869D Screw, NO.2
76871 Spoiler, Rear
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76923 Retainer, Side Mudguard
76925D Protector, Side Mudguard, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
