Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

2 part groups · 2 illustrations

Illustrations

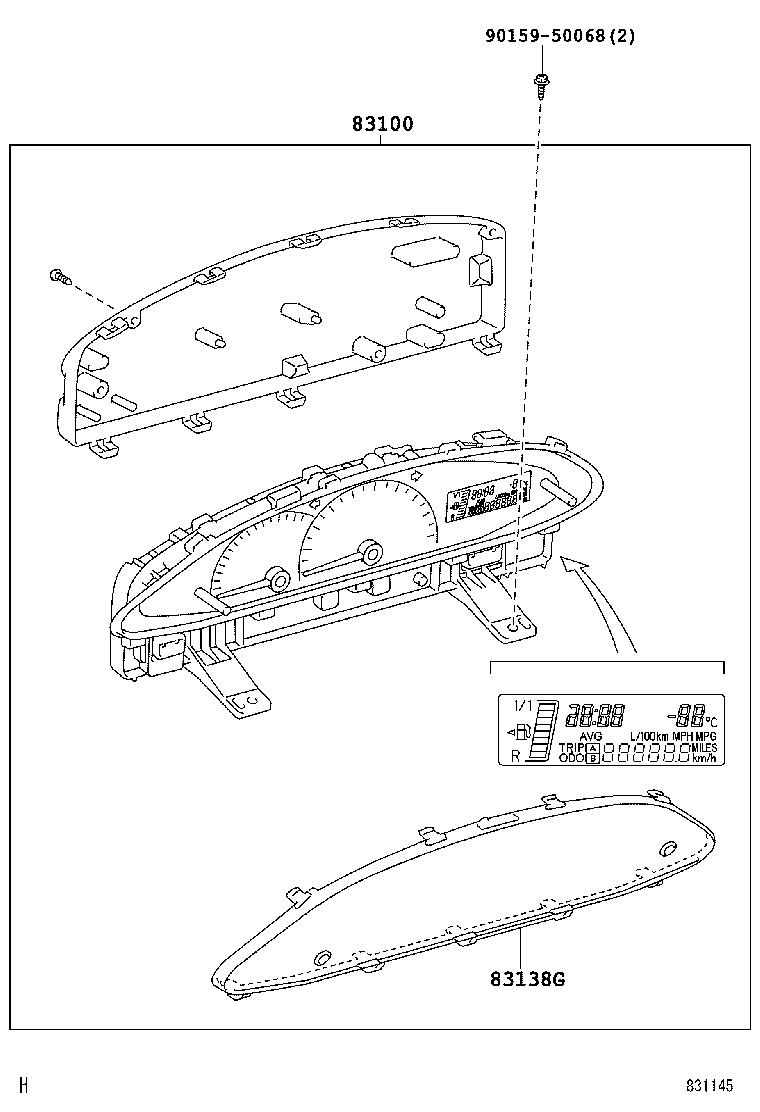

Figure 831146A 831146A 2005-08 → — Figure 831145 831145 2006-11 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83138G Glass, Combination Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
