Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

80 part groups · 16 illustrations

Illustrations

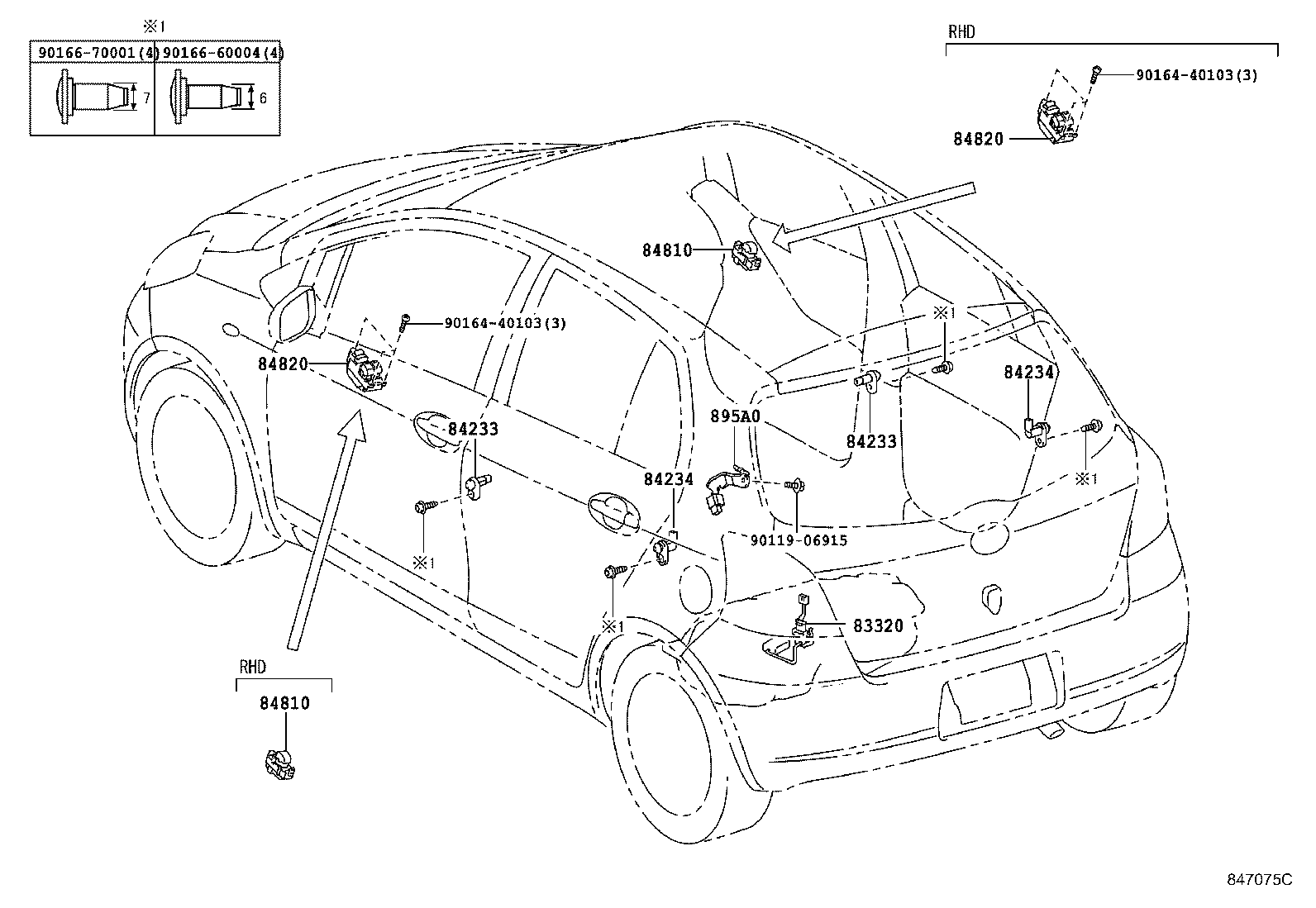

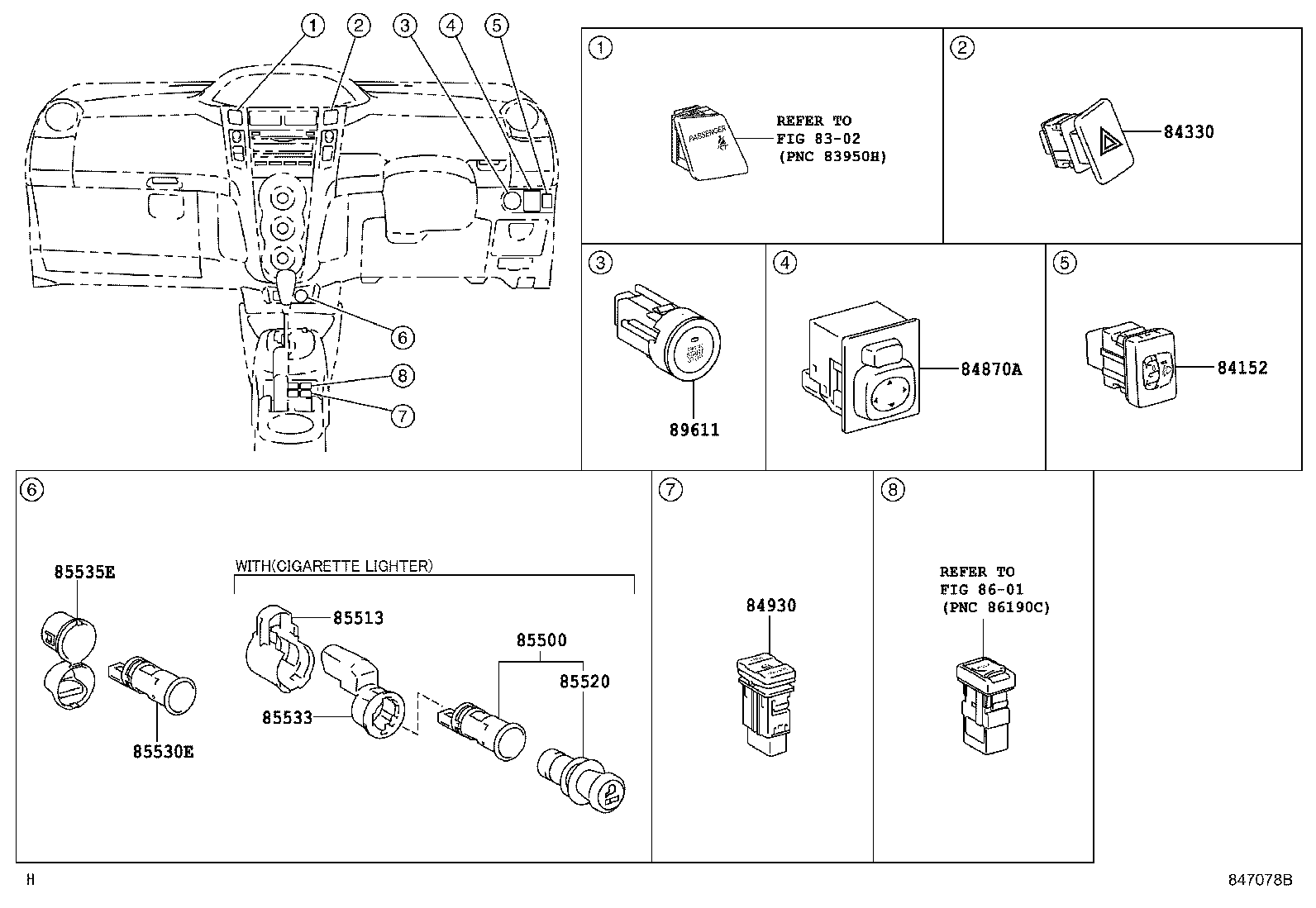

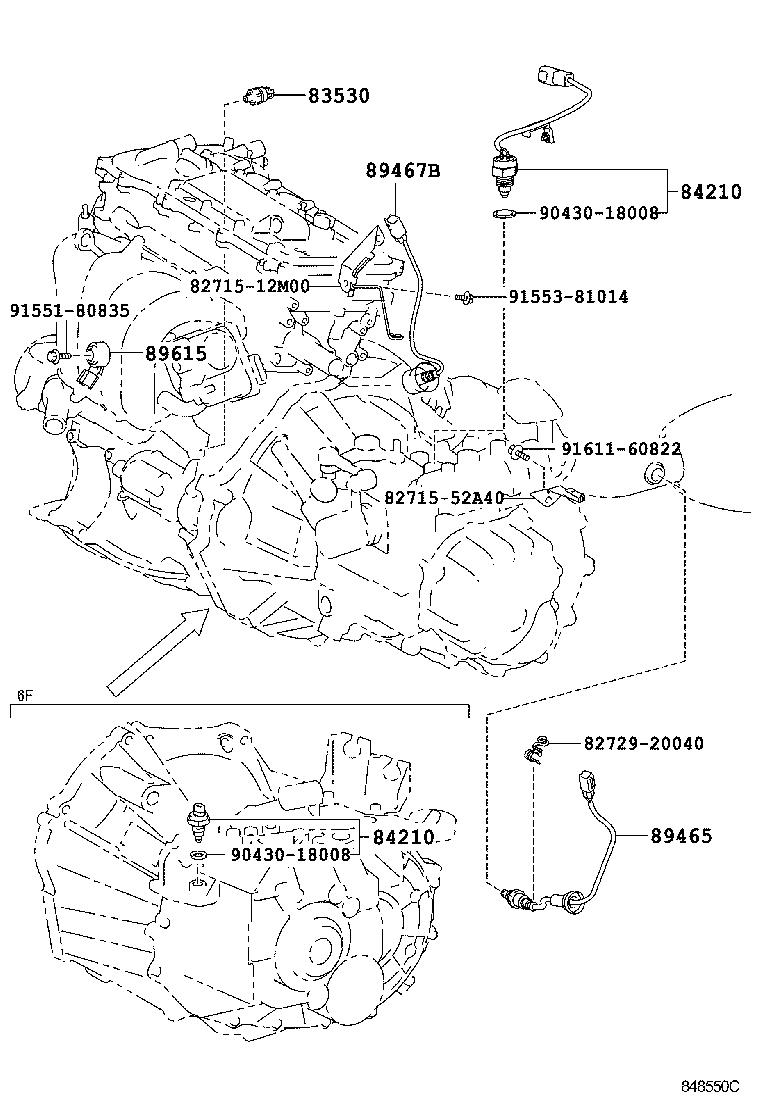

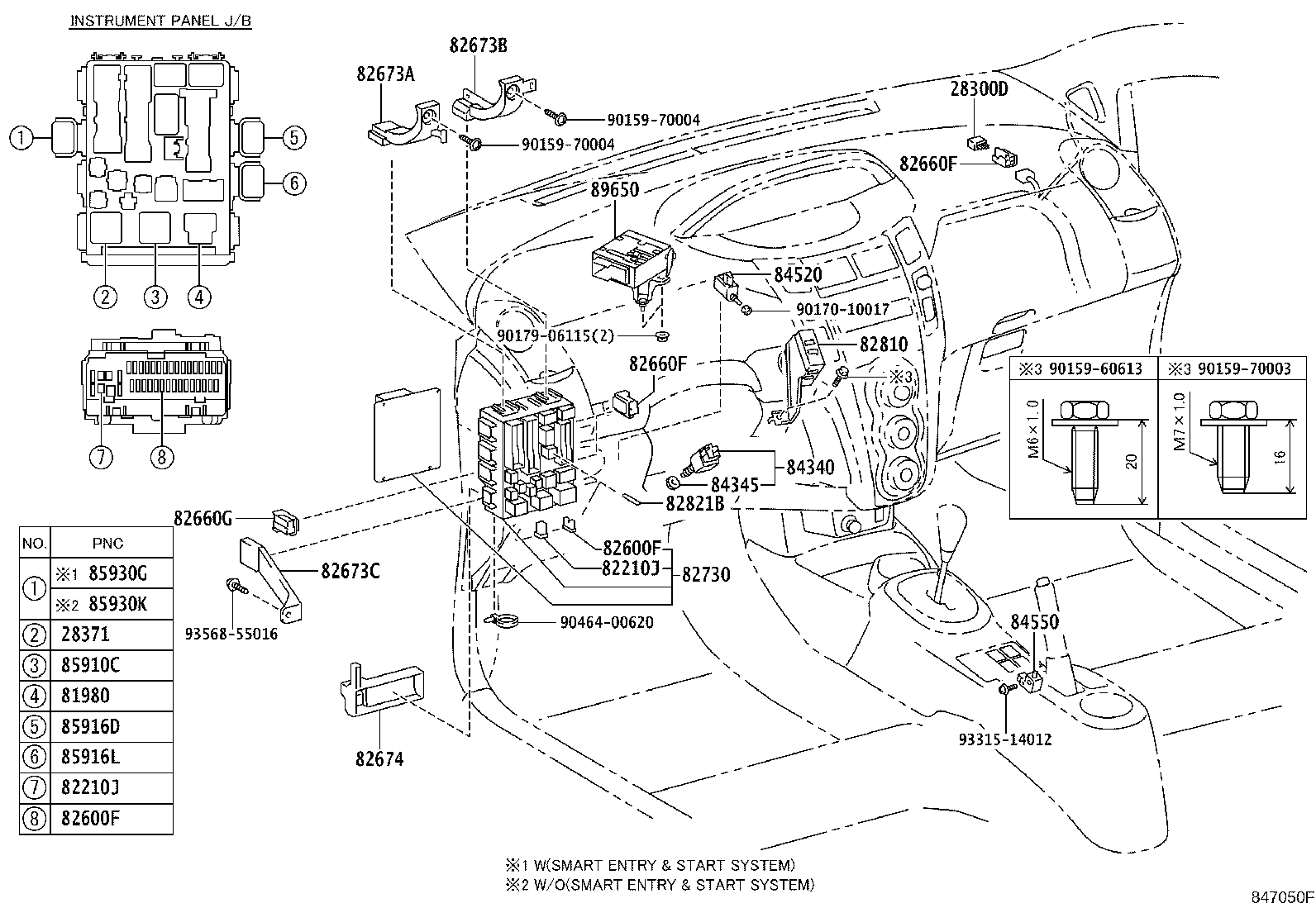

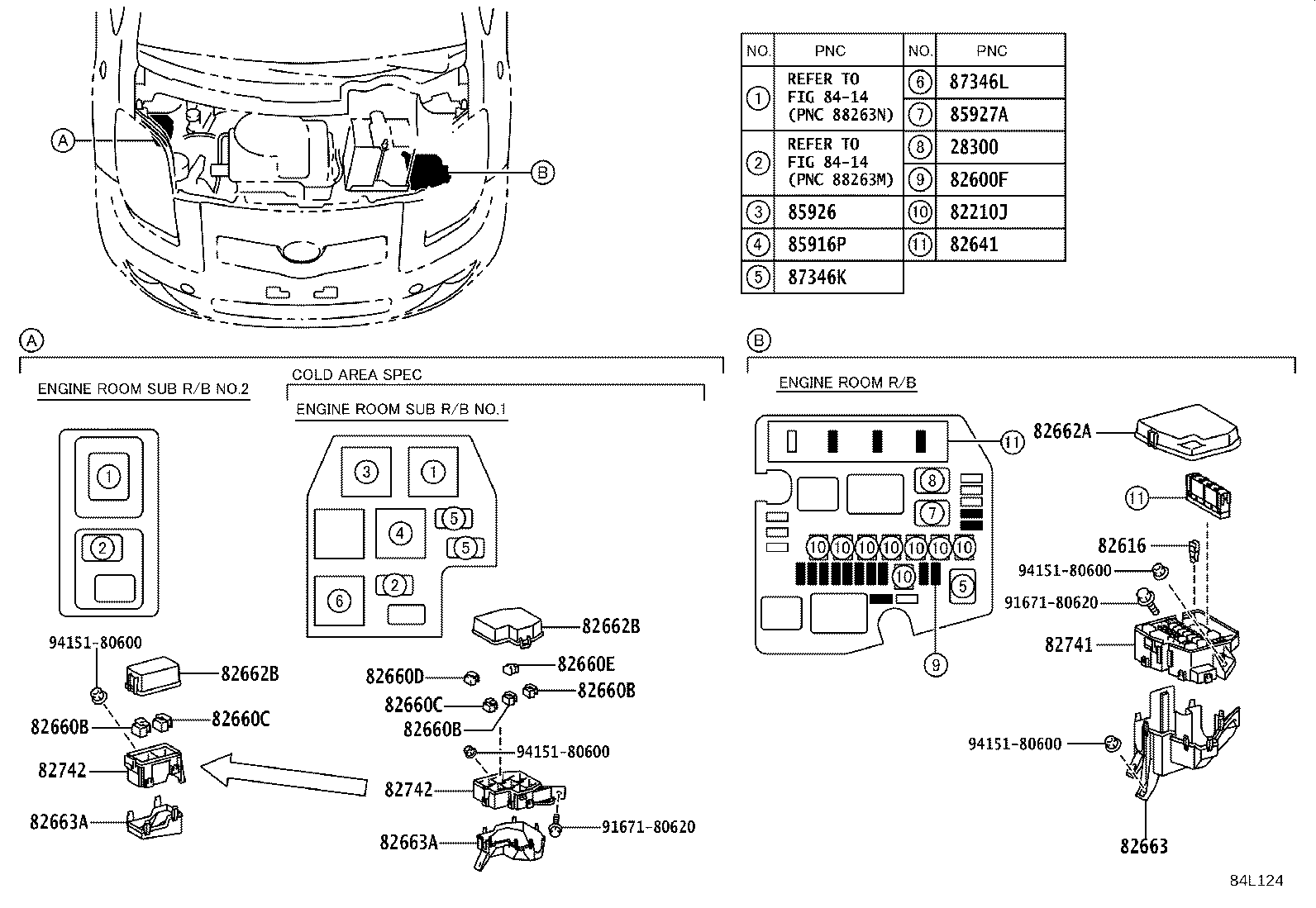

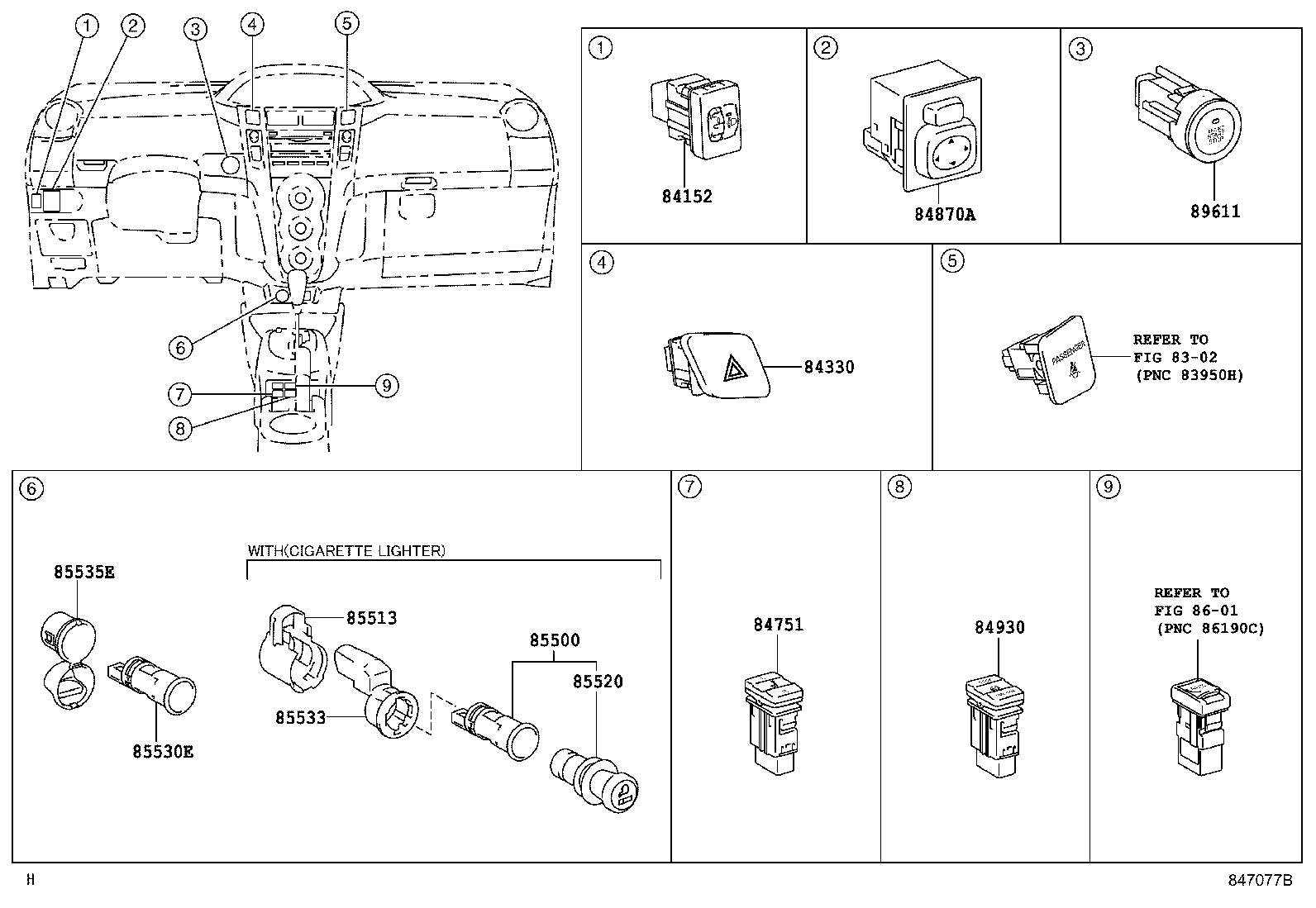

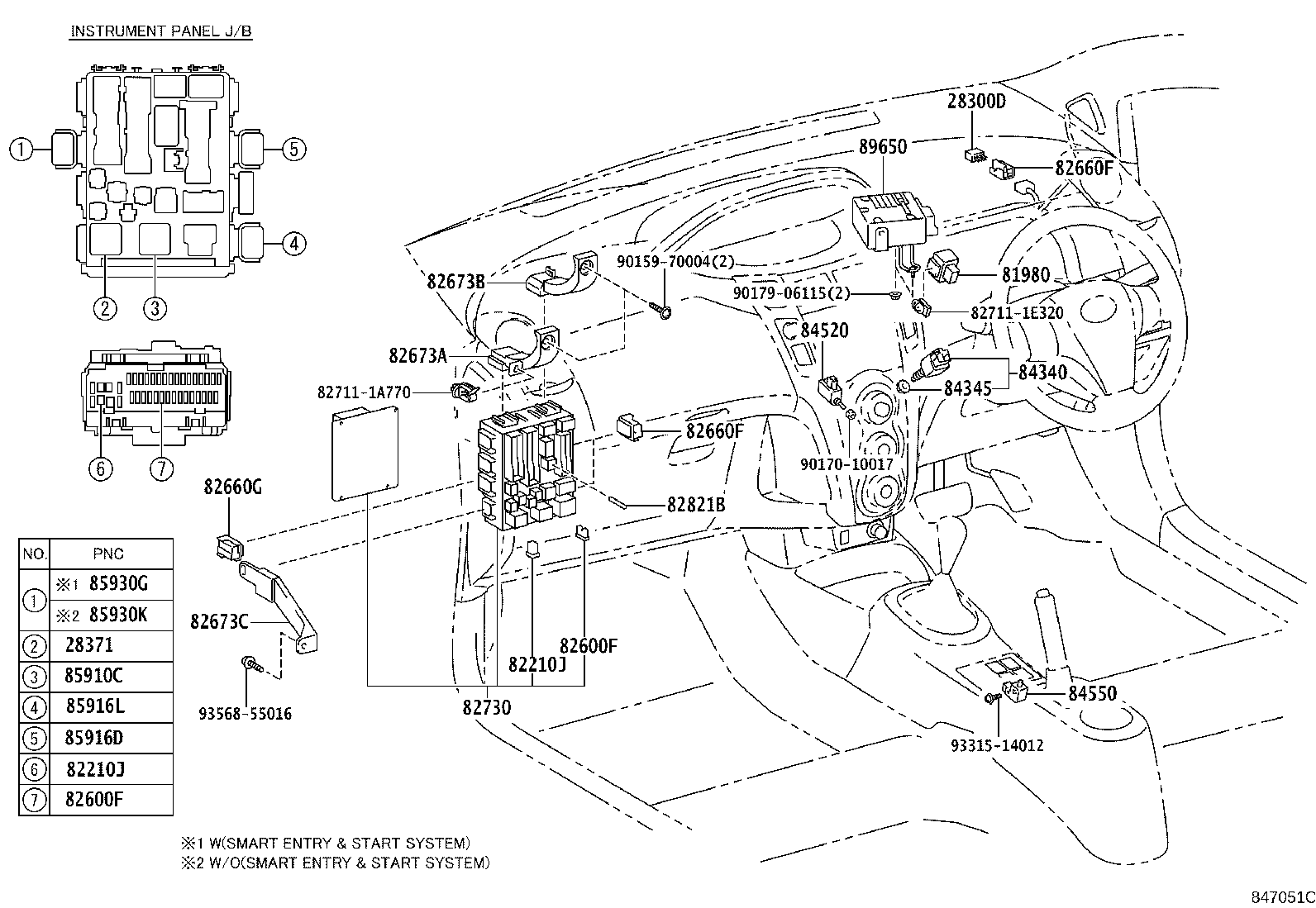

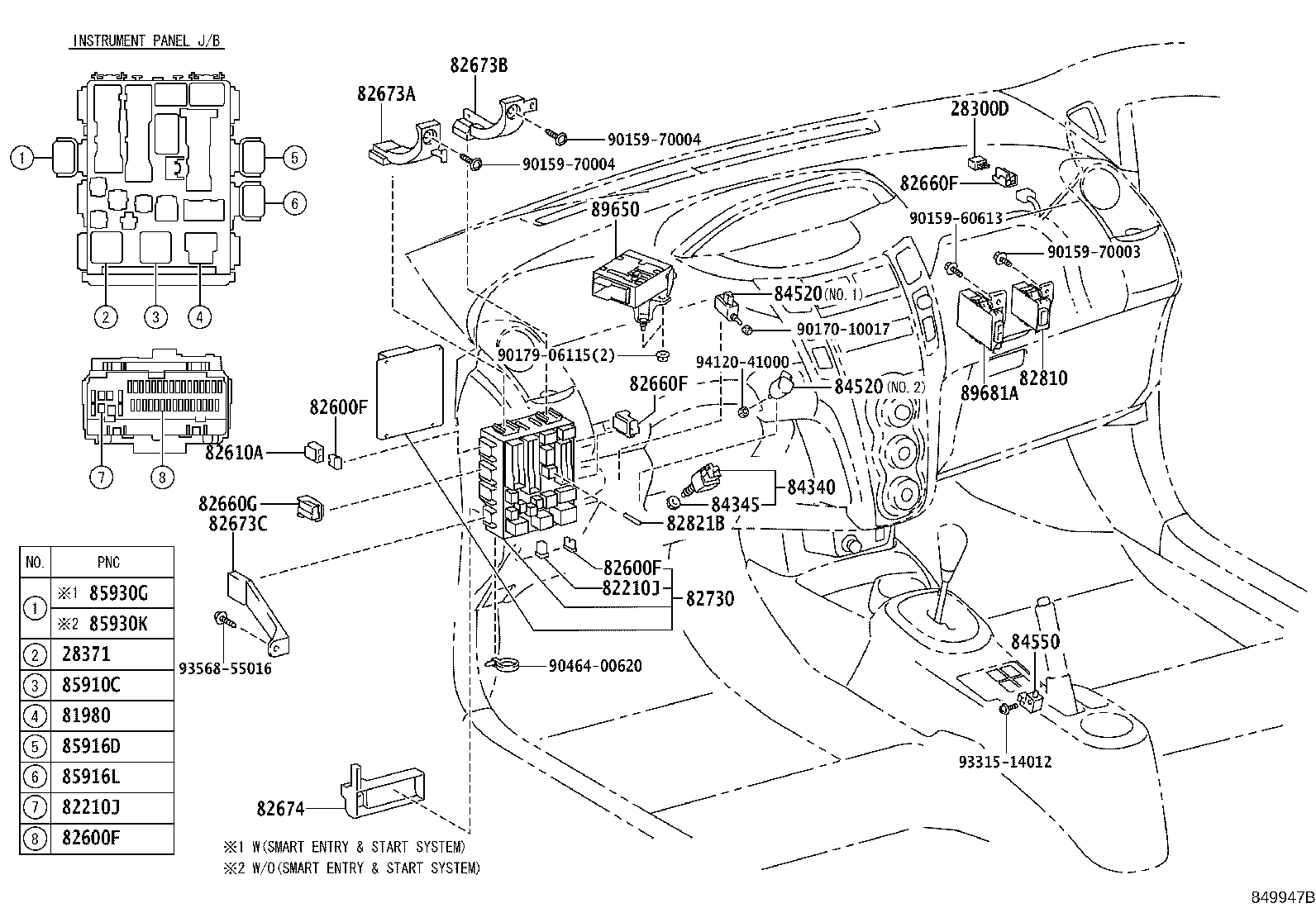

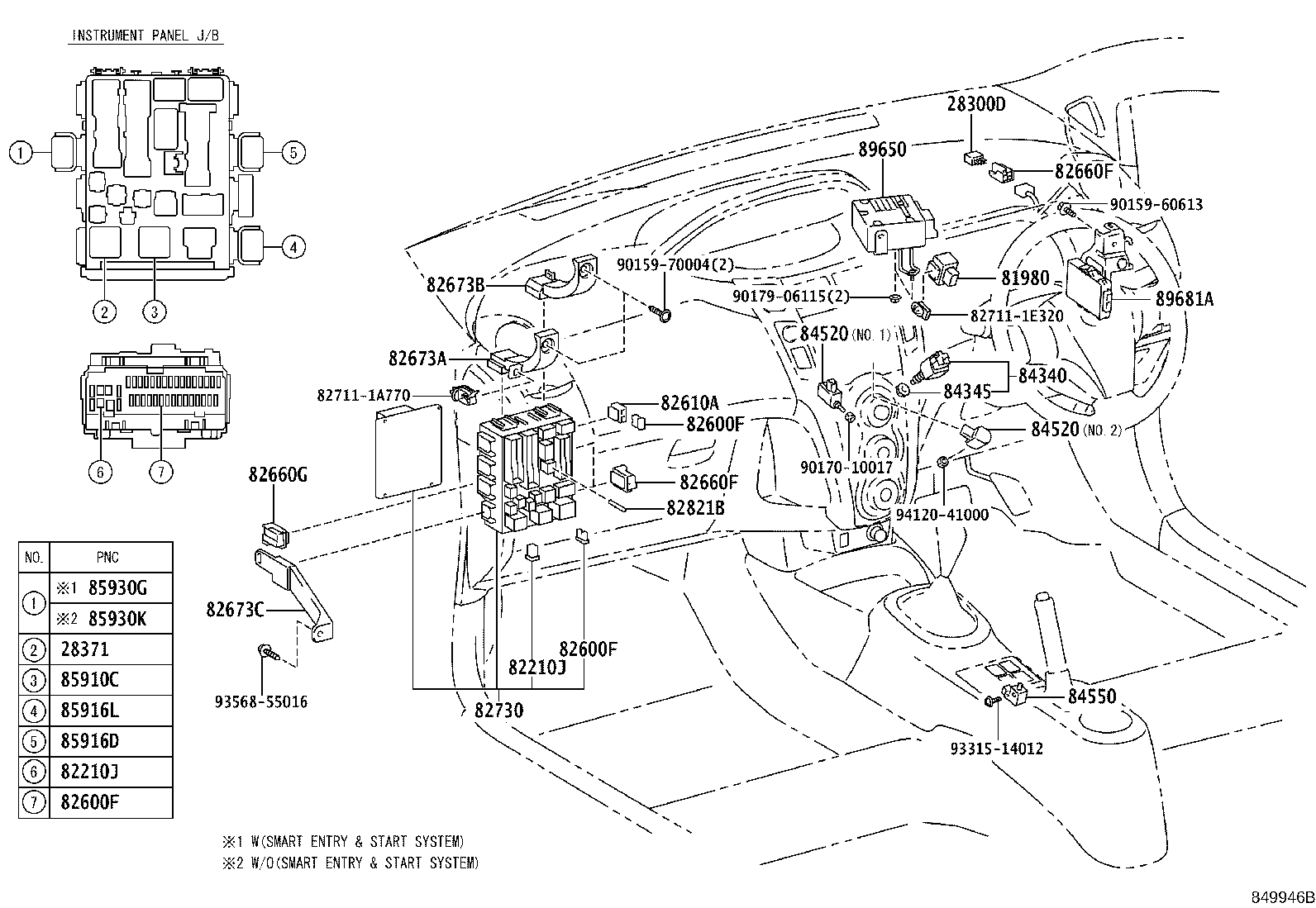

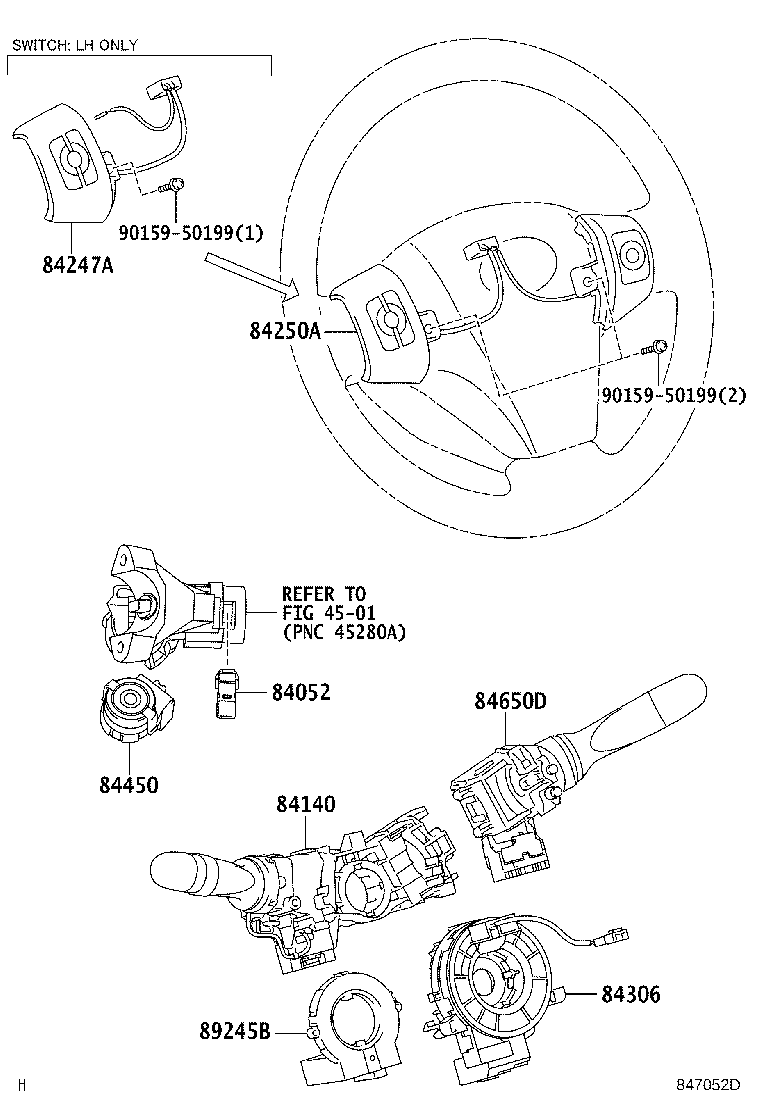

Figure 847096A 847096A 2005-08 → — Figure 848550C 848550C 2006-11 → — Figure 847074F 847074F 2005-08 → — Figure 84L124 84L124 2005-08 → — Figure 847050F 847050F 2005-08 → 2008-08 Figure 847050F 847050F 2005-08 → — Figure 849947B 849947B 2008-08 → — Figure 849947B 849947B 2008-09 → — Figure 847051C 847051C 2005-08 → 2008-08 Figure 847051C 847051C 2005-08 → — Figure 849946B 849946B 2008-08 → — Figure 849946B 849946B 2008-09 → — Figure 847077B 847077B 2005-08 → — Figure 847078B 847078B 2005-08 → — Figure 847052D 847052D 2005-08 → — Figure 847075C 847075C 2005-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28850 Sensor Assy, Battery Current
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82674 Cover, Junction Block Lower
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82810 Relay Assy, Running Light
82821B Cover, Connector
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84751 Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530E Socket Assy, Power Outlet, NO.3
85533 Lens, Cigarette Lighter Indicator
85535E Cover, Power Outlet Socket, NO.2
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85930G Relay, Acc
85930K Relay, Acc, NO.2
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
89245B Sensor, Steering
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
895A0 Relay Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
