Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 5 illustrations

Illustrations

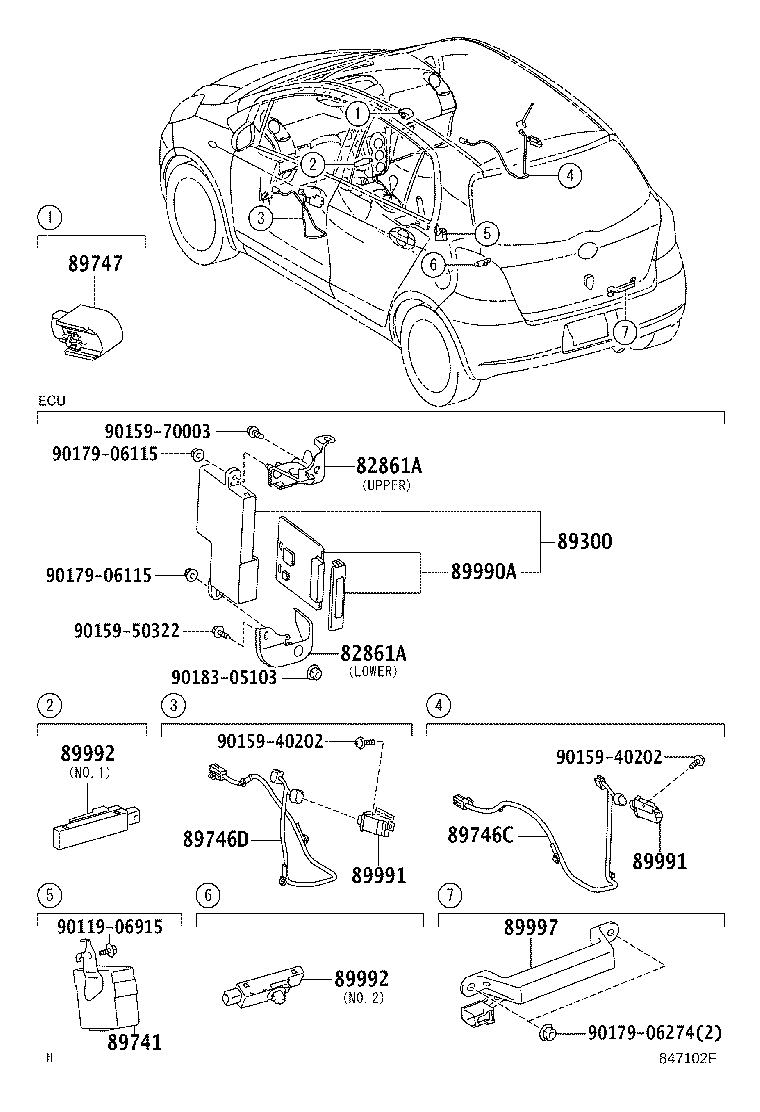

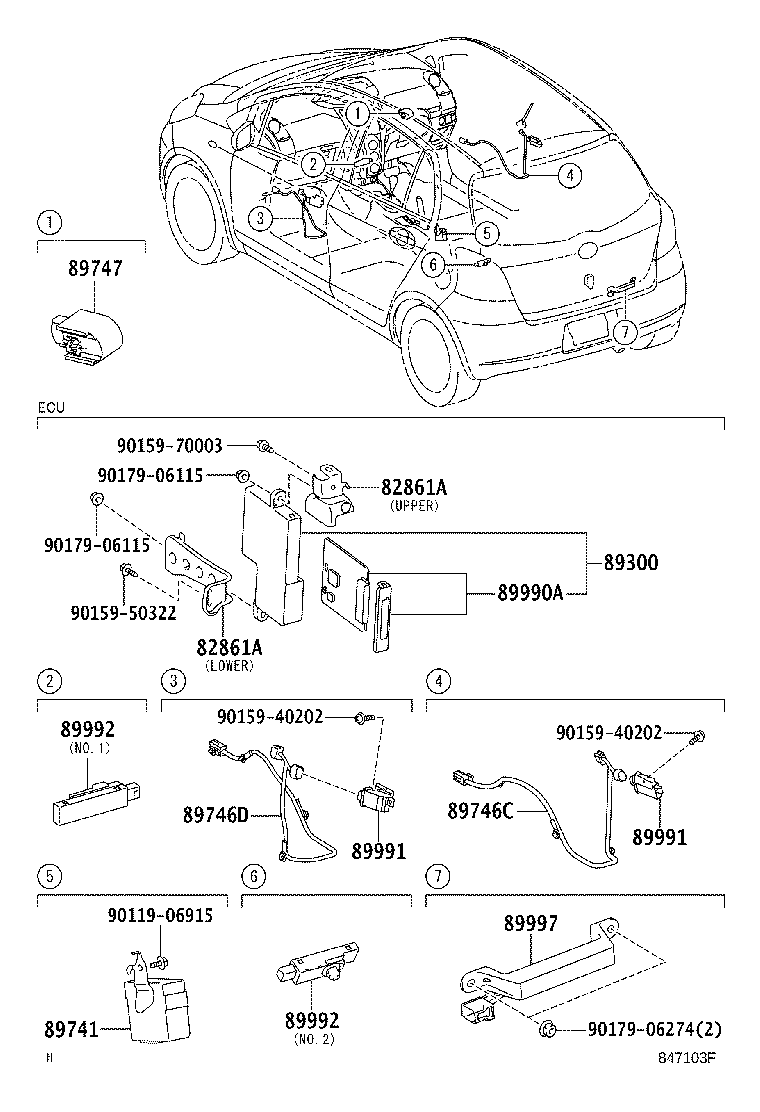

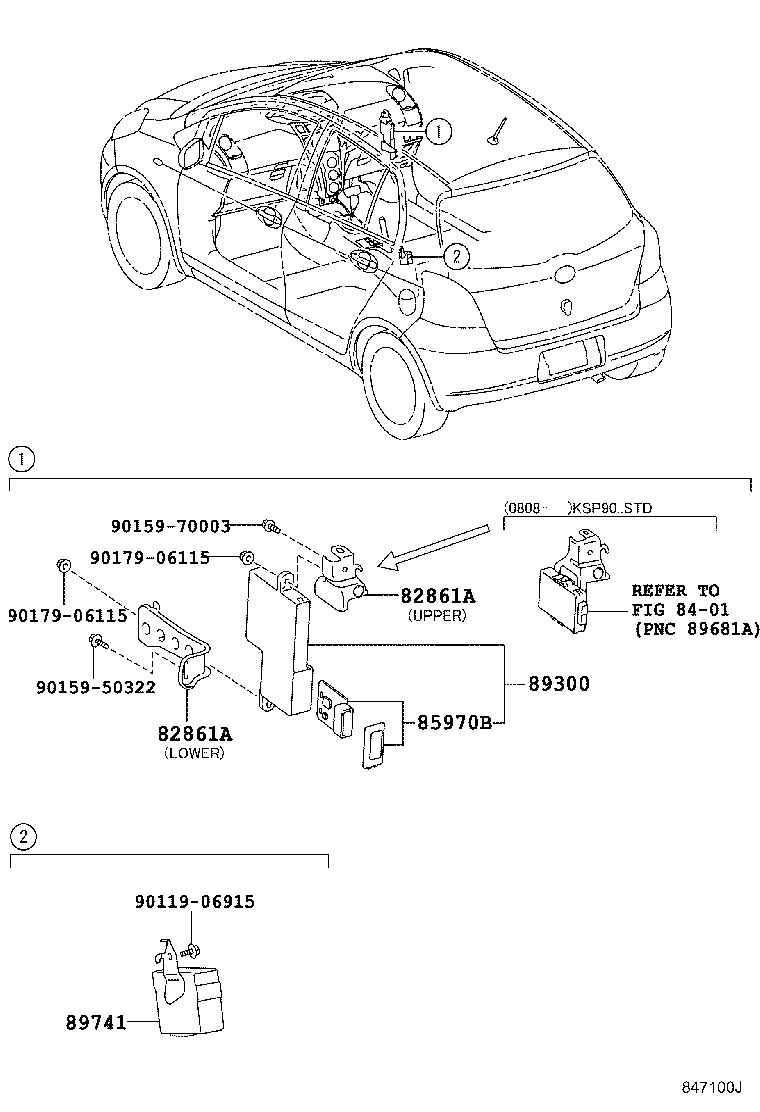

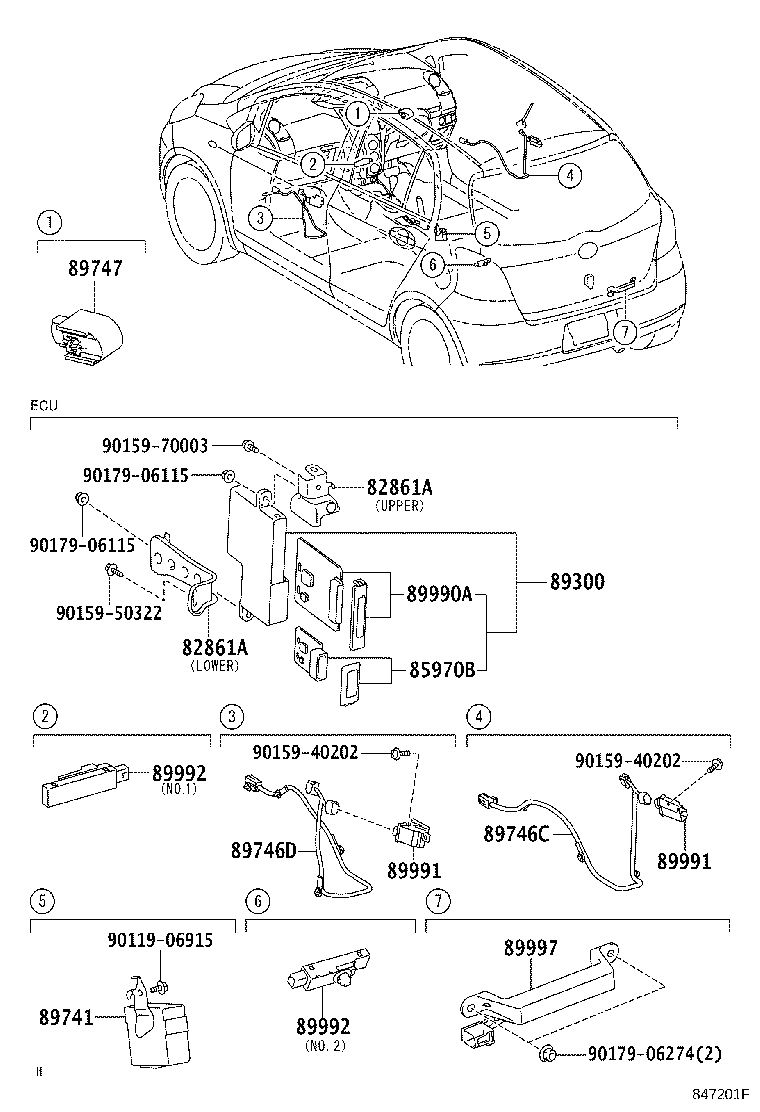

Figure 847041 847041 2005-08 → — Figure 847102F 847102F 2005-08 → — Figure 847100J 847100J 2005-08 → — Figure 847103F 847103F 2005-08 → — Figure 847201F 847201F 2005-08 → —

Part groups

PNCDescription
82861A Bracket, Computer Integration, NO.1
85970B Relay Assy, Double Lock Door Control
89300 Box Assy, Ecu Aggregation
89741 Receiver, Door Control
89746C Harness, Electrical Key Wire, NO.1
89746D Harness, Electrical Key Wire, NO.2
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
