Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 3 illustrations

Illustrations

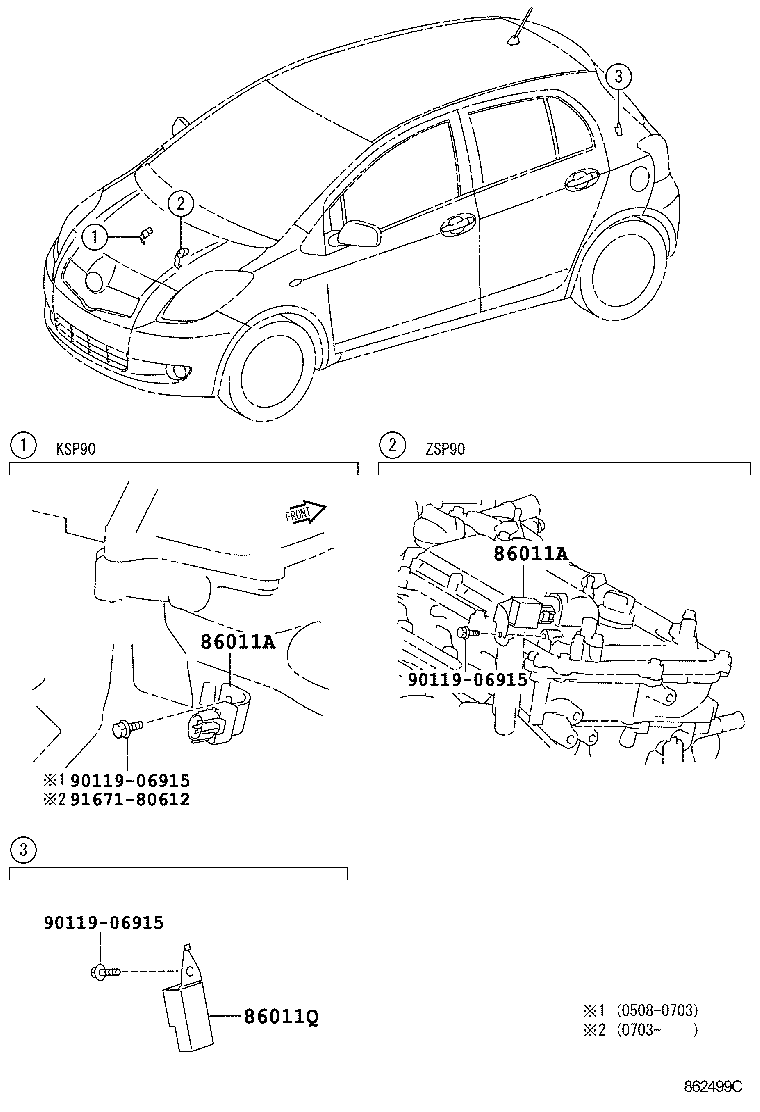

Figure 863586A 863586A 2005-08 → — Figure 862648C 862648C 2005-08 → — Figure 862499C 862499C 2005-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86221D Panel, Radio Receiver
86250 Microphone Assy, Amplifier
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
