Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

20 part groups · 9 illustrations

Illustrations

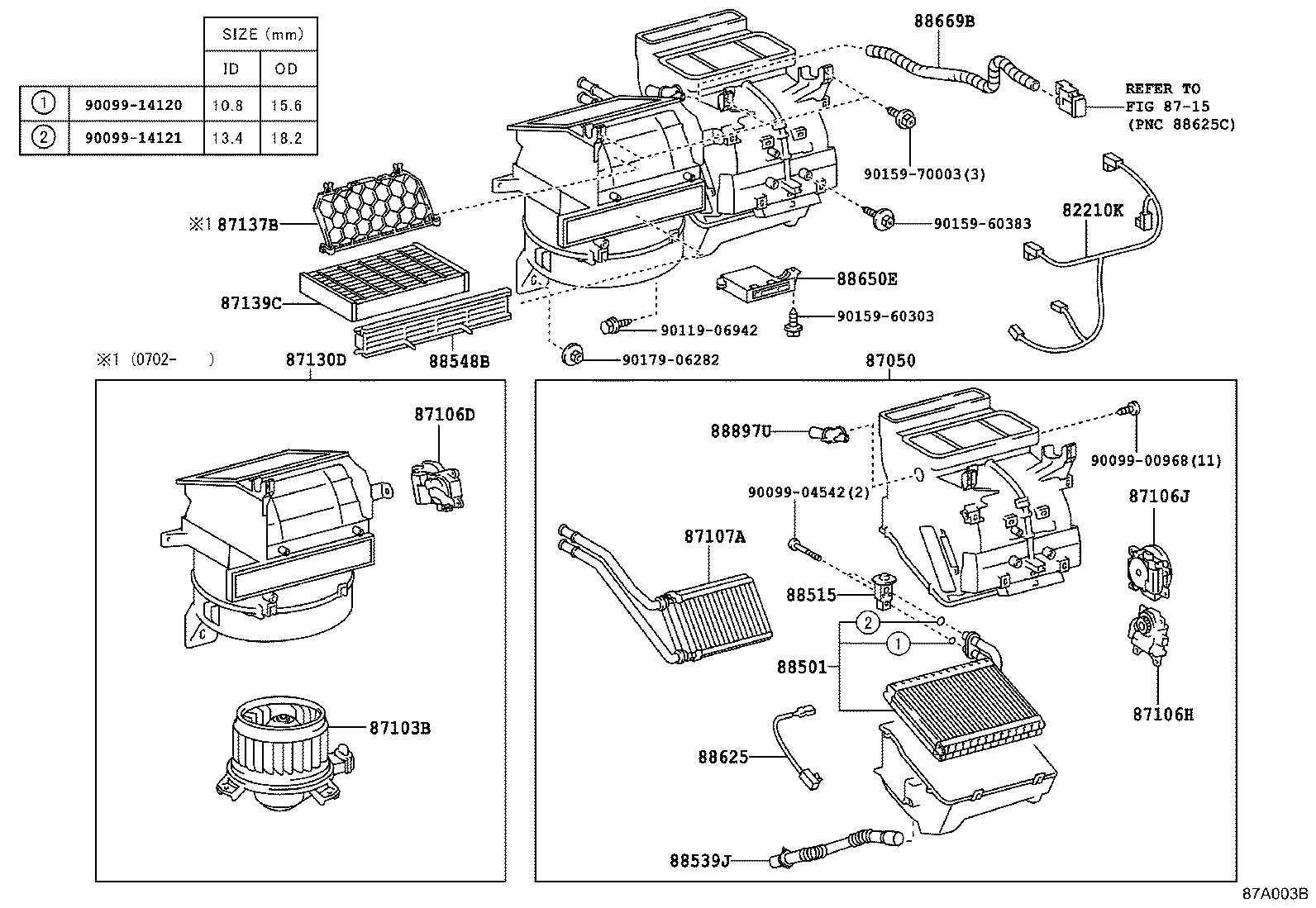

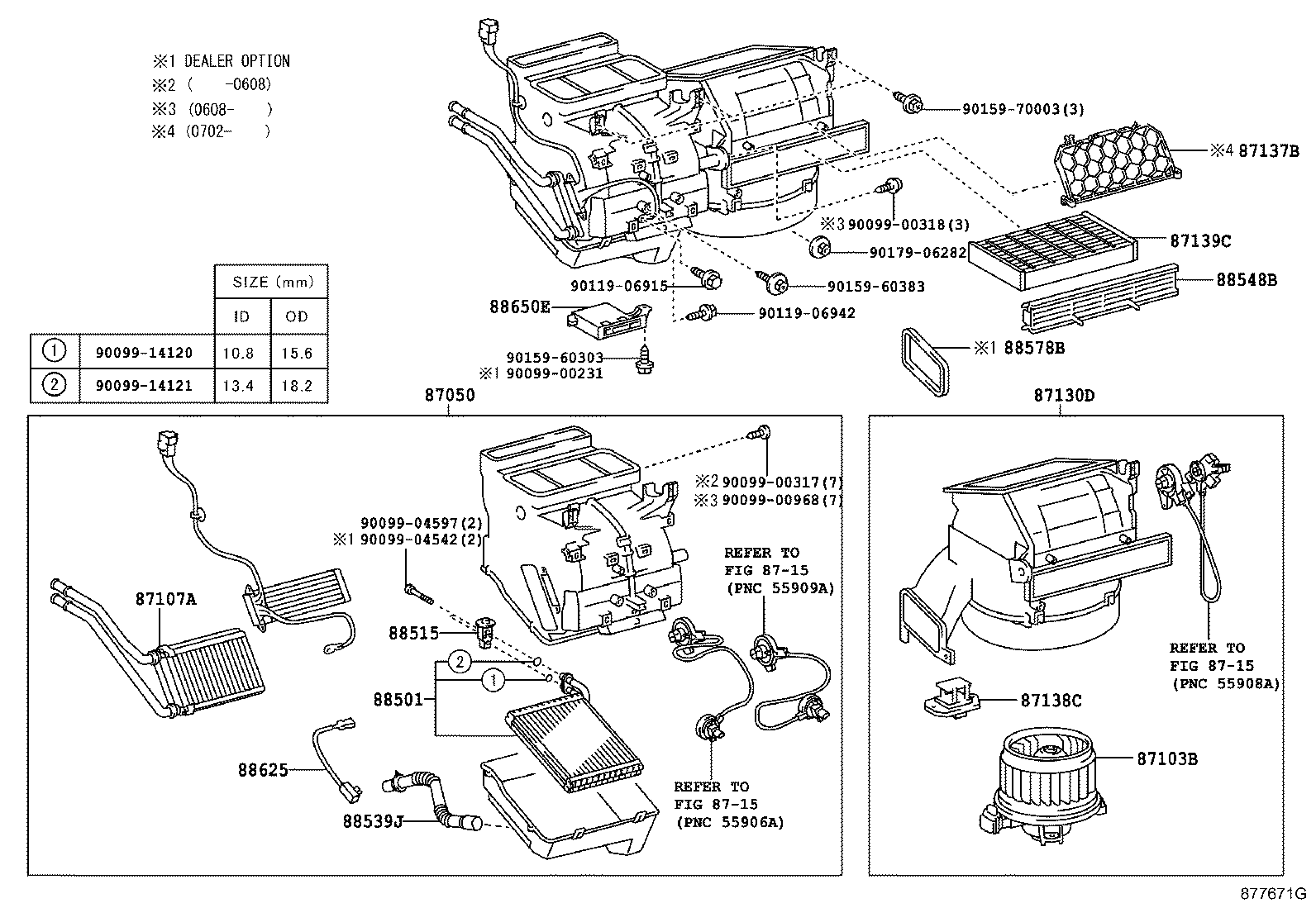

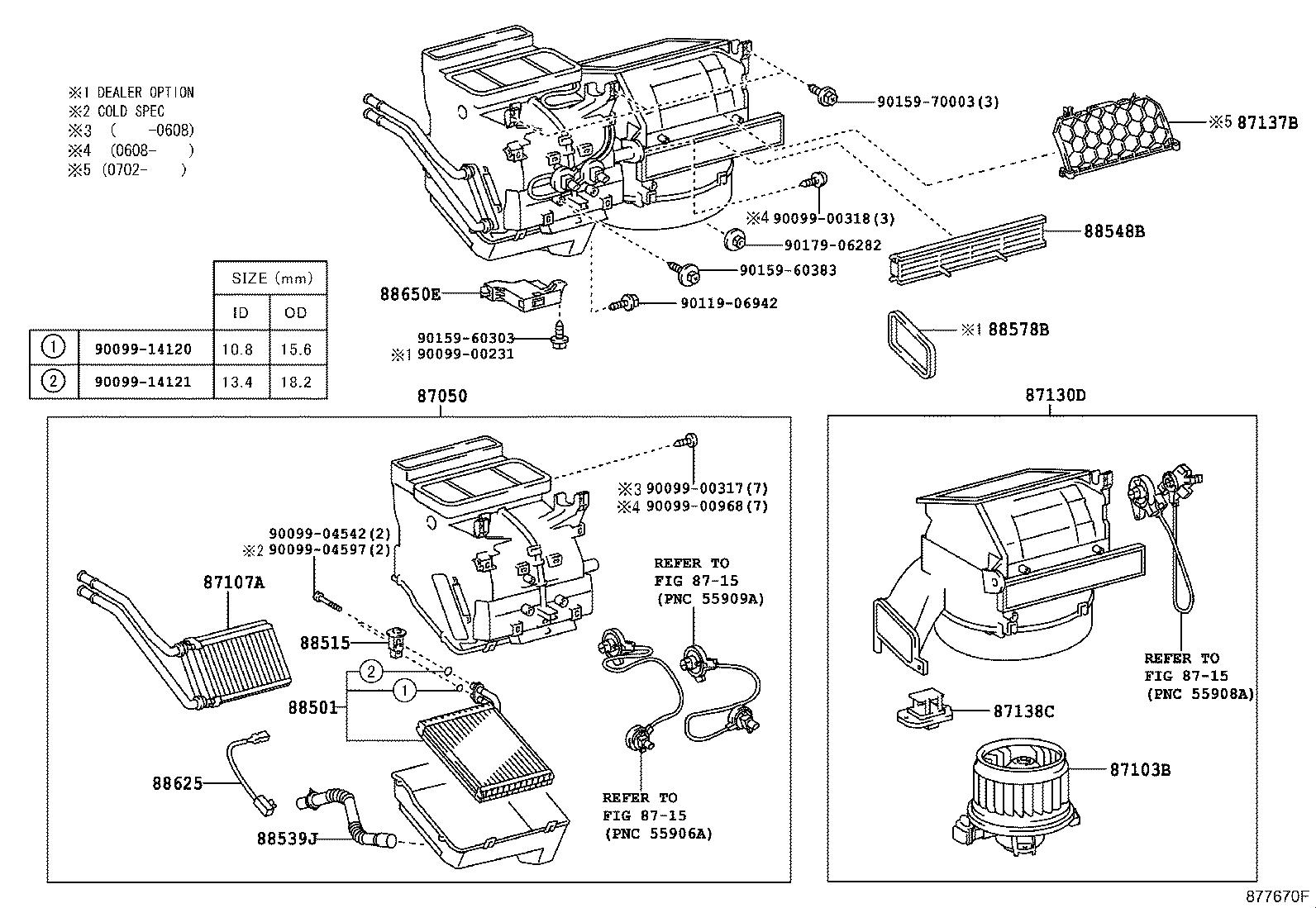

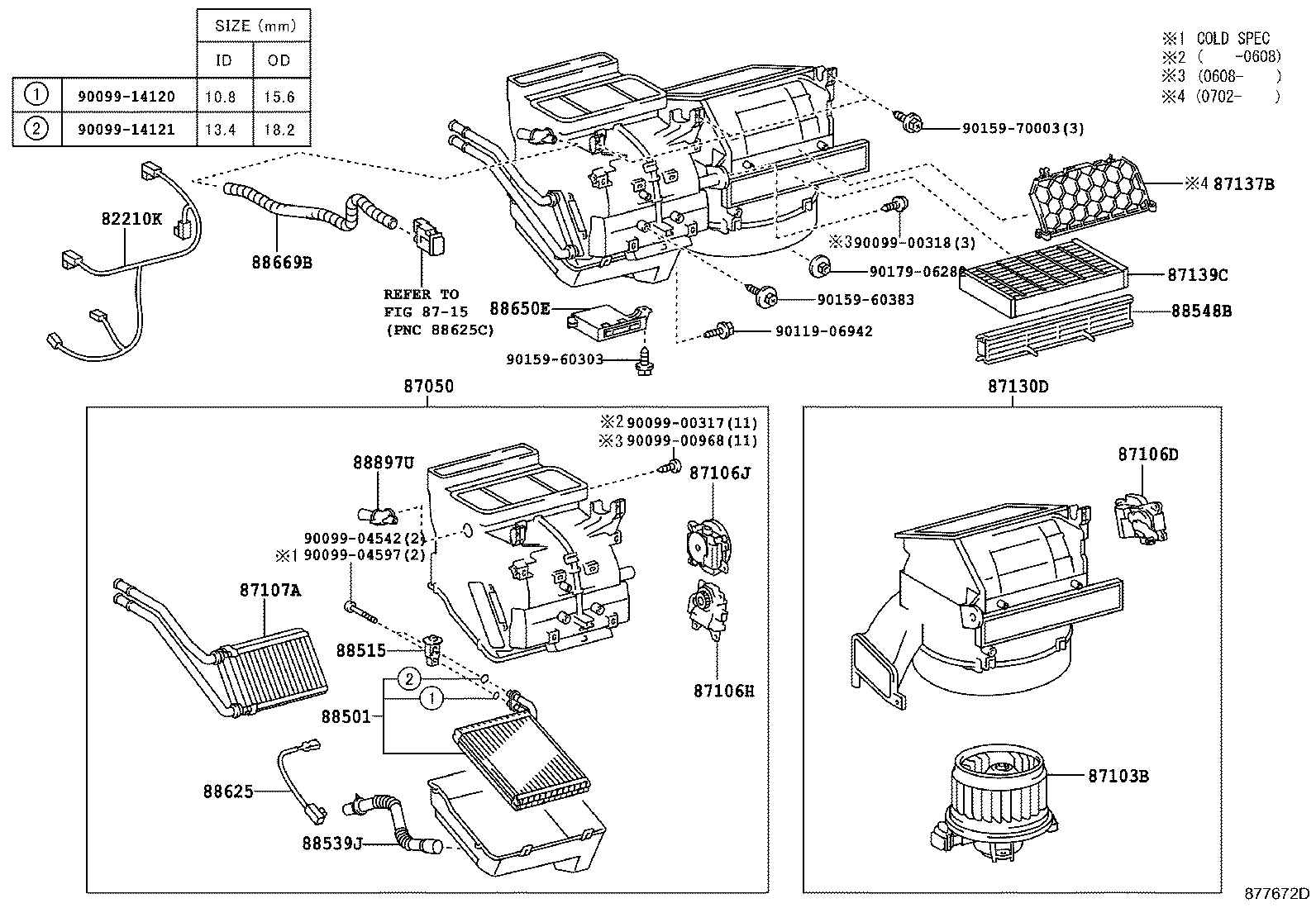

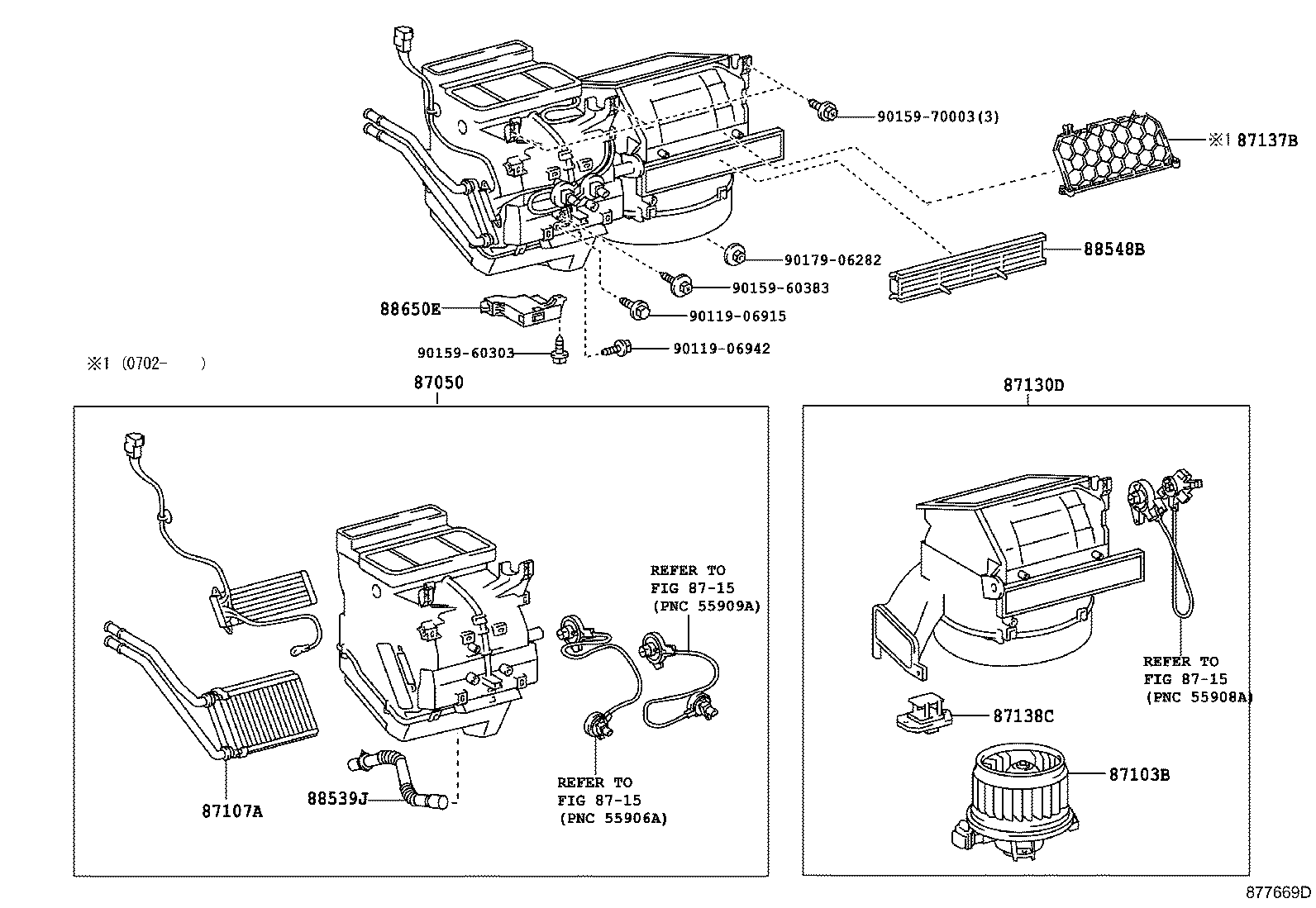

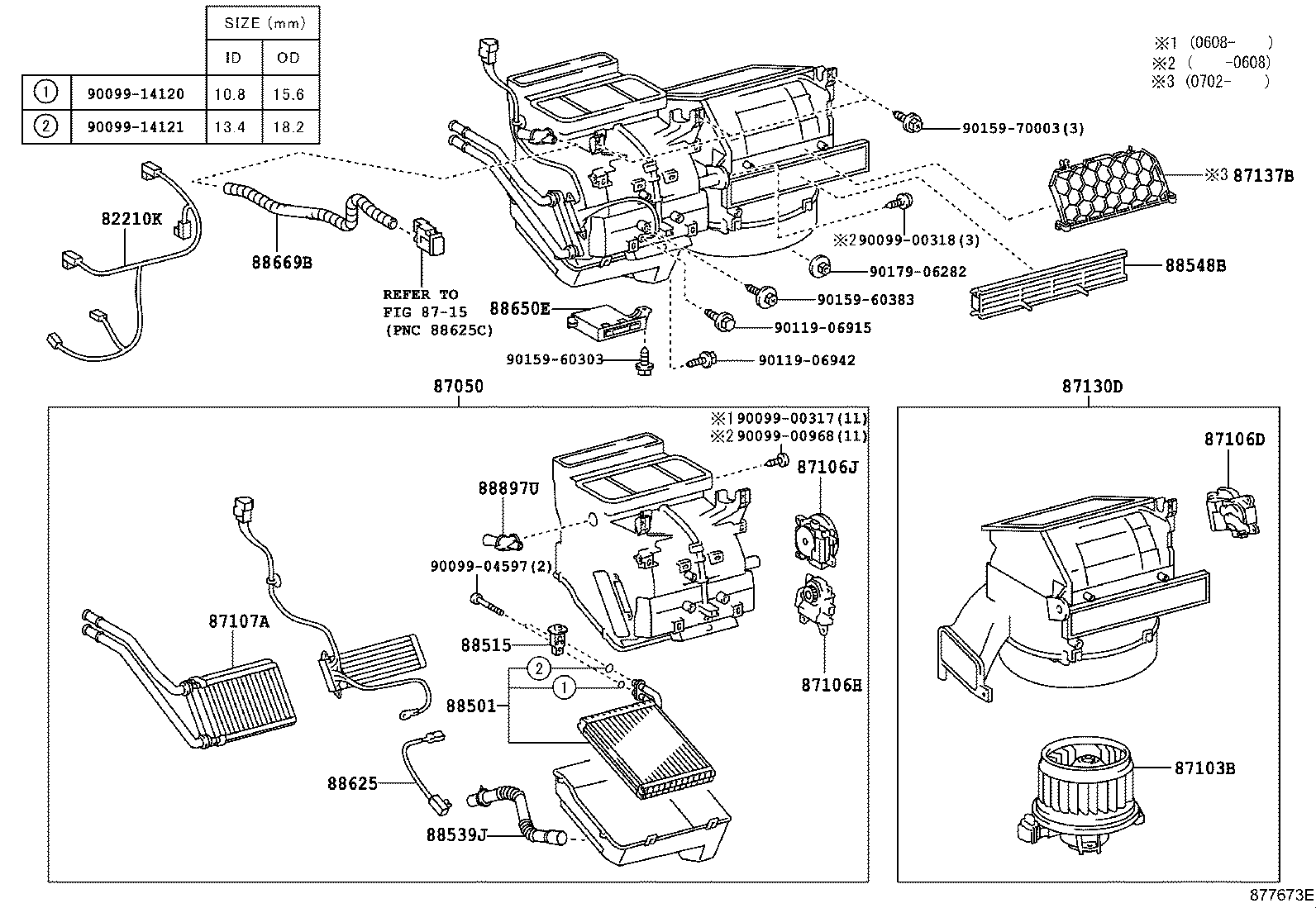

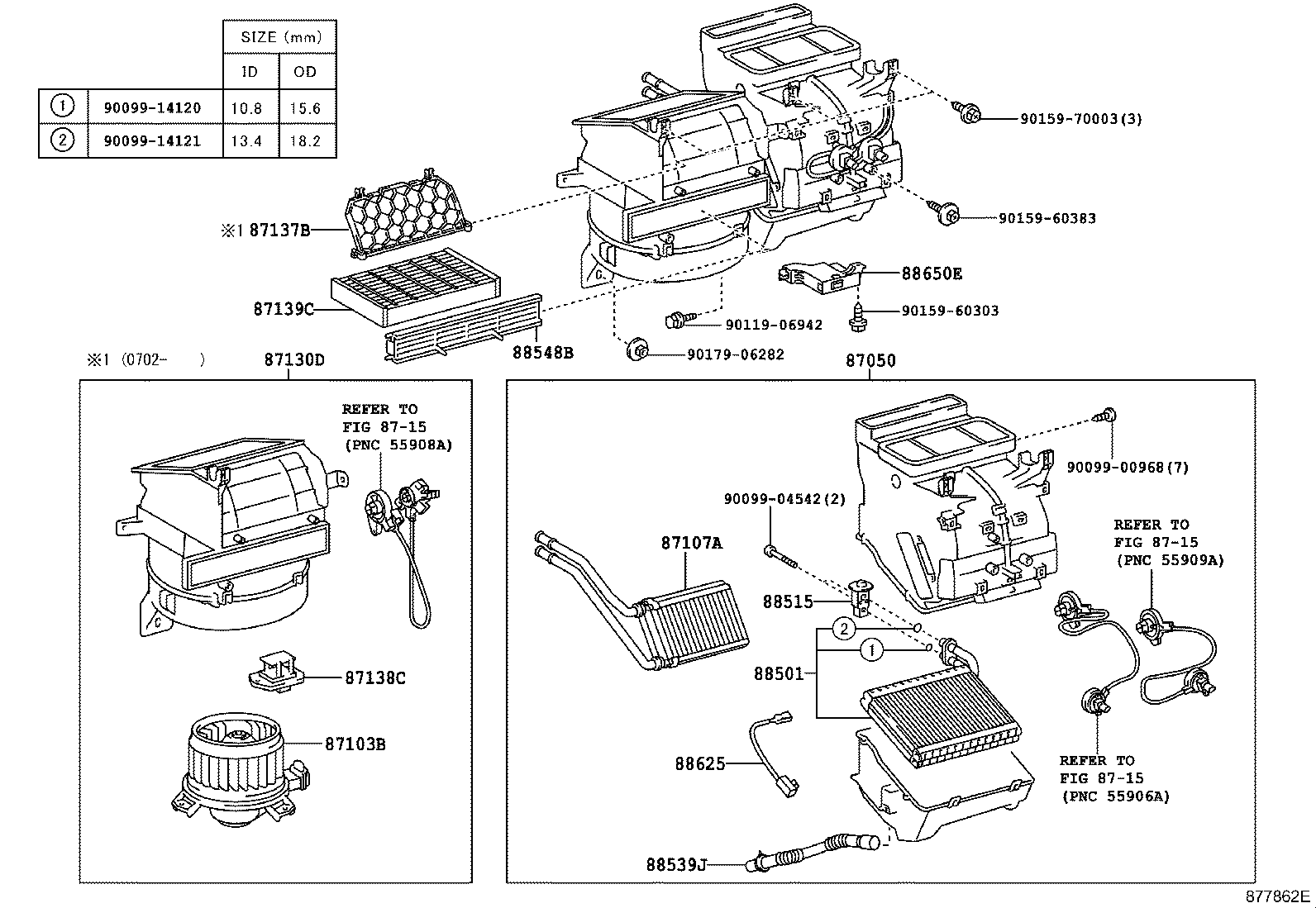

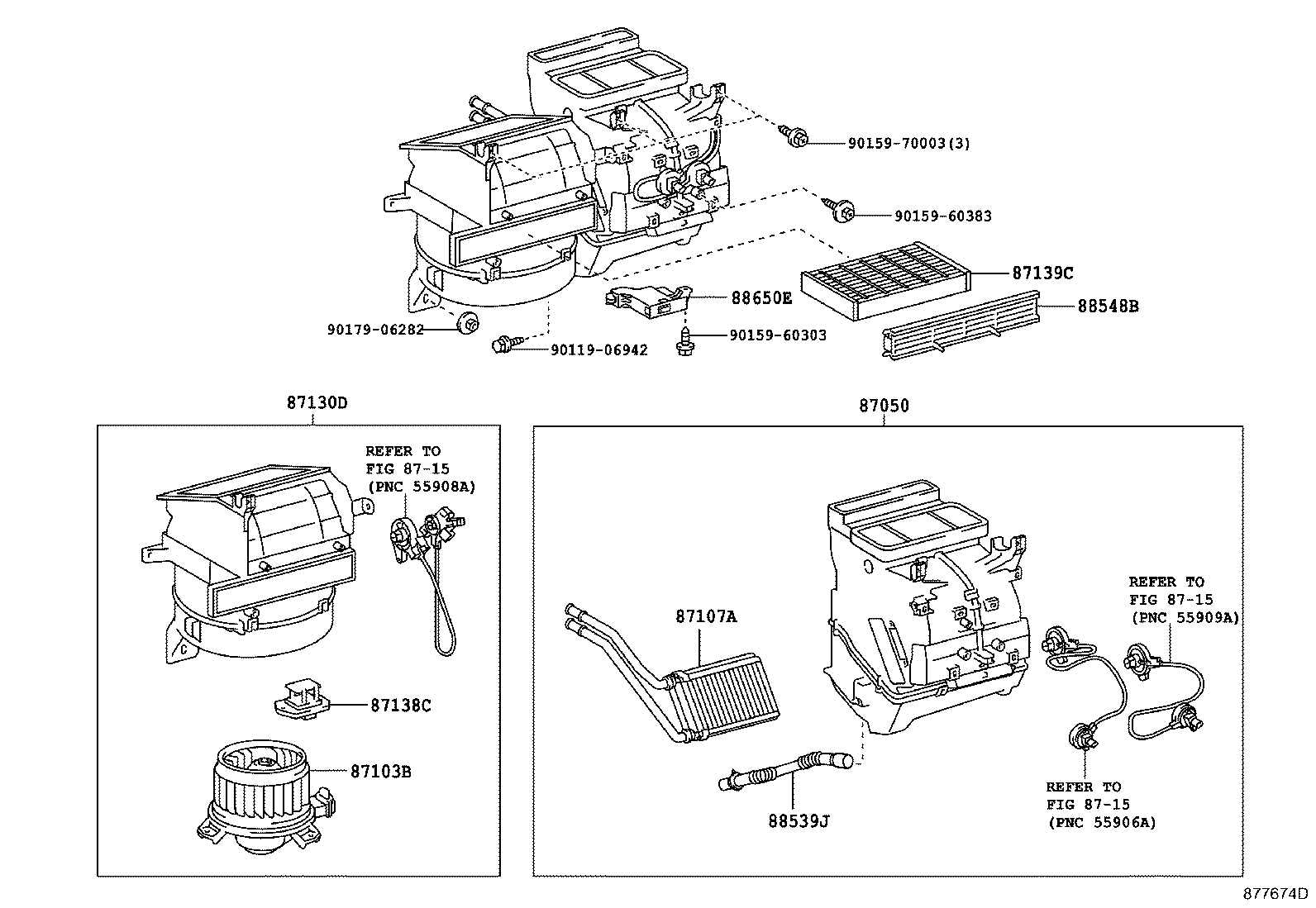

Figure 877668D 877668D 2005-08 → — Figure 877669D 877669D 2005-08 → — Figure 877670F 877670F 2005-08 → — Figure 877671G 877671G 2005-08 → — Figure 877672D 877672D 2005-08 → — Figure 877673E 877673E 2005-08 → — Figure 877674D 877674D 2005-08 → — Figure 877862E 877862E 2005-08 → — Figure 87A003B 87A003B 2005-08 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106D Servo Sub-assy, Damper, NO.1
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87137B Cover, Heater Blower
87138C Resistor, Blower
87139C Filter, Clean Air
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
88669B Hose, Cooler Air
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
