Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

2 part groups · 5 illustrations

Illustrations

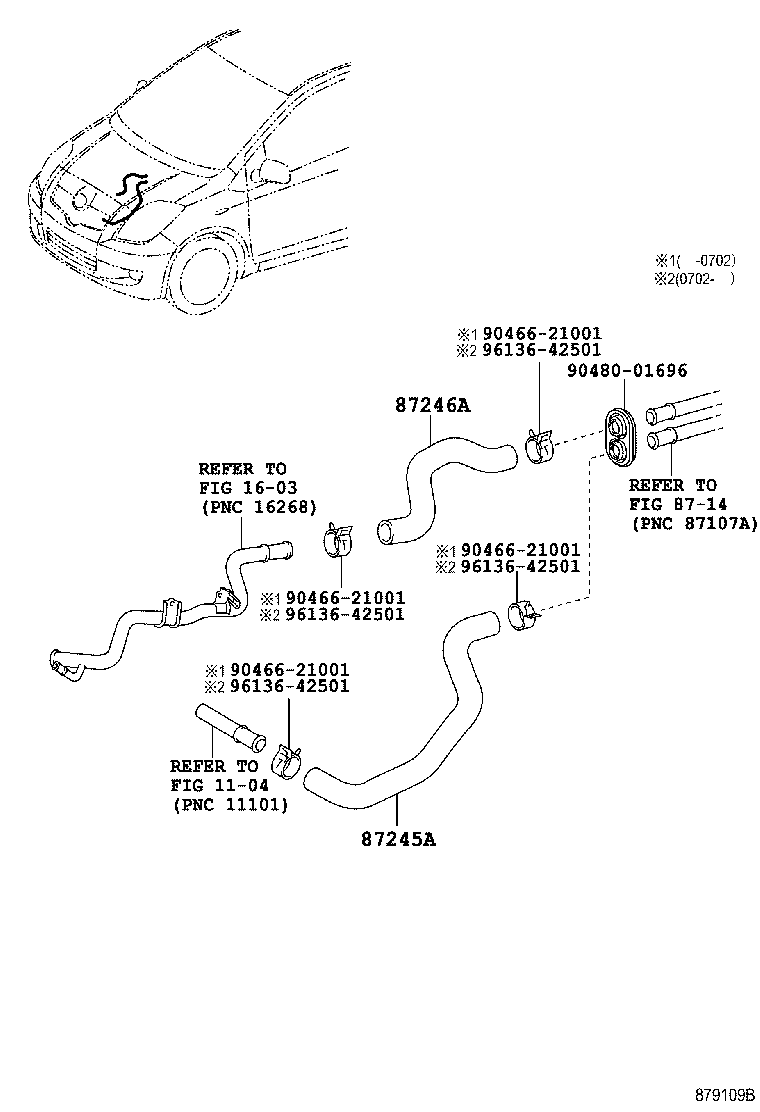

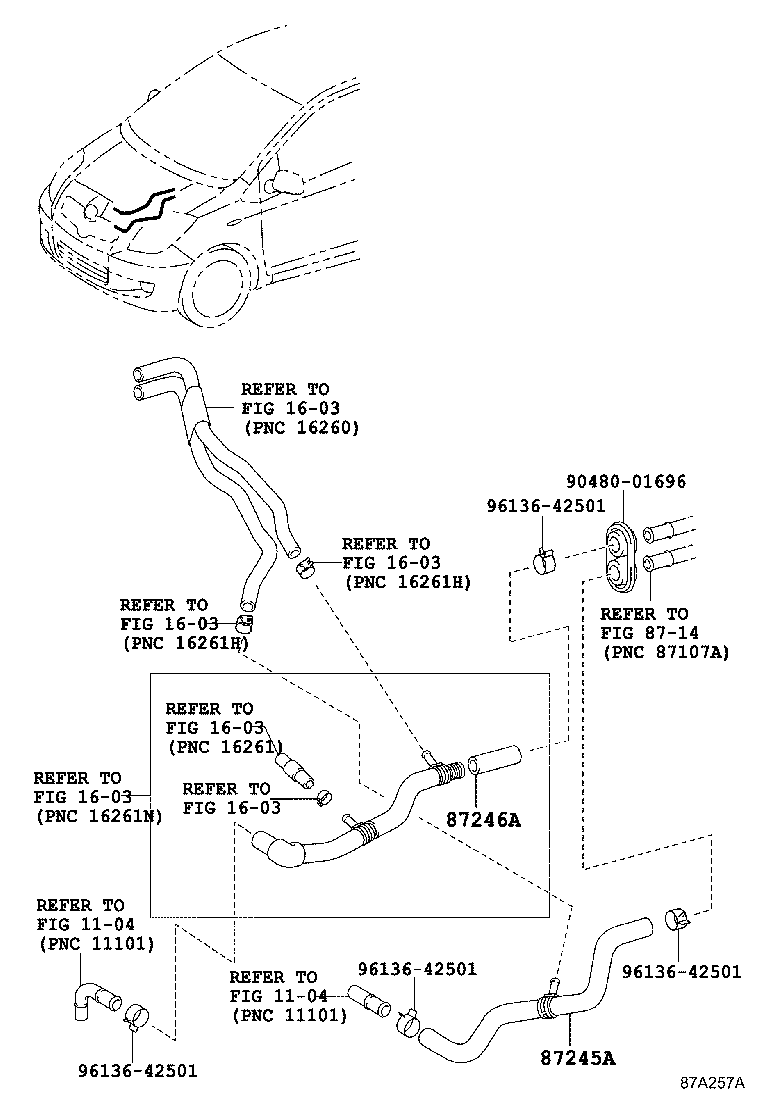

Figure 877682B 877682B 2005-08 → 2008-08 Figure 877682B 877682B 2005-08 → — Figure 87A257A 87A257A 2008-08 → — Figure 879109B 879109B 2006-11 → — Figure 879109B 879109B 2008-09 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
