Toyota Yaris (JPP)

2005-08 → 2011-06 · chassis KSP90,ZSP90 · catalogue 112520 · Europe

Supported model Data version 2011-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

10 part groups · 4 illustrations

Illustrations

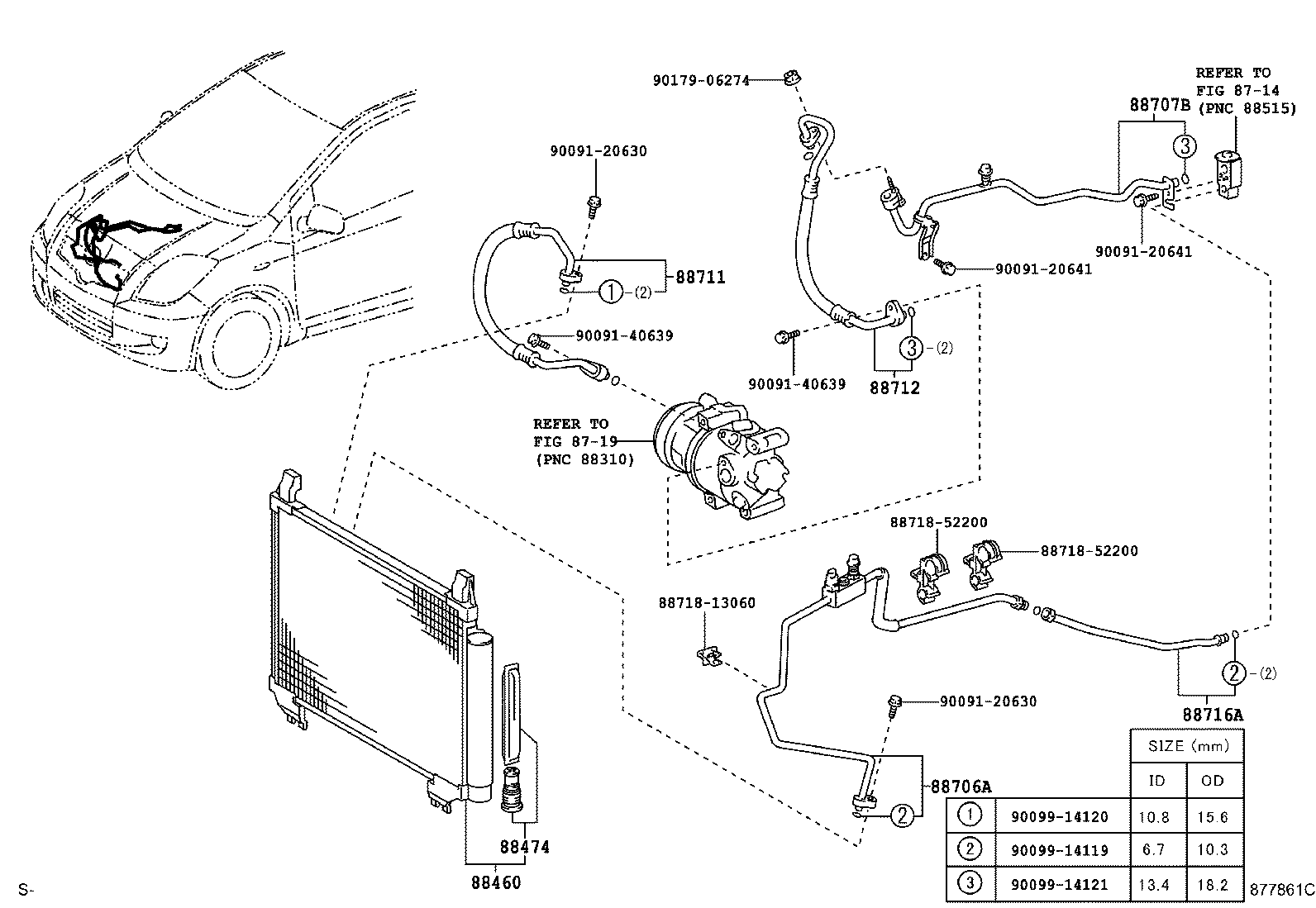

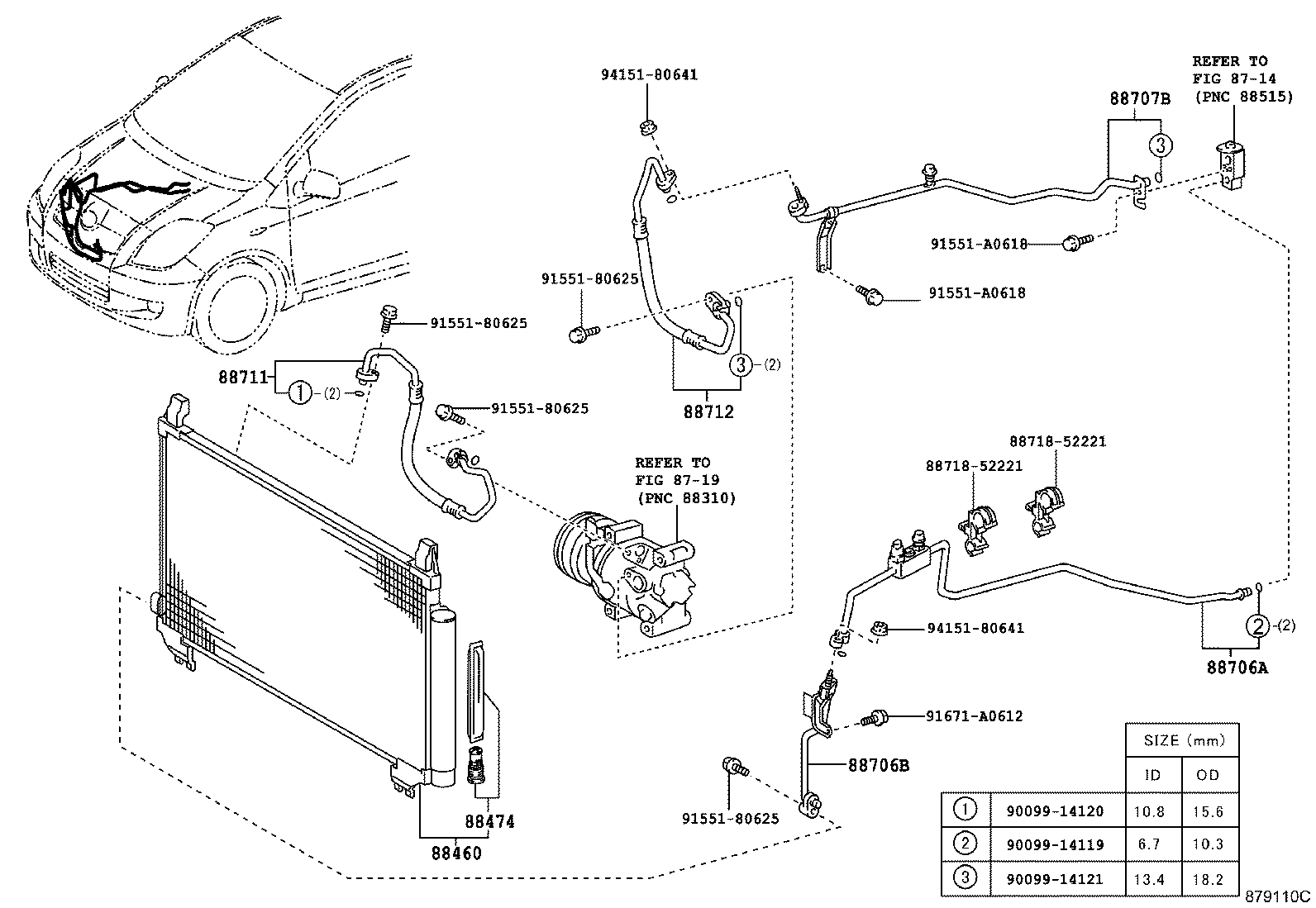

Figure 877422O 877422O 2005-08 → 2011-08 Figure 877861C 877861C 2005-08 → 2008-08 Figure 87A609B 87A609B 2008-08 → 2011-08 Figure 879110C 879110C 2006-11 → 2011-08

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88566N Duct, Cooler Air, NO.1
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
