Toyota Yaris (JPP)
2011-08 → 2014-07 · chassis KSP130,NSP130 · catalogue 112530 · Europe
Supported model
Data version 2015-01
Radiator & Water Outlet

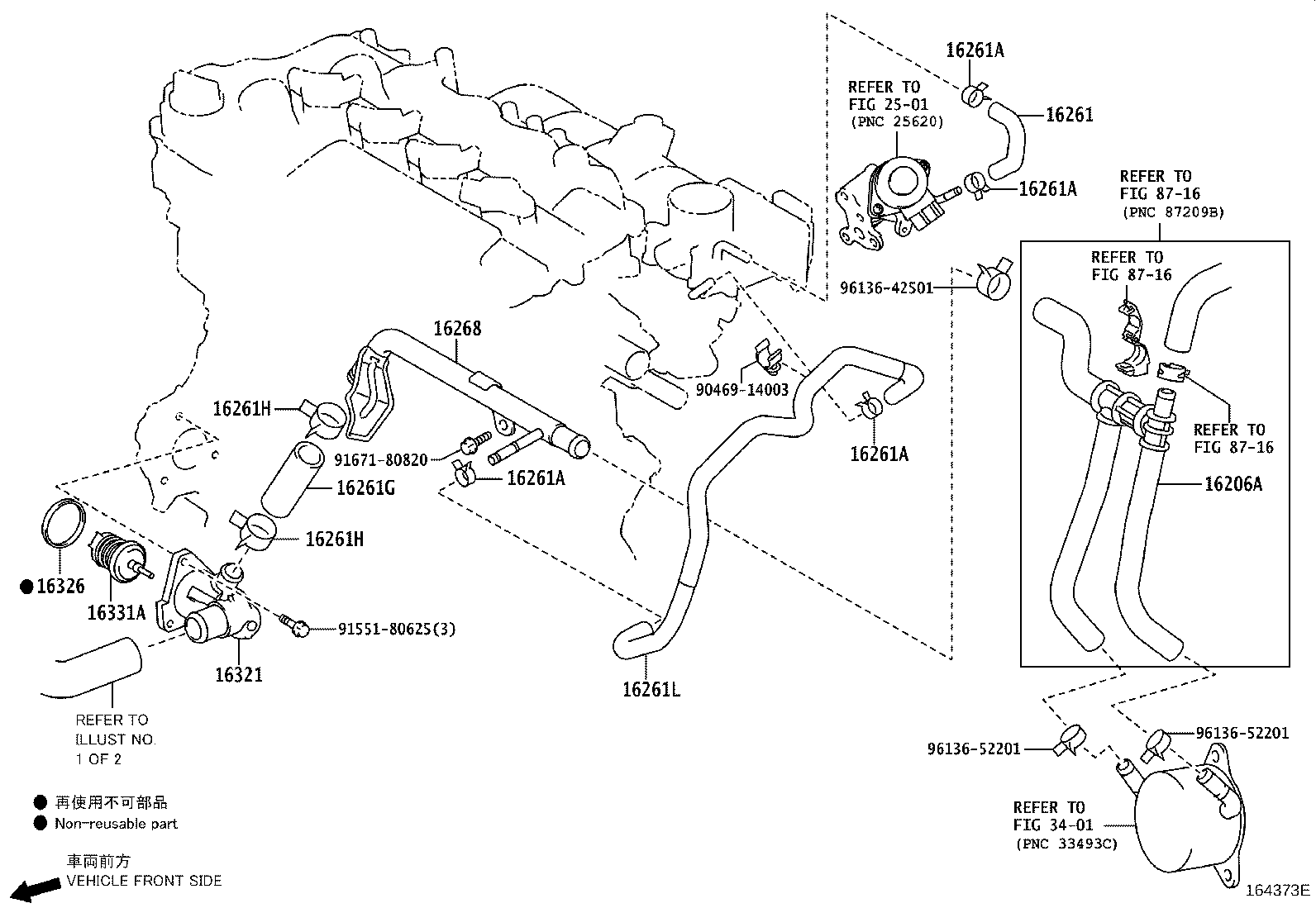

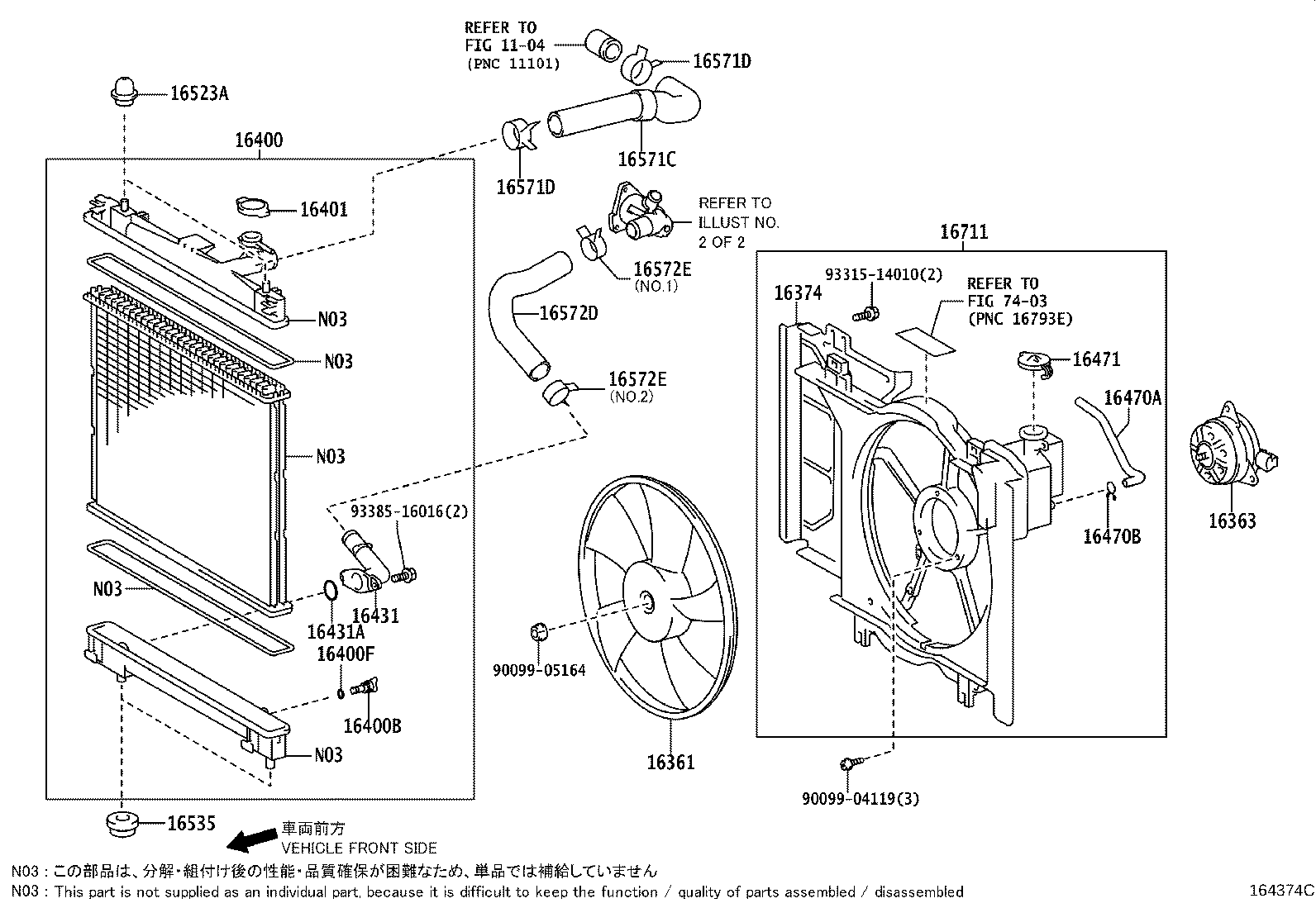

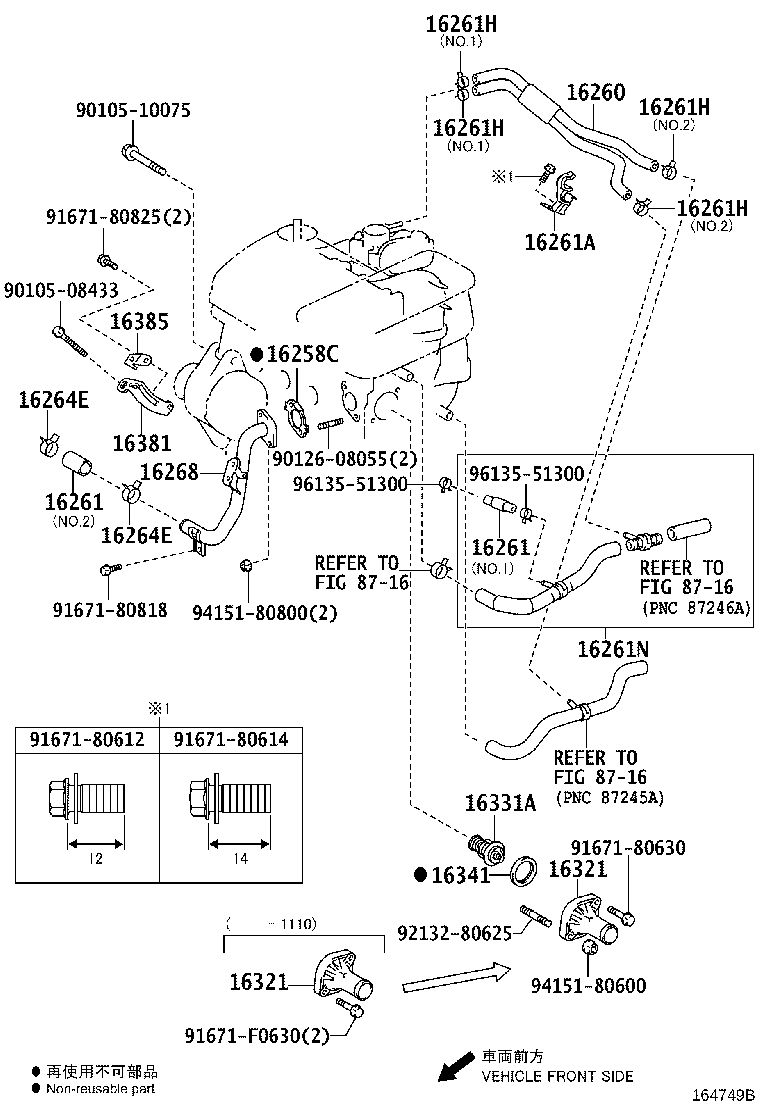

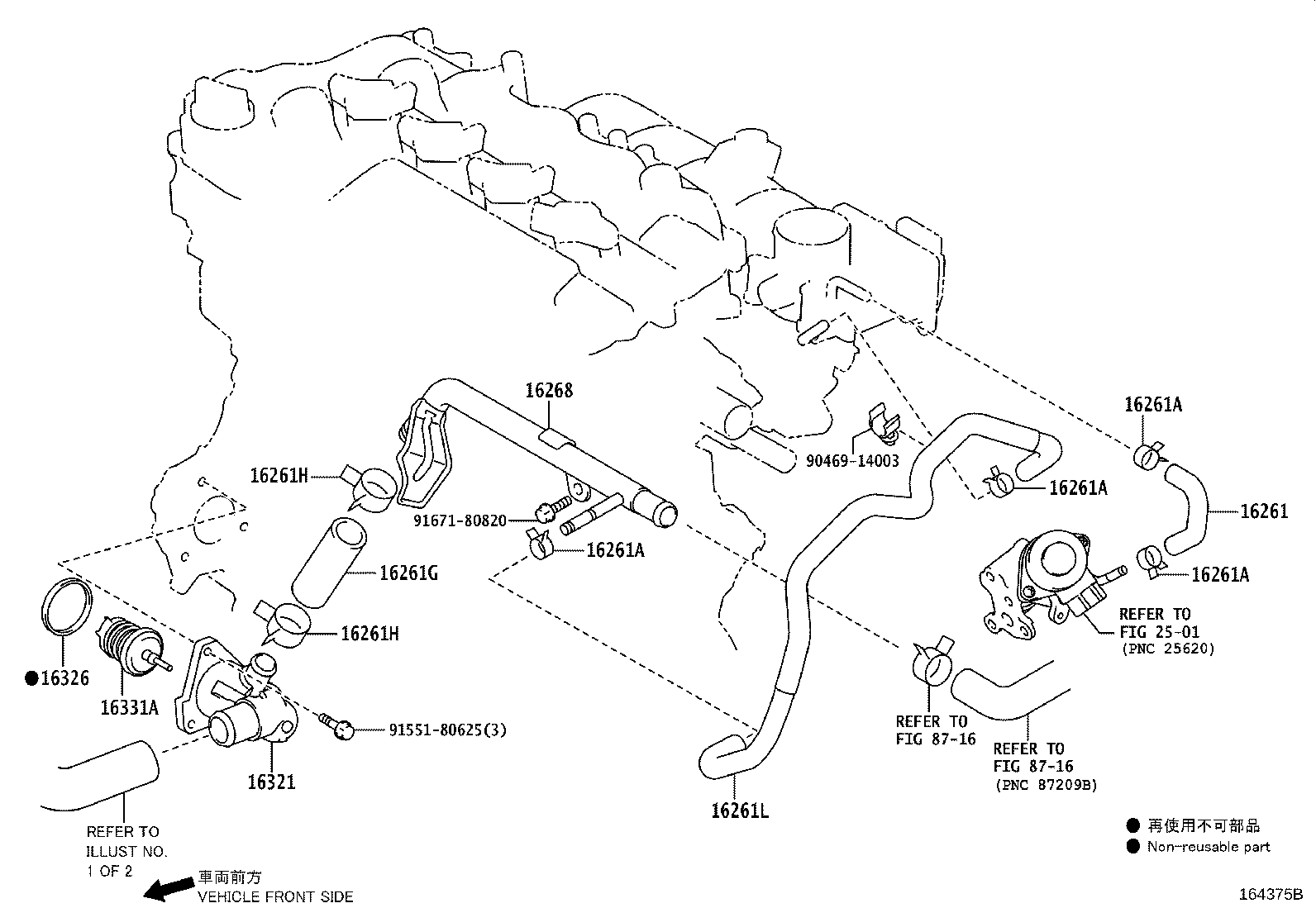

43 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 16206A | Pipe Sub-assy, Water By-pass, NO.2 |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16260 | Hose Assy, Water By-pass |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261L | Hose, Water By-pass |
| 16261N | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16321 | Inlet, Water |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16374 | Insulator, Cooling Fan Motor |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16431 | Inlet, Radiator Water |
| 16431A | Ring, O(FOR RADIATOR WATER INLET) |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16502 | Filler Sub-assy, Water |
| 16520A | Cap Sub-assy, Water Filler |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16576A | Clip, Radiator Hose, NO.6 |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
