Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis KSP130,NSP130 · catalogue 112530 · Europe

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

6 part groups · 2 illustrations

Illustrations

Figure 176996D

176996D 2011-08 → —

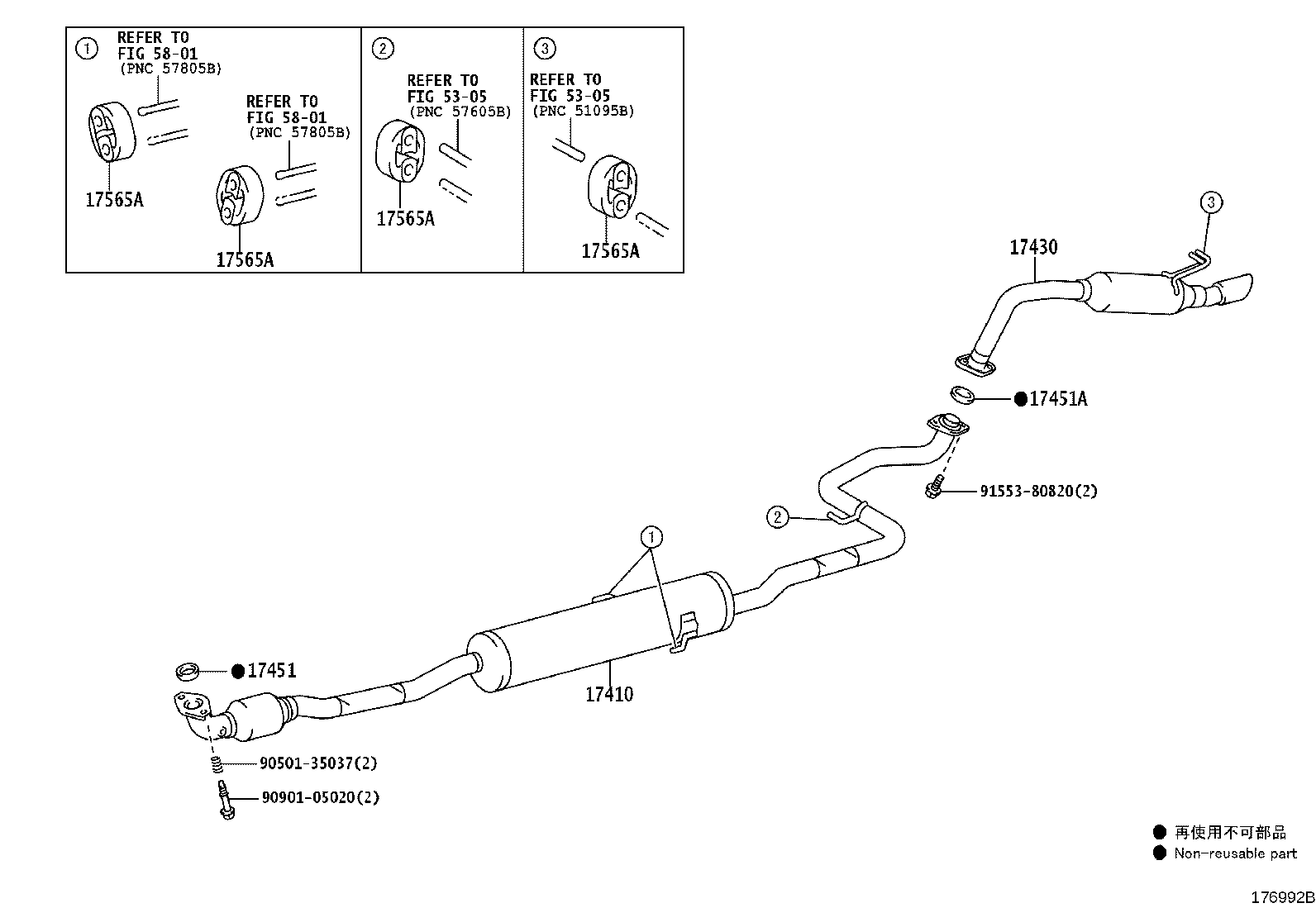

Figure 176992B

176992B 2011-08 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17451A	Gasket, Exhaust Pipe, NO.2
17565	Support, Exhaust Pipe, NO.5
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
