Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis KSP130,NSP130 · catalogue 112530 · Europe

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

6 part groups · 2 illustrations

Illustrations

Figure 250412D

250412D 2011-08 → —

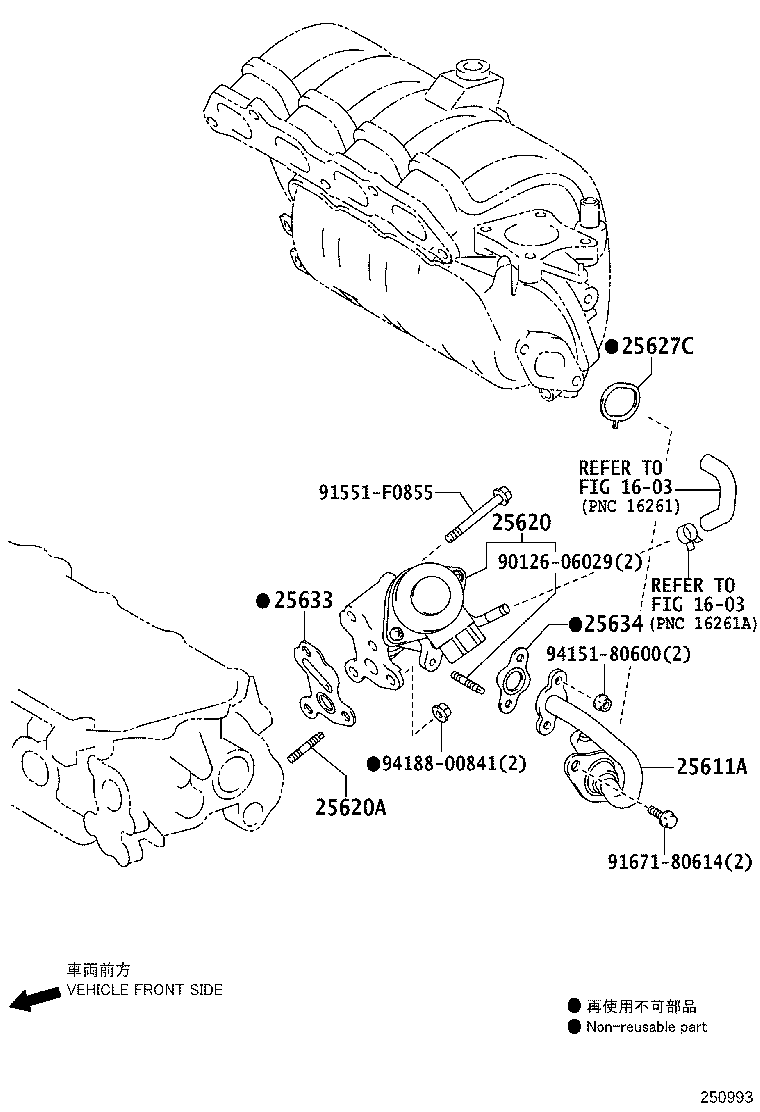

250993 2011-08 → —

Part groups

PNC	Description
25611A	Pipe, Egr, NO.1
25620	Valve Assy, Egr
25620A	Bolt, Stud(FOR EGR VALVE)
25627C	Gasket(FOR EGR PIPE NO.2)
25633	Gasket, Egr Valve
25634	Gasket, Egr Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
