Brake Tube & Clamp

29 part groups · 5 illustrations

Illustrations

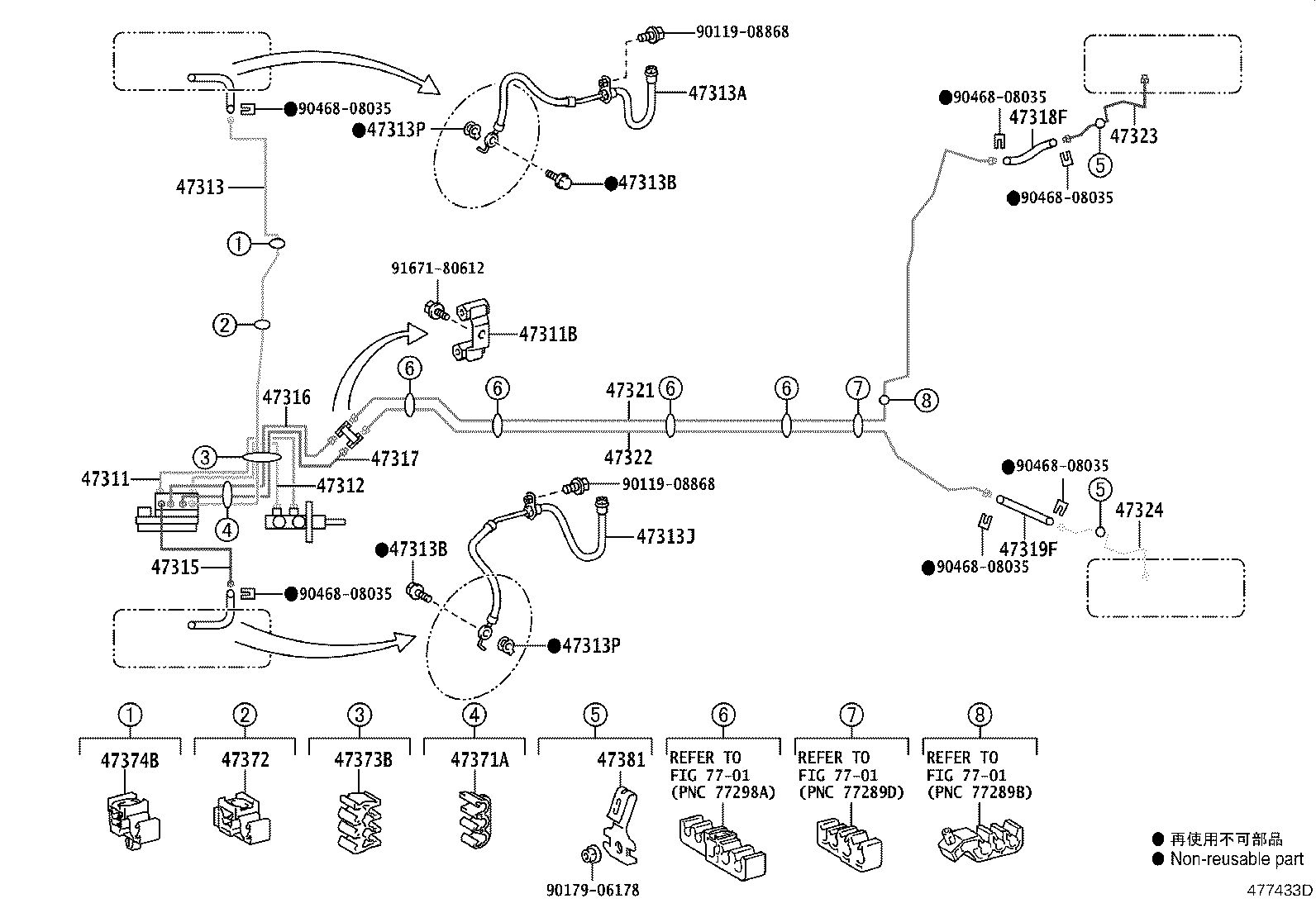

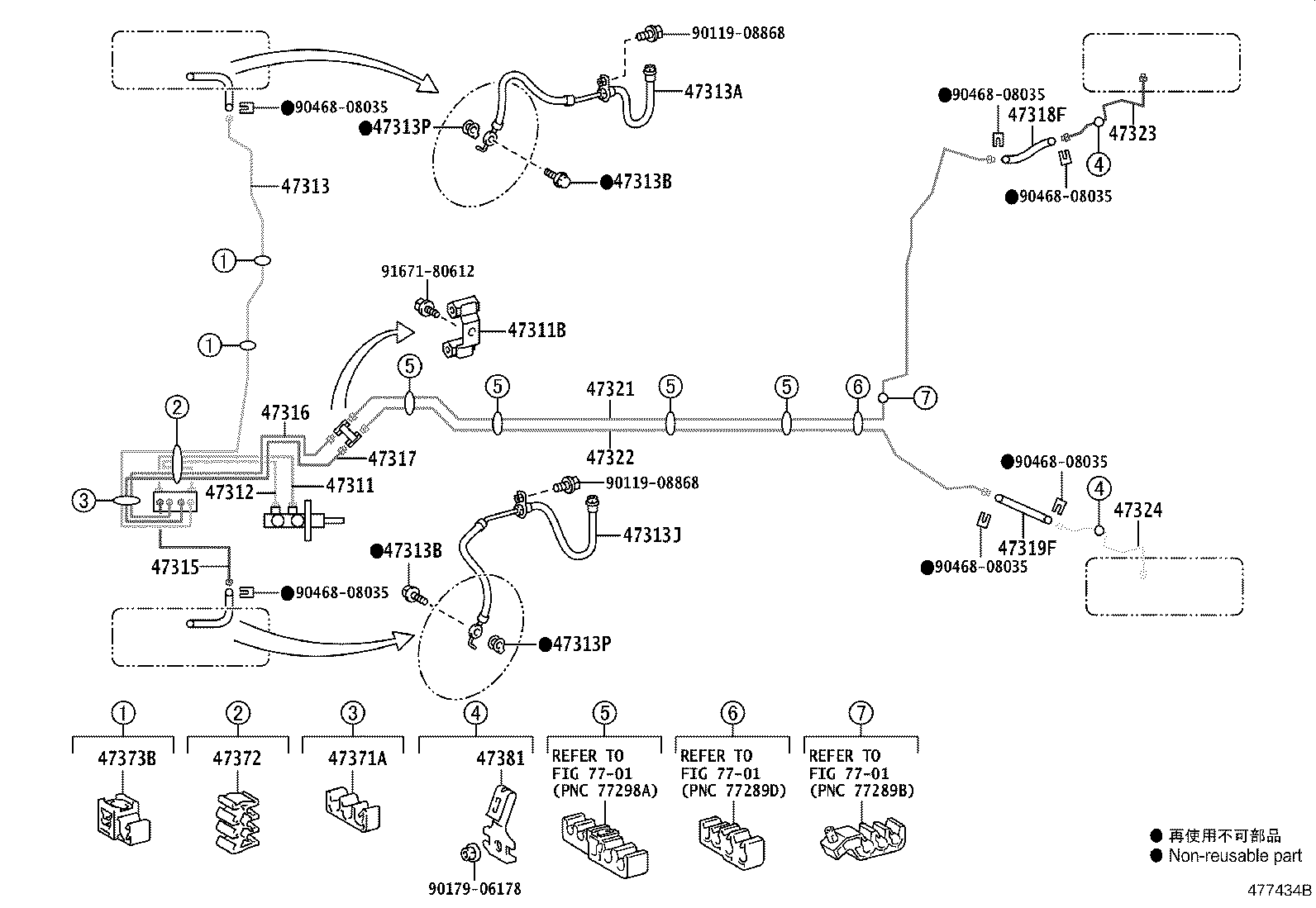

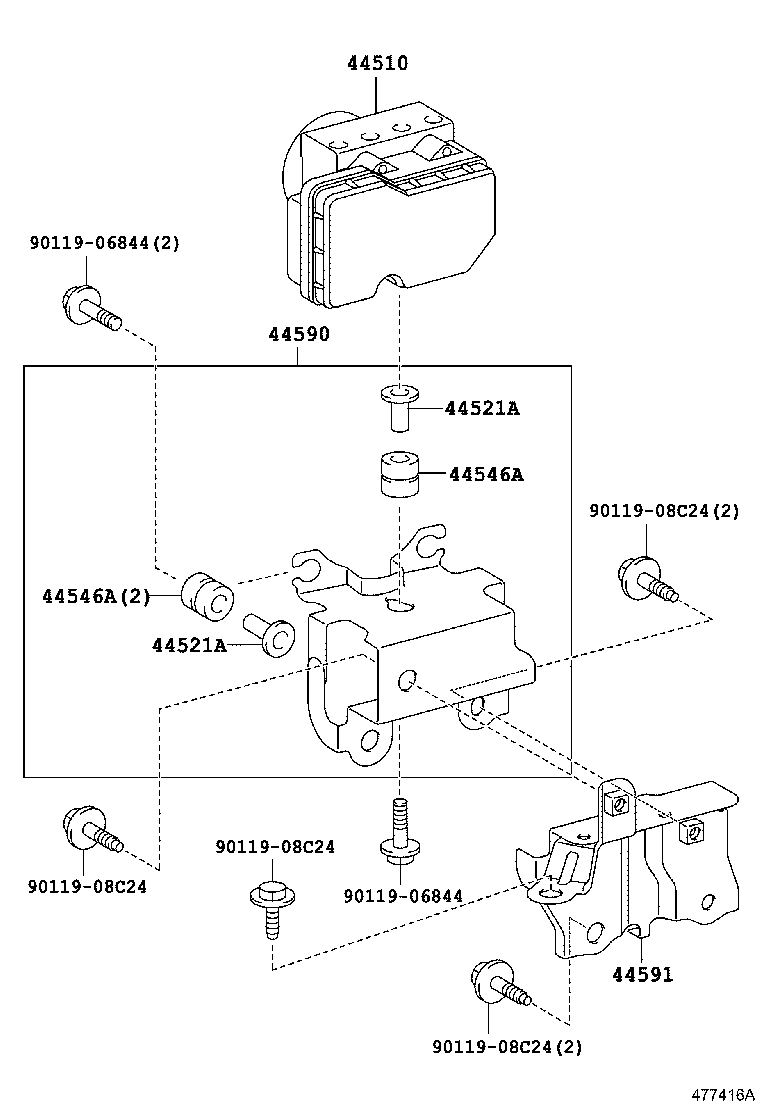

Figure 477438E 477438E 2011-08 → — Figure 477433D 477433D 2011-08 → — Figure 477434B 477434B 2011-08 → — Figure 477417A 477417A 2011-08 → — Figure 477416A 477416A 2011-08 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44521A Collar, Brake Actuator Case, NO.1
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47381 Bracket, Brake Tube Clamp NO.1
