Toyota Yaris (JPP)
2011-08 → 2014-07 · chassis KSP130,NSP130 · catalogue 112530 · Europe
Supported model
Data version 2015-01

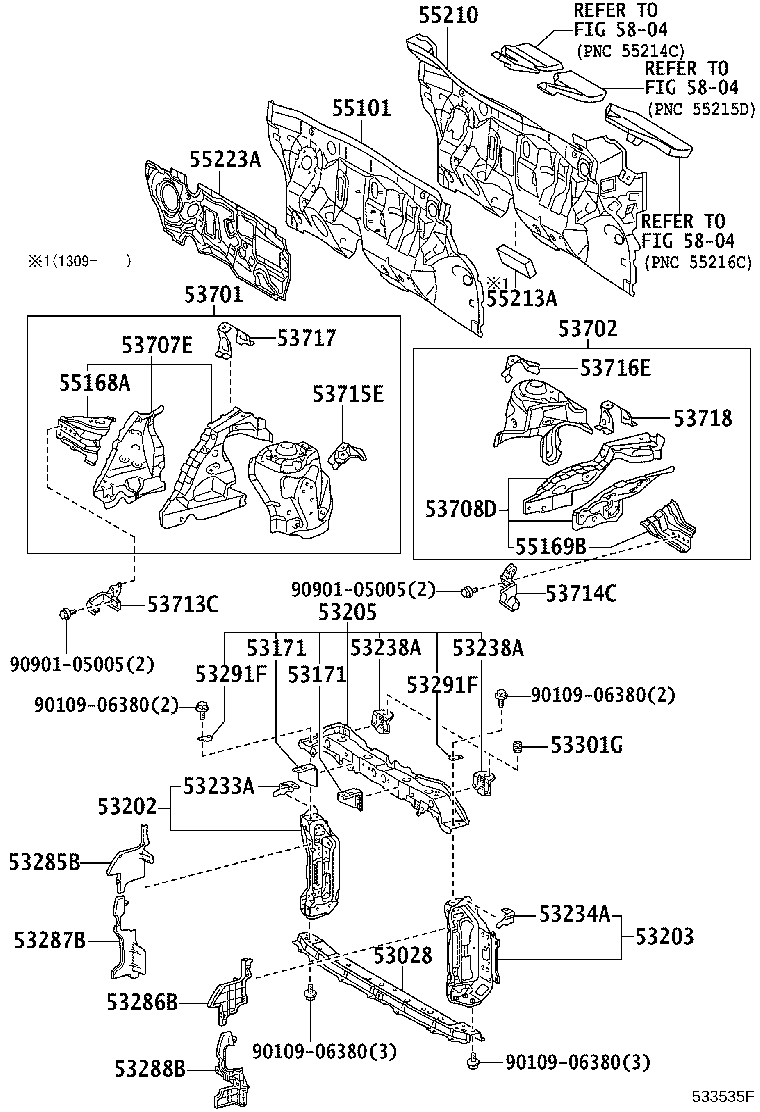

Front Fender Apron & Dash Panel
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53028 | Support Sub-assy, Radiator, Lower |
| 53171 | Retainer, Radiator Support |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53233A | Bracket, Headlamp, NO.1 RH |
| 53234A | Bracket, Headlamp, NO.1 LH |
| 53238A | Bracket, Hood Bumper Mounting |
| 53285B | Seal, Radiator Side Air, NO.1 |
| 53286B | Seal, Radiator Side Air, NO.2 |
| 53287B | Extension, Radiator Support, RH |
| 53288B | Extension, Radiator Support, LH |
| 53291F | Plate, Radiator Support |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53707E | Apron Sub-assy, Fender Side, RH |
| 53708D | Apron Sub-assy, Fender Side, LH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53714C | Extension, Front Fender Apron, Front LH |
| 53715E | Extension, Front Fender Apron, Rear RH |
| 53716E | Extension, Front Fender Apron, Rear LH |
| 53717 | Plate, Fender Apron, RH |
| 53718 | Plate, Fender Apron, LH |
| 55101 | Panel Sub-assy, Dash |
| 55168A | Bracket, Front Fender Mounting, RH |
| 55169B | Bracket, Front Fender Mounting, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55213A | Pad, Dash Panel Silencer |
| 55223A | Insulator, Dash Panel, Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
