Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis KSP130,NSP130 · catalogue 112530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 3 illustrations

Illustrations

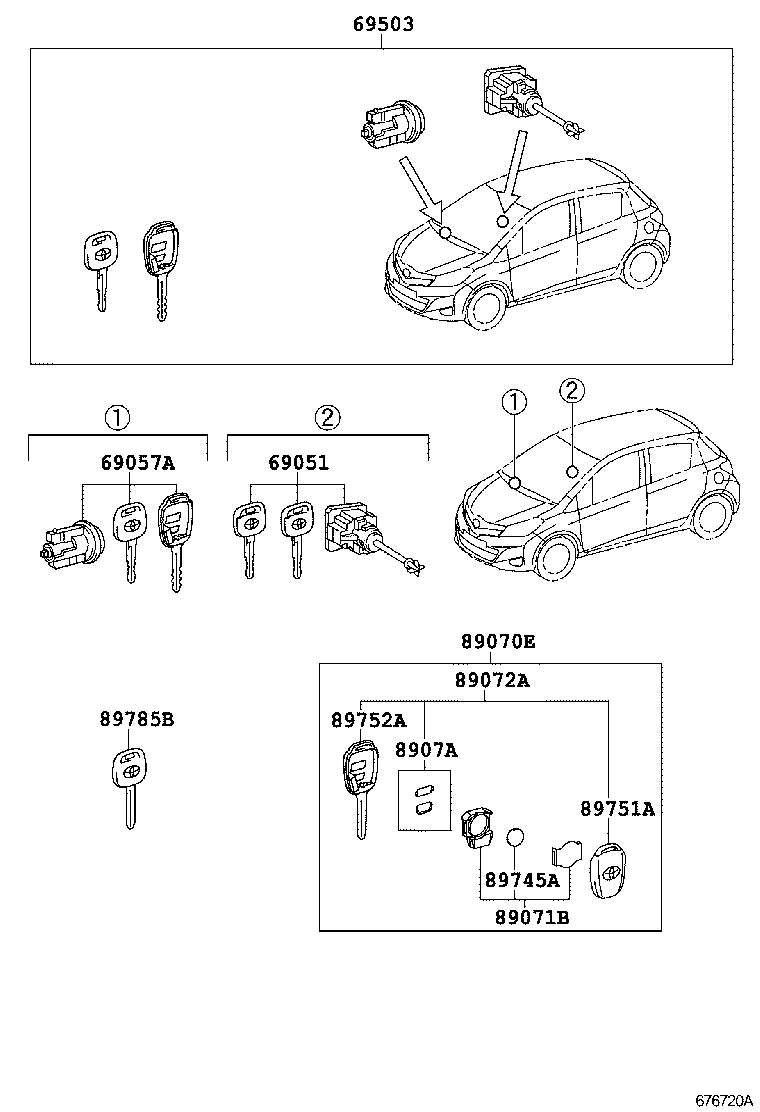

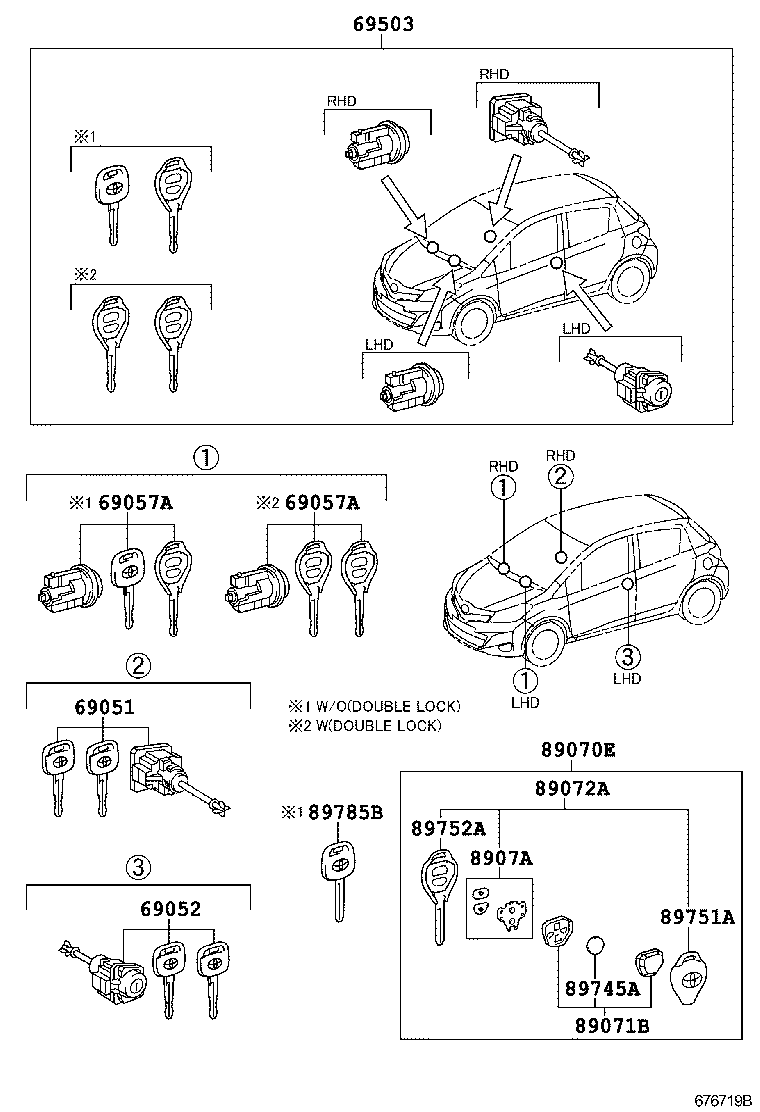

Figure 676718A 676718A 2011-08 → — Figure 676719B 676719B 2011-08 → — Figure 676720A 676720A 2011-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89785B Transmitter, Transponder Key Master
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
