Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis KSP130,NSP130 · catalogue 112530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

17 part groups · 2 illustrations

Illustrations

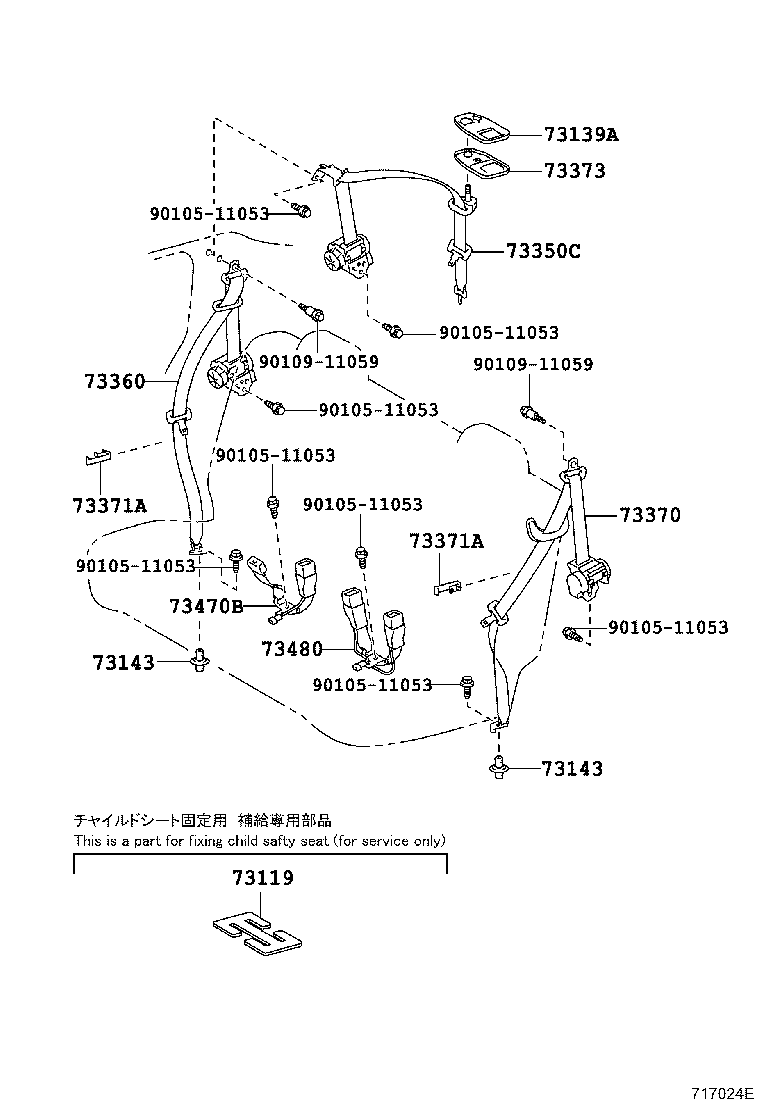

Figure 71F817 71F817 2011-08 → — Figure 717024E 717024E 2011-08 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73139A Cover, Seat Belt Anchor
73143 Seal, Seat Belt Hole
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233C Cover, Lap Belt Outer Anchor, LH
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73373 Cover, Rear Seat Shoulder Belt
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
