Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis KSP130,NSP130 · catalogue 112530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

29 part groups · 14 illustrations

Illustrations

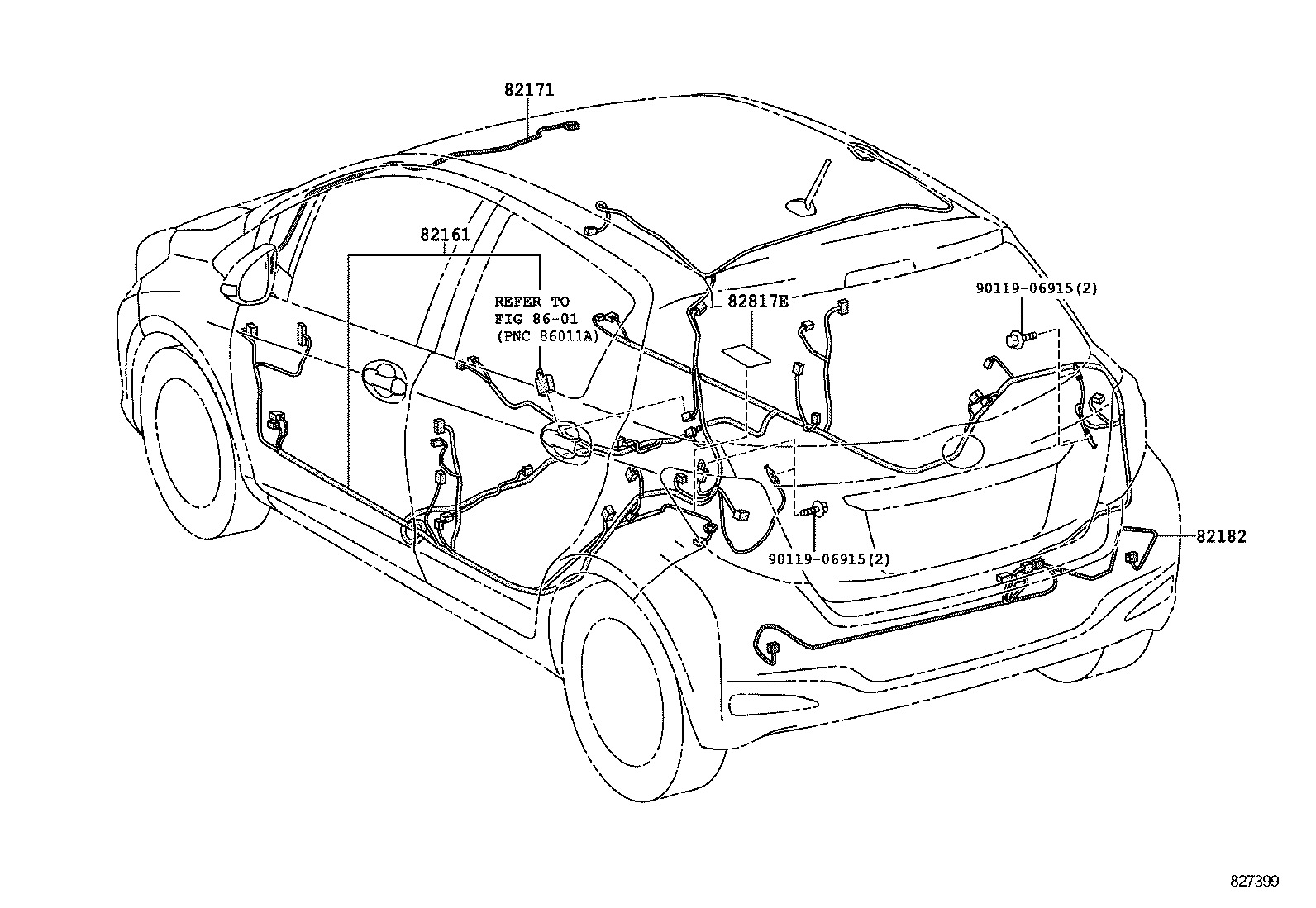

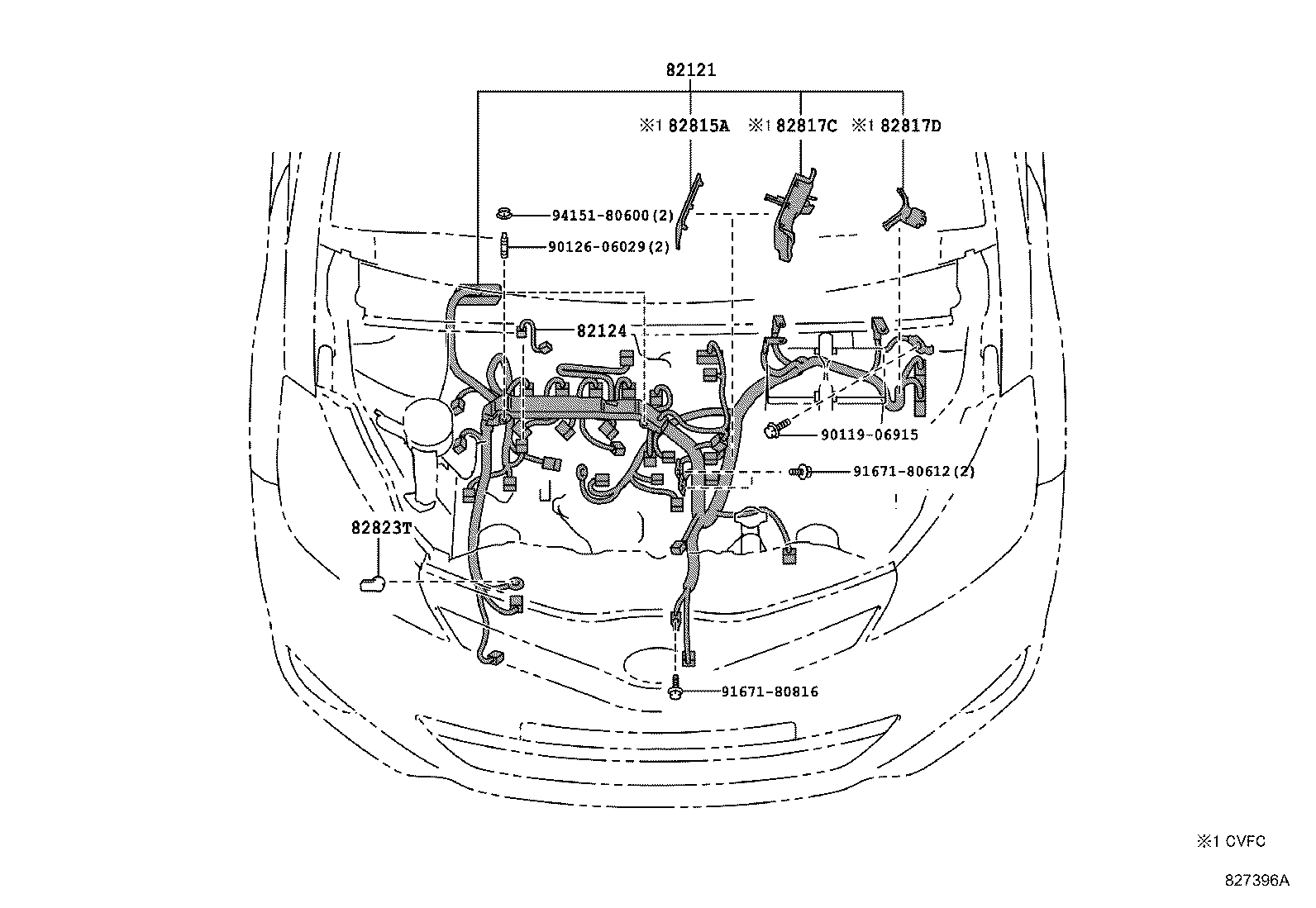

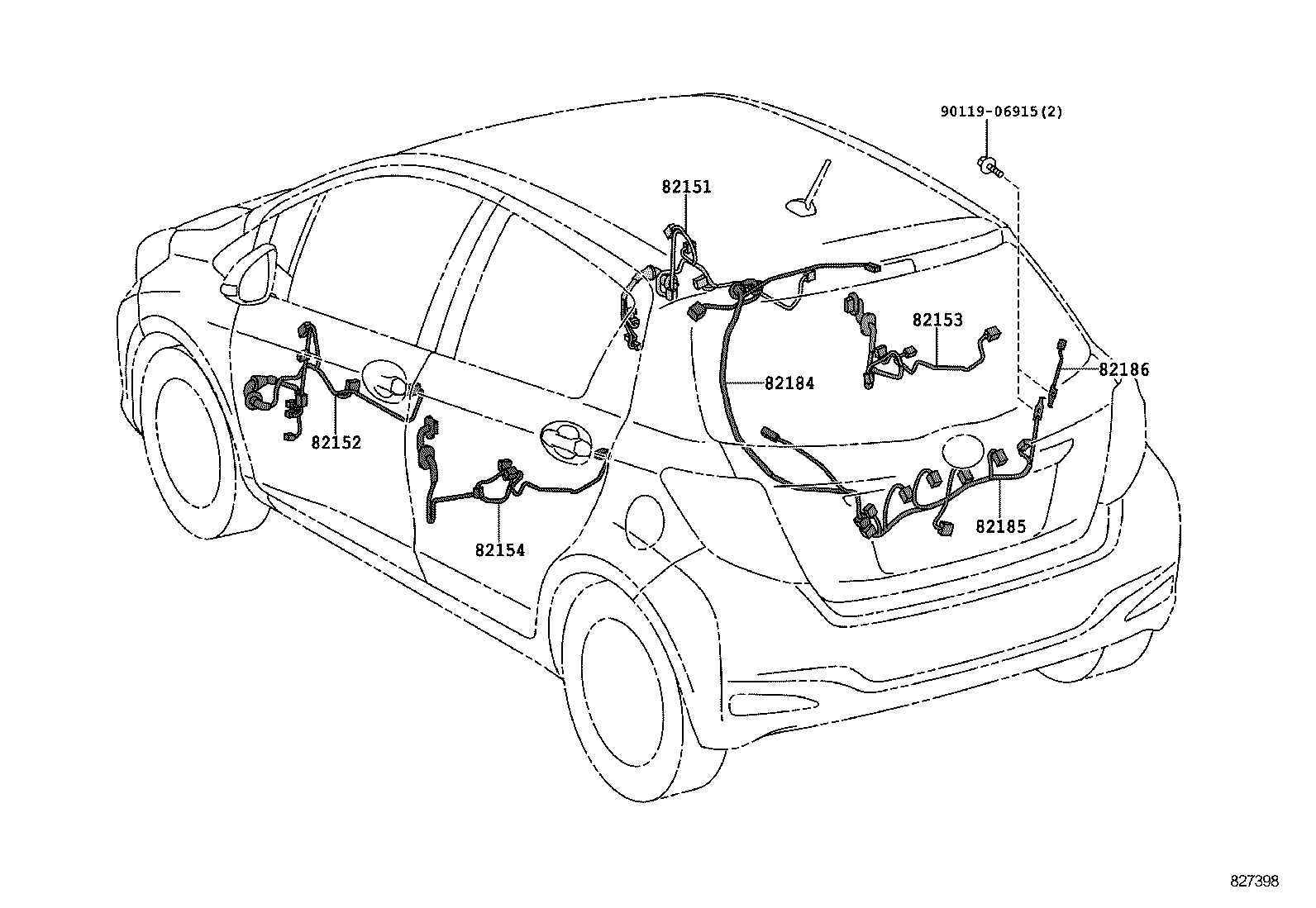

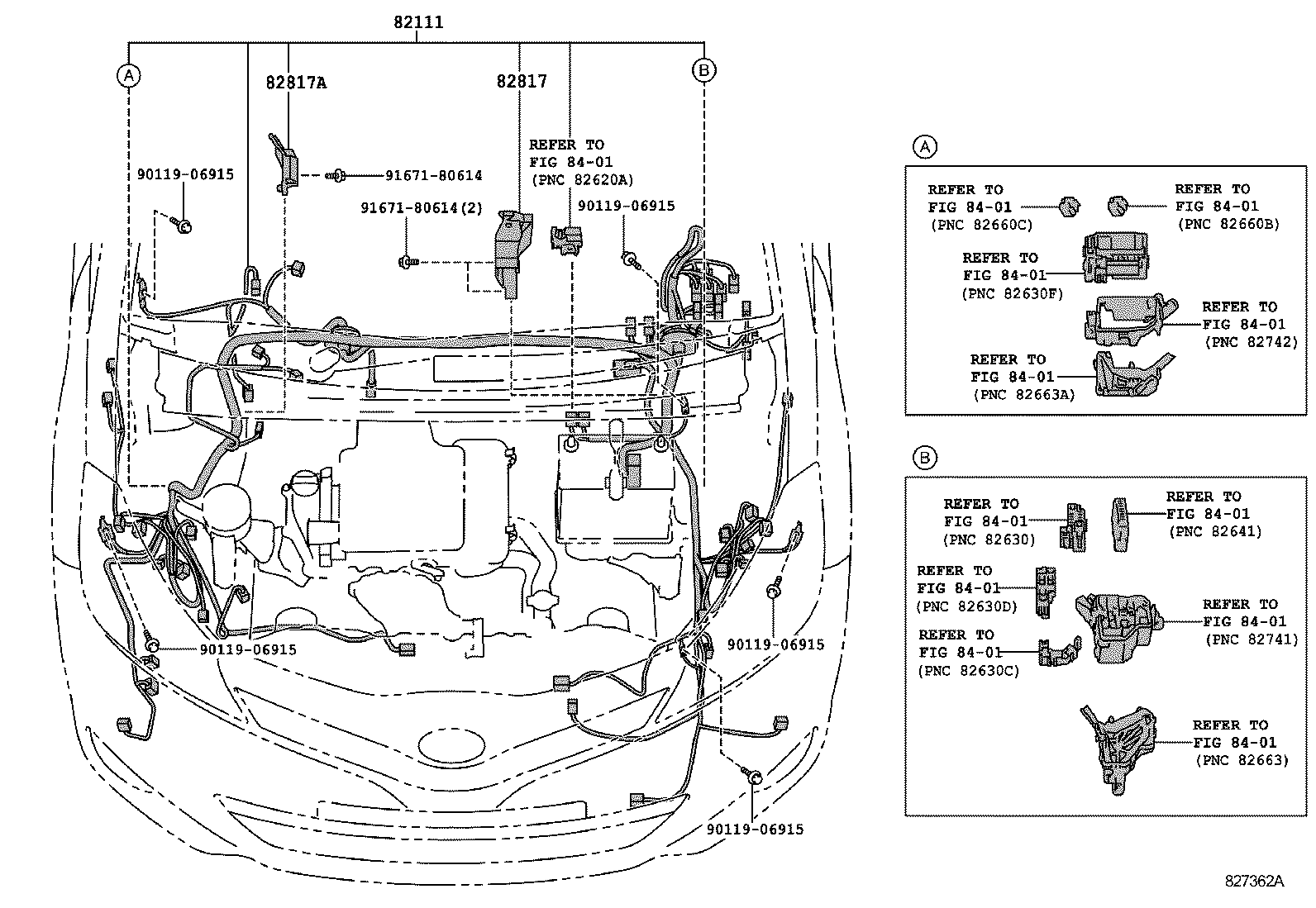

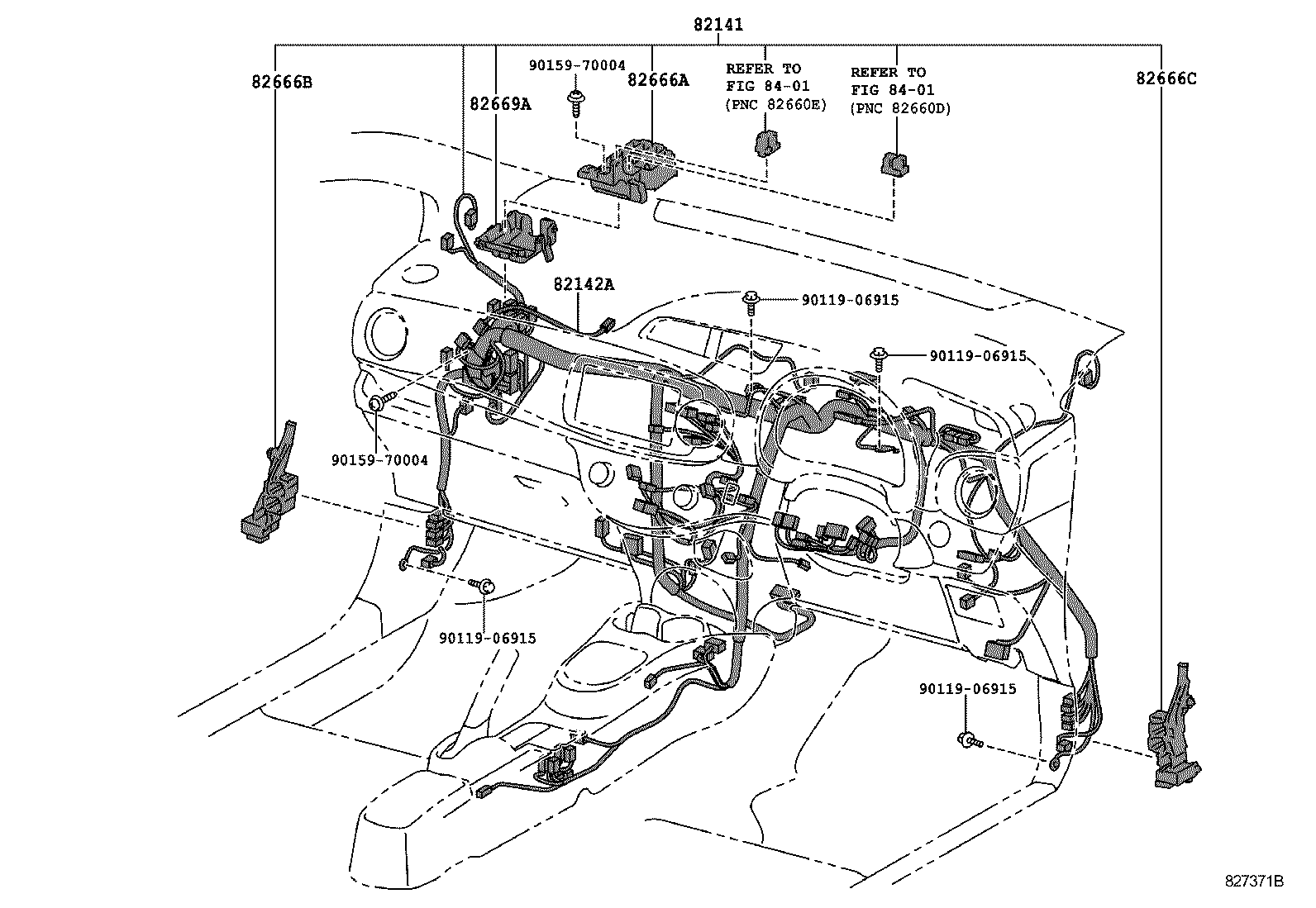

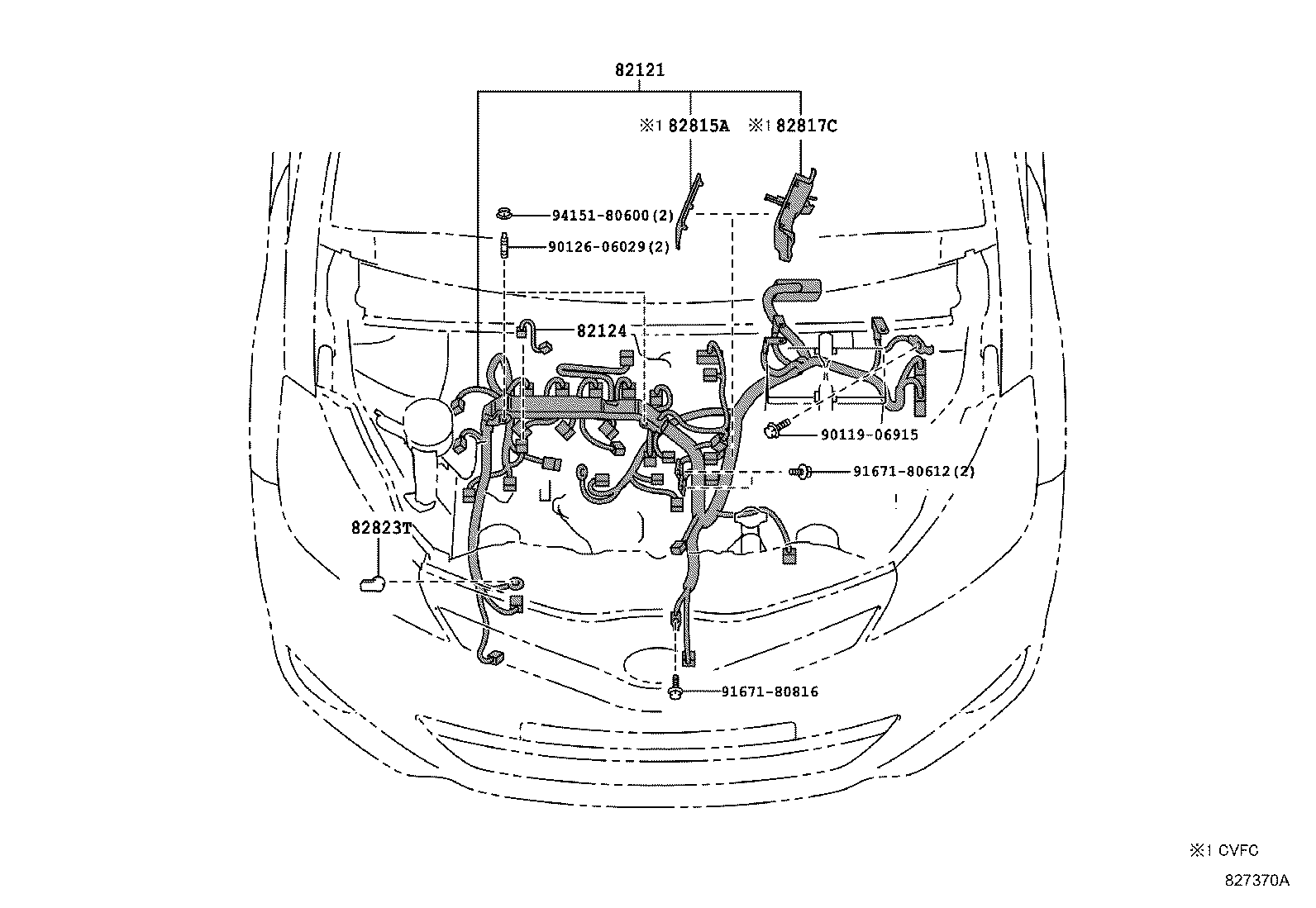

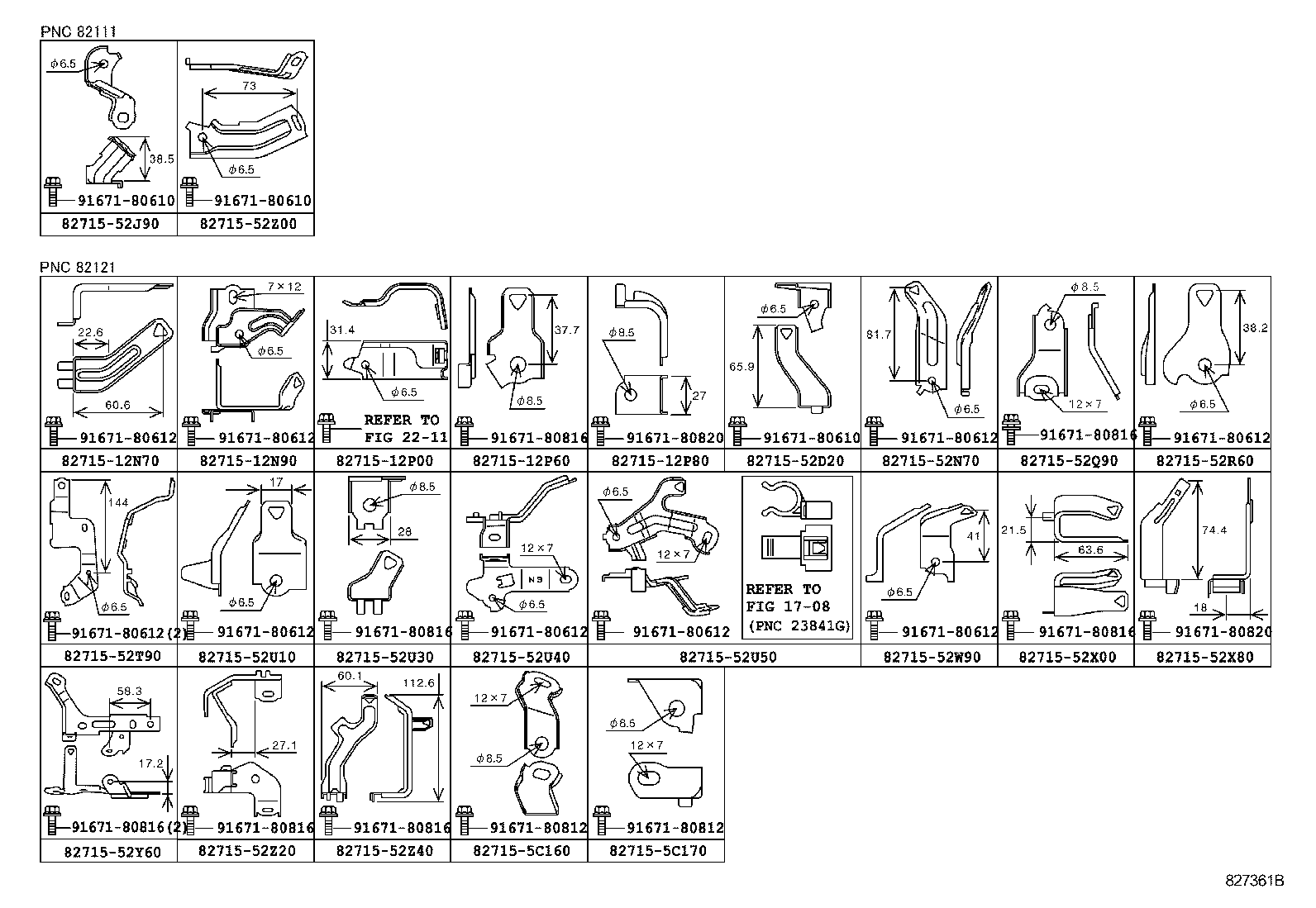

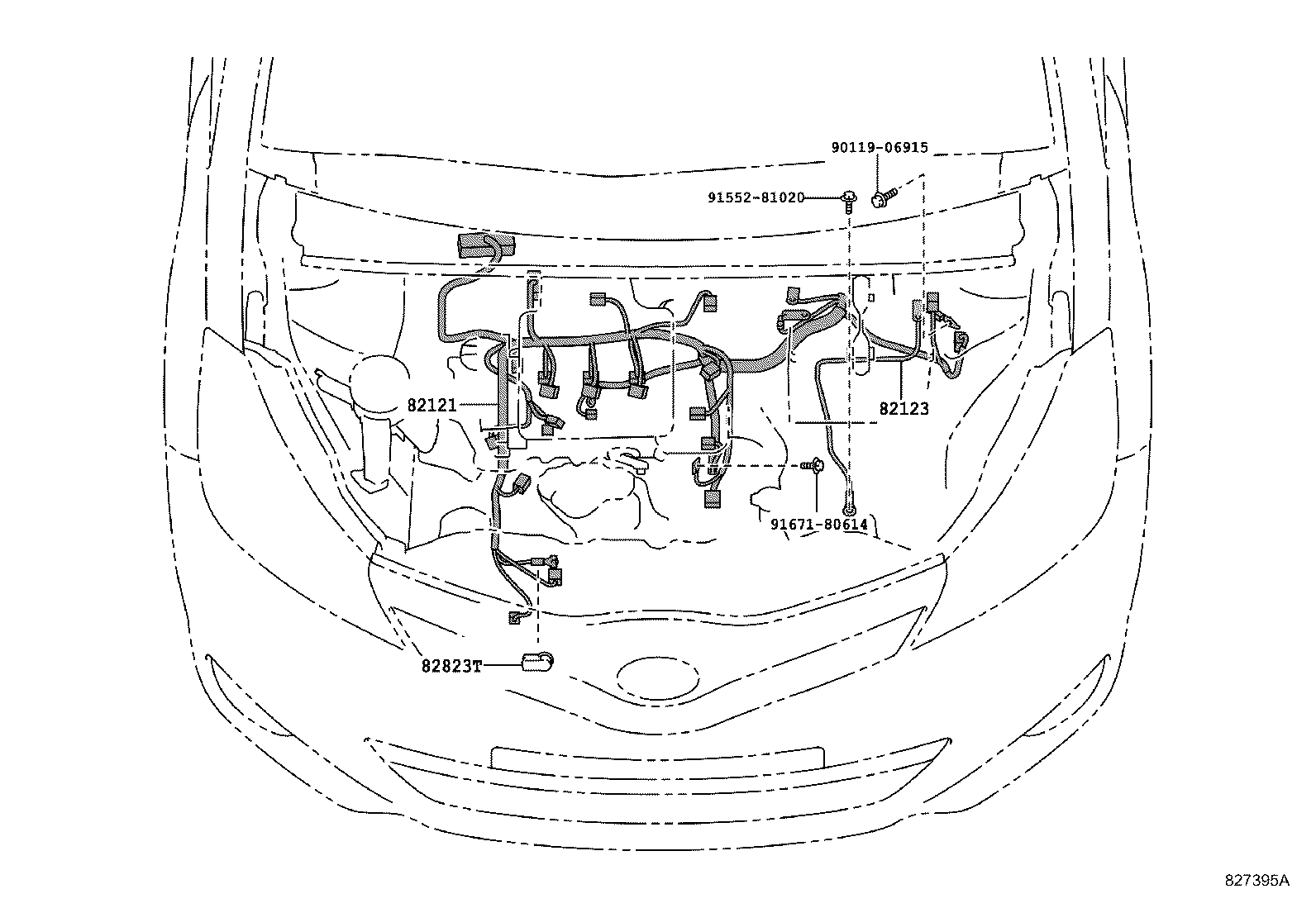

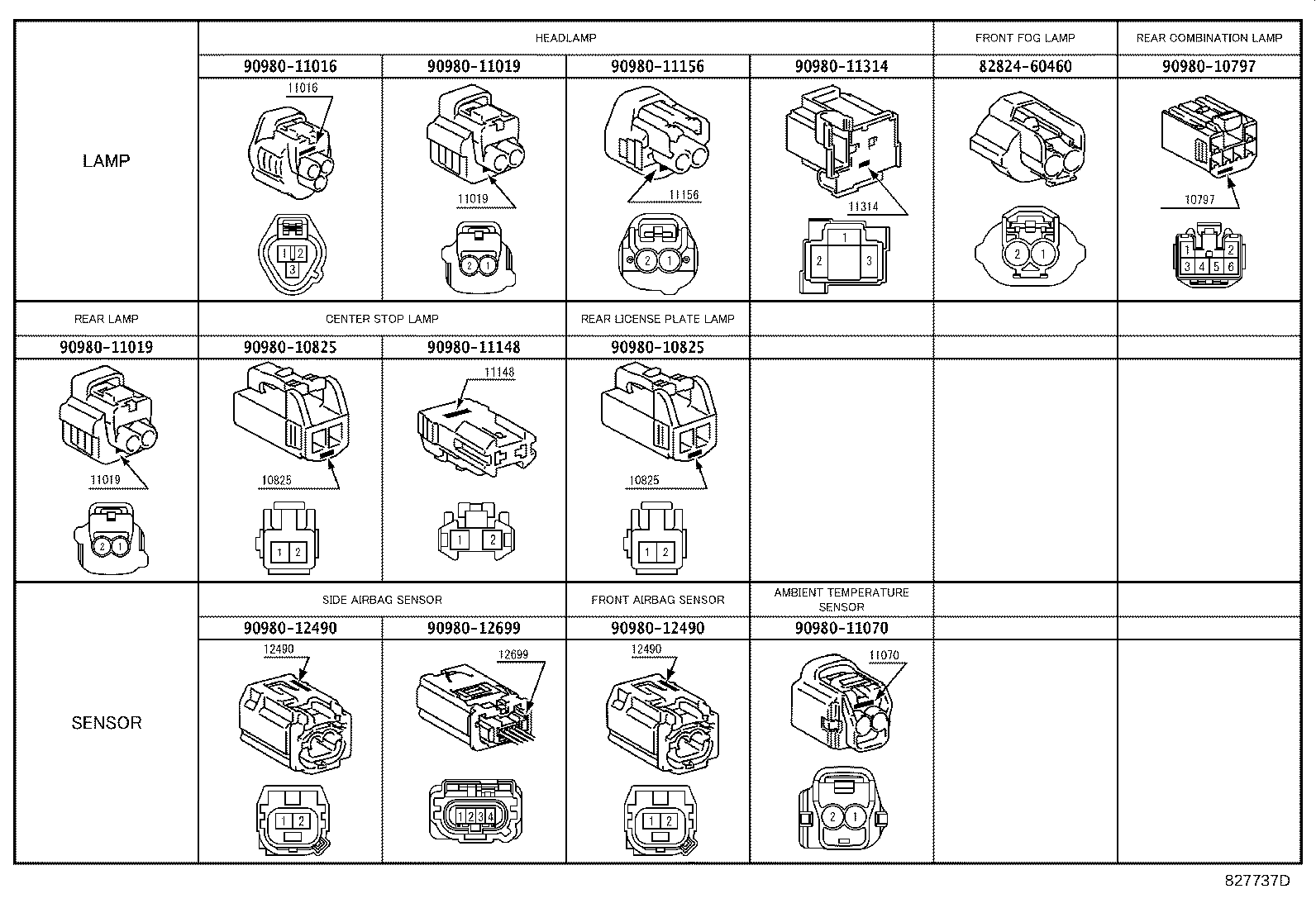

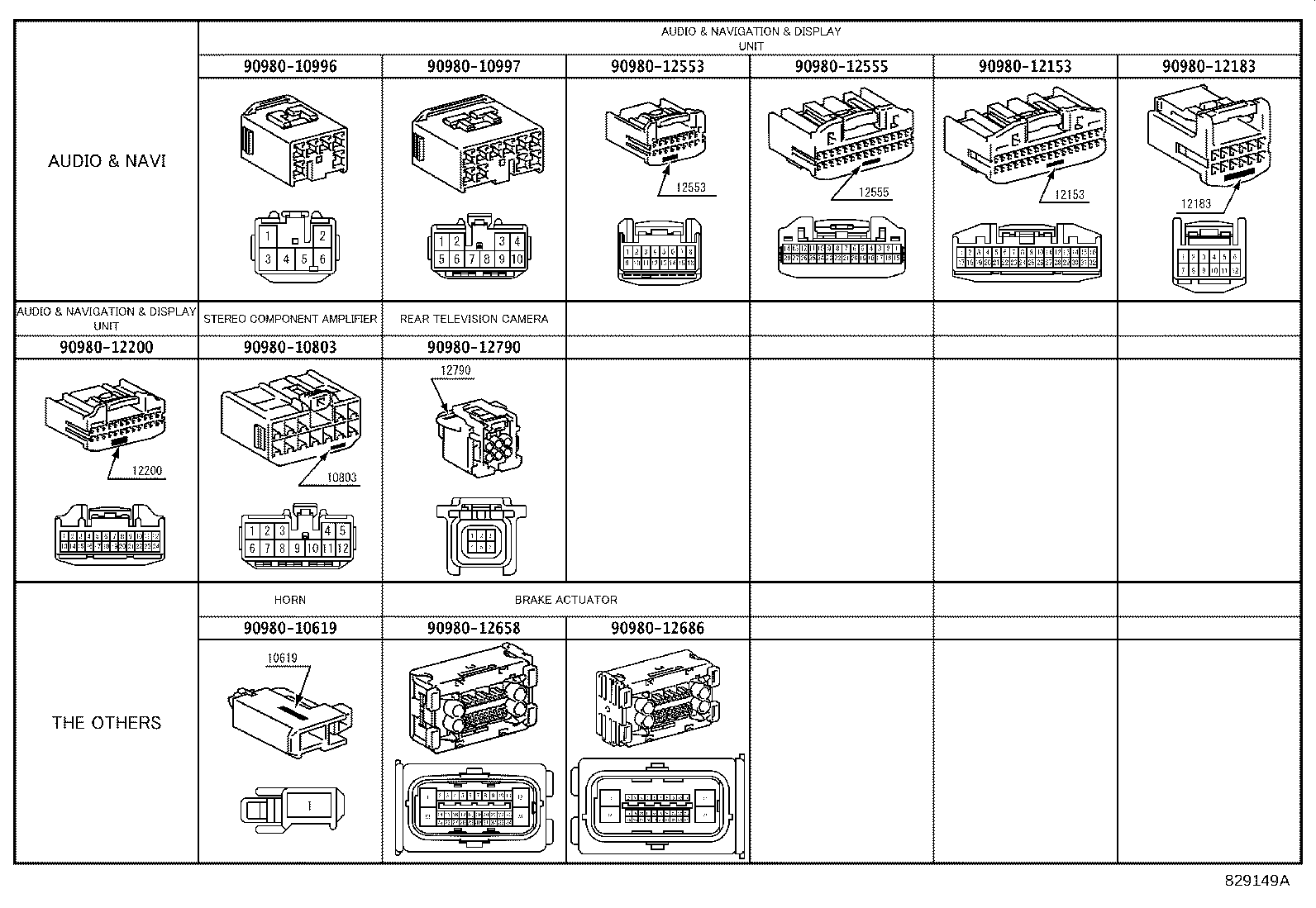

Figure 827363C 827363C 2011-08 → — Figure 827362A 827362A 2011-08 → — Figure 827395A 827395A 2011-08 → — Figure 827394A 827394A 2011-08 → — Figure 827396A 827396A 2011-08 → — Figure 827370A 827370A 2011-08 → — Figure 827372B 827372B 2011-08 → — Figure 827371B 827371B 2011-08 → — Figure 827398 827398 2011-08 → — Figure 827399 827399 2011-08 → — Figure 827360 827360 2011-08 → — Figure 827361B 827361B 2011-08 → — Figure 827737D 827737D 2011-08 → — Figure 829149A 829149A 2011-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main

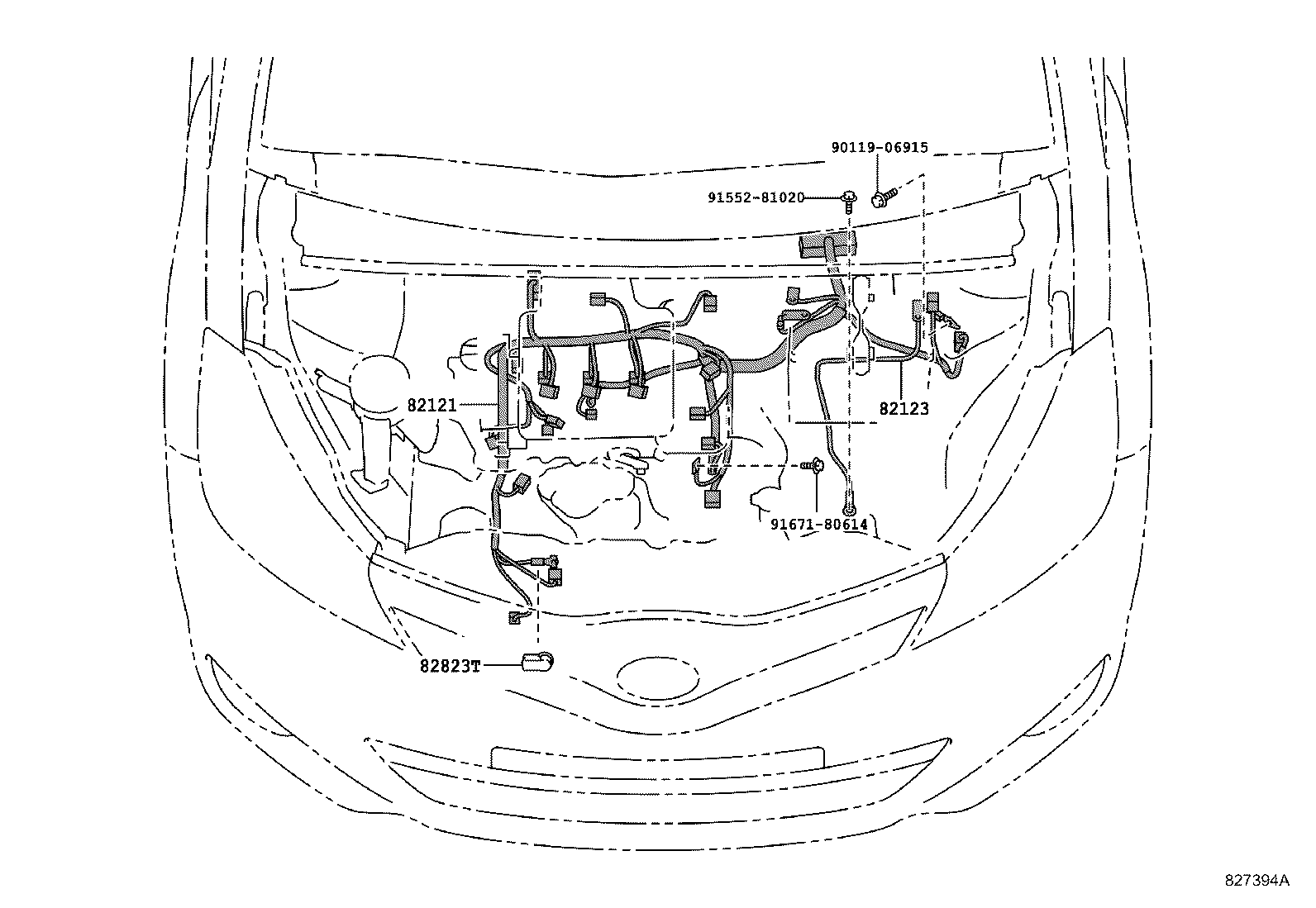

82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4

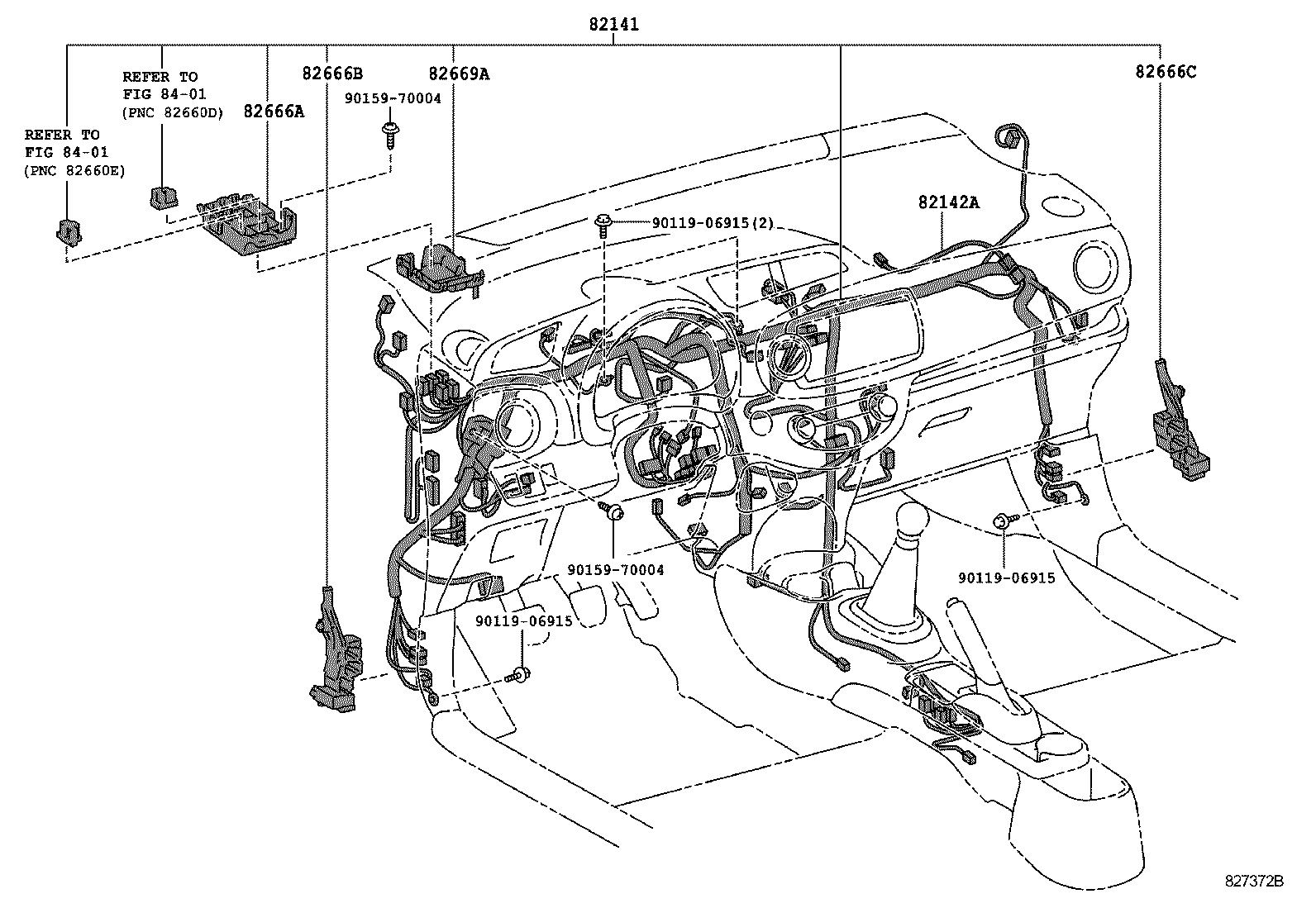

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82669A Cover, Connector Holder Block, Lower
82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82821A Cover, Connector
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
