Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis KSP130,NSP130 · catalogue 112530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

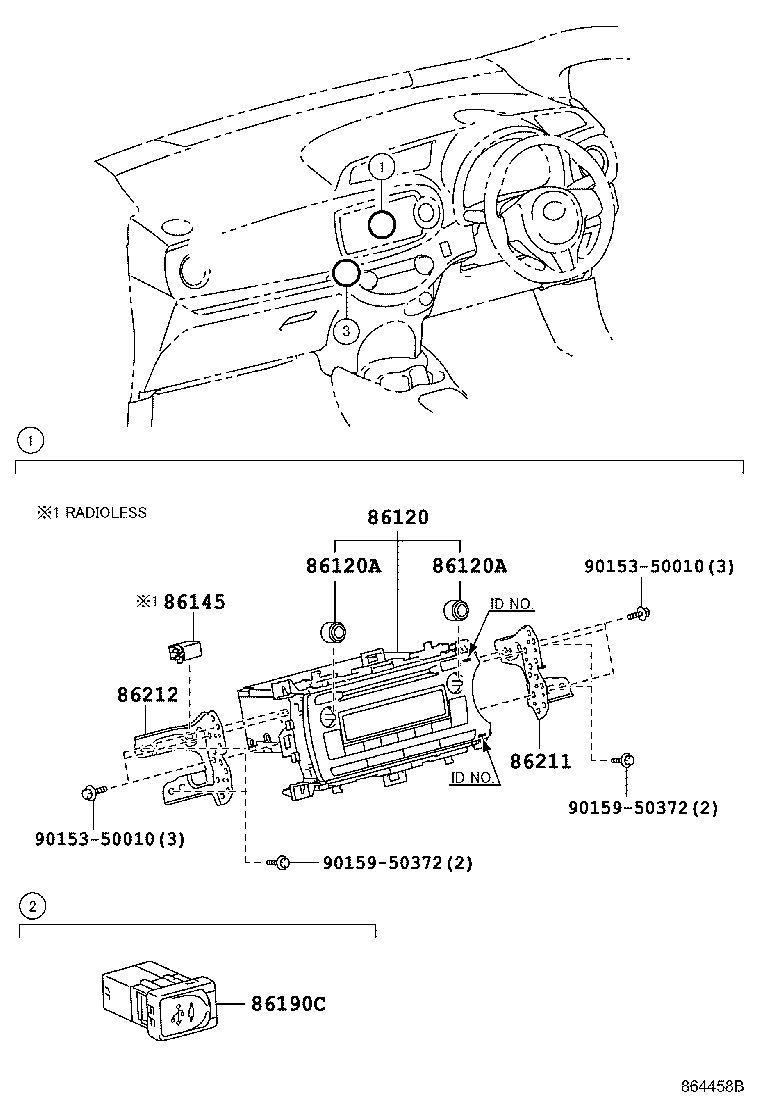

Figure 864459A 864459A 2011-08 → — Figure 864458B 864458B 2011-08 → — Figure 864460A 864460A 2011-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86145 Connector, Antenna Male
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86250 Microphone Assy, Amplifier
86995D Label, Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
