Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis KSP130,NSP130 · catalogue 112530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

23 part groups · 6 illustrations

Illustrations

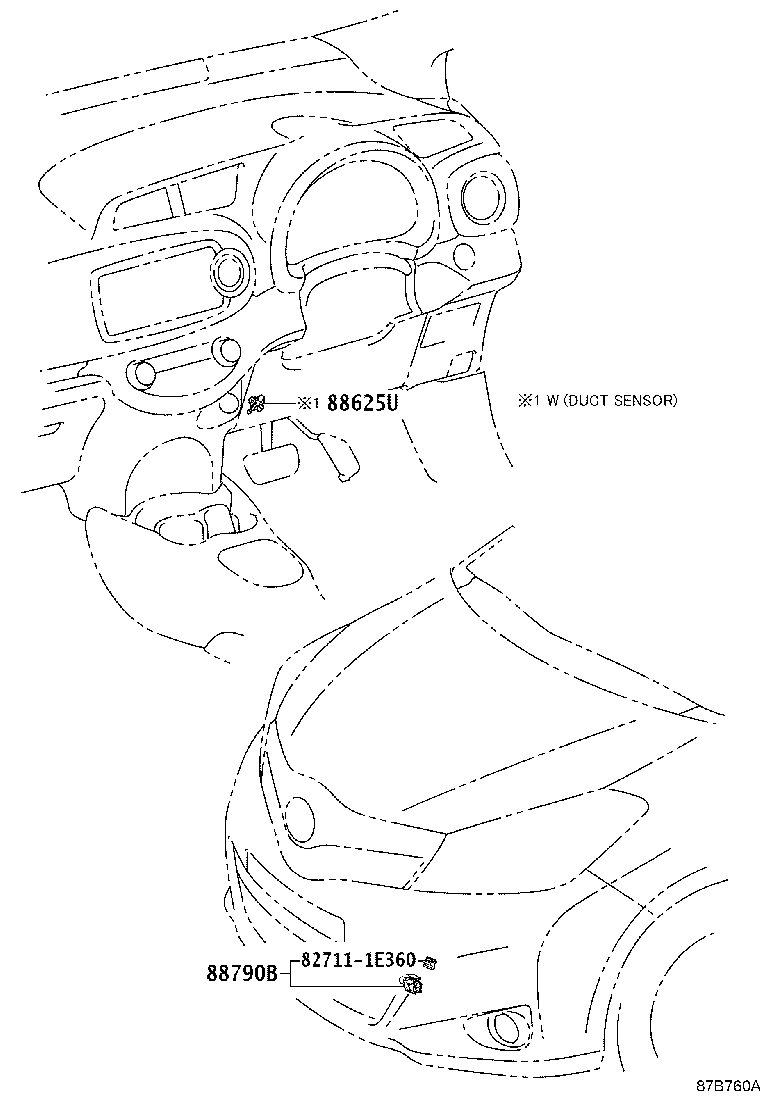

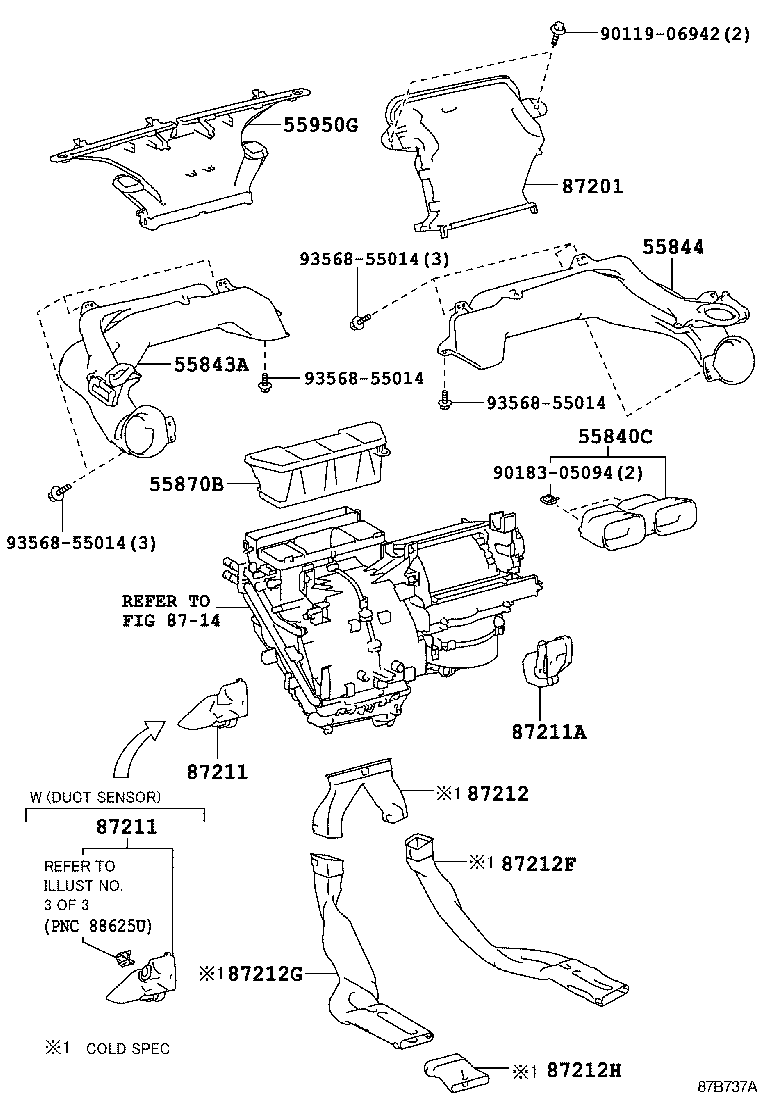

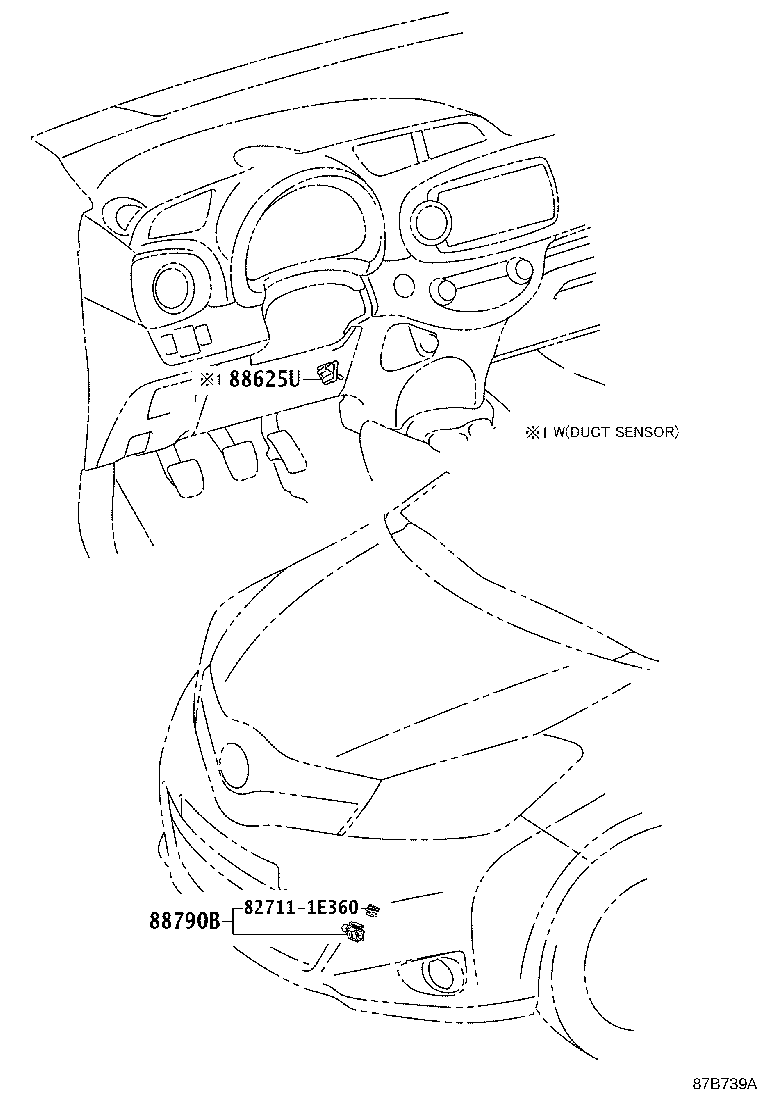

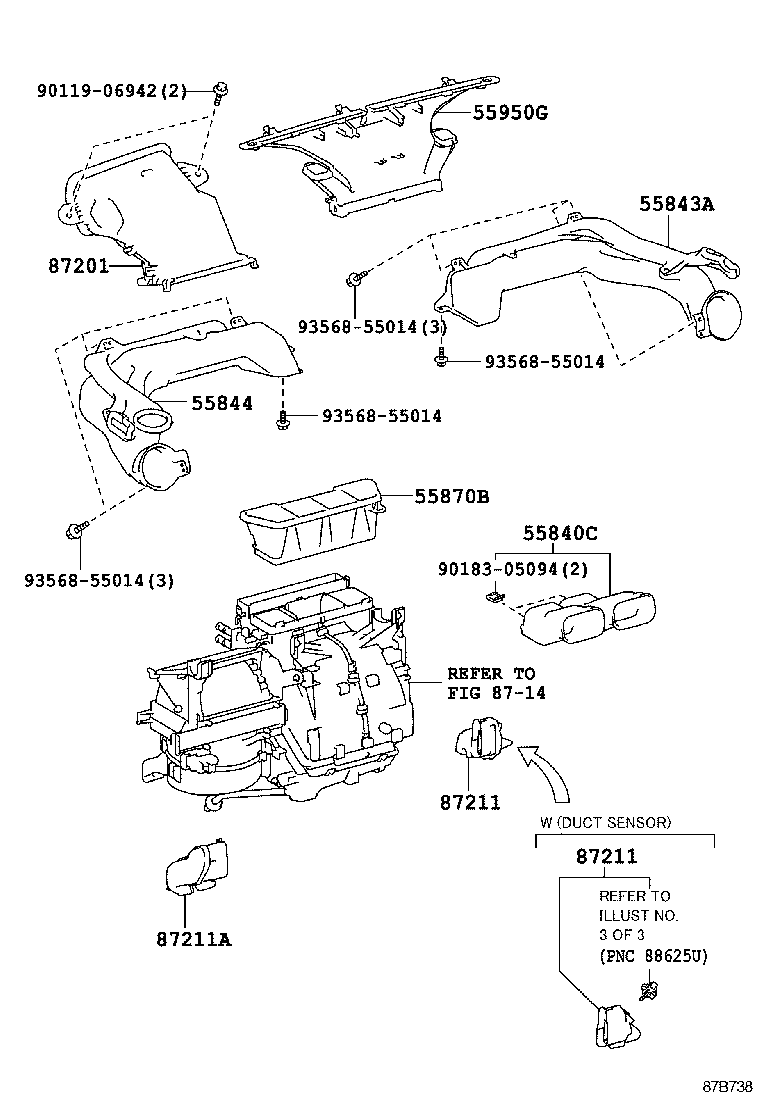

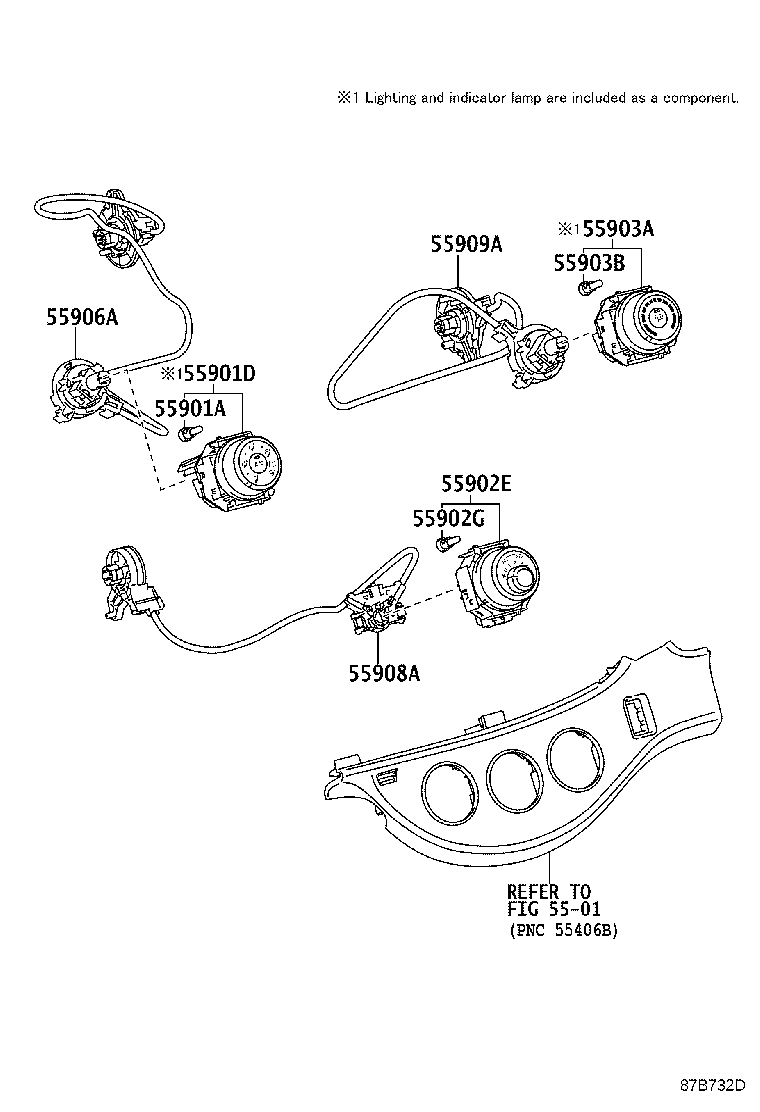

Figure 87B736D 87B736D 2011-08 → — Figure 87B732D 87B732D 2011-08 → — Figure 87B737A 87B737A 2011-08 → — Figure 87B738 87B738 2011-08 → — Figure 87B739A 87B739A 2011-08 → — Figure 87B760A 87B760A 2011-08 → —

Part groups

PNCDescription
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55870B Duct Assy, Heater TO Register
55901A Bulb, Heater Control Sub-assy, NO.1
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55902G Bulb, Heater Control Sub-assy, NO.2
55903A Control Sub-assy, Heater, NO.3
55903B Bulb, Heater Control Sub-assy, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
88625U Thermistor, Cooler (DUCT SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
