Toyota Verso-s
2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe
Supported model
Data version 2014-05

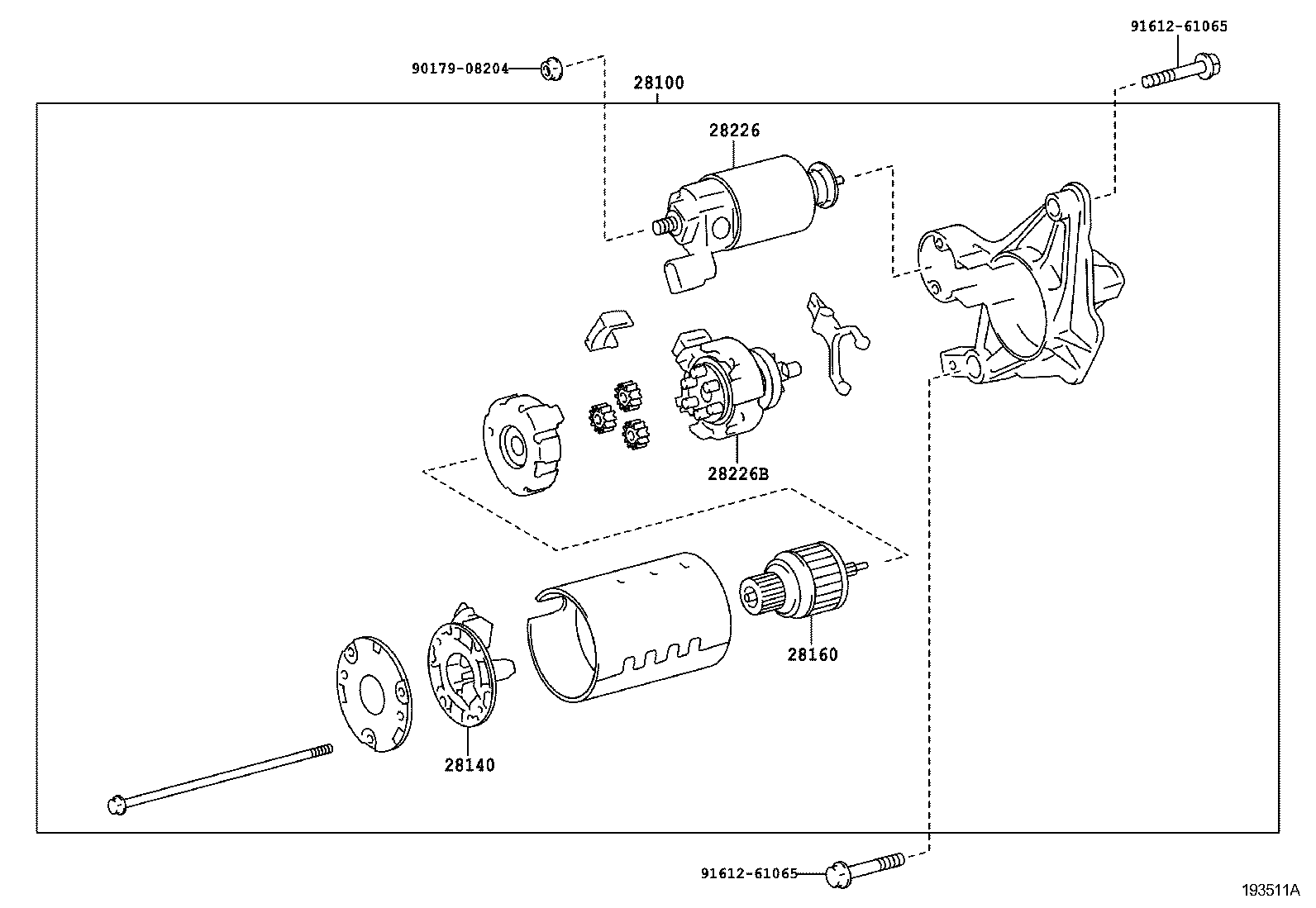

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28100 — Starter Assy | ||||
| 28100-33110 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28100-33120 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28100-33120 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28100-47170 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 | — | |
| 28100-47180 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47180 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-33110 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28100-33150 note |
Starter Assy
2014-05 → 2014-07
ended
|
1NDTV NLP121 | — | |
| 28100-33150 note |
Starter Assy
2014-05 → 2014-07
ended
|
1NDTV NLP121 | — | |
| 28100-33151 note |
Starter Assy
2014-08 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28100-33151 note |
Starter Assy
2014-08 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28100-47170 note |
Starter Assy
2014-05 → 2014-07
ended
|
1NRFE NSP120 | — | |
| 28100-47171 note |
Starter Assy
2014-08 → 2015-04
ended
|
1NRFE NSP120 | — | |
| 28100-47190 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47240 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47240 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-21070 |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NRFE NSP120 | — | |
| 28140-37050 |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28140-21070 |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NRFE NSP120 | — | |
| 28140-37050 |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28140-38070 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28140-38070 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-21070 |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 | — | |
| 28160-21080 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28160-21080 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28160-33090 |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28160-38020 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28160-38020 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28180-47110 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28180-47110 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28180-47110 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28160-0N110 note |
Armature Assy, Starter
2014-05 → 2014-08
ended
|
1NDTV NLP121 | — | |
| 28160-0N110 note |
Armature Assy, Starter
2014-05 → 2014-08
ended
|
1NDTV NLP121 | — | |
| 28160-21060 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28160-21060 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28160-21070 |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 | — | |
| 28160-26180 note |
Armature Assy, Starter
2014-08 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28160-26180 note |
Armature Assy, Starter
2014-08 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28160-33090 |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28180-47110 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28180-47110 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28180-47110 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28226 — Starter Kit, Battery Terminal | ||||
| 28226-21080 |
Starter Kit, Battery Terminal
2010-11 → 2014-05
ended
|
1NRFE NSP120 | — | |
| 28226-47190 note |
Starter Kit, Battery Terminal
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28226-47190 note |
Starter Kit, Battery Terminal
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28226-47190 note |
Starter Kit, Battery Terminal
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28226-21080 |
Starter Kit, Battery Terminal
2014-05 → 2014-09
ended
|
1NRFE NSP120 | — | |
| 28226-21081 |
Starter Kit, Battery Terminal
2014-09 → 2015-04
ended
|
1NRFE NSP120 | — | |
| 28226-31170 note |
Starter Kit, Battery Terminal
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28226-31170 note |
Starter Kit, Battery Terminal
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28226-47190 note |
Starter Kit, Battery Terminal
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28226-47190 note |
Starter Kit, Battery Terminal
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28226-47190 note |
Starter Kit, Battery Terminal
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28226B — Starter Kit, Repair Service | ||||
| 28226-47170 |
Starter Kit, Repair Service
2010-11 → 2014-05
ended
|
1NRFE NSP120 | — | |
| 28226-47170 |
Starter Kit, Repair Service
2014-05 → 2015-04
ended
|
1NRFE NSP120 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
