Toyota Verso-s
2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe
Supported model
Data version 2014-05

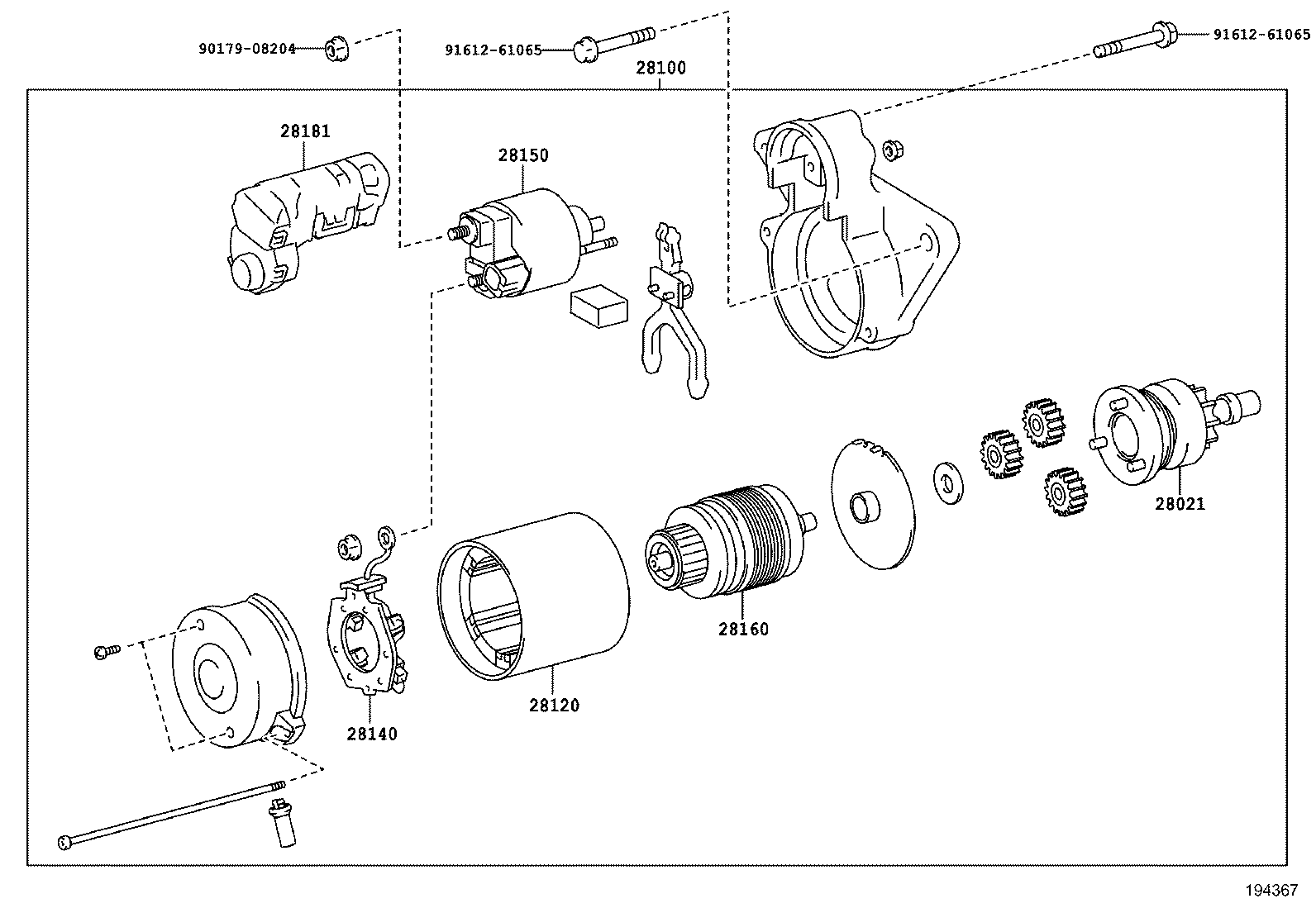

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28021 — Clutch Sub-assy, Starter Center Bearing | ||||
| 28021-33090 |
Clutch Sub-assy, Starter Center Bearing
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28021-33100 note |
Clutch Sub-assy, Starter Center Bearing
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28021-33100 note |
Clutch Sub-assy, Starter Center Bearing
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28021-47110 note |
Clutch Sub-assy, Starter Center Bearing
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28021-47110 note |
Clutch Sub-assy, Starter Center Bearing
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28021-47110 note |
Clutch Sub-assy, Starter Center Bearing
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28021-21060 note |
Clutch Sub-assy, Starter Center Bearing
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28021-21060 note |
Clutch Sub-assy, Starter Center Bearing
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28021-33090 |
Clutch Sub-assy, Starter Center Bearing
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28021-47110 note |
Clutch Sub-assy, Starter Center Bearing
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28021-47110 note |
Clutch Sub-assy, Starter Center Bearing
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28021-47110 note |
Clutch Sub-assy, Starter Center Bearing
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28100 — Starter Assy | ||||
| 28100-33110 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28100-33120 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28100-33120 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28100-47170 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 | — | |
| 28100-47180 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47180 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28100-33110 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28100-33150 note |
Starter Assy
2014-05 → 2014-07
ended
|
1NDTV NLP121 | — | |
| 28100-33150 note |
Starter Assy
2014-05 → 2014-07
ended
|
1NDTV NLP121 | — | |
| 28100-33151 note |
Starter Assy
2014-08 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28100-33151 note |
Starter Assy
2014-08 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28100-47170 note |
Starter Assy
2014-05 → 2014-07
ended
|
1NRFE NSP120 | — | |
| 28100-47171 note |
Starter Assy
2014-08 → 2015-04
ended
|
1NRFE NSP120 | — | |
| 28100-47190 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47190 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47240 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28100-47240 note |
Starter Assy
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-33110 |
Yoke Assy, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28120-38020 note |
Yoke Assy, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28120-38020 note |
Yoke Assy, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28120-47110 note |
Yoke Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28120-47110 note |
Yoke Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28120-47110 note |
Yoke Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28120-28080 note |
Yoke Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28120-28080 note |
Yoke Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28120-33110 |
Yoke Assy, Starter
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28120-33150 note |
Yoke Assy, Starter
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28120-33150 note |
Yoke Assy, Starter
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28120-47110 note |
Yoke Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28120-47110 note |
Yoke Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28120-47110 note |
Yoke Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-21070 |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NRFE NSP120 | — | |
| 28140-37050 |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28140-21070 |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NRFE NSP120 | — | |
| 28140-37050 |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28140-38070 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28140-38070 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28140-47110 note |
Holder Assy, Starter Brush
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28150 — Switch Assy, Magnet Starter | ||||
| 28150-37020 |
Switch Assy, Magnet Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28150-37020 |
Switch Assy, Magnet Starter
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-21070 |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 | — | |
| 28160-21080 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28160-21080 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28160-33090 |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28160-38020 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28160-38020 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28180-47110 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28180-47110 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28180-47110 note |
Armature Assy, Starter
2010-11 → 2014-05
ended
|
1NRFE NSP120 LHD | — | |
| 28160-0N110 note |
Armature Assy, Starter
2014-05 → 2014-08
ended
|
1NDTV NLP121 | — | |
| 28160-0N110 note |
Armature Assy, Starter
2014-05 → 2014-08
ended
|
1NDTV NLP121 | — | |
| 28160-21060 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28160-21060 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28160-21070 |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 | — | |
| 28160-26180 note |
Armature Assy, Starter
2014-08 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28160-26180 note |
Armature Assy, Starter
2014-08 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28160-33090 |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
| 28180-47110 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28180-47110 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28180-47110 note |
Armature Assy, Starter
2014-05 → 2015-04
ended
|
1NRFE NSP120 LHD | — | |
| 28181 — Terminal, Starter | ||||
| 28181-33010 |
Terminal, Starter
2010-11 → 2014-05
ended
|
1NDTV NLP121 | — | |
| 28181-33010 |
Terminal, Starter
2014-05 → 2015-04
ended
|
1NDTV NLP121 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
