Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

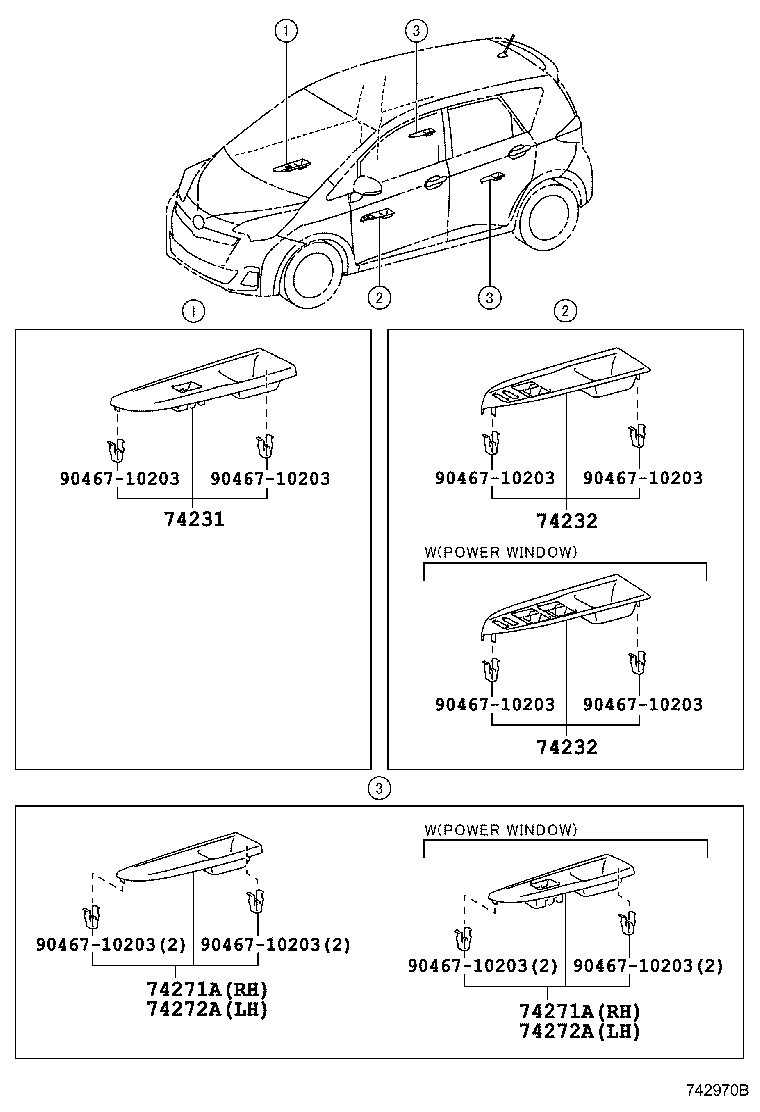

Exploded illustration 742970B 74231 — PANEL, FRONT ARMREST BASE, UPPER RH (10 parts) 74232 — PANEL, FRONT ARMREST BASE, UPPER LH (10 parts) 74232 — PANEL, FRONT ARMREST BASE, UPPER LH (10 parts) 74271A — PANEL, REAR DOOR ARMREST BASE, UPPER RH (6 parts) 74272A — PANEL, REAR DOOR ARMREST BASE, UPPER LH (6 parts) 74271A — PANEL, REAR DOOR ARMREST BASE, UPPER RH (6 parts) 74272A — PANEL, REAR DOOR ARMREST BASE, UPPER LH (6 parts) 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710203 — not listed in this catalogue
742970B · 7 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
74231 — Panel, Front Armrest Base, Upper RH
74231-52590-B1 note Panel, Front Armrest Base, Upper RH
2010-11 → 2014-05 ended
NSP120 RHD LUNA —
74231-52600-B1 note Panel, Front Armrest Base, Upper RH
2010-11 → 2014-05 ended
NLP121,NSP120 LHD LUNA —
74231-52600-B1 note Panel, Front Armrest Base, Upper RH
2010-11 → 2014-05 ended
NLP121,NSP120 LHD TERRA —
74231-52610-B1 note Panel, Front Armrest Base, Upper RH
2010-11 → 2014-05 ended
NSP120 RHD LUNA —
74231-52610-B1 note Panel, Front Armrest Base, Upper RH
2010-11 → 2014-05 ended
NSP120 RHD TERRA —
74231-52590-B1 note Panel, Front Armrest Base, Upper RH
2014-05 → 2015-04 ended
NSP120 RHD LUNA —
74231-52600-B1 note Panel, Front Armrest Base, Upper RH
2014-05 → 2015-04 ended
NLP121,NSP120 LHD LUNA —
74231-52600-B1 note Panel, Front Armrest Base, Upper RH
2014-05 → 2015-04 ended
NLP121,NSP120 LHD TERRA —
74231-52610-B1 note Panel, Front Armrest Base, Upper RH
2014-05 → 2015-04 ended
NSP120 RHD LUNA —
74231-52610-B1 note Panel, Front Armrest Base, Upper RH
2014-05 → 2015-04 ended
NSP120 RHD TERRA —
74232 — Panel, Front Armrest Base, Upper LH
74232-52510-B1 note Panel, Front Armrest Base, Upper LH
2010-11 → 2014-05 ended
NSP120 RHD LUNA —
74232-52510-B1 note Panel, Front Armrest Base, Upper LH
2010-11 → 2014-05 ended
NSP120 RHD TERRA —
74232-52520-B1 note Panel, Front Armrest Base, Upper LH
2010-11 → 2014-05 ended
NLP121,NSP120 LHD LUNA —
74232-52520-B1 note Panel, Front Armrest Base, Upper LH
2010-11 → 2014-05 ended
NLP121,NSP120 LHD TERRA —
74232-52530-B1 note Panel, Front Armrest Base, Upper LH
2010-11 → 2014-05 ended
NLP121,NSP120 LHD LUNA —
74232-52510-B1 note Panel, Front Armrest Base, Upper LH
2014-05 → 2015-04 ended
NSP120 RHD TERRA —
74232-52510-B1 note Panel, Front Armrest Base, Upper LH
2014-05 → 2015-04 ended
NSP120 RHD LUNA —
74232-52520-B1 note Panel, Front Armrest Base, Upper LH
2014-05 → 2015-04 ended
NLP121,NSP120 LHD LUNA —
74232-52520-B1 note Panel, Front Armrest Base, Upper LH
2014-05 → 2015-04 ended
NLP121,NSP120 LHD TERRA —
74232-52530-B1 note Panel, Front Armrest Base, Upper LH
2014-05 → 2015-04 ended
NLP121,NSP120 LHD LUNA —
74271A — Panel, Rear Door Armrest Base, Upper RH
74271-52210-B1 note Panel, Rear Door Armrest Base, Upper RH
2010-11 → 2014-05 ended
NLP121,NSP120 LUNA —
74271-52220-B1 note Panel, Rear Door Armrest Base, Upper RH
2010-11 → 2014-05 ended
NLP121,NSP120 LUNA —
74271-52220-B1 note Panel, Rear Door Armrest Base, Upper RH
2010-11 → 2014-05 ended
NLP121,NSP120 TERRA —
74271-52210-B1 note Panel, Rear Door Armrest Base, Upper RH
2014-05 → 2015-04 ended
NLP121,NSP120 LUNA —
74271-52220-B1 note Panel, Rear Door Armrest Base, Upper RH
2014-05 → 2015-04 ended
NLP121,NSP120 TERRA —
74271-52220-B1 note Panel, Rear Door Armrest Base, Upper RH
2014-05 → 2015-04 ended
NLP121,NSP120 LUNA —
74272A — Panel, Rear Door Armrest Base, Upper LH
74272-52200-B1 note Panel, Rear Door Armrest Base, Upper LH
2010-11 → 2014-05 ended
NLP121,NSP120 LUNA —
74272-52210-B1 note Panel, Rear Door Armrest Base, Upper LH
2010-11 → 2014-05 ended
NLP121,NSP120 LUNA —
74272-52210-B1 note Panel, Rear Door Armrest Base, Upper LH
2010-11 → 2014-05 ended
NLP121,NSP120 TERRA —
74272-52200-B1 note Panel, Rear Door Armrest Base, Upper LH
2014-05 → 2015-04 ended
NLP121,NSP120 LUNA —
74272-52210-B1 note Panel, Rear Door Armrest Base, Upper LH
2014-05 → 2015-04 ended
NLP121,NSP120 TERRA —
74272-52210-B1 note Panel, Rear Door Armrest Base, Upper LH
2014-05 → 2015-04 ended
NLP121,NSP120 LUNA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
