Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

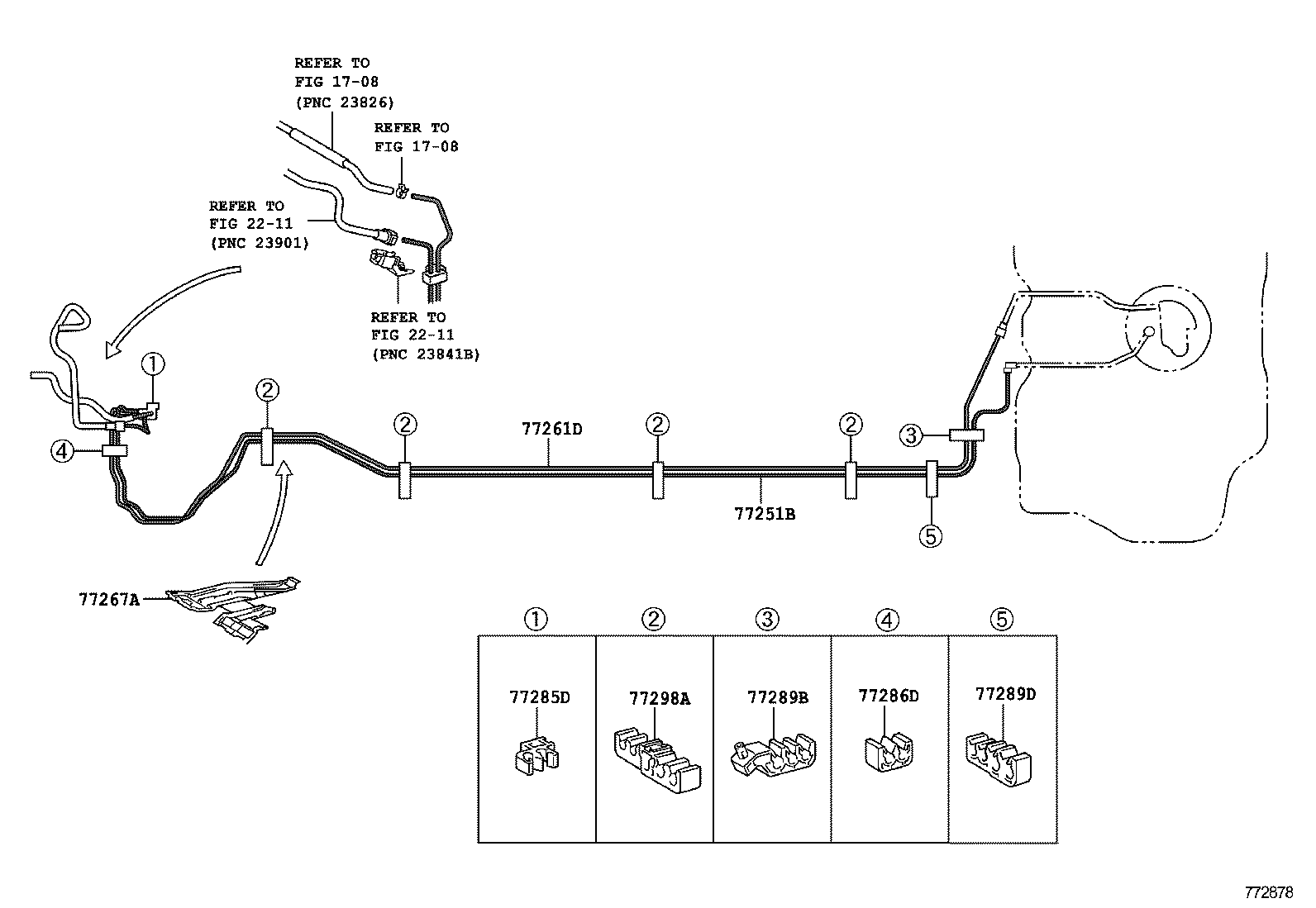

Exploded illustration 772878 77261D — TUBE, FUEL TANK TO CANISTER (2 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (4 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (2 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (2 parts) 77298A — CLAMP, FUEL TUBE, NO.4 (2 parts) 77251B — TUBE, FUEL MAIN (6 parts) 77289D — CLAMP, FUEL TUBE, NO.5 (2 parts) 77267A — PROTECTOR, FUEL TUBE, NO.2 (2 parts) 1708 — not listed in this catalogue 2211 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue
772878 · 8 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-52280 Tube, Fuel Main
2010-11 → 2014-05 ended
NSP120 —
77251-52330 Tube, Fuel Main
2010-11 → 2014-05 ended
NLP121 —
77251-52410 note Tube, Fuel Main
2010-11 → 2014-05 ended
NLP121 —
77251-52280 Tube, Fuel Main
2014-05 → 2015-04 ended
NSP120 —
77251-52330 Tube, Fuel Main
2014-05 → 2015-04 ended
NLP121 —
77251-52410 note Tube, Fuel Main
2014-05 → 2015-04 ended
NLP121 —
77261D — Tube, Fuel Tank TO Canister
77261-52280 Tube, Fuel Tank TO Canister
2010-11 → 2014-05 ended
NSP120 —
77261-52280 Tube, Fuel Tank TO Canister
2014-05 → 2015-04 ended
NSP120 —
77267A — Protector, Fuel Tube, NO.2
77267-52050 Protector, Fuel Tube, NO.2
2010-11 → 2014-05 ended
NLP121,NSP120 —
77267-52050 Protector, Fuel Tube, NO.2
2014-05 → 2015-04 ended
NLP121,NSP120 —
77285D — Clamp, Fuel Tube, NO.1
77285-52060 Clamp, Fuel Tube, NO.1
2010-11 → 2014-05 ended
NSP120 —
77285-52120 Clamp, Fuel Tube, NO.1
2010-11 → 2014-05 ended
NLP121 —
77285-52060 Clamp, Fuel Tube, NO.1
2014-05 → 2015-04 ended
NSP120 —
77285-52120 Clamp, Fuel Tube, NO.1
2014-05 → 2015-04 ended
NLP121 —
77286D — Clamp, Fuel Tube, NO.2
77286-52100 Clamp, Fuel Tube, NO.2
2010-11 → 2014-05 ended
NLP121,NSP120 —
77286-52100 Clamp, Fuel Tube, NO.2
2014-05 → 2015-04 ended
NLP121,NSP120 —
77289B — Clamp, Fuel Tube, NO.3
77289-52060 Clamp, Fuel Tube, NO.3
2010-11 → 2014-05 ended
NLP121,NSP120 —
77289-52060 Clamp, Fuel Tube, NO.3
2014-05 → 2015-04 ended
NLP121,NSP120 —
77289D — Clamp, Fuel Tube, NO.5
77299-52070 Clamp, Fuel Tube, NO.5
2010-11 → 2014-05 ended
NLP121,NSP120 —
77299-52070 Clamp, Fuel Tube, NO.5
2014-05 → 2015-04 ended
NLP121,NSP120 —
77298A — Clamp, Fuel Tube, NO.4
77298-52070 Clamp, Fuel Tube, NO.4
2010-11 → 2014-05 ended
NLP121,NSP120 —
77298-52070 Clamp, Fuel Tube, NO.4
2014-05 → 2015-04 ended
NLP121,NSP120 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
