Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

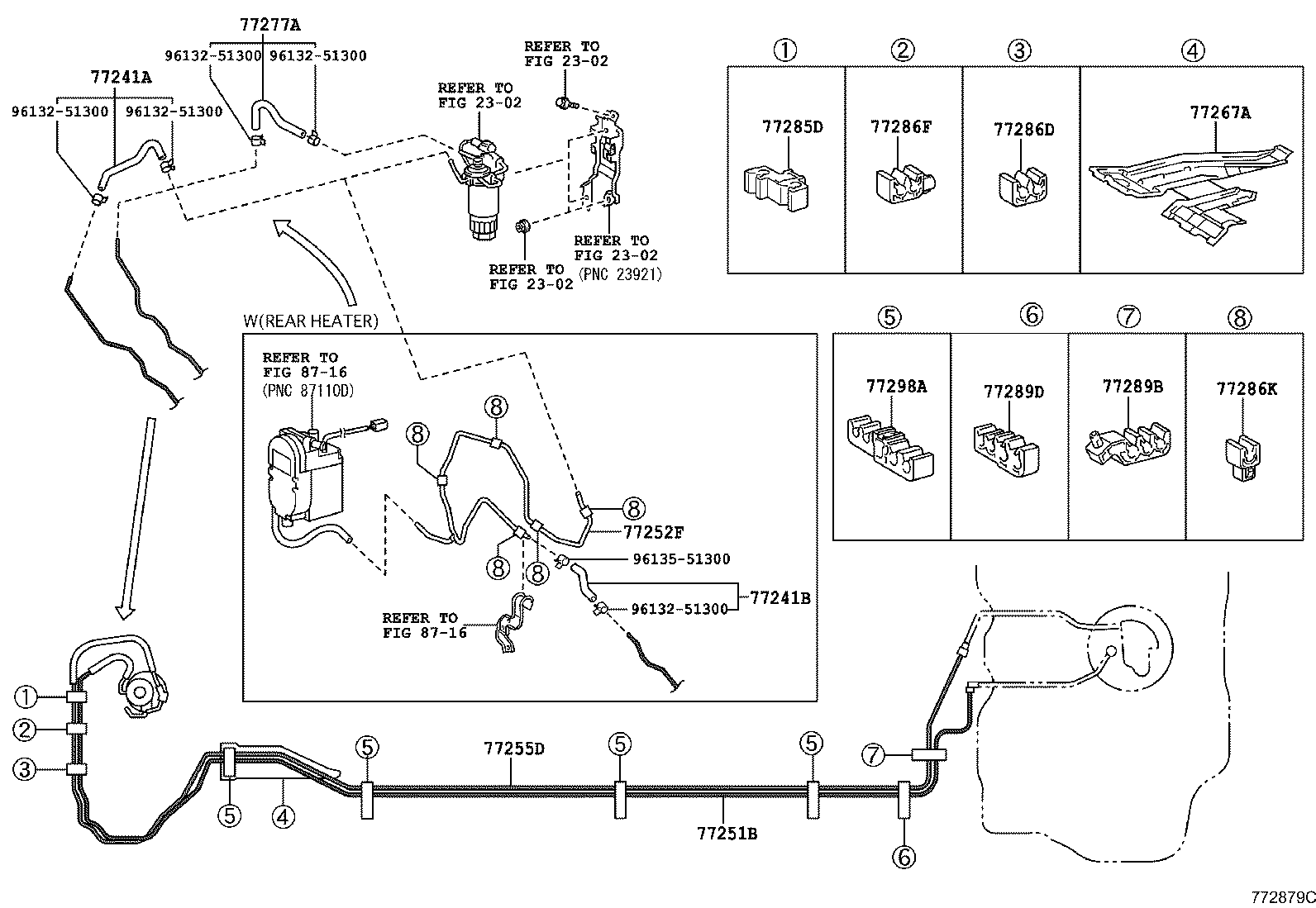

Exploded illustration 772879C 8716 — not listed in this catalogue 77255D — TUBE, FUEL RETURN (4 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (2 parts) 77286F — CLAMP, FUEL TUBE, NO.2 (2 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (4 parts) 77241B — HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) (2 parts) 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (4 parts) 77241A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) (4 parts) 77252F — TUBE, FUEL MAIN, REAR (2 parts) 77286K — CLAMP, FUEL TUBE, NO.2 (2 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (2 parts) 77298A — CLAMP, FUEL TUBE, NO.4 (2 parts) 77289D — CLAMP, FUEL TUBE, NO.5 (2 parts) 77251B — TUBE, FUEL MAIN (6 parts) 9613251300 — not listed in this catalogue 9613251300 — not listed in this catalogue 9613251300 — not listed in this catalogue 9613251300 — not listed in this catalogue 9613551300 — not listed in this catalogue 9613251300 — not listed in this catalogue 77267A — PROTECTOR, FUEL TUBE, NO.2 (2 parts) 2302 — not listed in this catalogue 8716 — not listed in this catalogue 2302 — not listed in this catalogue 2302 — not listed in this catalogue 2302 — not listed in this catalogue
772879C · 14 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
77241A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77409-52010 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
2010-11 → 2014-05 ended
NLP121 —
77409-52010 Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
2010-11 → 2014-05 ended
NLP121 —
77409-52010 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
2014-05 → 2015-04 ended
NLP121 —
77409-52010 Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
2014-05 → 2015-04 ended
NLP121 —
77241B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77049-52020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
2010-11 → 2014-05 ended
NLP121 —
77049-52020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
2014-05 → 2015-04 ended
NLP121 —
77251B — Tube, Fuel Main
77251-52280 Tube, Fuel Main
2010-11 → 2014-05 ended
NSP120 —
77251-52330 Tube, Fuel Main
2010-11 → 2014-05 ended
NLP121 —
77251-52410 note Tube, Fuel Main
2010-11 → 2014-05 ended
NLP121 —
77251-52280 Tube, Fuel Main
2014-05 → 2015-04 ended
NSP120 —
77251-52330 Tube, Fuel Main
2014-05 → 2015-04 ended
NLP121 —
77251-52410 note Tube, Fuel Main
2014-05 → 2015-04 ended
NLP121 —
77252F — Tube, Fuel Main, Rear
77252-52050 note Tube, Fuel Main, Rear
2010-11 → 2014-05 ended
NLP121 —
77252-52050 note Tube, Fuel Main, Rear
2014-05 → 2015-04 ended
NLP121 —
77255D — Tube, Fuel Return
77255-52080 Tube, Fuel Return
2010-11 → 2014-05 ended
NLP121 —
77255-52090 note Tube, Fuel Return
2010-11 → 2014-05 ended
NLP121 —
77255-52080 Tube, Fuel Return
2014-05 → 2015-04 ended
NLP121 —
77255-52090 note Tube, Fuel Return
2014-05 → 2015-04 ended
NLP121 —
77267A — Protector, Fuel Tube, NO.2
77267-52050 Protector, Fuel Tube, NO.2
2010-11 → 2014-05 ended
NLP121,NSP120 —
77267-52050 Protector, Fuel Tube, NO.2
2014-05 → 2015-04 ended
NLP121,NSP120 —
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23802-33050 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
2010-11 → 2014-05 ended
NLP121 —
23802-33050 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
2010-11 → 2014-05 ended
NLP121 —
23802-33050 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
2014-05 → 2015-04 ended
NLP121 —
23802-33050 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
2014-05 → 2015-04 ended
NLP121 —
77285D — Clamp, Fuel Tube, NO.1
77285-52060 Clamp, Fuel Tube, NO.1
2010-11 → 2014-05 ended
NSP120 —
77285-52120 Clamp, Fuel Tube, NO.1
2010-11 → 2014-05 ended
NLP121 —
77285-52060 Clamp, Fuel Tube, NO.1
2014-05 → 2015-04 ended
NSP120 —
77285-52120 Clamp, Fuel Tube, NO.1
2014-05 → 2015-04 ended
NLP121 —
77286D — Clamp, Fuel Tube, NO.2
77286-52100 Clamp, Fuel Tube, NO.2
2010-11 → 2014-05 ended
NLP121,NSP120 —
77286-52100 Clamp, Fuel Tube, NO.2
2014-05 → 2015-04 ended
NLP121,NSP120 —
77286F — Clamp, Fuel Tube, NO.2
77286-52130 Clamp, Fuel Tube, NO.2
2010-11 → 2014-05 ended
NLP121 —
77286-52130 Clamp, Fuel Tube, NO.2
2014-05 → 2015-04 ended
NLP121 —
77286K — Clamp, Fuel Tube, NO.2
77286-52110 note Clamp, Fuel Tube, NO.2
2010-11 → 2014-05 ended
NLP121 —
77286-52110 note Clamp, Fuel Tube, NO.2
2014-05 → 2015-04 ended
NLP121 —
77289B — Clamp, Fuel Tube, NO.3
77289-52060 Clamp, Fuel Tube, NO.3
2010-11 → 2014-05 ended
NLP121,NSP120 —
77289-52060 Clamp, Fuel Tube, NO.3
2014-05 → 2015-04 ended
NLP121,NSP120 —
77289D — Clamp, Fuel Tube, NO.5
77299-52070 Clamp, Fuel Tube, NO.5
2010-11 → 2014-05 ended
NLP121,NSP120 —
77299-52070 Clamp, Fuel Tube, NO.5
2014-05 → 2015-04 ended
NLP121,NSP120 —
77298A — Clamp, Fuel Tube, NO.4
77298-52070 Clamp, Fuel Tube, NO.4
2010-11 → 2014-05 ended
NLP121,NSP120 —
77298-52070 Clamp, Fuel Tube, NO.4
2014-05 → 2015-04 ended
NLP121,NSP120 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
