Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

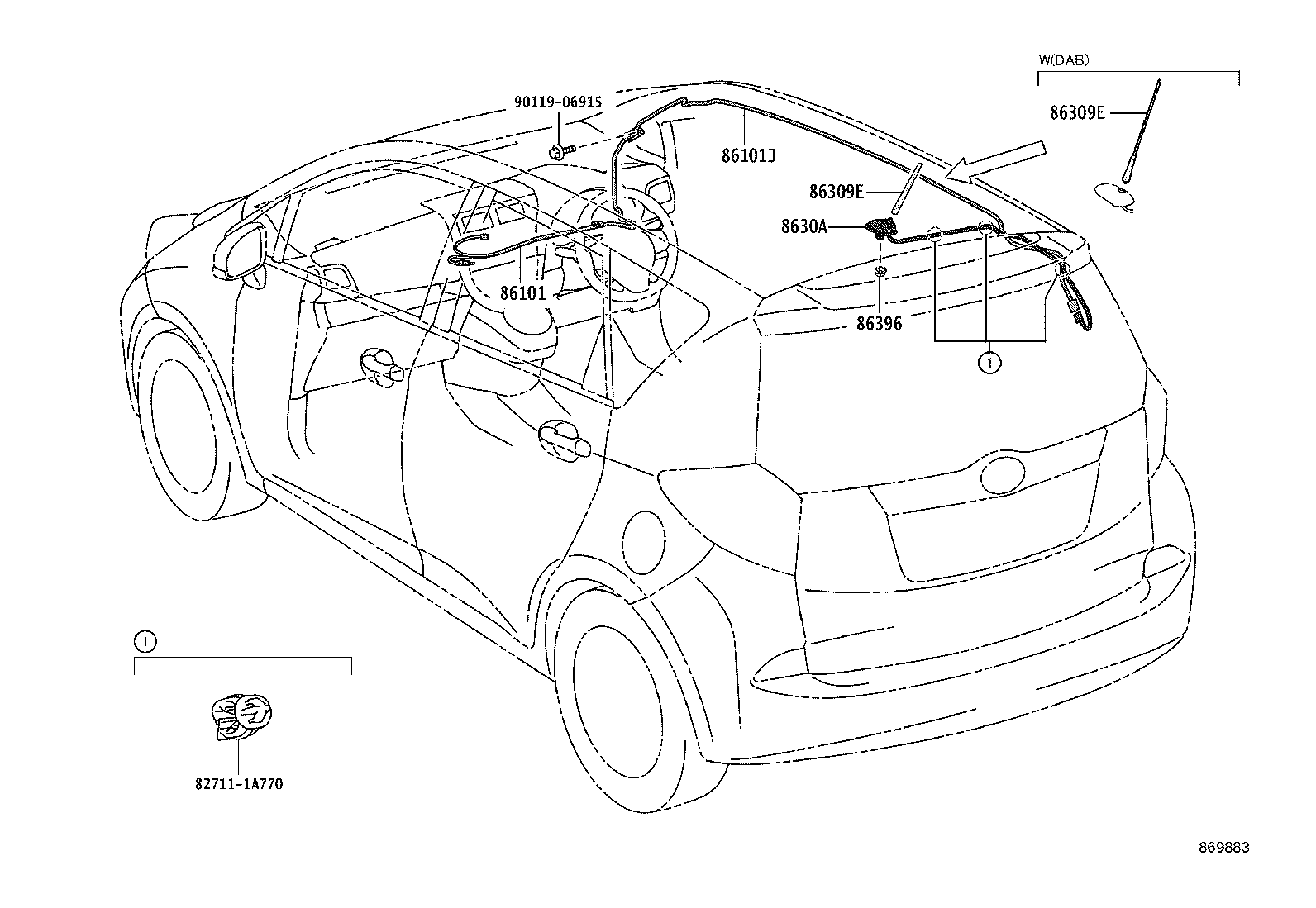

Exploded illustration 869883 86101 — CORD SUB-ASSY, ANTENNA (6 parts) 86101J — CORD SUB-ASSY, ANTENNA, NO.2 (4 parts) 8630A — ANTENNA SUB-ASSY, RADIO (1 parts) 86309E — POLE SUB-ASSY, ROOF ANTENNA (4 parts) 86396 — NUT, ANTENNA (2 parts) 827111A770 — not listed in this catalogue 9011906915 — not listed in this catalogue 86309E — POLE SUB-ASSY, ROOF ANTENNA (4 parts)
869883 · 6 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
86101 — Cord Sub-assy, Antenna
86101-52750 Cord Sub-assy, Antenna
2010-11 → 2014-05 ended
NLP121,NSP120 LHD —
86101-52780 Cord Sub-assy, Antenna
2010-11 → 2014-05 ended
NSP120 RHD —
86101-52B90 note Cord Sub-assy, Antenna
2013-10 → 2014-05 ended
NLP121,NSP120 LHD LUNA —
86101-52750 Cord Sub-assy, Antenna
2014-05 → 2015-04 ended
NLP121,NSP120 LHD —
86101-52780 Cord Sub-assy, Antenna
2014-05 → 2015-04 ended
NSP120 RHD —
86101-52B90 note Cord Sub-assy, Antenna
2014-05 → 2015-04 ended
NLP121,NSP120 LHD LUNA —
86101J — Cord Sub-assy, Antenna, NO.2
86101-52730 Cord Sub-assy, Antenna, NO.2
2010-11 → 2014-05 ended
NLP121,NSP120 —
86101-52B80 note Cord Sub-assy, Antenna, NO.2
2013-10 → 2014-05 ended
NLP121,NSP120 LHD LUNA —
86101-52730 Cord Sub-assy, Antenna, NO.2
2014-05 → 2015-04 ended
NLP121,NSP120 —
86101-52B80 note Cord Sub-assy, Antenna, NO.2
2014-05 → 2015-04 ended
NLP121,NSP120 LHD LUNA —
86309E — Pole Sub-assy, Roof Antenna
86309-42080 Pole Sub-assy, Roof Antenna
2010-11 → 2014-05 ended
NLP121,NSP120 —
86309-47050 note Pole Sub-assy, Roof Antenna
2013-10 → 2014-05 ended
NLP121,NSP120 LHD LUNA —
86309-42080 Pole Sub-assy, Roof Antenna
2014-05 → 2015-04 ended
NLP121,NSP120 —
86309-47050 note Pole Sub-assy, Roof Antenna
2014-05 → 2015-04 ended
NLP121,NSP120 LHD LUNA —
8630A — Antenna Sub-assy, Radio
86300-52640 Antenna Sub-assy, Radio
2014-05 → 2015-04 ended
NLP121,NSP120 —
86396 — Nut, Antenna
86396-47010 Nut, Antenna
2010-11 → 2014-05 ended
NLP121,NSP120 —
86396-47010 Nut, Antenna
2014-05 → 2015-04 ended
NLP121,NSP120 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
