Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

7 part groups · 2 illustrations

Illustrations

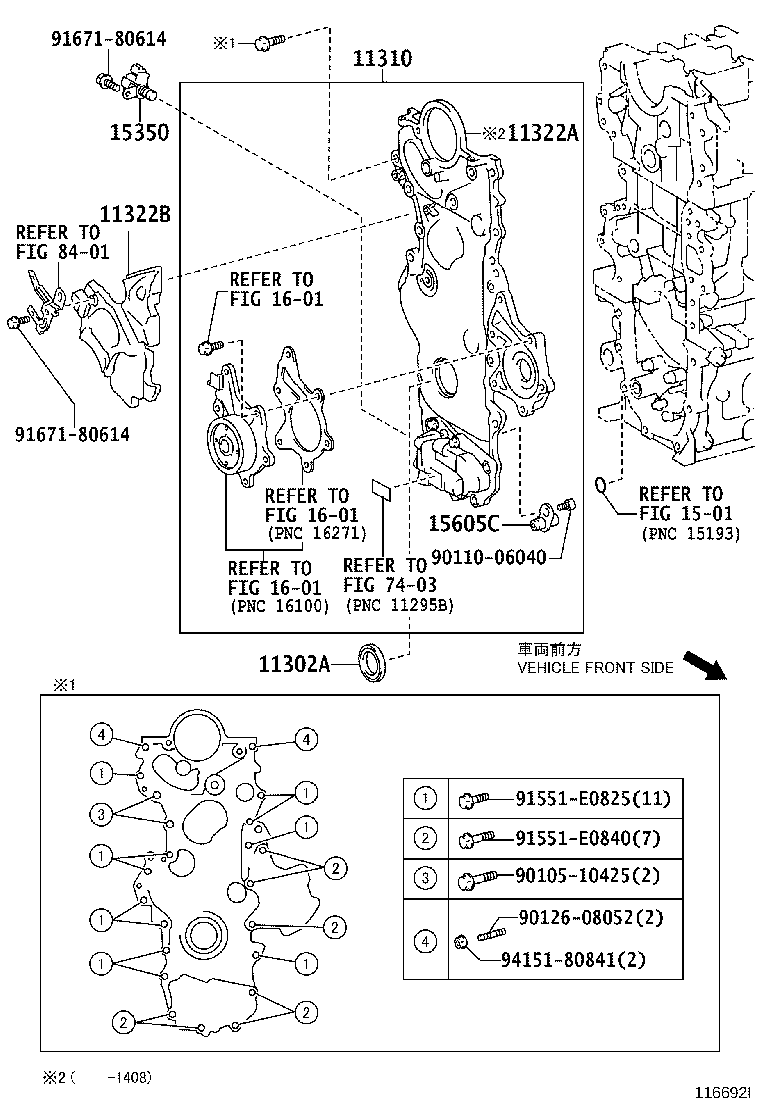

Figure 116713F 116713F 2010-11 → — Figure 116692J 116692J 2010-11 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11310 Cover Assy, Timing Chain
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
15350 Valve Assy, Oil Pressure Switching
15605C Valve Sub-assy, Oil Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
