Toyota Verso-s

2010-11 → 2015-04 · chassis NLP121,NSP120 · catalogue 114530 · Europe

Supported model Data version 2014-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

5 part groups · 2 illustrations

Illustrations

Figure 176929B

176929B 2010-11 → —

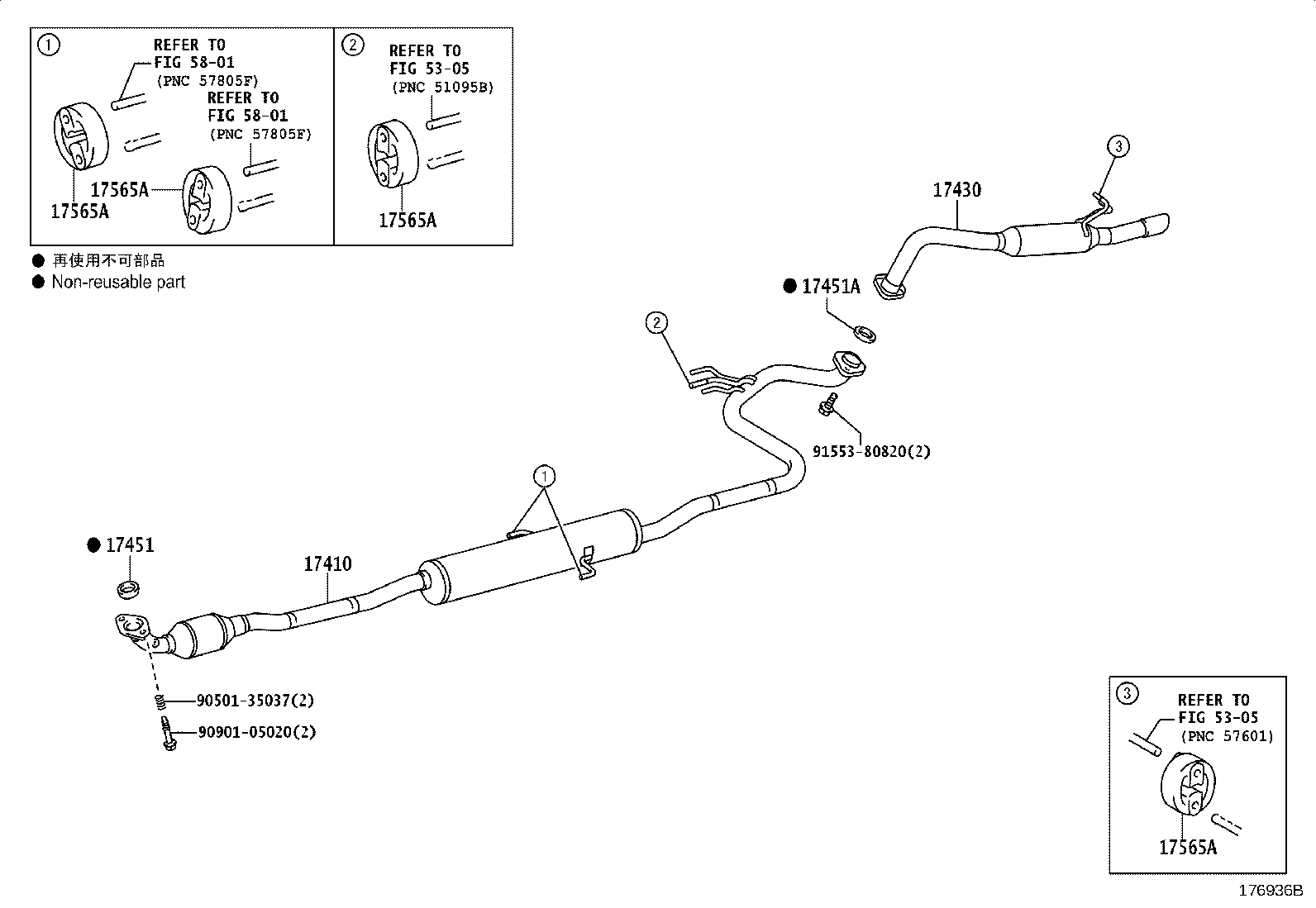

Figure 176936B

176936B 2010-11 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17451A	Gasket, Exhaust Pipe, NO.2
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
